using threadless quill adapter
Hello, I have a miyata 615 1988, and I would like to convert the headset to a threadless so I can easily take off the bar and try out different bars. I was wondering if anyone has used the profile design adapter before or any of these chinese knock off ones. https://www.amazon.ca/Profile-Design...dp/B0028N14GQ/ or https://www.amazon.ca/dp/B071ZDFL61/...ter_B0774M23RK
Although they all appear similar, the profile design is longer by a cm or an 0.393701 inch. I was wondering, if that length is important as the profile design costs 2/3 times more.
Although they all appear similar, the profile design is longer by a cm or an 0.393701 inch. I was wondering, if that length is important as the profile design costs 2/3 times more.
08-13-23 | 09:26 PM
#3
ambulatory senior
Joined: Dec 2016
Posts: 6,451
Likes: 4,517
From: Peoria Il
Bikes: Austro Daimler modified by Gugie! Raleigh Professional and lots of other bikes.
Personally I like as much extension as I can get but I bet either will work. I have used those profiles and they work well.
08-13-23 | 11:44 PM
#4
Dirty Heathen
Joined: Oct 2015
Posts: 2,324
Likes: 1,046
From: MC-778, 6250 fsw
Bikes: 1997 Cannondale, 1976 Bridgestone, 1998 SoftRide, 1989 Klein, 1989 Black Lightning #0033
I’ve used both of those; and the Origin8 version as well, for the same reasons as the OP; converting old 1” road bikes in order to use modern 31.8 mm bars, and it’s easier to swap stems to adjust bike fit, even after you’ve wrapped the bars.
No real functional difference between them, but the Profile and Origin8 have nicer finished top caps, if that’s a thing you’d notice
No real functional difference between them, but the Profile and Origin8 have nicer finished top caps, if that’s a thing you’d notice
08-14-23 | 12:01 AM
#5
Senior Member
Joined: Mar 2015
Posts: 1,106
Likes: 518
From: New Zealand
Bikes: Gunnar, Concorde, Peugeot 753, Marin, Pete Tansley, Rocky Mtn, Worldrider, Francis Quinlan, Bob Jackson, Winora, Avanti, Klein, Quintana Roo, Shogun, Carlton, Emmelle, Specialized
I bought a couple off aliexpress recently.
The angles of the body and the wedge are WAY off. Will post some pictures when I can.
I'm not sure if they're even useable.
The angles of the body and the wedge are WAY off. Will post some pictures when I can.
I'm not sure if they're even useable.
08-14-23 | 12:08 AM
#6
Master Parts Rearranger
Joined: Mar 2015
Posts: 4,849
Likes: 2,821
From: Portlandia's Kuiper Belt, OR
Bikes: 1987 Woodrup Competition - 2025 Trek Checkpoint SL 6 Gen 3 - 1987 Lotus Legend - 2024 Trek Emonda ALR Rim Brake - 1980 Trek 510 - 1988 Cannondale SR500 - 1985 Trek 670 - 1982 Trek 730
I've used the Profile Design kind many times. It does the job really well. Worth the money new, still about $20 used at a LBS, at least up until a few years ago, they may be more now. That will be a quicker and easier upgrade than the superb Innicycle headset that a forum member designed (and produces and sells), and of which many of us have and are using, myself included. Innicycle headsets are beautiful and look top notch when installed and in use.
08-14-23 | 08:15 AM
#7
Senior Member
Joined: Jan 2010
Posts: 3,396
Likes: 4,887
From: se MIch.
Bikes: 1938 claud butler,1983 Basso,teledyne titan,teocali super,nrs,1993 stumpjumper fsr,Paramountain,Paramount Buell(sold),4 banger,Zaskar LE,Colnago Master Ibex MTB,1987ish,.etc....
Adapters

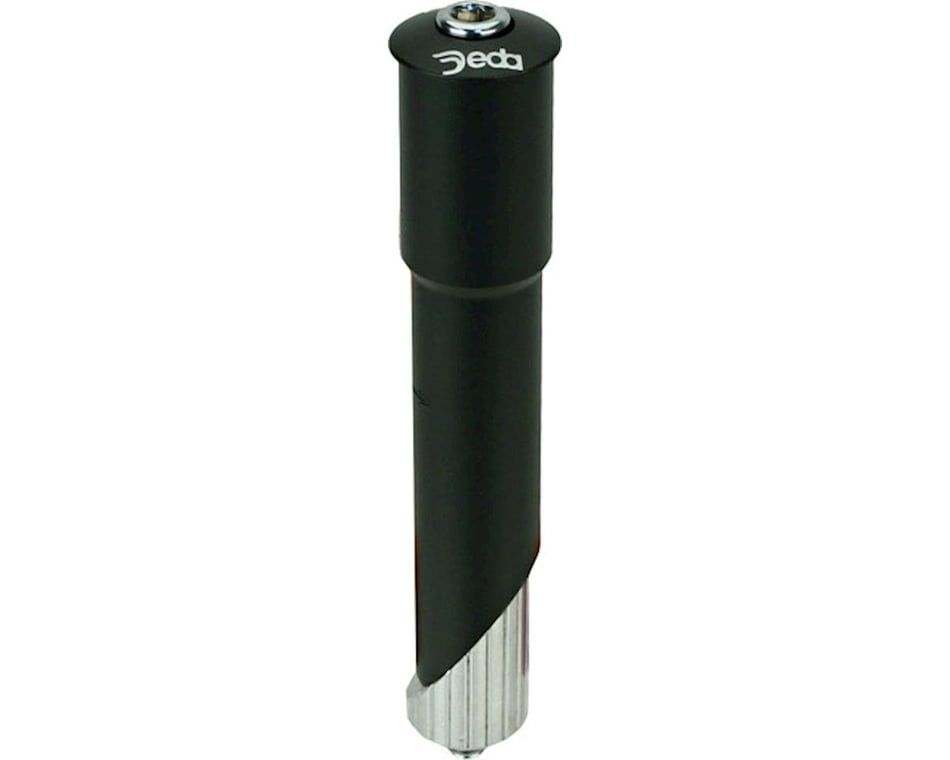

Deda is best quality but profile works well.use spacers under the stem to fill in the gap.
08-14-23 | 10:20 AM
#8
Senior Member
Joined: Oct 2015
Posts: 16,174
Likes: 9,552
From: PDX
Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2
08-14-23 | 03:34 PM
#9
Senior Member
Joined: Jul 2010
Posts: 1,788
Likes: 722
Cinelli and a very few others made a few angled stems with two and three bolts on the face that allows you to take out the assembled handlebar.
You could also just get extra traditional
stems to stay with each handlebar.
You could also just get extra traditional
stems to stay with each handlebar.
