Frame ID help please
Hi Guys,

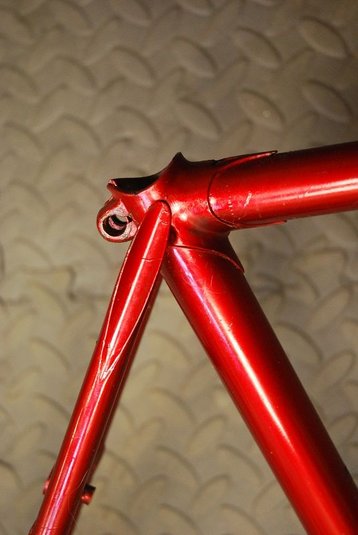

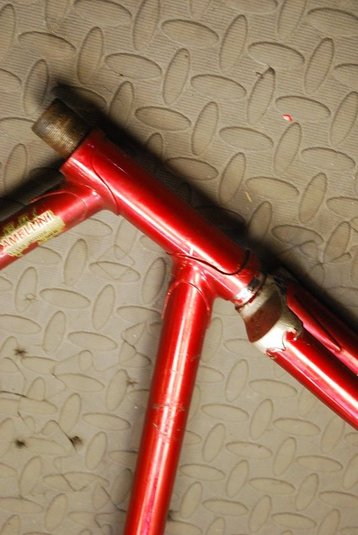

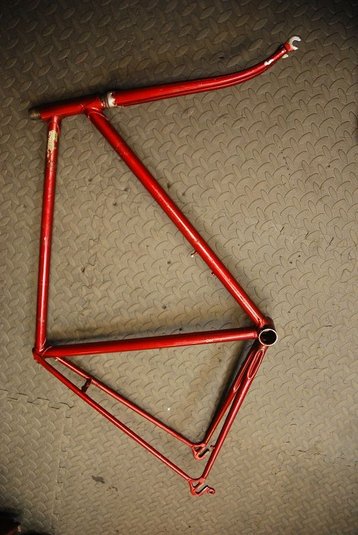

Just stripped this frame down as it had parts I needed for another build - pretty sure the frame is junk as the top tube has some severe rust but its quite a cool looking frame - pretty sure its columbus sl, campy dropouts, Italian threads, bolted brake mounts not allen bolt, looks to have been repainted by a shop in Brittany, France in the mid `80`s - no decals, any ideas?
Thanks, Dan
Just stripped this frame down as it had parts I needed for another build - pretty sure the frame is junk as the top tube has some severe rust but its quite a cool looking frame - pretty sure its columbus sl, campy dropouts, Italian threads, bolted brake mounts not allen bolt, looks to have been repainted by a shop in Brittany, France in the mid `80`s - no decals, any ideas?
Thanks, Dan
09-10-24 | 11:59 PM
#2

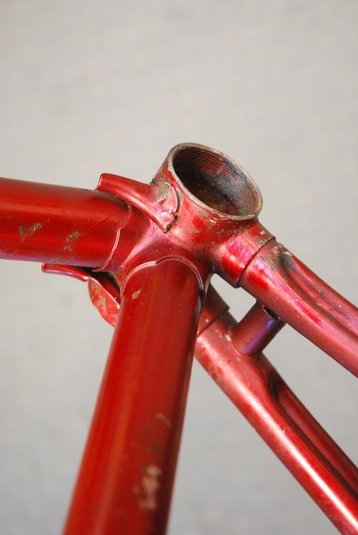

that top headlug looks quite unusual, but want to see a better close-up in case I'm not reading it correctly. The long fluted stay cap is also distinctive ditto how deep the crimping is on the chainstays.
One pair of WB bosses but NO top tube cable guides or shifter bosses?
One pair of WB bosses but NO top tube cable guides or shifter bosses?
09-11-24 | 12:16 AM
#3
Cyclotouriste
Joined: Aug 2009
Posts: 11,789
Likes: 7,010
From: South Holland, NL
Bikes: Yes, please.
The pics don't ring any bells with me, but it does look interesting enough to be worth investigating if the rust is really fatal.
More and bigger pictures of the frame's details, such as lug cutouts, fork crown and BB shell, may help more knowledgeable people than me recognizing it.
More and bigger pictures of the frame's details, such as lug cutouts, fork crown and BB shell, may help more knowledgeable people than me recognizing it.
09-11-24 | 04:45 AM
#4
Senior Member
Joined: Feb 2013
Posts: 15,369
Likes: 4,392
From: Alta California
-----
serial?
markings on steerer?
underside of shell plain? or cutouts?
w/b and perhaps other braze-ons likely additions
is chain stay stop Campag Nr. 621 or something else?
if make additional imagery better lighting please
perhaps our @MauriceMoss shall drop in on his next forum visitation...
-----
serial?
markings on steerer?
underside of shell plain? or cutouts?
w/b and perhaps other braze-ons likely additions
is chain stay stop Campag Nr. 621 or something else?
if make additional imagery better lighting please
perhaps our @MauriceMoss shall drop in on his next forum visitation...
-----
09-11-24 | 09:14 AM
#6
Senior Member
Joined: Feb 2013
Posts: 15,369
Likes: 4,392
From: Alta California
-----
thank you for the additional information & images
top tube rust consistent with trainer use
paint removal will afford opportunity to see if any pits go through wall

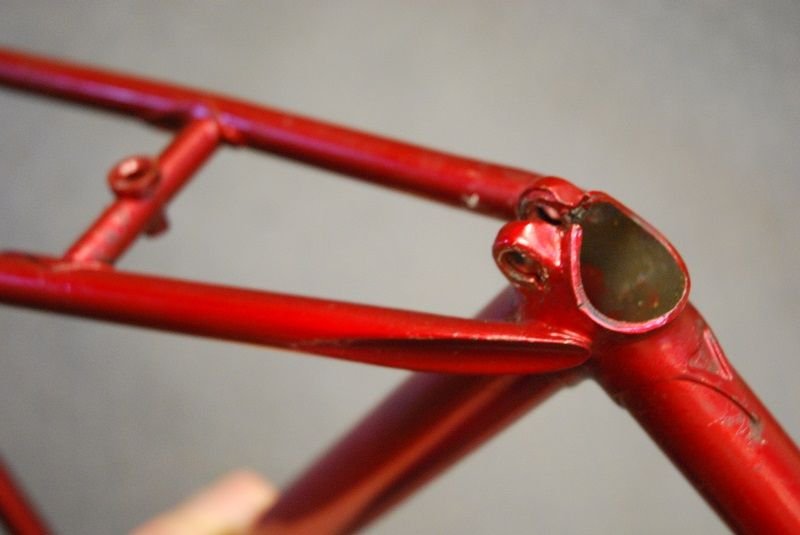

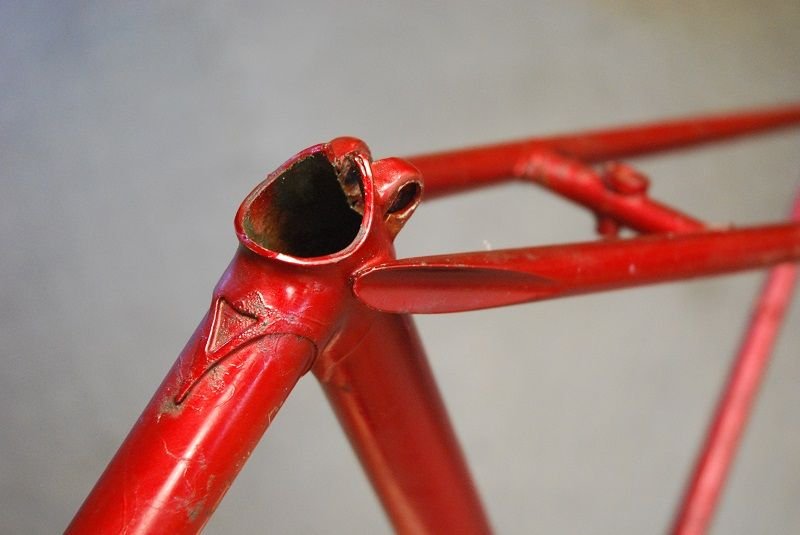

seat binder ears have been reinforced, a quality touch
serial: presence of two sets of marking in addition to size suggests possible licensing
-----
thank you for the additional information & images
top tube rust consistent with trainer use
paint removal will afford opportunity to see if any pits go through wall
seat binder ears have been reinforced, a quality touch
serial: presence of two sets of marking in addition to size suggests possible licensing
-----
Last edited by juvela; 09-11-24 at 10:00 AM. Reason: addition
09-11-24 | 11:40 AM
#7
yes, those pix are a help but so might be confirmation of the dropouts (guessing 'long' Campy 1010A or similar) and what seat post diameter fits.
Agreed that this probably came from the '70s when braze-on bits were not in fashion, so the WB bosses were added later. Ditto the nutted brakes, can't say if I've seen that forkcrown before based on the single pic.
Only thing that rings a faint (not reliable) bell for me is I think I've seen this style of stay caps on Romani frames, but @MauriceMoss will certainly nail this, as he always does!
Agreed that this probably came from the '70s when braze-on bits were not in fashion, so the WB bosses were added later. Ditto the nutted brakes, can't say if I've seen that forkcrown before based on the single pic.
Only thing that rings a faint (not reliable) bell for me is I think I've seen this style of stay caps on Romani frames, but @MauriceMoss will certainly nail this, as he always does!
