Deep Chanel Rim Strips?
#1
Thread Starter
Senior Member



Joined: Jan 2015
Posts: 5,836
Likes: 3,421
From: Los Angeles
Bikes: 82 Medici, 85 Ironman, 2011 Richard Sachs
Deep Chanel Rim Strips?

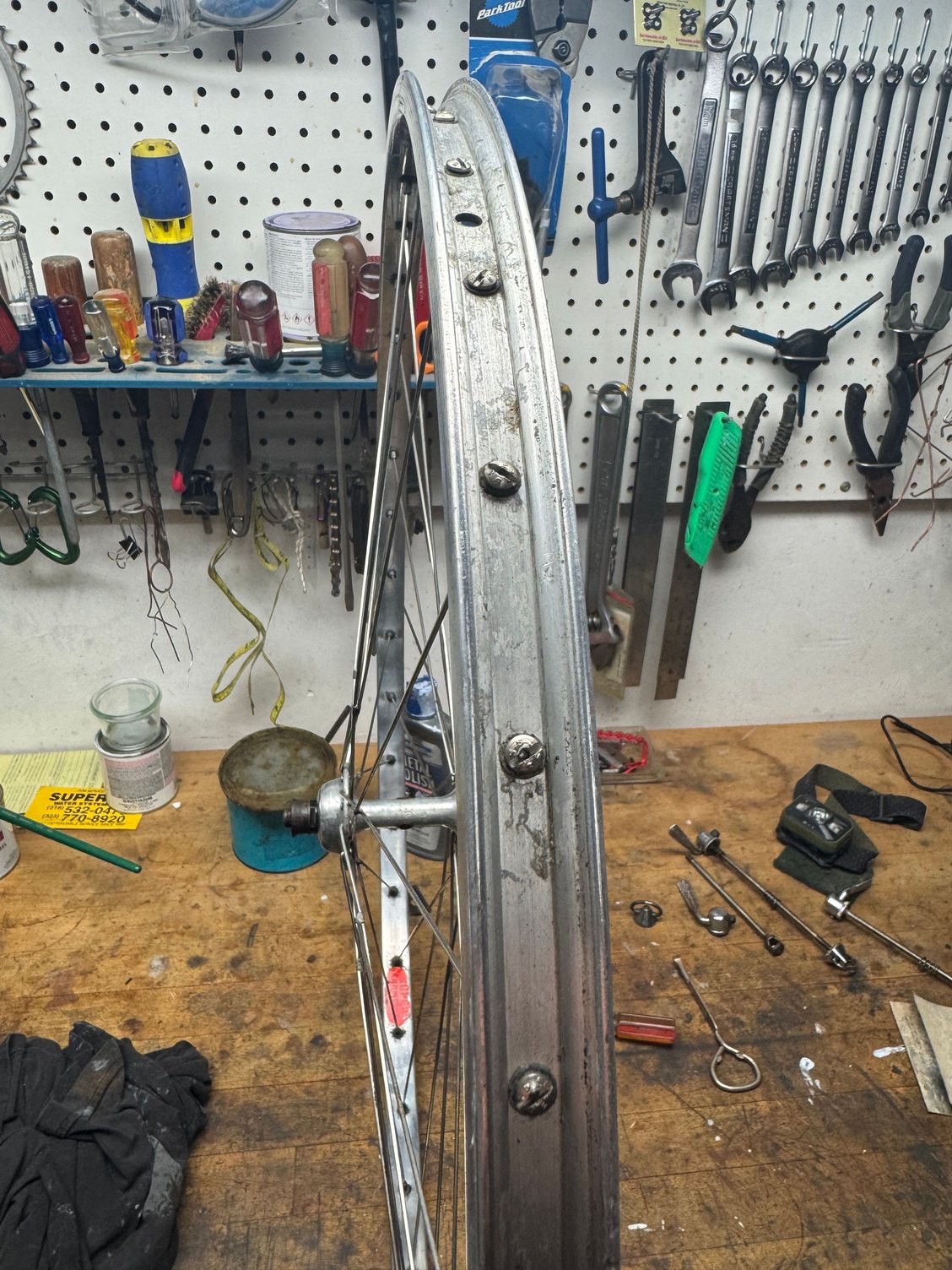

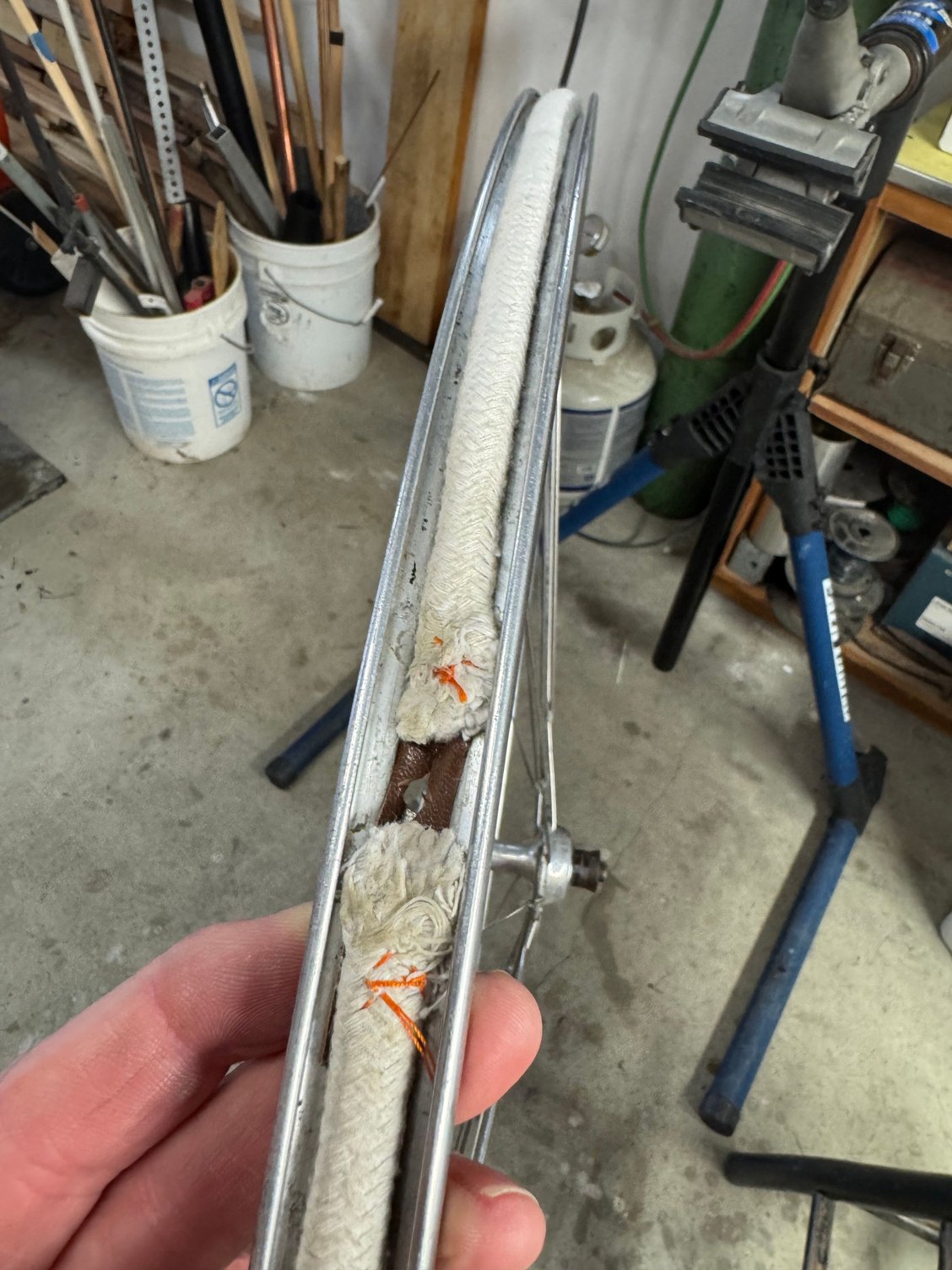

These Super Champion rims came on my ‘74 Le Champion. One still had a rope rim strip and I may put that back on. The other rim had a rubber strip. I may ride this bike far from home and want dependable rim strips. What will stay put over the nipples?






__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs. But I do hate all e-bikes.
I don't do: disks, tubeless, e-shifting, or bead head nymphs. But I do hate all e-bikes.
#2
So it goes...


Joined: Apr 2014
Posts: 1,160
Likes: 1,024
From: W. Tennessee
Bikes: A few. Quite a few.
Schwalb makes 15mm tape that works well for me, 50m for $27 or so, don't know if it comes in shorter rolls. When it's as narrow as yours it laps the sides of the trough but so far no issues with that. Ymmv of course...
__________________
Pohl's law: Nothing is so good that somebody, somewhere, will not hate it.
Pohl's law: Nothing is so good that somebody, somewhere, will not hate it.
#3
Senior Member


Joined: Jan 2019
Posts: 2,031
Likes: 1,067
From: Toledo Ohio
Bikes: 1964 Huffy Sportsman, 1972 Fuji Newest, 1973 Schwinn Super Sport (3), 1982 Trek 412, 1983 Trek 700, 1989 Miyata 1000LT, 1991 Bianchi Boardwalk, plus others
I use rubber, but also 10 mm Velox or other cotton strips. The other problem you may already be aware of is flats from tubes stretching into that deep channel. They get thin when expanding into the void and chaffing eventually cause flats along the inside. As per recommended by others here, a wide tube like for 43-47mm tires is the cure.
#4
Senior Member

Joined: Dec 2016
Posts: 2,976
Likes: 1,846
From: Long Island, NY
Bikes: Trek 800 x 2, Schwinn Heavy Duti, Schwinn Traveler, Schwinn Le Tour Luxe, Schwinn Continental, Cannondale M400 and Lambert, Schwinn Super Sport
I like rubber rim strips. As far as protection they seem to be pretty good. Velox tape was always good, but I recently had an experience with it where it didn't stick and that made mounting the tire a challenge. I don't like electric tape or Kapton tape. That is just my opinion.
I will have to look at that Schwalbe tape. Generally, products from them seem to be pretty good.
I will have to look at that Schwalbe tape. Generally, products from them seem to be pretty good.
Last edited by Velo Mule; 07-23-25 at 09:01 PM.
#5
I would ise a layer of Velox covered with a layer of 17mm Kapton, which will keep the cloth tape from shifting.
Agree that next tube size up is a good idea.
Agree that next tube size up is a good idea.
__________________
Hard at work in the Secret Underground Laboratory...
Hard at work in the Secret Underground Laboratory...
#6
Bikes are okay, I guess.



Joined: Jan 2015
Posts: 8,029
Likes: 3,792
From: Richmond, Virginia
Bikes: Waterford Paramount Touring, Raleigh Sports 3-speeds in M23 & L23, Schwinn Cimarron oddball build, Marin Palisades Trail dropbar conversion, Nishiki Cresta GT, Jeunet mixte
Narrow Velox with fiber-reinforced strapping tape over it.
#8
aka Tom Reingold




Joined: Jan 2009
Posts: 44,299
Likes: 6,556
From: New York, NY, and High Falls, NY, USA
Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem
I've tried many things with varying degrees of success. My pathological frugality led me to use filament tape, Gorilla tape, etc. I've come back around to Velox tape, Rubber strips tend to slide sideways and to rot. Filament tape doesn't last long and can fail by letting the spoke nipple puncture the tube.
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog
“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author
Please email me rather than PM'ing me. Thanks.
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog
“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author
Please email me rather than PM'ing me. Thanks.
#9
Senior Member

Joined: Feb 2017
Posts: 874
Likes: 604
From: Concord, NC
Bikes: 1984 Bianchi Tipo Corsa, 1985 Cannondale SM600 (24/26)
I have always used Velox tape. I never tried "layering" things since I never had an issue with Velox and, I think the less room you have in the rim "channel" the more difficult it might be to mount very tight tires. It was a chore getting my 18c Vittoria tires with Kevlar bead on my Mavic rims even with just one layer of Velox, but a normal chore.
#10
Thread Starter
Senior Member



Joined: Jan 2015
Posts: 5,836
Likes: 3,421
From: Los Angeles
Bikes: 82 Medici, 85 Ironman, 2011 Richard Sachs

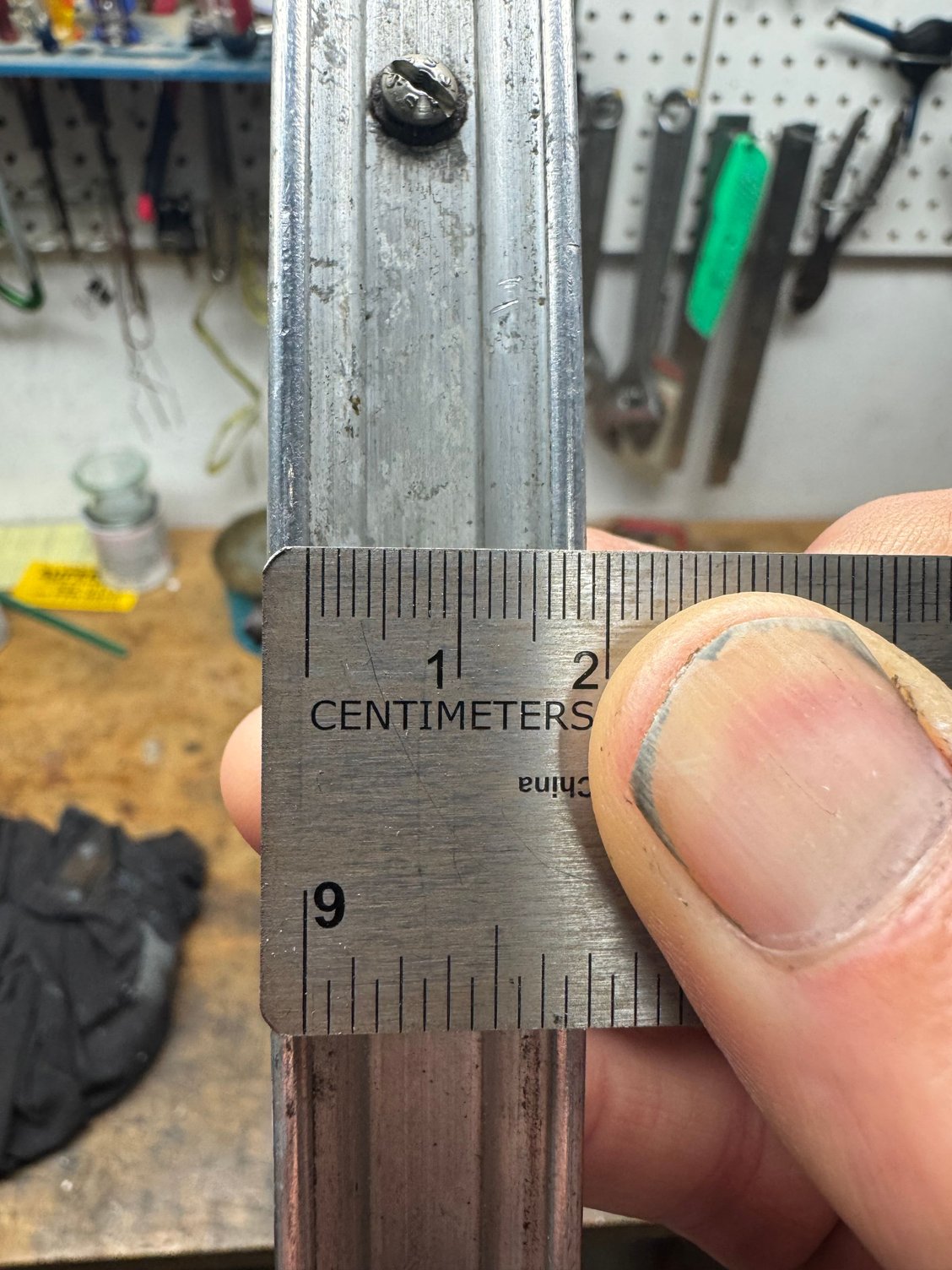

That channel is DEEP and the nipple head is tall. I have a similar pair of Saturae MTB rims where a narrow rubber strip seems to stay put where Velox would slip off the side and expose the edge of the nipple. Because the rubber will flex between nipples maybe it has less tendency to be pushed off the nipple under tire pressure. But, rubber rim strips on my LC!? And I don’t think I can bring myself to use two layers of tape.
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs. But I do hate all e-bikes.
I don't do: disks, tubeless, e-shifting, or bead head nymphs. But I do hate all e-bikes.
#11
Thread Starter
Senior Member



Joined: Jan 2015
Posts: 5,836
Likes: 3,421
From: Los Angeles
Bikes: 82 Medici, 85 Ironman, 2011 Richard Sachs

OG

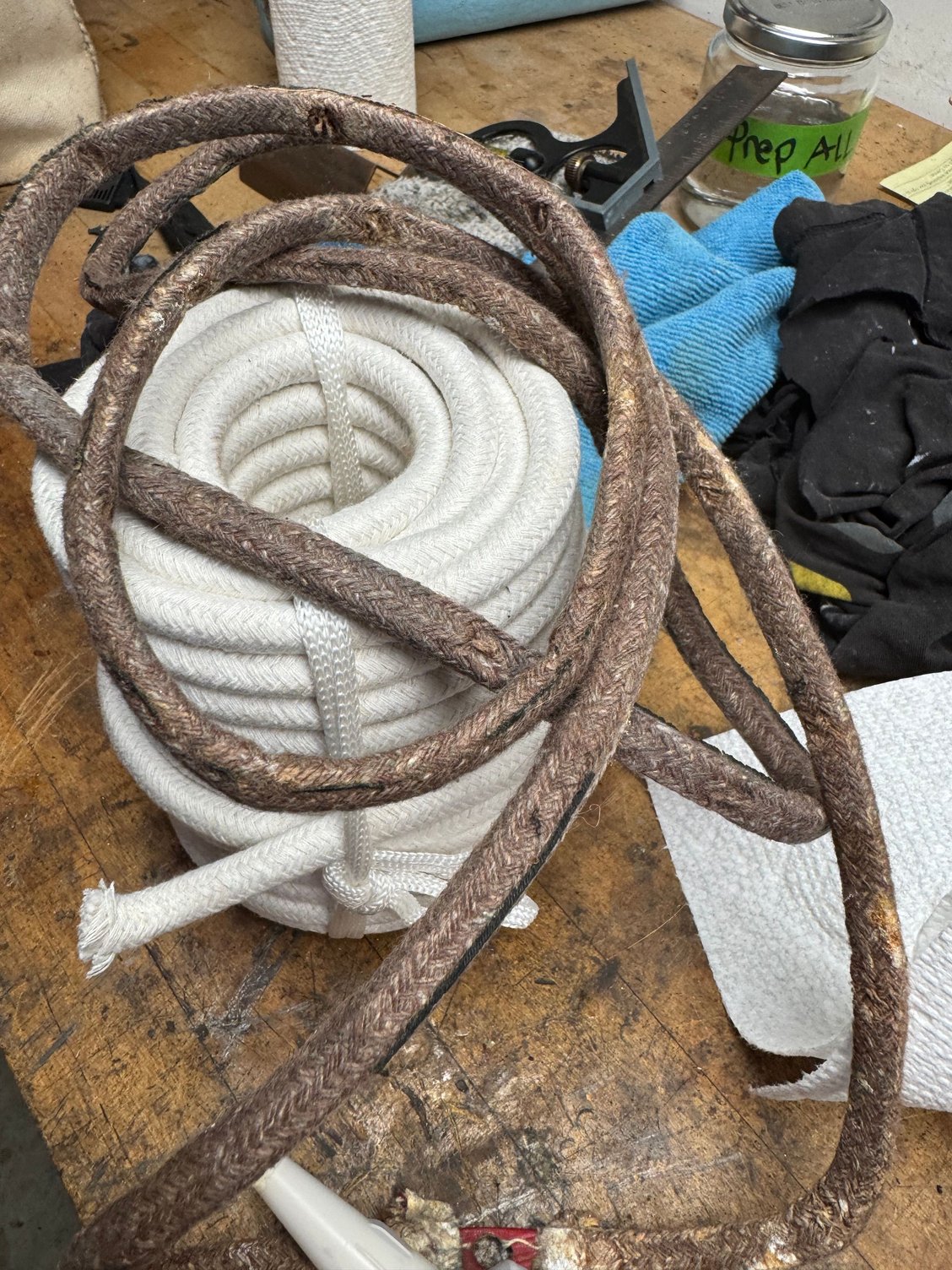

Maybe a silly mm wide?

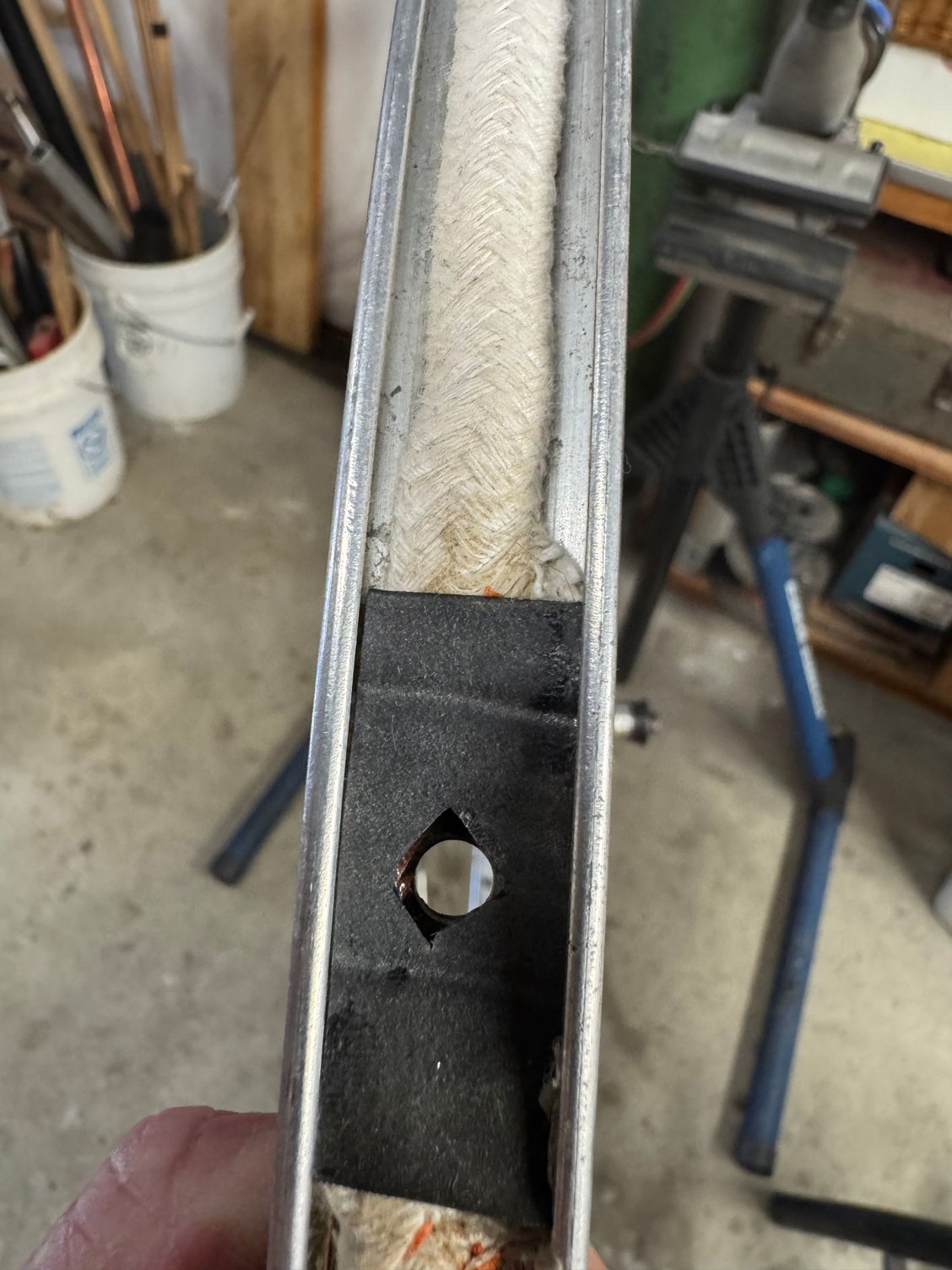

Tires and tubes are next.
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs. But I do hate all e-bikes.
I don't do: disks, tubeless, e-shifting, or bead head nymphs. But I do hate all e-bikes.
#12
Senior Member


Joined: May 2010
Posts: 5,626
Likes: 2,497
From: Bastrop Texas
Bikes: Univega, Peu P6, Peu PR-10, Ted Williams, Peu UO-8, Peu UO-18 Mixte, Peu Dolomites

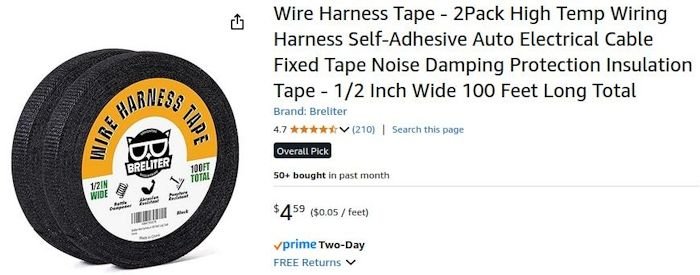

I would use two wraps of Cloth Electrical Tape and also reinforce the area around the valve stem. I tried using it about 10 years ago and it remains proven. You can get it in various sizes to suit your rim too. The 1" wide tape can also be used as Bar Wrap!

Amazon, but also at many Hardware and Auto Parts stores...

Amazon, but also at many Hardware and Auto Parts stores...
__________________
No matter where you're at... There you are... Δf:=f(1/2)-f(-1/2)
