This crank is too close, right?
02-25-26 | 05:49 PM
#1
Thread Starter
Old School Member
Joined: Feb 2007
Posts: 55
Likes: 29
From: Oshkosh, WI
Bikes: '86 Peugeot Triathlon, '89 Fisher Hybrid, '90 Bridgestone MB-3, '90 Bianchi Volpe, '91 Trek 6000, '94 Trek 750, '96 Trek 930, '97 Trek 6000, '02 Gary Fisher Zebrano & '06 LeMond Croix de Fer
This crank is too close, right?

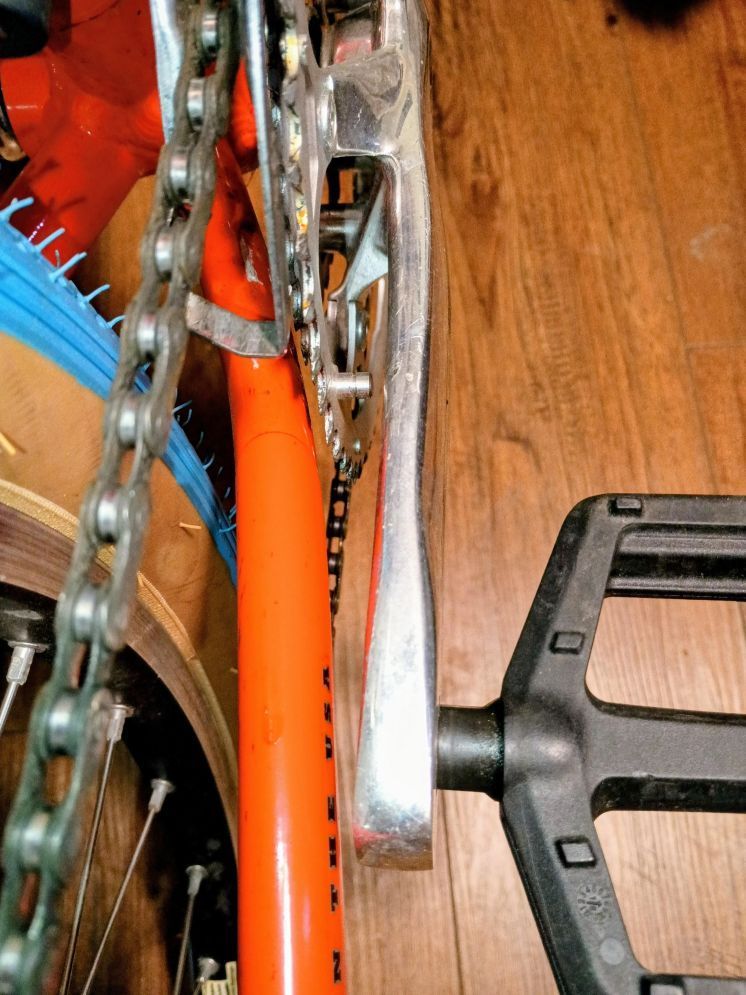

This is the '98 Trek 8500 I picked up last week, it has full XT except for the crank which he replaced with a 52/42/30 FSA Tempo, doh!
There is about only 3 mm of clearance from the chain ring and the crank arm to the chain stay, that is too close, correct?
There is about only 3 mm of clearance from the chain ring and the crank arm to the chain stay, that is too close, correct?
02-25-26 | 06:07 PM
#2
Senior Member
Joined: Apr 2009
Posts: 3,701
Likes: 5,481
From: Seattle
No, that's probably fine. You could try riding it and stop if it contacts, unless the paint is too precious to risk it?
Most BB spindle/bearing units allow you to space it over to the right a little with a spacer under the fixed cup, if you feel it necesary. Theoretically could make t hit on the left though.
Most BB spindle/bearing units allow you to space it over to the right a little with a spacer under the fixed cup, if you feel it necesary. Theoretically could make t hit on the left though.
02-25-26 | 06:36 PM
#3
Francophile
Joined: Nov 2015
Posts: 4,782
Likes: 2,088
From: Seattle
Bikes: Lots
I have a couple bikes that have 1.5-2 mm spacing between the crank and stay. As long as it's put together square and tight, you'll be ok.
__________________
Keeping Seattle’s bike shops in business since 1978
Keeping Seattle’s bike shops in business since 1978
02-25-26 | 07:13 PM
#5
Senior Member
Joined: Jul 2007
Posts: 3,747
Likes: 6,063
From: Manhattan & Woodstock NY
Bikes: 2024 A Homer Hilsen, 1992 Paramount PDG Series, 1991 Mercian King of Mercia, 1987 Mercian Pro, 1985 Shogun 500, 1969? Falcon San Remo, 1972 Peugeot PX-10, 1972 Schwinn Paramount P13-9, 1971 Peugeot PX-10, 1970 Raleigh Pro Mk I
Does it work? If so, go ride.
__________________
2024 A Homer Hilsen, 1992 Paramount PDG Series, 1991 Mercian King of Mercia, 1987 Mercian Pro, 1985 Shogun 500, 1972 Peugeot PX-10, 1972 Schwinn Paramount P13-9, 1971 Peugeot PX-10, 1970 Raleigh Pro Mk I, 1969? Falcon San Remo
Curator/Team Mechanic: 2016 Dawes Streetfighter, 1984 Lotus Eclair, 1975 Motobecane Jubile Mixte, 1974 Raleigh Sports, 1973 Free Spirit Ted Williams, 1972 Raleigh Super Course, 1971 Philips Sport
2024 A Homer Hilsen, 1992 Paramount PDG Series, 1991 Mercian King of Mercia, 1987 Mercian Pro, 1985 Shogun 500, 1972 Peugeot PX-10, 1972 Schwinn Paramount P13-9, 1971 Peugeot PX-10, 1970 Raleigh Pro Mk I, 1969? Falcon San Remo
Curator/Team Mechanic: 2016 Dawes Streetfighter, 1984 Lotus Eclair, 1975 Motobecane Jubile Mixte, 1974 Raleigh Sports, 1973 Free Spirit Ted Williams, 1972 Raleigh Super Course, 1971 Philips Sport
02-25-26 | 08:32 PM
#7
Junior Member
Joined: Aug 2025
Posts: 133
Likes: 131
I think that's their "winter coat".
Never really considered the crank/chainstay gap, just for the halibut went and checked all mine (which are original as far as I know) and the gaps are at least 3x to what the OP is showing. I can't imagine anything could ever get caught in that gap, so it's not a safety issue either.
Never really considered the crank/chainstay gap, just for the halibut went and checked all mine (which are original as far as I know) and the gaps are at least 3x to what the OP is showing. I can't imagine anything could ever get caught in that gap, so it's not a safety issue either.
02-26-26 | 03:40 AM
#9
Senior Member
Joined: Apr 2007
Posts: 12,563
Likes: 2,739
From: Thunder Bay, Ontario, Canada - burrrrr!
Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 196? Torpado Professional, 2000 Marinoni Piuma
Works for me. No worries there.
__________________
"98% of the bikes I buy are projects".
"98% of the bikes I buy are projects".
02-26-26 | 08:24 AM
#12
My bike's better than me!
Joined: Feb 2005
Posts: 2,265
Likes: 393
From: Northern Colorado
Bikes: Moots Vamoots, 'Dale T2000, DB Response Comp, '98 G. Fisher HKEK, '89 Panasonic DX-6000, '88 Fisher Montare XT, '83 Nishiki Int'l, '72 MB GR, '75 MB GJ, '77 MB LC, '85 Centurion Ironman, '82 Miyata 710
ETA: In thinking about it, I understand why this would work. My gut tells me I'd probably go the spindle route first, if I could.
ETA2: Just noticed bulgie s post above. I guess this is, in part, where my head is at on this one.
Last edited by neil0502; 02-26-26 at 08:31 AM.
02-26-26 | 11:48 AM
#13
Senior Member
Joined: May 2012
Posts: 5,046
Likes: 4,891
From: Point Reyes Station, California
Bikes: Indeed!
My only caution is about the distance between the chainrings and the stay if you are going to be riding this in the mud. It appears from the photo that any chain suck could easily lift the chain into rather brutal contact with the stay.
Brent
Brent
__________________
"I have a tendency to meander sometimes." B.G.
"I have a tendency to meander sometimes." B.G.
02-26-26 | 04:51 PM
#14
Ride, Wrench, Swap, Race
Joined: Jan 2010
Posts: 9,808
Likes: 1,781
From: Northern California
Bikes: Cheltenham-Pedersen racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.
A spot of clear tape should highlight any near-contact with the arm before it ever interferes with the paint itself.
I had this issue on the non-drive side of my Raleigh Team 753 Technium after I installed early-70's Stronglight cranks on a Mavic bottom bracket.
The left arm has less metal surrounding the taper, so is more-easily torqued to where the arm moves inward towards the chainstay.
I re-installed the arm using a bit less bolt torque and with Loctite on the threads, so I have about 2mm now after also shaving a bit of metal from the pedal eye.
I had this issue on the non-drive side of my Raleigh Team 753 Technium after I installed early-70's Stronglight cranks on a Mavic bottom bracket.
The left arm has less metal surrounding the taper, so is more-easily torqued to where the arm moves inward towards the chainstay.
I re-installed the arm using a bit less bolt torque and with Loctite on the threads, so I have about 2mm now after also shaving a bit of metal from the pedal eye.
