Velcro straps will get caught in the straps when using toe clips with cleats, and modern shoes. This makes it difficult to back out of the clips. I ended up removing the velcro straps and melting some shoelace holes in my Sidis.
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs. But I do hate all e-bikes.
I don't do: disks, tubeless, e-shifting, or bead head nymphs. But I do hate all e-bikes.
#27
Senior Member

Joined: Dec 2013
Posts: 2,089
Likes: 350
There's a big problem with rubber-soled vintage look bike shoes. The pedal cage digs into the rubber and then you are stuck. Lifting out of a cleat is something you learn . Not the same as being stuck. Plus the pedal wears out the sole. Quick.
The most vintage way to go is a leather soled shoe. I've had a few pairs of lace-up 80s shoes with plastic soles and Look mounting system. After 40 years the glue is dry and the sole comes right off the upper. The upper goes to the local shoe repair. You do need a good cobbler. Cobbler puts a leather sole on the leather upper. You also need a piece of steel to make the leather sole stiff. From another pair of shoes. If you have nail on cleats you like, do it. Or get real vintage and apply a pedal patch. Which is just a random piece of sole leather glued on the sole. Pedal digs in and makes a slot. It's a soft slot and not that deep. Some will pull out of the pedal, if that happens this is not for you. If you pedal smooth a pedal patch is all you need. And you can walk on it
The most vintage way to go is a leather soled shoe. I've had a few pairs of lace-up 80s shoes with plastic soles and Look mounting system. After 40 years the glue is dry and the sole comes right off the upper. The upper goes to the local shoe repair. You do need a good cobbler. Cobbler puts a leather sole on the leather upper. You also need a piece of steel to make the leather sole stiff. From another pair of shoes. If you have nail on cleats you like, do it. Or get real vintage and apply a pedal patch. Which is just a random piece of sole leather glued on the sole. Pedal digs in and makes a slot. It's a soft slot and not that deep. Some will pull out of the pedal, if that happens this is not for you. If you pedal smooth a pedal patch is all you need. And you can walk on it
#28
Full Member
Joined: Dec 2021
Posts: 366
Likes: 554
From: Massachusetts
Bikes: 1971 Raleigh International + 1980 Dawes Super Galaxy + 1981 Lotus Classique + 1986 Bianchi Sport SX + 2005 Van Dessel Project WR + 2015? Aventón Mataro + 2021 Zizzo Liberté
#29
Senior Member

Joined: Jul 2013
Posts: 2,587
Likes: 909
From: So Cal, for now
Bikes: 1974 Bob Jackson - Nuovo Record, Brooks Pro, Clips & Straps
I have an old pair of MKS Sylvan pedals with clips and straps. My question is what shoe should I use? I use to have an old pair of Avias with a single-grooved cleat. Is that supposed to work with clips or am I supposed to use a completely flat bottom? A new rabbit-hole to explore!
IMO, velcro closures are a non-starter for use with clips and straps. They make it harder to get into the clips and make getting out a bit more dangerous, especially so during emergencies. Emergencies are NOT the time to have complications associated with velcro straps.
#30
Senior Member



Joined: Jan 2015
Posts: 5,776
Likes: 3,327
From: Los Angeles
Bikes: 82 Medici, 85 Ironman, 2011 Richard Sachs
Pedal Patch! This is what I did with my old Sidis But with a piece of hard rubber sole material that I got from the local shoe repair guy. I cut a forefoot shaped piece and attached it with Shoe Goo. Found a good place to put the slot and cut a slot. All Good.
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs. But I do hate all e-bikes.
I don't do: disks, tubeless, e-shifting, or bead head nymphs. But I do hate all e-bikes.
#31
--Shannon
#32
Senior Member



Joined: Jan 2015
Posts: 5,776
Likes: 3,327
From: Los Angeles
Bikes: 82 Medici, 85 Ironman, 2011 Richard Sachs
I used these converted Sidi Genius Mega for training and completing a few long course EroicaCA. My feet are WIDE. Vintage shoes don't do wide.

They eventually totally disintegrated.

They eventually totally disintegrated.
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs. But I do hate all e-bikes.
I don't do: disks, tubeless, e-shifting, or bead head nymphs. But I do hate all e-bikes.
#33

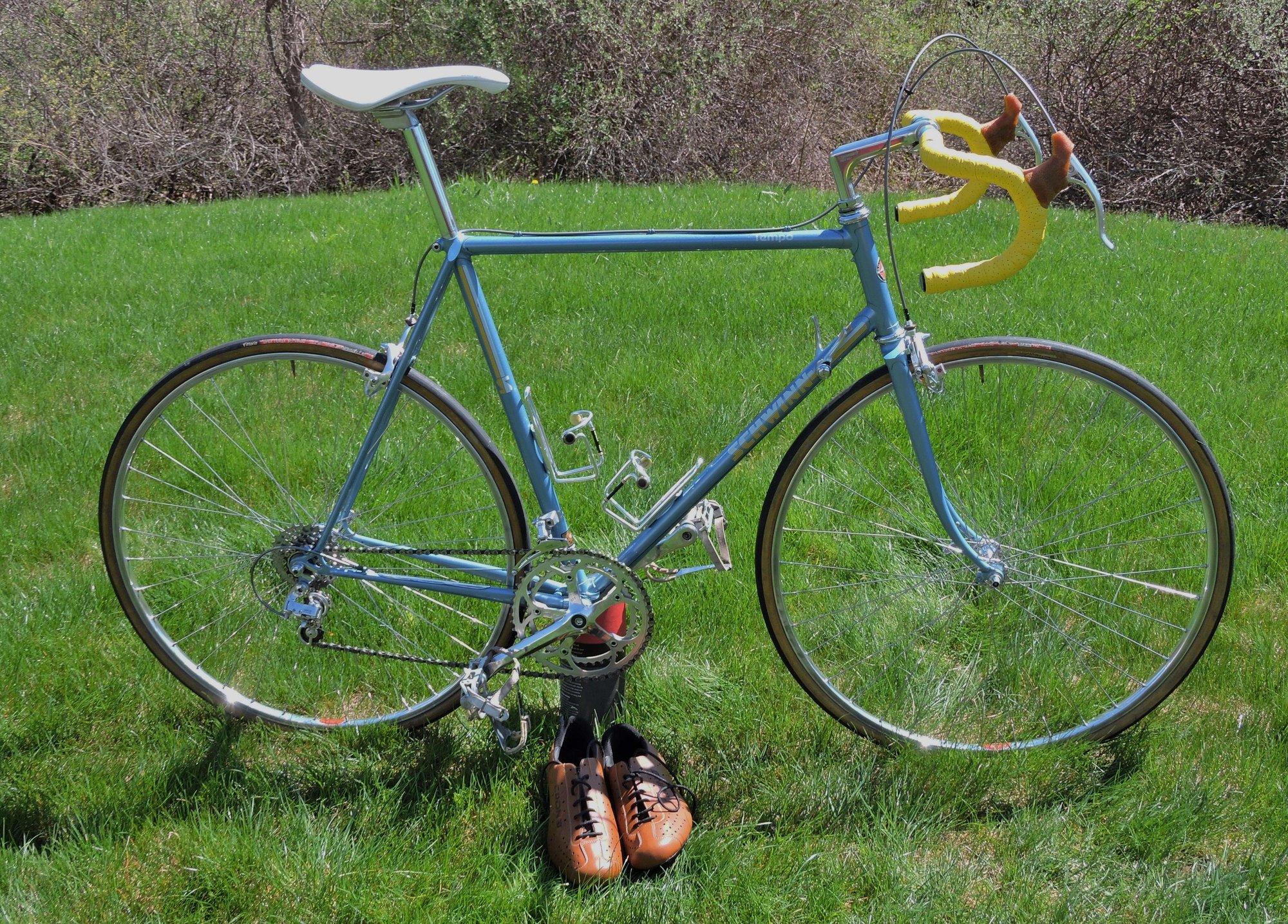

Thought I'd share where I ended up with my journey into clips, straps and shoes. I went overkill with the Crono CV1 to use with a slotted cleat from Classic Velo. Lace-ups with a full carbon sole. When I came across the brown version online, I was hooked. Here are the shoes and the Tempo dressed for the upcoming vintage time trial race series.




#34
Senior Member


Joined: Apr 2007
Posts: 12,563
Likes: 2,739
From: Thunder Bay, Ontario, Canada - burrrrr!
Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 196? Torpado Professional, 2000 Marinoni Piuma

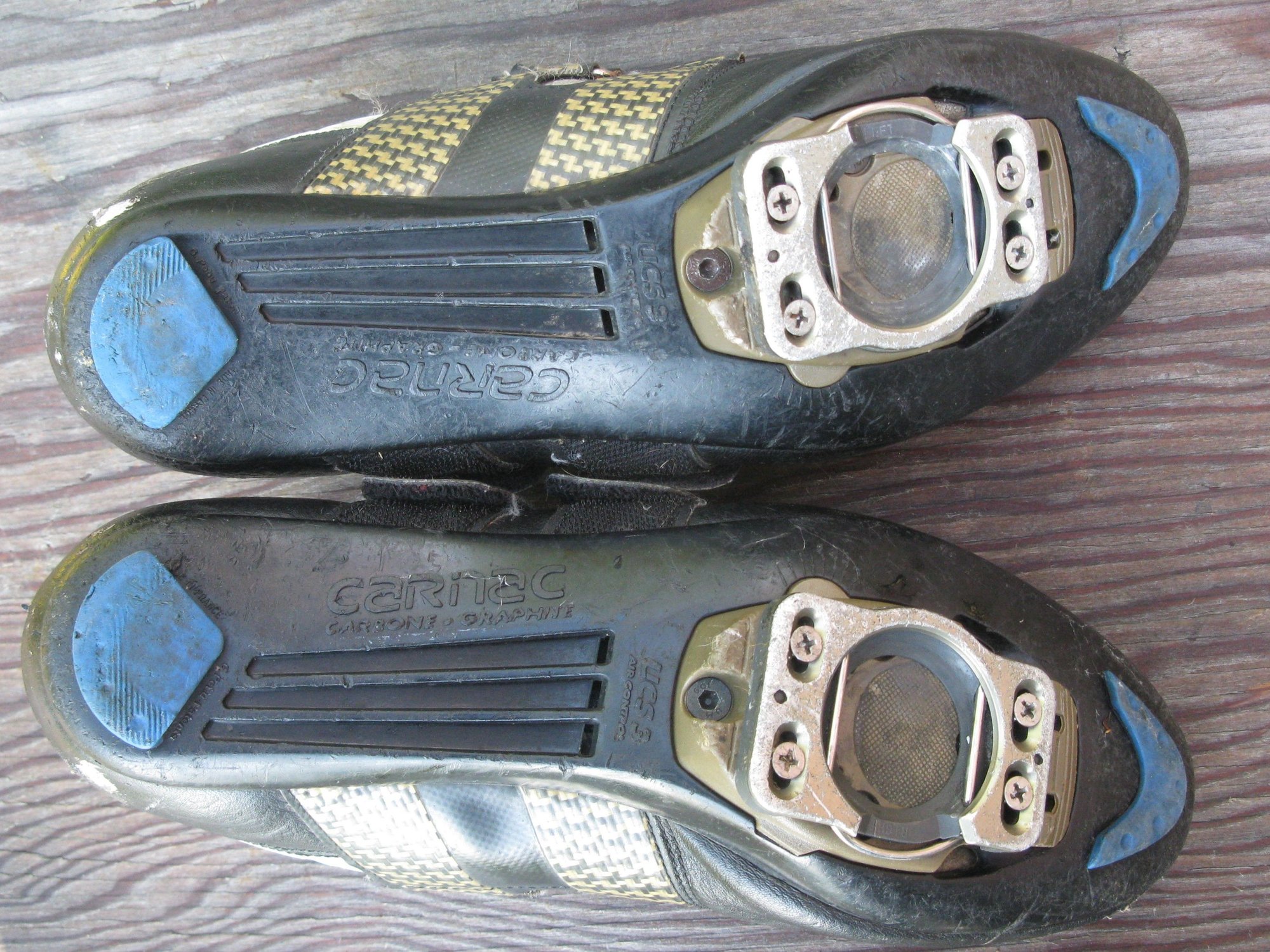

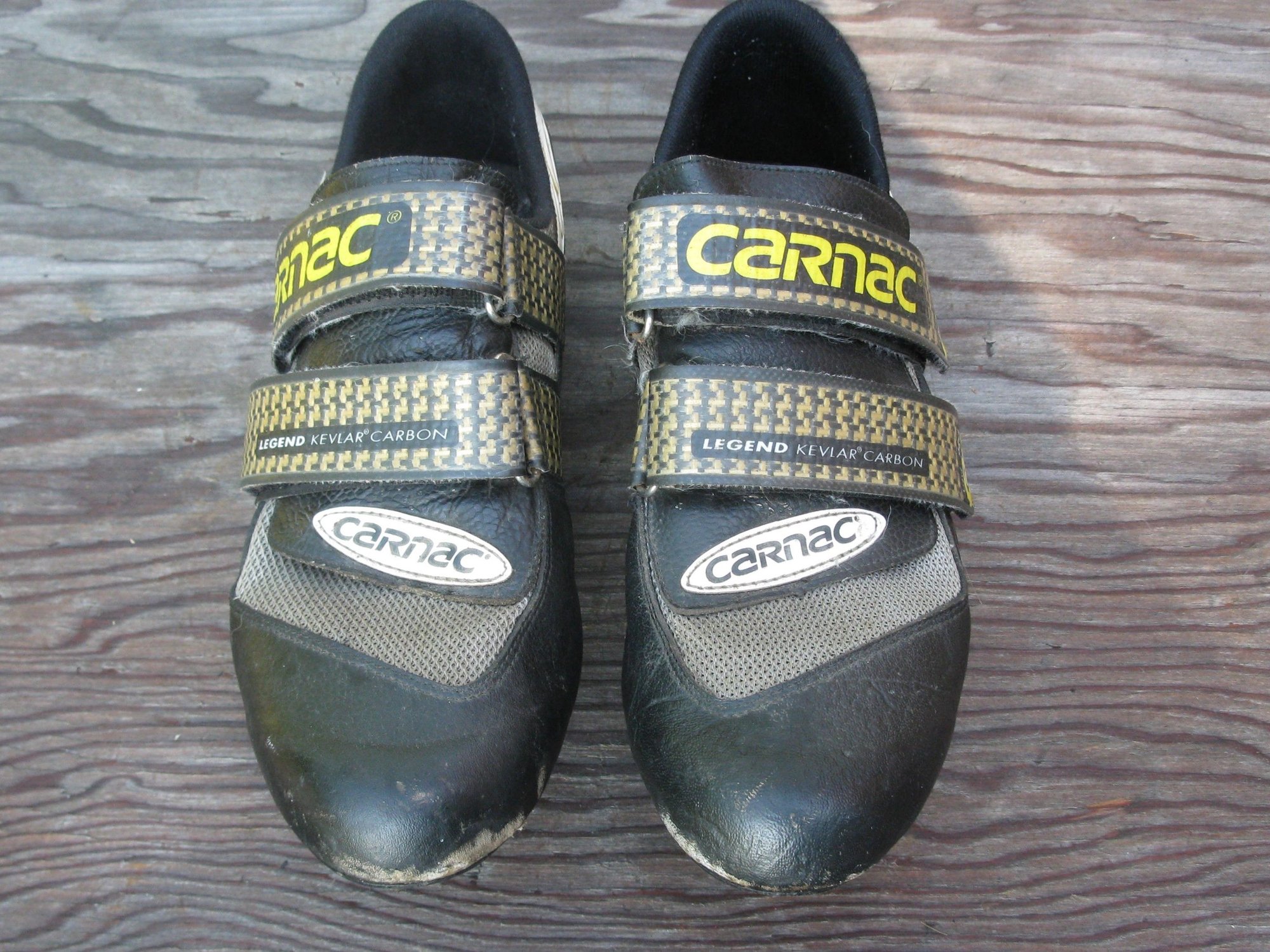

I picked this set up, complete with a pair or size 9 little used shoes. Doubt I will ever use them...



Also have these and the clips, again something I doubt I will ever use...

And I also have a set of egg beaters and shoes but can't find the picture.



Also have these and the clips, again something I doubt I will ever use...

And I also have a set of egg beaters and shoes but can't find the picture.
__________________
"98% of the bikes I buy are projects".
"98% of the bikes I buy are projects".
#35
Senior Member

Joined: Jul 2013
Posts: 2,587
Likes: 909
From: So Cal, for now
Bikes: 1974 Bob Jackson - Nuovo Record, Brooks Pro, Clips & Straps

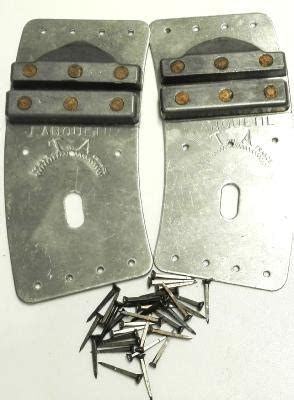

I have a pair of these I will eventually install on my new, leather-soled shoes. I use Campagnolo quill pedals with clips and straps: very C&V all around.


#36
Senior Member


Joined: Jun 2006
Posts: 21,798
Likes: 3,701
many know, a greater percentage used to, after you are happy with the cleat positions, use the longer nails than what would pack with the cleats, when backed up by a steel last, the end of the nail curves back around and locks them in.
#37
Senior Member


Joined: Oct 2014
Posts: 14,151
Likes: 5,273
From: Portland, OR
Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder
One caution in using modern bike shoes with slotted cleats and toeclips is that the toe box on modern bike shoes tends to be taller than those of vintage bike shoes, and may require a taller toeclip to allow the shoe to fit. Look for MTB-style "deep" toeclips if you run into this problem. Mikashima (MKS) and others offer such toeclips. If your pedals require a proprietary toeclip, you may have to change either the shoes or the pedals to make things work.
#38
Senior Member


Joined: Oct 2014
Posts: 14,151
Likes: 5,273
From: Portland, OR
Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder
May I suggest the steel quill pedals, those cleats are known for wearing the SL cages.
many know, a greater percentage used to, after you are happy with the cleat positions, use the longer nails than what would pack with the cleats, when backed up by a steel last, the end of the nail curves back around and locks them in.
many know, a greater percentage used to, after you are happy with the cleat positions, use the longer nails than what would pack with the cleats, when backed up by a steel last, the end of the nail curves back around and locks them in.
79pmooney who has done more that half his gazillion miles on toestraps and slotted cleats and all of his half gazil miles fixed on them.
