simplex dropouts

Reply Subscribe

Thread Tools

Search this Thread

11-02-10 | 06:15 PM

#26

Chombi

Senior Member

Joined: Jul 2009

Posts: 11,128

Likes: 39

Bikes: 1986 Alan Record Carbonio, 1985 Vitus Plus Carbone 7, 1984 Peugeot PSV, 1972 Line Seeker, 1986(est.) Medici Aerodynamic (Project), 1985(est.) Peugeot PY10FC

Peugeot was a major user of Simplex DOs. I am most familiar with the version that has the cylindrical plastic insert to hold the axle position adjusting screws from the 80's and early 90's (I dunno, but there seems to be something about "Delrin" plastic that Simplex was really into it). Otherwise, Many other French makers used Simplex DOs but Peugeot might be the biggest of them. Good thing is, I never really heard of any problems with Simplex DOs, as you might with other brands cracking (I think some Suntour made DOs did that??). Simplex DOs might look plain and simple, but they do stand up to hard use very well.

Chombi

11-02-10 | 07:10 PM

#27

Grand Bois

Senior Member

Joined: Mar 2005

Posts: 17,392

Likes: 40

From: Pinole, CA, USA

Quote:

Originally Posted by bobbycorno

And just to take us down another tangent, what about the clamp-in wheel stops for the older non-drilled dropouts? Seems like they were exceedingly common back in the day, but now are more like hens' teeth.

SP
Bend, OR

Do you ever look on eBay for them? That's where I bought a set.

Last edited by Grand Bois; 11-03-10 at 09:46 AM.

12-11-21 | 11:09 AM

#28

jkom67

Bike Lifer

Joined: Jun 2015

Posts: 2

Likes: 0

From: Ottawa, Canada

Bikes: 60’s Elvish, 80’s Miele, 80’s Miyata, 40’s BSA. Too many more to list!

Hello! Quick question.

Quote:

Originally Posted by Grand Bois

My '74 PA10 has forged Simplex dropouts with an integral hanger. The dropout on the non-drive side has the wheel guide that I've only seen on earlier PX10's.

Curious if your PA10 with the forged Simplex drop outs is high tensile or Reynolds? Thank you very very much!
Jason Retro-Rides.ca

12-11-21 | 09:07 PM

#29

bertinjim

Senior Member

Joined: Mar 2012

Posts: 1,547

Likes: 434

From: Niagara Region, Canada

Bikes: 1970s Alex Singer, 1960s Peugeot PX 10, 1960s Bertin C37, 1973 Carre Bertin C 37, 1972 Carlton Kermesse, 1981 Peugeot PX 14 Super Competition

jkom67-

The PA 10 always used Peugeot hi-tensile tubing in the frame and fork. A Reynolds PG 531 main frame came on the PR 10 and full 531 on the PX 10.

12-12-21 | 04:02 AM

#30

El Chaba

Senior Member

Joined: Dec 2016

Posts: 802

Likes: 1,124

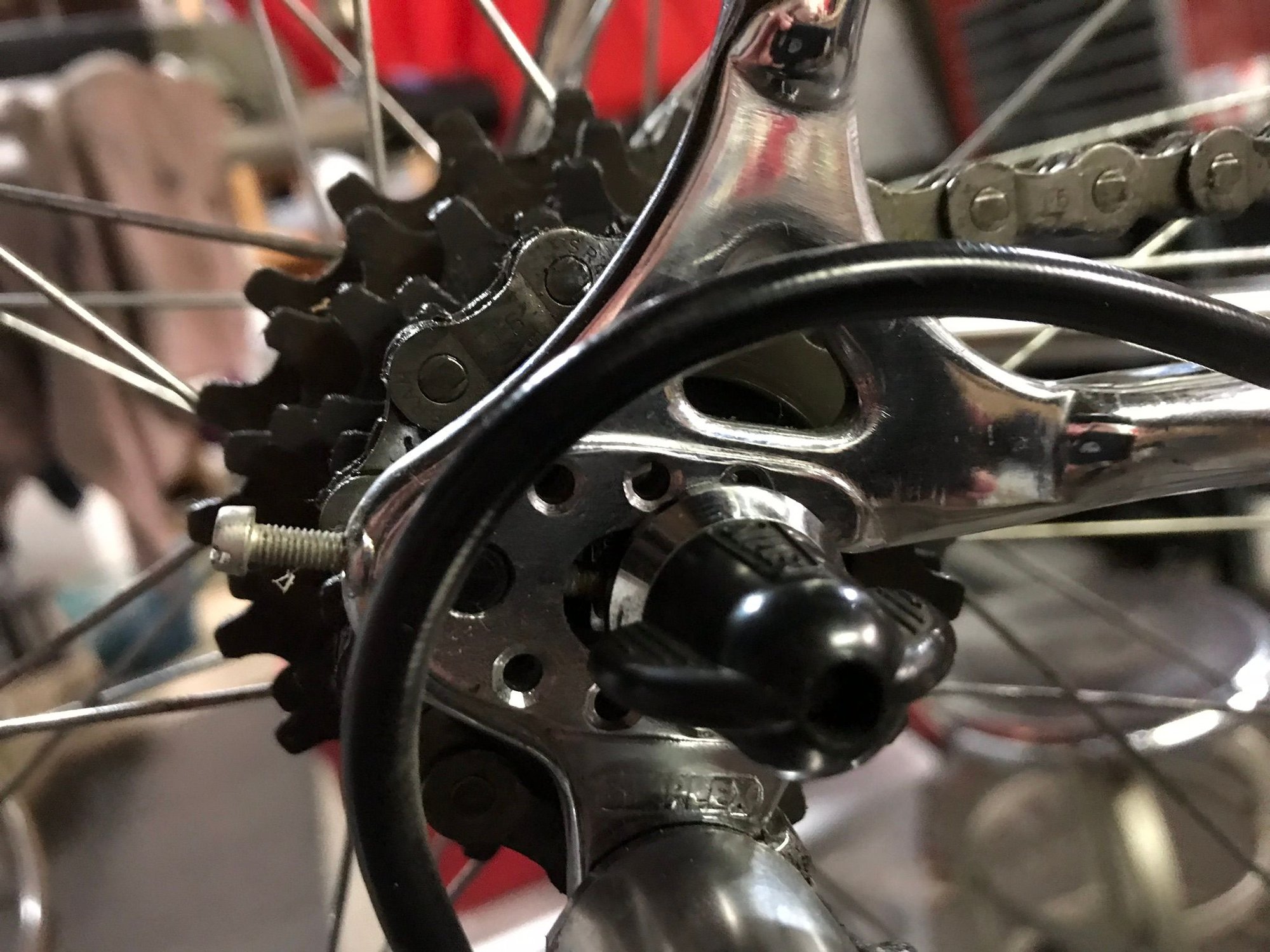

Here is an example of the latest version that has been worked on quite a bit. Peugeot Pro 10.

12-13-21 | 04:37 PM

#31

jkom67

Bike Lifer

Joined: Jun 2015

Posts: 2

Likes: 0

From: Ottawa, Canada

Bikes: 60’s Elvish, 80’s Miele, 80’s Miyata, 40’s BSA. Too many more to list!

Quote:

Originally Posted by bertinjim

jkom67-

The PA 10 always used Peugeot hi-tensile tubing in the frame and fork. A Reynolds PG 531 main frame came on the PR 10 and full 531 on the PX 10.

Thanks for the info.
