Weight of "Typical" Steel Racing Frame ?

Reply Subscribe

Thread Tools

Search this Thread

07-06-23 | 01:28 AM

#76

georges1

Steel is real

Joined: Mar 2013

Posts: 4,571

Likes: 2,648

From: Not far from Paris

Bikes: 93GiantTourer,92MeridaAlbon,96Scapin,98KonaKilaueua,93Peugeot Prestige,05CasatiClipper,98Jamis Dragon,95Tange Prestige(to be built),98VettaTeam,95Coppi,93Grandis,Daccordi x3(in build),98Piton(in build),99Trek SLR2300

My heaviest frame(frame alongwith fork headset and stem) must weight 2.7-2.8 kilos. The rest of my high end steel frames (frame alongwith fork headset and stem) between 2.4-2.7kilos.

07-06-23 | 03:48 AM

#77

52telecaster

ambulatory senior

Joined: Dec 2016

Posts: 6,451

Likes: 4,518

From: Peoria Il

Bikes: Austro Daimler modified by Gugie! Raleigh Professional and lots of other bikes.

Quote:

Originally Posted by Portlandjim

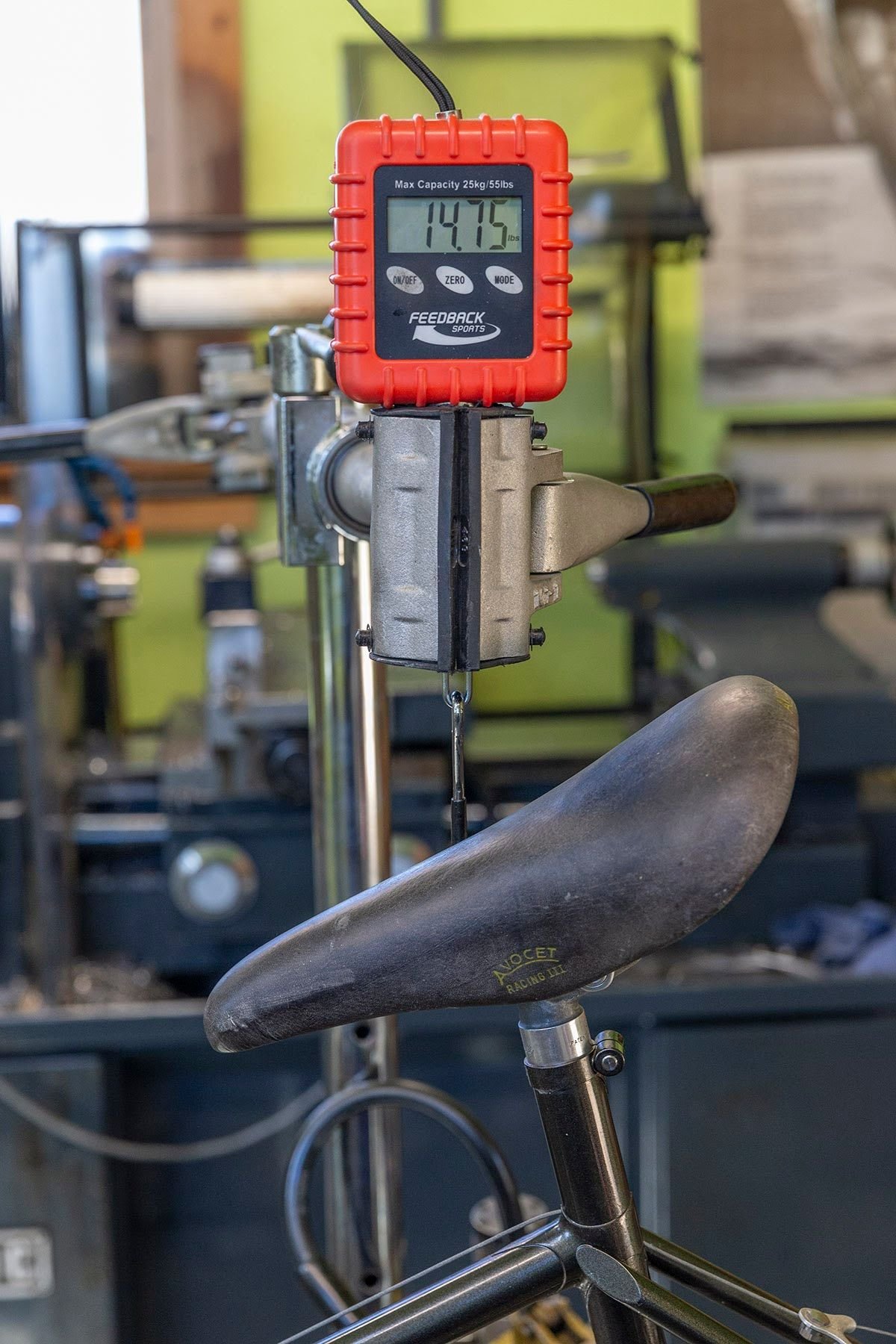

I don't have the frame weight for this bike, but it's light! This frame was made from Columbus Record tubing. Since the photos I made a few more tidbits, and took 1/4 pound off. This weight is with pedals and not super light tires. Photos here: https://photos.app.goo.gl/FtSCLfXYGv7Metyt5

Jim Merz

That bike has some manly gears on it! Amazing you got it to under 15#. Very cool.

07-06-23 | 06:56 AM

#78

jamesdak

Senior Member

Joined: Aug 2010

Posts: 10,383

Likes: 10,129

From: Utah

Bikes: Paletti,Pinarello Monviso,Duell Vienna,Giordana XL Super,Lemond Maillot Juane.& custom,PDG Paramount,Fuji Opus III,Davidson Impulse,Pashley Guv'nor,Evans,Fishlips,Y-Foil,Softride, Tetra Pro, CAAD8 Optimo,

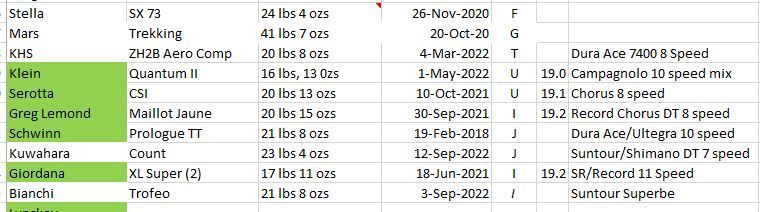

I hardly ever record the weight of a frameset. But as reference here's all my weight records built. Total is with bottle cages, pedals, saddles, etc. Basically ready to go except for the frame pump, saddle bag, and water bottles.

^ Current bikes

^Sold bikes

^Rest of sold bikes

__________________
Steel is real...and comfy.

07-06-23 | 08:36 AM

#79

Spoonrobot

Banned.

Joined: Jul 2006

Posts: 4,287

Likes: 838

Great posts in this thread. Here's some more data, courtesy of SpeedofLite's magazine scans.

https://docs.google.com/spreadsheets...it?usp=sharing

07-06-23 | 12:29 PM

#80

1989Pre

Senior Member

Joined: Apr 2009

Posts: 4,638

Likes: 1,251

Quote:

Originally Posted by Otis

It matters!

I think the OP was asking about frame weight. A high-end Columbus SL or Reynolds 56cm (or smaller) bare frame and fork should weigh between 5.5 to a bit over 6 lbs. depending on the builder.

Yes, I'd say straight-guage 531 at 56cm would be about 6 pounds (or 2.7Kg)
That said, the British and Europeans made some really-good, butted hi-ten and cromo sets at 3.0K
