Campy Headset: what am I missing?
03-02-10 | 08:04 PM
#1
Thread Starter
Senior Member
Joined: Jul 2005
Posts: 1,011
Likes: 7
From: Central Coast, CA
Bikes: yikes, too many
Campy Headset: what am I missing?

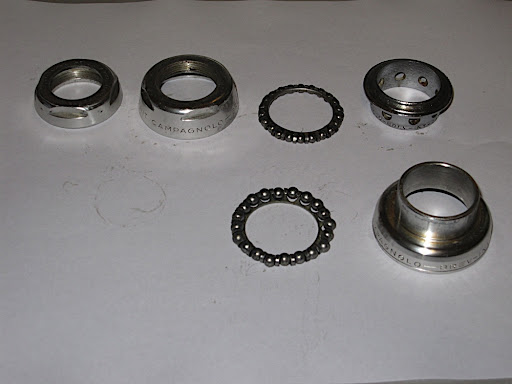

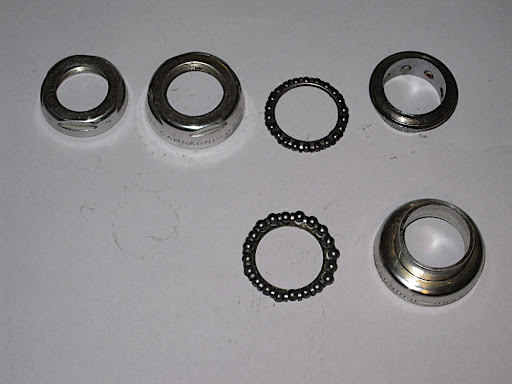

I believe I am missing a part to my Campy headset (C-Record, I think). Can anyone help verify if that is correct? I put them in stack order, I believe.
__________________
Bikes: N + 1
Bikes: N + 1
03-02-10 | 08:07 PM
#3
Fork crown race?
03-02-10 | 08:12 PM
#4
sultan of schwinn
Joined: Sep 2009
Posts: 3,536
Likes: 17
From: Lehigh Valley, PA
03-02-10 | 08:15 PM
#5
Rustbelt Rider
Joined: Oct 2008
Posts: 9,105
Likes: 390
From: Canton, OH
Bikes: 1990 Trek 1420 - 1978 Raleigh Professional - 1973 Schwinn Collegiate - 1974 Schwinn Suburban
That example is not exactly apples to apples
__________________
|^^^^^^^^^^^^^^| ||
|......GO.BROWNS........| ||'|";, ___.
|_..._..._______===|=||_|__|..., ] -
"(@)'(@)"""''"**|(@)(@)*****''(@)
|^^^^^^^^^^^^^^| ||
|......GO.BROWNS........| ||'|";, ___.
|_..._..._______===|=||_|__|..., ] -
"(@)'(@)"""''"**|(@)(@)*****''(@)
03-02-10 | 08:18 PM
#6
Thread Starter
Senior Member
Joined: Jul 2005
Posts: 1,011
Likes: 7
From: Central Coast, CA
Bikes: yikes, too many
Gotcha. I found this from a 1995 Campy spare parts catalog. The closest headset I could find is listed as a Pista - strange. In any case, would you concur that I am missing the following? If so, am I screwed or are these parts available or are 3rd party parts usable?
Thanks,
Guy
Thanks,
Guy
__________________
Bikes: N + 1
Bikes: N + 1
03-02-10 | 08:24 PM
#7
sultan of schwinn
Joined: Sep 2009
Posts: 3,536
Likes: 17
From: Lehigh Valley, PA
Gotcha. I found this from a 1995 Campy spare parts catalog. The closest headset I could find is listed as a Pista - strange. In any case, would you concur that I am missing the following? If so, am I screwed or are these parts available or are 3rd party parts usable?
Thanks,
Guy
Thanks,
Guy
Prices here are typical:
https://branfordbike.com/product/camp...-parts-897.htm
03-02-10 | 09:13 PM
#8
Bianchi Goddess
Joined: Apr 2009
Posts: 28,962
Likes: 4,230
From: Shady Pines Retirement Fort Wayne, In
Bikes: Too many to list here check my signature.
Yes you are missing the tabbed washer and the crown race. They are available and still manufactured, but will probably cost you more than a whole headset.
Prices here are typical:
https://branfordbike.com/product/camp...-parts-897.htm
Prices here are typical:
https://branfordbike.com/product/camp...-parts-897.htm
__________________
“One morning you wake up, the girl is gone, the bikes are gone, all that's left behind is a pair of old tires and a tube of tubular glue, all squeezed out"
Sugar "Kane" Kowalczyk
“One morning you wake up, the girl is gone, the bikes are gone, all that's left behind is a pair of old tires and a tube of tubular glue, all squeezed out"
Sugar "Kane" Kowalczyk
03-02-10 | 09:36 PM
#9
Thread Starter
Senior Member
Joined: Jul 2005
Posts: 1,011
Likes: 7
From: Central Coast, CA
Bikes: yikes, too many
Guy
__________________
Bikes: N + 1
Bikes: N + 1
03-02-10 | 09:49 PM
#10
Unique Vintage Steel
Joined: May 2005
Posts: 11,591
Likes: 287
From: Allen, TX
Bikes: Kirk Frameworks JKS-C, Serotta Nova, Gazelle AB-Frame, Fuji Team Issue, Surly Straggler
The tabbed washer is a fairly generic piece, and you may be able to get lucky with another crown race as long as it's made for the same size bearing and isn't too large of an outer diameter as to allow the top cup to fit over it properly.
03-02-10 | 10:12 PM
#12
Fat Guy on a Little Bike
Joined: Jun 2008
Posts: 15,946
Likes: 371
From: Philadelphia, PA
Bikes: Two wheeled ones
Hope this helps...a complete C-Record Headset...
03-02-10 | 10:19 PM
#14
Thread Starter
Senior Member
Joined: Jul 2005
Posts: 1,011
Likes: 7
From: Central Coast, CA
Bikes: yikes, too many
03-02-10 | 11:21 PM
#15
Bianchi Goddess
Joined: Apr 2009
Posts: 28,962
Likes: 4,230
From: Shady Pines Retirement Fort Wayne, In
Bikes: Too many to list here check my signature.
what do the races in the cups look like? I think Jim is refering to what looks like lots of wear and scoring on the upper cone (as campagnolo calls it)
__________________
“One morning you wake up, the girl is gone, the bikes are gone, all that's left behind is a pair of old tires and a tube of tubular glue, all squeezed out"
Sugar "Kane" Kowalczyk
“One morning you wake up, the girl is gone, the bikes are gone, all that's left behind is a pair of old tires and a tube of tubular glue, all squeezed out"
Sugar "Kane" Kowalczyk
03-02-10 | 11:33 PM
#16
Thread Starter
Senior Member
Joined: Jul 2005
Posts: 1,011
Likes: 7
From: Central Coast, CA
Bikes: yikes, too many
03-03-10 | 03:25 AM
#18
Steel is real, baby!
Joined: Dec 2008
Posts: 2,532
Likes: 8
From: Boise, ID
Bikes: 1984 Pinarello, 1986 Bianchi Portofino, 1988 Bianchi Trofeo, 1989 Specialized Allez, 1989 Specialized Hard Rock, 2001 Litespeed Tuscany
03-03-10 | 05:33 AM
#19
Senior Member
Joined: Aug 2003
Posts: 13,973
Likes: 145
From: Tampa, Florida
Its tough throwin' down $75 on a non-consumable part for a bike I paid $250-300 for.
