Converting to hydraulic braking system?

Commuting Bicycle commuting is easier than you think, before you know it, you'll be hooked. Learn the tips, hints, equipment, safety requirements for safely riding your bike to work.

Converting to hydraulic braking system?

Reply

Old 01-23-19, 03:00 PM
  #1
Trellaine
Junior Member
Thread Starter

Join Date: Jan 2019
Posts: 9

Bikes: Devinci Madrid 2010

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Converting to hydraulic braking system?

Iím a newbie. Recently I ride all year around to and from work and do errands on the weekend. No car. Transit is also readily available.

It seems Iím constantly taking my bike in for brake adjustments etc. Iím quite frustrated with my mechanical disc brakes and looking at alternatives including buying a new bike.

But im looking for suggestions for specific hydraulic brakes for my hybrid bike. And do these come with all parts necessary. I believe my rotor is 160mm.

thanks for any guidance.
Trellaine is offline
Reply With Quote
Old 01-23-19, 03:50 PM
  #2
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 39,638

Bikes: 8

Mentioned: 167 Post(s)
Tagged: 0 Thread(s)
Quoted: 6193 Post(s)
Well if you go to a Bike Shop they will get it all together, put it on, and even do after the sale service on it..

Yea Mechanical disc brakes the pad wear adjuster is you.. Avid BB7, for example, does try to simplify it with knobs , but they don't turn themselves.

given you needed help there, I'd go with your friendly local bike shop..



I simply replaced my Avid Mechanical brake calipers with TRP Hy Road hydraulic Cable pulled calipers..

I had Avid's Speed dial levers , dialed them back to short pull end of the scale and went on with my life..

a cantilever short pull lever would do.. I'm the Mechanic , and this worked for me.. this winter..


Namedropping Brands; Magura, German, their basic MTB caliper hose and lever, was about what TRP's Caliper was alone

Shimano, the big dog in the industry,

Avid Juicy Avid is part of Sram group.
that's the big 3..

English made is Hope smaller company, color anodized, looks pretty (Not seen much at all in the States)

Real service free is Sturmey Archers Drum brake hubs.. shoes long , never wear out in your lifetime stop in all weathers

My set are over 30 years old the company was sold and bought by Sun Race moved and expanded, in that time period ..





....

Last edited by fietsbob; 01-23-19 at 03:54 PM.
fietsbob is offline
Reply With Quote
Old 01-23-19, 04:24 PM
  #3
alan s
Senior Member

alan s's Avatar

Join Date: Oct 2007
Location: Washington, DC
Posts: 6,406
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 1159 Post(s)
Shimano hydros are great. See what you can afford. If the M7000/8000 is in your budget, they are very nice brakes. I’d also recommend going with their Icetech rotors. Their newest 4 piston brakes are very nice, but unnecessary.
alan s is offline
Reply With Quote
Old 01-23-19, 04:42 PM
  #4
RoadKill
Senior Member

Join Date: Apr 2002
Location: Tempe, AZ
Posts: 145

Bikes: Specialized AWOL, Specialized Roubaix, Niner Air9, Turner Sultan

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
TRP HY/RD is absolutely the easiest swap because it is cable actuated but has a hydro system built in to the caliper, so you just swap the caliper and have hydraulic brakes.
I have them on my commuter bike, I don't think they are quite as nice as a fully hydraulic setup like the Shimano XT M8000 would be but I also don't feel that the braking demands on my commuter are nearly as tough as on the mountain bike.
One note on the TRP HY/RD, for the past year that I have had them I thought they were absolutely horrible brakes! Turned out the pads that came with them were aweful, I put some cheap Jagwire pads in and brakes are quite nice now.
RoadKill is online now
Reply With Quote
Old 01-23-19, 05:20 PM
  #5
Trellaine
Junior Member
Thread Starter

Join Date: Jan 2019
Posts: 9

Bikes: Devinci Madrid 2010

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Ahh thanks! Finally a forum where I see replies. Thanks for the suggestions. I did talk with the local bike shop this morning. He suggested some Shimano he had in stock. Couldnít remember the model but there an M-4xxx I think.

It just seemed kinda cheap to switch. But probably right for a 8-10 year old bike. I just donít want to be running into the shop every month to have them looked at.

thanks again
Trellaine is offline
Reply With Quote
Old 01-23-19, 08:14 PM
  #6
Skipjacks
Senior Member

Skipjacks's Avatar

Join Date: Aug 2017
Location: Mid Atlantic / USA
Posts: 1,366

Bikes: 2017 Specialized Crosstrail / 2013 Trek Crossrip Elite

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 659 Post(s)
Originally Posted by RoadKill View Post
TRP HY/RD is absolutely the easiest swap because it is cable actuated but has a hydro system built in to the caliper, so you just swap the caliper and have hydraulic brakes.
I have them on my commuter bike, I don't think they are quite as nice as a fully hydraulic setup like the Shimano XT M8000 would be but I also don't feel that the braking demands on my commuter are nearly as tough as on the mountain bike.
One note on the TRP HY/RD, for the past year that I have had them I thought they were absolutely horrible brakes! Turned out the pads that came with them were aweful, I put some cheap Jagwire pads in and brakes are quite nice now.
Those sound cool.

Do you still get the super easy 1 finger no effort braking at the levers like you do with full hydro brakes?

Or do they feel like cable brakes at the levers but with no screwing around stopping power at the calipers?
Skipjacks is offline
Reply With Quote
Old 01-23-19, 09:02 PM
  #7
RoadKill
Senior Member

Join Date: Apr 2002
Location: Tempe, AZ
Posts: 145

Bikes: Specialized AWOL, Specialized Roubaix, Niner Air9, Turner Sultan

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Originally Posted by Skipjacks View Post
Those sound cool.

Do you still get the super easy 1 finger no effort braking at the levers like you do with full hydro brakes?

Or do they feel like cable brakes at the levers but with no screwing around stopping power at the calipers?
My commuter has drop bars so I can't quite directly compare them to the hydraulic xt m8000 on my mtb. I can say that because there is still a cable you can feel a little stretch under very hard braking but rarely do the brakes need to be pulled that hard, 1 or 2 fingers is usually enough. I get good modulation and don't have to mess with adjusting them. They definitely have some benefits of hydraulics, but don't completely eliminate all the draw backs of cable actuated.
​​​​​​
RoadKill is online now
Reply With Quote
Old 01-23-19, 09:16 PM
  #8
Skipjacks
Senior Member

Skipjacks's Avatar

Join Date: Aug 2017
Location: Mid Atlantic / USA
Posts: 1,366

Bikes: 2017 Specialized Crosstrail / 2013 Trek Crossrip Elite

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 659 Post(s)
Originally Posted by RoadKill View Post
My commuter has drop bars so I can't quite directly compare them to the hydraulic xt m8000 on my mtb. I can say that because there is still a cable you can feel a little stretch under very hard braking but rarely do the brakes need to be pulled that hard, 1 or 2 fingers is usually enough. I get good modulation and don't have to mess with adjusting them. They definitely have some benefits of hydraulics, but don't completely eliminate all the draw backs of cable actuated.
​​​​​​
They sound worth every penny of $125

I looked at them and I'm assuming they are a pretty simple bolt on mod that installs quickly using the existing rotors. Is that right?
Skipjacks is offline
Reply With Quote
Old 01-23-19, 09:17 PM
  #9
RoadKill
Senior Member

Join Date: Apr 2002
Location: Tempe, AZ
Posts: 145

Bikes: Specialized AWOL, Specialized Roubaix, Niner Air9, Turner Sultan

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Originally Posted by Skipjacks View Post
They sound worth every penny of $125

I looked at them and I'm assuming they are a pretty simple bolt on mod that installs quickly using the existing rotors. Is that right?
Oh yeah, they should be super easy swap.
RoadKill is online now
Reply With Quote
Old 01-23-19, 09:24 PM
  #10
Skipjacks
Senior Member

Skipjacks's Avatar

Join Date: Aug 2017
Location: Mid Atlantic / USA
Posts: 1,366

Bikes: 2017 Specialized Crosstrail / 2013 Trek Crossrip Elite

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 659 Post(s)
You are my hero for bringing these to my attention

Braking on my drop bar bike is the one thing I don't about drop bars. With mechanical discs and my short stubby fingers it can be hard to reach the levers and apply much force.

These quick swap outs that solve that problem are brilliant!
Skipjacks is offline
Reply With Quote
Old 01-23-19, 10:48 PM
  #11
Darth Lefty
Disco Infiltrator

Darth Lefty's Avatar

Join Date: May 2013
Location: Folsom CA
Posts: 8,988

Bikes: '76 Paramount, Salsa Timberjack, Burley Samba, Terra Trike

Mentioned: 52 Post(s)
Tagged: 0 Thread(s)
Quoted: 1253 Post(s)
I have some cheap Tektros on my newest commuter bike. I like the action and the power but they aren't smooth. I liked the cheap Shimanos on my immediate prior bike a lot better. I got some Shimano pads that are supposed to help but haven't gotten around to installing them yet. This bike is getting used a lot more than fussed with. If I replace them it will be Shimano 8020's because why the heck not? Brakes are IMO the single most important component on the bike although the drivetrain gets all the glam.

Brakes sometimes come fully assembled and bled and you only have to screw them on, but they also come apart. The item description will tell you.
__________________
Genesis 49:16-17

Last edited by Darth Lefty; 01-23-19 at 11:58 PM.
Darth Lefty is offline
Reply With Quote
Old 01-24-19, 02:05 PM
  #12
Trellaine
Junior Member
Thread Starter

Join Date: Jan 2019
Posts: 9

Bikes: Devinci Madrid 2010

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Iím thinking brakes are extremely important as well as Iím finding out.

i sure hope when I get hydraulics installed I get more consistent and less maintenance from the brakes.

i do have one very steep hill to work. 3-4 blocks. Then still downhill slip about 6-7 blocks. Then flattens out.
Trellaine is offline
Reply With Quote
Old 01-24-19, 03:21 PM
  #13
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 39,638

Bikes: 8

Mentioned: 167 Post(s)
Tagged: 0 Thread(s)
Quoted: 6193 Post(s)
Originally Posted by Skipjacks View Post
Those sound cool.

Do you still get the super easy 1 finger no effort braking at the levers like you do with full hydro brakes?
Its a smoother modulation , yea 1 finger tip braking.. my Avid BB7 MTB was really on / off on the front, not much subtlety..

[My full hydros are Magura HS 33 Rim brakes..]






...
fietsbob is offline
Reply With Quote
Old 01-24-19, 03:50 PM
  #14
Skipjacks
Senior Member

Skipjacks's Avatar

Join Date: Aug 2017
Location: Mid Atlantic / USA
Posts: 1,366

Bikes: 2017 Specialized Crosstrail / 2013 Trek Crossrip Elite

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 659 Post(s)
Originally Posted by Darth Lefty View Post
I have some cheap Tektros on my newest commuter bike. I like the action and the power but they aren't smooth.
I agree with everything you said here about the Tekros being a little clunky.

I have cheap Tekro hydraulics on my commuter too. So I know exactly what you mean.

But even so, they are noticeably better than my gravel bike with mechanical discs as far as stopping power. I'd take the cheap hydros any day. And I'll take that "I need to stop NOW" over a smoother action at the levers.

I think hydro is just the right way to go. Even doing it cheap, it's an upgrade.
Skipjacks is offline
Reply With Quote
Old 01-24-19, 05:30 PM
  #15
Trellaine
Junior Member
Thread Starter

Join Date: Jan 2019
Posts: 9

Bikes: Devinci Madrid 2010

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Regarding cheaper hydros: how often do the lines need to be bled? How often is there bubbles etc? Maintenance?

im really torn now after talking to people at work who ride everyday.

take into account I donít adjust my brakes etc, perhaps I should learn more and I donít have any place to work on my bike.
Trellaine is offline
Reply With Quote
Old 01-24-19, 06:17 PM
  #16
Darth Lefty
Disco Infiltrator

Darth Lefty's Avatar

Join Date: May 2013
Location: Folsom CA
Posts: 8,988

Bikes: '76 Paramount, Salsa Timberjack, Burley Samba, Terra Trike

Mentioned: 52 Post(s)
Tagged: 0 Thread(s)
Quoted: 1253 Post(s)
Iím new to mine. I see people write about bleeding them nearly as regularly as chain oil and people who write they havenít touched theirs in ten years. It might depend how hard you use the brakes.

Pads need to be changed sometimes but thatís easy and not expensive. I guess the rotors would have to be changed eventually too. Thatís just six bolts.

It does definitely seem like people riding in cities with a lot of weather need to look at them more often than people in the sunny burbs like me.
Darth Lefty is offline
Reply With Quote
Old 01-24-19, 07:16 PM
  #17
Trellaine
Junior Member
Thread Starter

Join Date: Jan 2019
Posts: 9

Bikes: Devinci Madrid 2010

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Hi question about the TRP Spyre mentioned in this thread. Are these mechanical with 2 pistons? Or are you talking hydraulic?

im trying to find these online

thanks
Trellaine is offline
Reply With Quote
Old 01-24-19, 07:55 PM
  #18
tyrion
Senior Member

tyrion's Avatar

Join Date: Oct 2015
Location: San Diego, California
Posts: 2,049

Bikes: Breezer Radar

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1053 Post(s)
Originally Posted by RoadKill View Post
One note on the TRP HY/RD, for the past year that I have had them I thought they were absolutely horrible brakes! Turned out the pads that came with them were aweful, I put some cheap Jagwire pads in and brakes are quite nice now.
Which Jagwire pads did you get, the Sport Organic or the Sport Semi-metallic?

I recently got a bike with HY/RDs - they're my first disc brakes so I have no frame of reference. I really like these brakes, but I could use a little more braking power - I'm 220 lbs. (I believe they're fully bedded in.)
tyrion is online now
Reply With Quote
Old 01-24-19, 08:01 PM
  #19
350htrr
Senior Member

Join Date: Jul 2012
Location: Canada, PG BC
Posts: 3,640

Bikes: 27 speed oryx with over 39,000Km on it, 11,000Km with a BionX assist on it

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 891 Post(s)
Originally Posted by Trellaine View Post
Regarding cheaper hydros: how often do the lines need to be bled? How often is there bubbles etc? Maintenance?

im really torn now after talking to people at work who ride everyday.

take into account I don’t adjust my brakes etc, perhaps I should learn more and I don’t have any place to work on my bike.
I know nothing about "cheap" hydraulic brakes, or, a combination of cable & "hydraulic brakes: some of those seem to be using vegetable oil or some such and freeze up in cold weather... BUT, I do know that my top of the line, fully hydraulic brakes with DOT 3 automotive brake fluid that I changed to synthetic DOT 4 the second year I had them, … HAS, so far, lasted me over 40,000 Kms, without ever being adjusted, without ever being bled, without me, ever doing anything to them but replacing the pads, (about 3 times) for the last 18 years... WOW how can you ever beat that...??? Well... spend more than you think you need to … I guess...

Last edited by 350htrr; 01-24-19 at 08:10 PM.
350htrr is offline
Reply With Quote
Old 01-24-19, 08:26 PM
  #20
RoadKill
Senior Member

Join Date: Apr 2002
Location: Tempe, AZ
Posts: 145

Bikes: Specialized AWOL, Specialized Roubaix, Niner Air9, Turner Sultan

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Originally Posted by tyrion View Post
Which Jagwire pads did you get, the Sport Organic or the Sport Semi-metallic?

I recently got a bike with HY/RDs - they're my first disc brakes so I have no frame of reference. I really like these brakes, but I could use a little more braking power - I'm 220 lbs. (I believe they're fully bedded in.)

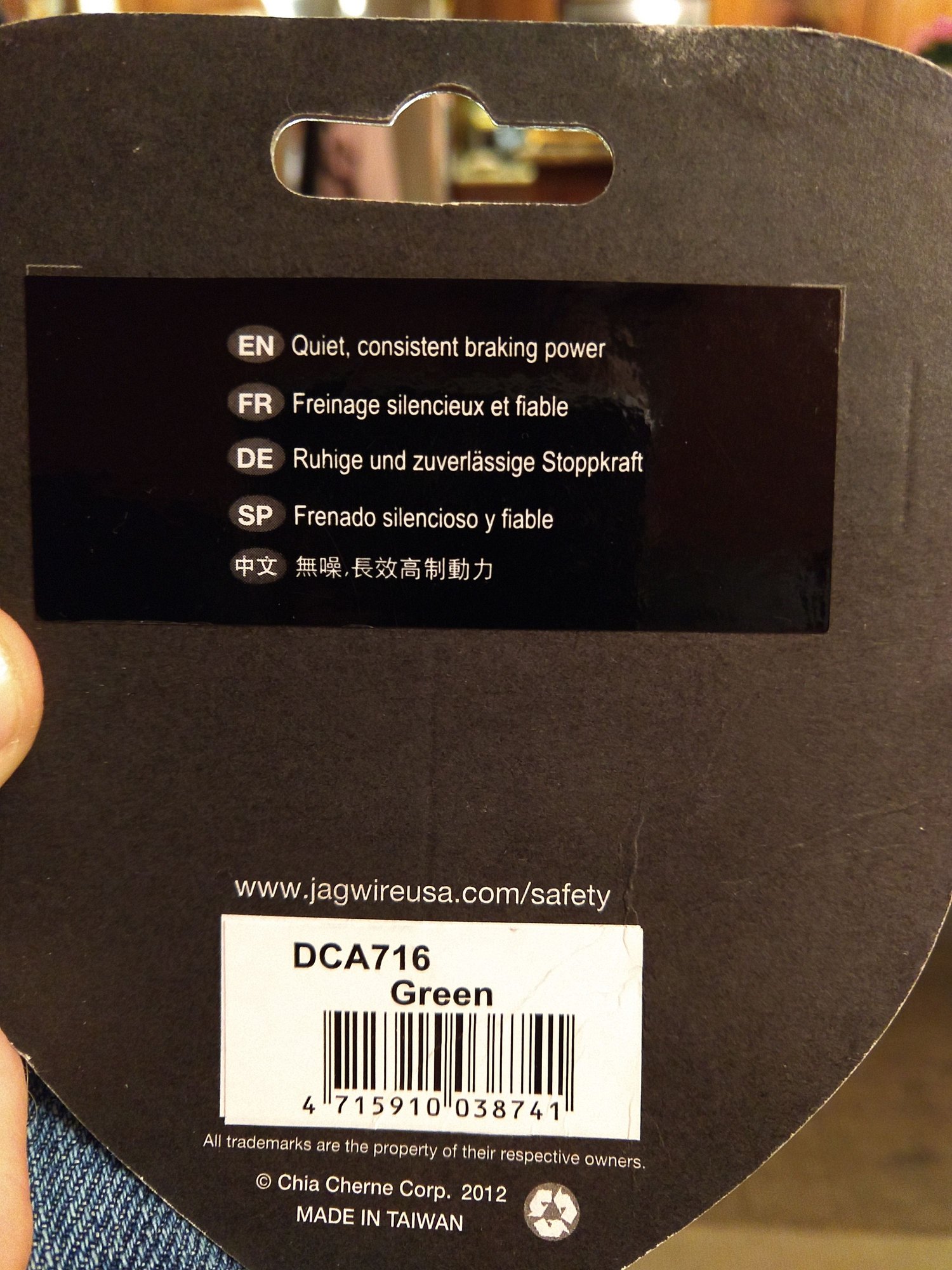

The organic, here is the packaging. I'm about 250lbs and these stop me pretty well.
RoadKill is online now
Reply With Quote
Old 01-24-19, 08:27 PM
  #21
tyrion
Senior Member

tyrion's Avatar

Join Date: Oct 2015
Location: San Diego, California
Posts: 2,049

Bikes: Breezer Radar

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1053 Post(s)
Originally Posted by RoadKill View Post
The organic, here is the packaging. I'm about 250lbs and these stop me pretty well.
Thanks.
tyrion is online now
Reply With Quote
Old 01-24-19, 09:09 PM
  #22
Skipjacks
Senior Member

Skipjacks's Avatar

Join Date: Aug 2017
Location: Mid Atlantic / USA
Posts: 1,366

Bikes: 2017 Specialized Crosstrail / 2013 Trek Crossrip Elite

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 659 Post(s)
Originally Posted by Trellaine View Post
Regarding cheaper hydros: how often do the lines need to be bled? How often is there bubbles etc? Maintenance?

im really torn now after talking to people at work who ride everyday.

take into account I donít adjust my brakes etc, perhaps I should learn more and I donít have any place to work on my bike.
I'm on my 3rd year of mine. Cold riding. Hot riding. You name it.

They work as good as new. I've never done any kind of maintenance on my brakes.
Skipjacks is offline
Reply With Quote
Old 01-24-19, 09:46 PM
  #23
Trellaine
Junior Member
Thread Starter

Join Date: Jan 2019
Posts: 9

Bikes: Devinci Madrid 2010

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Wow. I’m beginning to really be sold on these. I had a long chat with the bike shop. I would say he’s quite honest. I just had a new caliper installed and pads. He couldn’t find any for the previous caliper. I said go ahead and install the new caliper if it makes things easier. My last pads where apparently wrong. Shrug. Things are so much better now! I’m happy after my 30 minute ride home BUT I’m still thinking hydraulics . He said he we credit me the caliper if I wasn’t happy etc. Not sure how long that offer stands but I’m assuming one day or so. I must decide soon or wait until my next brake frustration . .
Trellaine is offline
Reply With Quote
Old 01-24-19, 11:40 PM
  #24
alan s
Senior Member

alan s's Avatar

Join Date: Oct 2007
Location: Washington, DC
Posts: 6,406
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 1159 Post(s)
I’m over 10 years on a set of SLX hydros, and have only changed the pads. Recently bought a bleed kit at a crazy low price from Performance, in the event I decide to replace the fluid. I have Shimano hydros on 4 bikes, and even replaced a set of SRAM Guides that just didn’t measure up. Go with hydros and you won’t look back.
alan s is offline
Reply With Quote
Old 01-25-19, 09:23 AM
  #25
Trellaine
Junior Member
Thread Starter

Join Date: Jan 2019
Posts: 9

Bikes: Devinci Madrid 2010

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Do different brake pads make a difference? Brand. I’m a big guy around 240.

Cheers
Trellaine is offline
Reply With Quote

Thread Tools
Search this Thread

Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service
