Busted the KLICKfix handlebar adapter 2nd time, anyone find a solution to this?

Folding Bikes Discuss the unique features and issues of folding bikes. Also a great place to learn what folding bike will work best for your needs.

Busted the KLICKfix handlebar adapter 2nd time, anyone find a solution to this?

Reply

Old 11-07-17, 08:36 PM
  #1
edelay
Senior Member
Thread Starter

edelay's Avatar

Join Date: Nov 2012
Posts: 301

Bikes: Dahon Curve D8 (Sturmey Archer X-RF8), Crius Smart 3.0 5 speed

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 111 Post(s)
Busted the KLICKfix handlebar adapter 2nd time, anyone find a solution to this?

Hi folks.

I have BioLogic Tour bag that connects to the front frame of my Dahon Curve using a Tern Truss with a KLICKfix adapter. Last year lip broke off of the plastic KLICKfix adapter.

I ordered a replacement adapter from VeloFred, but after another few months the lip broke off of that too.
KLICKfix Handlebar Adapter Button

I emailed VeloFred if there was a metal replacement part, but never heard back from them.

The bag is capable of holding 15lbs, and I just weighed what I carry i there, and it is only 5lbs.

Has anyone found a solution to what appears to be a defective part? Or is that an alternative method of attaching the bag to the truss? I'm open to ideas.
Attached Images
File Type: jpg
File Type: jpg
File Type: jpg
edelay is offline
Reply With Quote
Old 11-08-17, 03:53 AM
  #2
badmother
Senior Member

badmother's Avatar

Join Date: Nov 2007
Posts: 3,733
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 317 Post(s)
Wow. If this was as common for others as it is for you it would be much more written about it on the Internet.

I`d say vibrations, becouse the piece that broke is not carrying any vertical weight. I never liked the truss thingys becouse it sticks out so much. Instincts tell me to keep weight close to what is carrying the weight and not on parts sticking out like that.

This is why I wanted a Brompton truss on my Curve. First I carved out exess plastic from a B carrier block. This made it weaker so I filled out the empty spaces in there with hot glue. Kept thinking "hmm, is it strong enough?" Then I ordered that adaptor thingy that has been presented here. I have not installed it yet. This problem is tumbeling around in my head like in a tumble dryer: Is my carved out carrier block hack stronger than using a regular carrier block with an adaptor? Last question becouse with the adaptor you only rely on the screws plus it puts the carryer block (and therefor the weight) further away from the frame than it is intended to be. Also both on the B carryer block and the truss thingy there is a carved out area that goes over and around the welded on metal thingy and I am sure that gives some extra support that you do not get when it is sticking out like with the adaptor.

Several years ago when this problem started bothering me I bought a "truss" that was much shorter, keeping the load much closer to the frame but this can only be used on small bags. Bromton bags (trough the frame) is atatched at the bottom of the bag. Therefor you do not need a long truss thingy. Clickfix bags/baskets are atatched at the middle or top so you need that long thingy to keep the bag away from the frame and wheel.

Frame bracket (for handlebaradapter on head tube threads) (0211R)

Rixen & Kaul, KLICKfix Adaptersysteme Fahrradzubehör, Solingen, Taschen, Körbe, Werkzeug

I only use the Caddy becouse it keeps the weight close to the bike so less vibration and damage from weight hanging far from the bike. I recently bought two "truss thingys" for seatposts, one for my B and one for my Curve. I only intend to use them on holydays and with a rack supporting the weight under.

You should contact Clickfix. They should be interested in this. I do not expect much reaction from Tern.
badmother is offline
Reply With Quote
Old 11-08-17, 04:41 AM
  #3
Bonzo Banana
Senior Member

Join Date: Feb 2017
Location: Merry Old England
Posts: 620

Bikes: Muddyfox Evolve 200, Bicycles4u Paris Explorer, Raleigh Twenty Stowaway, Bickerton California, Saracen Xile, Kona Hoss Deluxe, Vertigo Carnaby, Exodus Havoc, Kona Lanai, Revolution Cuillin Sport, Dawes Kingpin, Bickerton, NSU & Elswick Cosmopolitan

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 227 Post(s)
No way you can repair it stronger, disassemble and see if you glue it back and then perhaps reinforce it or wrap it in a small thin bit of metal sheeting or just glue more plastic underneath it. It clearly isn't fit for purpose and perhaps the company has had many complaints and doesn't want the expense or replacing. I don't know how many have been sold it may be quite niche product. Over the years I've had quite a few products which have failed due to some small piece of plastic breaking off at the end and I have products that I treat with kid gloves because I can see the plastic will fail easily. The amount of remote controls I've seen without the battery cover because the securing clip broke off. It's like you get to replace the batteries 3 times and then the clip is gone. I always keep small strips of metal for that reason. I had to repair a similar clip to yours in the past and ended up using the lid of a sardine tin cut down and bent to reinforce it. I used superglue and it never failed again wasn't too pretty though.
Bonzo Banana is offline
Reply With Quote
Old 11-08-17, 06:12 AM
  #4
sweeks
Senior Member

sweeks's Avatar

Join Date: Sep 2004
Location: Chicago area
Posts: 1,105

Bikes: Airborne "Carpe Diem", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 471 Post(s)
I have a "Kanga" rack on my Tern, and it hasn't broken off the KLICKfix adapter in four and a half years of daily (well, Monday through Friday) use.
There must be some sort of upwards force on the bag to cause it to break like that. Are you lifting the bike by the bag? (No sarcasm; had to ask).
Steve
Attached Images
File Type: jpg
sweeks is offline
Reply With Quote
Old 11-08-17, 01:50 PM
  #5
2_i
Senior Member

Join Date: Sep 2005
Location: Michigan
Posts: 2,238

Bikes: Trek 730, Bike Friday NWT, Brompton M6R*2, Trek 830, Trek 720, Dahon HAT060, Dahon HT060,...

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 270 Post(s)
Not sure how it works, but from the look of it, to the remaining plastic that sticks out I would rivet a metal strap bent to point down, rather than forward. I would use 2 pop rivets and hopefully regain the previous functionality.
2_i is online now
Reply With Quote
Old 11-08-17, 01:50 PM
  #6
ThorUSA
Banned

Join Date: Dec 2013
Location: Olney Illinois USA
Posts: 1,047

Bikes: to many

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 213 Post(s)
you want to try something similar but different ? I would be interested how that newer Dahon system will stand up to the same treatment
contact me directly though
Thanks Thor
ThorUSA is offline
Reply With Quote
Old 11-18-17, 02:57 PM
  #7
edelay
Senior Member
Thread Starter

edelay's Avatar

Join Date: Nov 2012
Posts: 301

Bikes: Dahon Curve D8 (Sturmey Archer X-RF8), Crius Smart 3.0 5 speed

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 111 Post(s)
Originally Posted by badmother View Post
Wow. If this was as common for others as it is for you it would be much more written about it on the Internet.

I`d say vibrations, becouse the piece that broke is not carrying any vertical weight. I never liked the truss thingys becouse it sticks out so much. Instincts tell me to keep weight close to what is carrying the weight and not on parts sticking out like that.

This is why I wanted a Brompton truss on my Curve. First I carved out exess plastic from a B carrier block. This made it weaker so I filled out the empty spaces in there with hot glue. Kept thinking "hmm, is it strong enough?" Then I ordered that adaptor thingy that has been presented here. I have not installed it yet. This problem is tumbeling around in my head like in a tumble dryer: Is my carved out carrier block hack stronger than using a regular carrier block with an adaptor? Last question becouse with the adaptor you only rely on the screws plus it puts the carryer block (and therefor the weight) further away from the frame than it is intended to be. Also both on the B carryer block and the truss thingy there is a carved out area that goes over and around the welded on metal thingy and I am sure that gives some extra support that you do not get when it is sticking out like with the adaptor.

Several years ago when this problem started bothering me I bought a "truss" that was much shorter, keeping the load much closer to the frame but this can only be used on small bags. Bromton bags (trough the frame) is atatched at the bottom of the bag. Therefor you do not need a long truss thingy. Clickfix bags/baskets are atatched at the middle or top so you need that long thingy to keep the bag away from the frame and wheel.

Frame bracket (for handlebaradapter on head tube threads) (0211R)

Rixen & Kaul, KLICKfix Adaptersysteme Fahrradzubehör, Solingen, Taschen, Körbe, Werkzeug

I only use the Caddy becouse it keeps the weight close to the bike so less vibration and damage from weight hanging far from the bike. I recently bought two "truss thingys" for seatposts, one for my B and one for my Curve. I only intend to use them on holydays and with a rack supporting the weight under.

You should contact Clickfix. They should be interested in this. I do not expect much reaction from Tern.
I think you might be on to something regarding vibrations.

About the long truss, since the Dahon has a short wheel base the truss helps to keep weight more to the front. With a bag on the front and calms the "twichtyness" of the bike.

On the Rixen & Kaul website it says to contact the North American dealer, which is Velofred. Email Velofred several months ago and never heard back.
edelay is offline
Reply With Quote
Old 11-18-17, 02:59 PM
  #8
edelay
Senior Member
Thread Starter

edelay's Avatar

Join Date: Nov 2012
Posts: 301

Bikes: Dahon Curve D8 (Sturmey Archer X-RF8), Crius Smart 3.0 5 speed

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 111 Post(s)
Originally Posted by Bonzo Banana View Post
No way you can repair it stronger, disassemble and see if you glue it back and then perhaps reinforce it or wrap it in a small thin bit of metal sheeting or just glue more plastic underneath it. It clearly isn't fit for purpose and perhaps the company has had many complaints and doesn't want the expense or replacing. I don't know how many have been sold it may be quite niche product. Over the years I've had quite a few products which have failed due to some small piece of plastic breaking off at the end and I have products that I treat with kid gloves because I can see the plastic will fail easily. The amount of remote controls I've seen without the battery cover because the securing clip broke off. It's like you get to replace the batteries 3 times and then the clip is gone. I always keep small strips of metal for that reason. I had to repair a similar clip to yours in the past and ended up using the lid of a sardine tin cut down and bent to reinforce it. I used superglue and it never failed again wasn't too pretty though.
For such a robust truss, it is so sad to have this flimsy plastic "latch". Should have been made of metal instead.

I don't have a ton of tools, but using part of a tin sounds like something I could do. Great idea.
edelay is offline
Reply With Quote
Old 11-18-17, 03:02 PM
  #9
edelay
Senior Member
Thread Starter

edelay's Avatar

Join Date: Nov 2012
Posts: 301

Bikes: Dahon Curve D8 (Sturmey Archer X-RF8), Crius Smart 3.0 5 speed

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 111 Post(s)
Originally Posted by sweeks View Post
I have a "Kanga" rack on my Tern, and it hasn't broken off the KLICKfix adapter in four and a half years of daily (well, Monday through Friday) use.
There must be some sort of upwards force on the bag to cause it to break like that. Are you lifting the bike by the bag? (No sarcasm; had to ask).
Steve
You know, I really like the Kanga rack. Would be perfect for belting in a backpack or a dry bag for commuting. Great to hear about the long life it has had on your bike.

The Biologic bag I have connected to the truss is not rigid, so this might flopping around a bit and putting stress on the plastic clip.

P.S. No not lifting the bike by the bag. LOL
edelay is offline
Reply With Quote
Old 11-18-17, 03:06 PM
  #10
edelay
Senior Member
Thread Starter

edelay's Avatar

Join Date: Nov 2012
Posts: 301

Bikes: Dahon Curve D8 (Sturmey Archer X-RF8), Crius Smart 3.0 5 speed

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 111 Post(s)
Originally Posted by 2_i View Post
Not sure how it works, but from the look of it, to the remaining plastic that sticks out I would rivet a metal strap bent to point down, rather than forward. I would use 2 pop rivets and hopefully regain the previous functionality.
The plastic bit that broke up curves up. From the side the plastic part looks like a J or a fish hook. I wonder if a pop rivet can make it through 4 mm's of hard plastic?
edelay is offline
Reply With Quote
Old 11-18-17, 03:55 PM
  #11
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 37,520

Bikes: 8

Mentioned: 143 Post(s)
Tagged: 0 Thread(s)
Quoted: 5625 Post(s)
FWIW, now Ortlieb Ultimate 6 handle Bar bag mounts are cross compatible with Klick Fix bags..
fietsbob is offline
Reply With Quote
Old 11-18-17, 07:08 PM
  #12
edelay
Senior Member
Thread Starter

edelay's Avatar

Join Date: Nov 2012
Posts: 301

Bikes: Dahon Curve D8 (Sturmey Archer X-RF8), Crius Smart 3.0 5 speed

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 111 Post(s)
Originally Posted by fietsbob View Post
FWIW, now Ortlieb Ultimate 6 handle Bar bag mounts are cross compatible with Klick Fix bags..
Great to know I have more options.
edelay is offline
Reply With Quote
Old 11-18-17, 07:08 PM
  #13
Nightdiver
7ft of Cet-Bak

Nightdiver's Avatar

Join Date: Oct 2008
Location: Out and about
Posts: 467
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 64 Post(s)
Originally Posted by edelay View Post
The plastic bit that broke up curves up. From the side the plastic part looks like a J or a fish hook. I wonder if a pop rivet can make it through 4 mm's of hard plastic?
Klickfix reinforced that part beginning this year (or maybe last year). Guess they must have received many similar complaints. They say the most common cause was from people pulling bags/racks off without first releasing the latch.
Nightdiver is offline
Reply With Quote
Old 11-18-17, 07:27 PM
  #14
Abu Mahendra
Senior Member

Join Date: Jan 2016
Location: Bali
Posts: 2,245

Bikes: In service - FSIR Spin 3.0, Bannard Sunny minivelo, Dahon Dash Altena folder. Several others in construction or temporarily decommissioned.

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 881 Post(s)

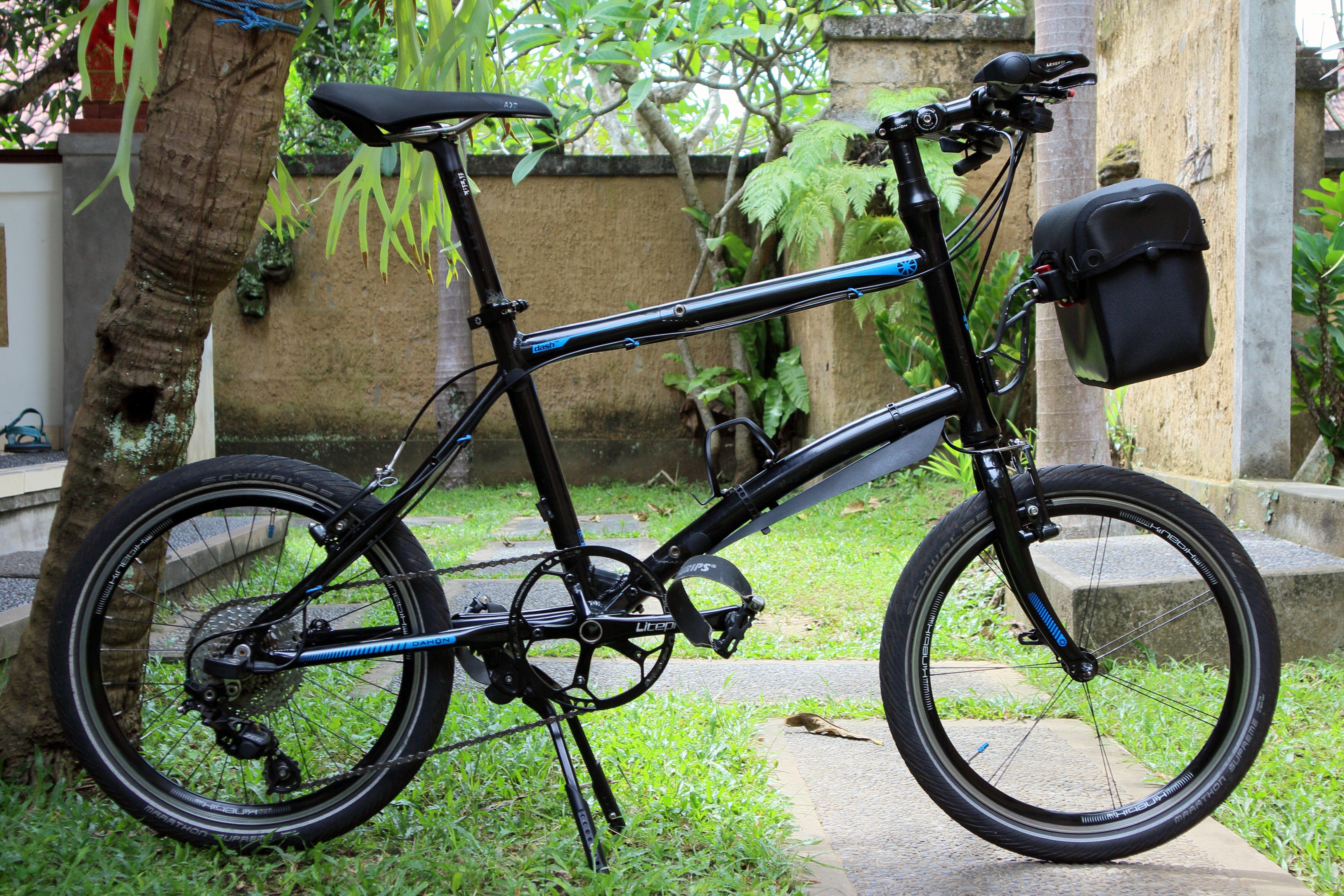

Ortlieb Ultimate 6 on KFX



Abu Mahendra is online now
Reply With Quote
Old 11-18-17, 08:07 PM
  #15
edelay
Senior Member
Thread Starter

edelay's Avatar

Join Date: Nov 2012
Posts: 301

Bikes: Dahon Curve D8 (Sturmey Archer X-RF8), Crius Smart 3.0 5 speed

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 111 Post(s)
Originally Posted by Nightdiver View Post
Klickfix reinforced that part beginning this year (or maybe last year). Guess they must have received many similar complaints. They say the most common cause was from people pulling bags/racks off without first releasing the latch.
I bought the replacement latch this summer from the North American distributor, so it must have been the new version. That one still broke.

I knew when I saw the part available on their website, that it was likely a part prone to failure.

Regardless, good to know. Still considering what my path forward will be.

It was nice to not have a backpack on my back during the commute. Less sweaty and the low and forward weight made the Curve more stable.
edelay is offline
Reply With Quote
Old 11-18-17, 08:07 PM
  #16
edelay
Senior Member
Thread Starter

edelay's Avatar

Join Date: Nov 2012
Posts: 301

Bikes: Dahon Curve D8 (Sturmey Archer X-RF8), Crius Smart 3.0 5 speed

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 111 Post(s)
Originally Posted by Abu Mahendra View Post


As usual, very well put together Abu.
edelay is offline
Reply With Quote
Old 11-18-17, 11:36 PM
  #17
2_i
Senior Member

Join Date: Sep 2005
Location: Michigan
Posts: 2,238

Bikes: Trek 730, Bike Friday NWT, Brompton M6R*2, Trek 830, Trek 720, Dahon HAT060, Dahon HT060,...

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 270 Post(s)
Originally Posted by edelay View Post
I wonder if a pop rivet can make it through 4 mm's of hard plastic?
Of course. Just use the long version of the rivets.
2_i is online now
Reply With Quote
Old 11-20-17, 01:45 PM
  #18
ThorUSA
Banned

Join Date: Dec 2013
Location: Olney Illinois USA
Posts: 1,047

Bikes: to many

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 213 Post(s)
test samples from me are on their way to Canada
:-)
Thor
ThorUSA is offline
Reply With Quote
Old 11-20-17, 06:49 PM
  #19
Winfried
Senior Member

Winfried's Avatar

Join Date: Aug 2011
Location: Paris, France
Posts: 1,644
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 213 Post(s)
Originally Posted by edelay View Post
I have BioLogic Tour bag that connects to the front frame of my Dahon Curve using a Tern Truss with a KLICKfix adapter. Last year lip broke off of the plastic KLICKfix adapter.
Have you experimented with the Brompton luggage block instead? It's just a five-minute job with a drill.
Attached Images
Winfried is offline
Reply With Quote
Old 11-20-17, 08:41 PM
  #20
edelay
Senior Member
Thread Starter

edelay's Avatar

Join Date: Nov 2012
Posts: 301

Bikes: Dahon Curve D8 (Sturmey Archer X-RF8), Crius Smart 3.0 5 speed

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 111 Post(s)
Originally Posted by ThorUSA View Post
test samples from me are on their way to Canada
:-)
Thor
Thor, you are awesome!
edelay is offline
Reply With Quote
Old 11-20-17, 08:48 PM
  #21
edelay
Senior Member
Thread Starter

edelay's Avatar

Join Date: Nov 2012
Posts: 301

Bikes: Dahon Curve D8 (Sturmey Archer X-RF8), Crius Smart 3.0 5 speed

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 111 Post(s)
Originally Posted by Winfried View Post
Have you experimented with the Brompton luggage block instead? It's just a five-minute job with a drill.
Gosh, I had no idea it was that easy. Great to know that is an option. Opens a whole bunch of bags and accessories. Do you find that your cables get caught and make it hard to steer?
edelay is offline
Reply With Quote
Old 11-21-17, 02:08 AM
  #22
badmother
Senior Member

badmother's Avatar

Join Date: Nov 2007
Posts: 3,733
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 317 Post(s)
Originally Posted by edelay View Post
Gosh, I had no idea it was that easy. Great to know that is an option. Opens a whole bunch of bags and accessories. Do you find that your cables get caught and make it hard to steer?
Where have you been the last few years? There has been a lot of threads about Brompton luggage on Dahons. My Dahon Curve has a Brompton block. No, no tangeling of cables. They are staying behind the frame.
badmother is offline
Reply With Quote
Old 11-21-17, 04:23 AM
  #23
Abu Mahendra
Senior Member

Join Date: Jan 2016
Location: Bali
Posts: 2,245

Bikes: In service - FSIR Spin 3.0, Bannard Sunny minivelo, Dahon Dash Altena folder. Several others in construction or temporarily decommissioned.

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 881 Post(s)
Originally Posted by edelay View Post
Gosh, I had no idea it was that easy. Great to know that is an option. Opens a whole bunch of bags and accessories. Do you find that your cables get caught and make it hard to steer?


Brooks makes an absolutely gorgeous leather briefcase for the Brompton block. Gorgeous.
Abu Mahendra is online now
Reply With Quote
Old 11-21-17, 04:52 AM
  #24
Winfried
Senior Member

Winfried's Avatar

Join Date: Aug 2011
Location: Paris, France
Posts: 1,644
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 213 Post(s)
Originally Posted by edelay View Post
Gosh, I had no idea it was that easy. Great to know that is an option. Opens a whole bunch of bags and accessories. Do you find that your cables get caught and make it hard to steer?
Nope, it worked fine on the Tern I was riding back then, although you might want to shorten the cables/housings if they protude a bit much in the front on your bike.

Besides offering interesting alternatives for bags, the bag won't wobble as much as with the truss.

Get a mini drill and give it a try.
Winfried is offline
Reply With Quote
Old 11-21-17, 07:14 AM
  #25
Bonzo Banana
Senior Member

Join Date: Feb 2017
Location: Merry Old England
Posts: 620

Bikes: Muddyfox Evolve 200, Bicycles4u Paris Explorer, Raleigh Twenty Stowaway, Bickerton California, Saracen Xile, Kona Hoss Deluxe, Vertigo Carnaby, Exodus Havoc, Kona Lanai, Revolution Cuillin Sport, Dawes Kingpin, Bickerton, NSU & Elswick Cosmopolitan

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 227 Post(s)
Originally Posted by Abu Mahendra View Post


Brooks makes an absolutely gorgeous leather briefcase for the Brompton block. Gorgeous.
That does look pretty awesome and the sort of design that only gets better with age for that classic look. I suspect serious money though.
Bonzo Banana is offline
Reply With Quote

Thread Tools
Search this Thread

Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service
