Lug angle question/help

Framebuilders Thinking about a custom frame? Lugged vs Fillet Brazed. Different Frame materials? Newvex or Pacenti Lugs? why get a custom Road, Mountain, or Track Frame? Got a question about framebuilding? Lets discuss framebuilding at it's finest.

Lug angle question/help

Old 02-17-19, 06:07 PM
  #1
BigPoser
Senior Member
Thread Starter

BigPoser's Avatar

Join Date: May 2016
Location: Bakersfield, CA
Posts: 451

Bikes: Scott Foil Disc, GT Grade, Cuevas, BAHL Uno, BAHL Zwei

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 203 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Lug angle question/help

I am seeking help and have some questions regarding the lug angle on the BB at the DT. The ST is already brazed in the BB. It's good. I will state that I checked and rechecked the set up with all of the main tubes in the lugs about 10 different times prior to actually brazing and all of the joints were tight. I have also been pinning this frame, but will say that the only joint I didn't pin was the HT/DT joint. So I finally get the time to braze it up today. ST to DT angle at the BB is supposed to be 60.1. Again I had checked this many times with my angle finder. It was spot on. I braze it, clean it up, put it in the jig and prop the HT in to work on getting it brazed as well. I

It's off.

It seems that when I brazed the DT into the BB, the angle changed? It's now 58.8. Now in order to have the DT be where it's supposed to be at the HT, I physically have to pull it down about 9mm. It's crazy. I know that forcing the tube to be somewhere is shouldn't be will only put additional stress on the tube itself and potentially lead to failure. Here are my questions:

How could this have happened? How can I fix it? I'm afraid to try to pull the DT from the BB and REALLY don't want to start over. Do I have any options? Am I okay to pull and braze? I'm really upset as I've spent A LOT of time on this frame to make sure that everything is perfect. It's my 4th frame and was/is supposed to be my best one yet. The build quality between this one and my first is 10 times better and I'll be so sad if I have to ditch it.

Thanks in advance.

Brandon
BigPoser is offline
Old 02-17-19, 07:56 PM
  #2
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 11,372

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1651 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Angles can shift with heat, especially in the BB shell with it's uneven mass distribution. This is one reason that some will tack the complete main triangle to "fix" the various angles and lengths at one time.

What is the filler for the DT and for the ST? Are there pins in the joint of both? To pull a pinned joint they have to be first drilled out.

At this point the "best" choice is to either start over with new ST, DT and shell or cut off the majority of the DT and grind out the rest. If you're inclined to do the first then after reordering the new stuff go back and try to bend the DT and ST back to the right angle. Either you do and continue or you screw up the tubes even more and then fall back on the best, the replacements. Andy.
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 02-17-19, 09:17 PM
  #3
BigPoser
Senior Member
Thread Starter

BigPoser's Avatar

Join Date: May 2016
Location: Bakersfield, CA
Posts: 451

Bikes: Scott Foil Disc, GT Grade, Cuevas, BAHL Uno, BAHL Zwei

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 203 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Andrew R Stewart View Post
Angles can shift with heat, especially in the BB shell with it's uneven mass distribution. This is one reason that some will tack the complete main triangle to "fix" the various angles and lengths at one time.

What is the filler for the DT and for the ST? Are there pins in the joint of both? To pull a pinned joint they have to be first drilled out.

At this point the "best" choice is to either start over with new ST, DT and shell or cut off the majority of the DT and grind out the rest. If you're inclined to do the first then after reordering the new stuff go back and try to bend the DT and ST back to the right angle. Either you do and continue or you screw up the tubes even more and then fall back on the best, the replacements. Andy.
Thanks Andy. The filler is silver and currently there is only one pin in the DT joint. I was afraid that I'd have to start over after this all happened. Could I try to heat up the joint a bit and try to open up the angle a bit? If not then I'll have to bite the bullet and order some new metal. Maybe I'll tack the triangle this time. Man what a bummer!! It was turning out to be a beautiful frame.

Brandon
BigPoser is offline
Old 02-17-19, 10:24 PM
  #4
Nessism
Senior Member

Nessism's Avatar

Join Date: Jun 2004
Location: Torrance, CA
Posts: 2,665

Bikes: Homebuilt steel

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 115 Post(s)
Liked 0 Times in 0 Posts
Maybe a bit ghetto but what about bending the V out a little. It won't take much to move the spread 1 degree.

Think of it this way: if you brazed the seat tube into the BB shell and then measured straightness and noticed the tube was angled down 9mm towards the end of the tube, a simple cold set will bring the tube up and into alignment.

Last edited by Nessism; 02-18-19 at 09:55 AM.
Nessism is offline
Old 02-17-19, 10:40 PM
  #5
Doug Fattic
framebuilder

Join Date: Dec 2009
Location: Niles, Michigan
Posts: 300
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 44 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

Since my method of putting tubes together is completely different than yours I can't provide much advice. I 1st braze the seat tube to the bottom bracket making sure the angles match the design and it is aligned. Then I assemble all the rest of the main triangle in my fixture. Because it is the same as a full size drawing it assures the tubes stay true to the design. I've worked out a method of spotting and aligning so that after brazing all the joints everything is where it should be. .
Doug Fattic is offline
Old 02-18-19, 08:07 AM
  #6
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 17,877
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 0 Times in 0 Posts
I am pretty sure I recommended a different order of assembly in a previous thread, starting with the seat tube, then the ht/dt, then the front triangle. That's a traditional building technique for a reason. Individual joints always seem to settle out at an angle that aren't what you wanted. Bottom brackets in particular have a way of moving that I don't want to have to predict, so I like to have everything else nailed down first.

I assume this bike is for Brandon. Since this is the bad advice forum, I would spring the tube out and finish the build. I really think the effects of that are overblown. Make sure the miters still fit, this is why bikes that have been sprung fail. Reheating is not a good idea. When I reheat a tube, it's going to metal recycling. BB shells and lugs can be reused if disassembled with care.

Am I reading it wrong that all that is bad is a bb shell and a downtube? In that case, just replace them. Throwing stuff out is good for the soul and good practice moving forward. Don't keep it around, that is just bad energy you don't need. I had a fork I didn't feel good about and didn't want to use that I carried around for 36 years. Finally cut it open and found out that it was perfectly fine to use. I wish I had done that 36 years prior.
unterhausen is offline
Old 02-18-19, 11:21 AM
  #7
BigPoser
Senior Member
Thread Starter

BigPoser's Avatar

Join Date: May 2016
Location: Bakersfield, CA
Posts: 451

Bikes: Scott Foil Disc, GT Grade, Cuevas, BAHL Uno, BAHL Zwei

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 203 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Thanks all. Yes this build is for me. Had I not had this issue, I would totally feel comfortable with it going to someone else though.
@doug - I pretty much did the same (or so I thought) thing, but in a vertical fixture. All the main tubes were mitered and dry fit in the lugs many times prior. Everything was great.
@unterhausen - So you think springing the tube will work and brazing will work? The miters are very good and once it's put in place, they are very tight. Yes, the only things that are officially bad are the DT and BB angle. The ST is already brazed in. I did order some new tubes and shell though just to have something to fall back on. I assumed that grinding out a DT in the BB pocket would be pretty tough and tedious at best.
BigPoser is offline
Old 02-18-19, 12:21 PM
  #8
Nessism
Senior Member

Nessism's Avatar

Join Date: Jun 2004
Location: Torrance, CA
Posts: 2,665

Bikes: Homebuilt steel

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 115 Post(s)
Liked 0 Times in 0 Posts
I removed a damaged down tube from a BB shell in the following way:

1) Cut off down tube about 1/2" above the BB shell.
2) Use a hacksaw blade in a holder tool and cut radial slots down into tube until you just hit the braze. About 5 slots will be enough.
3) Flux up the shell
4) Aim the torch flame on the inside surface of your down tube, heating it quickly.
5) Once good and hot use some strong pliers and peel out one one piece at a time.
6) After the shell cools use a sanding drum to dress the shell ID.

All this said, I still say cold set the ST to DT angle, or at least try.
Nessism is offline
Old 02-18-19, 03:14 PM
  #9
Doug Fattic
framebuilder

Join Date: Dec 2009
Location: Niles, Michigan
Posts: 300
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 44 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by BigPoser View Post
doug - I pretty much did the same (or so I thought) thing, but in a vertical fixture. All the main tubes were mitered and dry fit in the lugs many times prior. Everything was great.
I'm not sure I was clear about what I do. After brazing the seat tube to the bottom bracket as a separate unit, I assemble and then spot braze all the rest of the front triangle in my fixture. I don't separately braze another joint outside of the main triangle. The whole assembly keeps all the tubes true to the original frame design as I'm continuing to spot, align, braze, align each joint. If I understand you correctly you did not leave the whole triangle assembled as you brazed your bb to dt joint.
Doug Fattic is offline
Old 02-18-19, 03:49 PM
  #10
mikeread
Senior Member

Join Date: Nov 2015
Posts: 96
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Would I be right in thinking the following ?

If the OP had tacked the whole main triangle before brazing the ST/DT joint, the joint would try to close up (as before) but being restricted from doing so, would put a 'hidden stress' into the structure.

If this is the case, then if the OP forced his misaligned tubes to fit as intended and finished up the frame, would it give the same 'hidden stress' as would be present if he had tacked the whole lot together first?
mikeread is offline
Old 02-18-19, 05:05 PM
  #11
TiHabanero
Senior Member

Join Date: Nov 2012
Posts: 2,122
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 589 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
As a noob to the whole experience my gut instinct is to cold set the tube angle to avoid having to replace main tubes which is a major PIA. The first frame I built I did just that and it has 10 thousand miles on it without trouble.
TiHabanero is offline
Old 02-18-19, 06:21 PM
  #12
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 11,372

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1651 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I have done some of the same but with the ST/DT angle too large by around the same amount. I squeezed the tube in (well, I actually used long Omar's bending bars slid inside the tubes touching in the BB). I got the needed spread but suffered a collapse bulge in the seat tube's front just above the shell.

Now this was when I was building some version of the "hockey stick" process and using brass for the seat tube filler. I continued to complete the frame, no one spotted the issue unless I pointed it out. I don't remember how many years I kept it but it's long gone now.

As I suggested before you do anything get replacements. Then you're free to do whatever you decide on. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 02-18-19, 06:29 PM
  #13
Doug Fattic
framebuilder

Join Date: Dec 2009
Location: Niles, Michigan
Posts: 300
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 44 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by mikeread View Post
Would I be right in thinking the following ?

If the OP had tacked the whole main triangle before brazing the ST/DT joint, the joint would try to close up (as before) but being restricted from doing so, would put a 'hidden stress' into the structure.

If this is the case, then if the OP forced his misaligned tubes to fit as intended and finished up the frame, would it give the same 'hidden stress' as would be present if he had tacked the whole lot together first?
Part of the way to reduce internal stress is to spot, align and braze in a way that doesn't create it. There is a lot that goes into brazing a joint the most effective way possible including what size tip to choose and the heat pattern one follows. The heat from brazing will always create distortion and it is the job of the builder to know how to minimize its effects.
Doug Fattic is offline
Old 02-18-19, 07:18 PM
  #14
BigPoser
Senior Member
Thread Starter

BigPoser's Avatar

Join Date: May 2016
Location: Bakersfield, CA
Posts: 451

Bikes: Scott Foil Disc, GT Grade, Cuevas, BAHL Uno, BAHL Zwei

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 203 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Thanks once again for the replies. I have some new pieces coming my way and will attempt to work on it. I have to admit that with the frames I've been building (all for me), I've been trying different things to try to learn as much as I can. I certainly don't mind making mistakes, and here is a prime example of one. This next attempt, I'll be sure to have the full front triangle put together and pin and tack each joint and then align and then move on to completing the joints.

Thank you for all of your insight. I'm learning a ton.
BigPoser is offline
Old 02-19-19, 09:08 AM
  #15
Nessism
Senior Member

Nessism's Avatar

Join Date: Jun 2004
Location: Torrance, CA
Posts: 2,665

Bikes: Homebuilt steel

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 115 Post(s)
Liked 0 Times in 0 Posts
Sorry to belabor this point but there is something I don't understand. More specifically, what's wrong with cold setting the ST/DT/BB shell assembly back to the proper angle and moving forward with the build?

If I'm building a frame and braze the ST into the BB shell and then check alignment using my surface plate, and the ST is 9mm low where the seat cluster will lay, I'd be perfectly happy to bend the tube to straight and continue with the build. Am I a heathen here? Assuming no (hopefully), then what's different in this situation? It seems to me you can simply spread the angle, which will divide the cold setting between two tubes, not just one. Any "bowing" of the tubes would be so small as to be negligible.

Last edited by Nessism; 02-20-19 at 06:50 AM.
Nessism is offline
Old 02-19-19, 11:07 AM
  #16
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 11,372

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1651 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Nessism- If the involved tubes were to somewhat evenly bend/bow through out their lengths then I agree that few would even be able to tell and that the tubes' integrity won't be "challenged". But I don't think this reflects how beams bend nor the changed strengths in the HAZ. I related my experience specifically to show this. That beams bend to a greater degree closer to the fixed end and that the strength loss in the HAZ, located right at the tube/beam end combine to make this end portion most likely to move. Remember that unlike a chainstay socket in a lugged shell, where the stay doesn't contact the other stay or the seat tube even, with well done miters the seat and down tubes do touch and have been brazed to each other. So the correcting isn't so much the shell bending but is the tubes doing so.

It is this reason that my first suggestion to Brandon was to get replacements, because if a tube did suffer localized collapse that was beyond his comfort level he had his next option on hand and could proceed right away. There's nothing wrong with trying to cold set the ST/DT angle. That's no different then raking blades, setting rear drop out spreads or aligning a built frame in general. It's just something that is best avoided (hence the build sequence advice given by some here for future frames) and also best understood of the possible consequences and how those consequences are valued. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 02-19-19, 12:59 PM
  #17
BigPoser
Senior Member
Thread Starter

BigPoser's Avatar

Join Date: May 2016
Location: Bakersfield, CA
Posts: 451

Bikes: Scott Foil Disc, GT Grade, Cuevas, BAHL Uno, BAHL Zwei

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 203 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

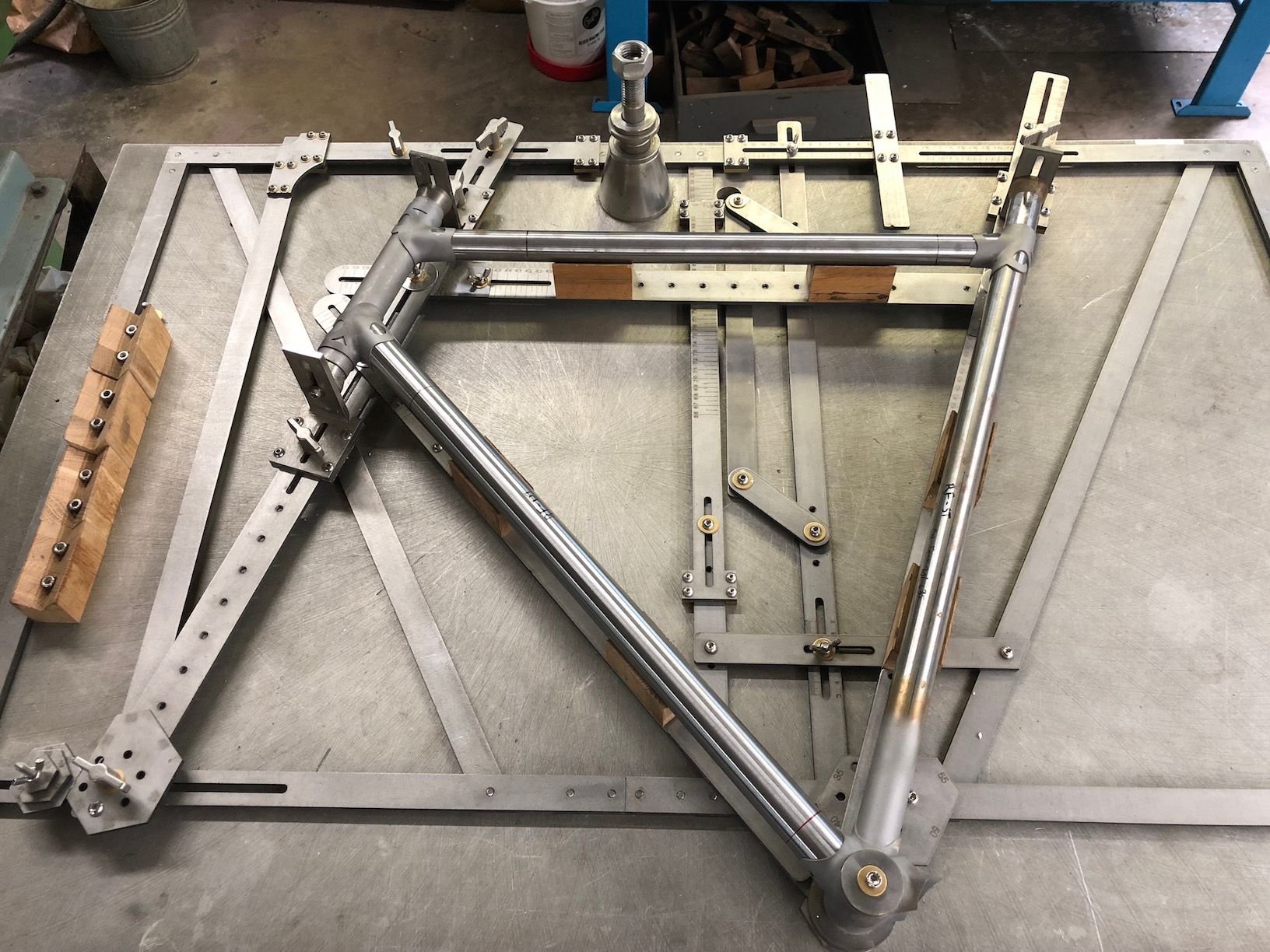

Morning. Last night I went and played with the frame a bit and through some gentle massaging I was able to cold set the angle do the desired setting. I was careful not to overdo it, and kept measuring the straightness both the ST and DT themselves while doing so. I can't measure any deviations whatsoever in either tube and my angles are what they should be. So I then proceeded to pin and flux the remaining joints and tack them all in place so that the main triangle is set. Everything went as well as I could have hoped considering my initial miscues. I checked the alignment along the way and it seems to be spot on from what I can see.

This week I will braze the joints completely and move on with the build. I'm a bit relieved. Throughout this process of building frames I love that there are times that certain mistakes that initially seem catastrophic (to me at least) , are actually able to be fixed. That hasn't always been the case, but I'm learning so much it's very exciting to me. I can't get enough.

Thanks everyone for your advice and support.

Brandon
BigPoser is offline
Old 02-19-19, 01:54 PM
  #18
Nessism
Senior Member

Nessism's Avatar

Join Date: Jun 2004
Location: Torrance, CA
Posts: 2,665

Bikes: Homebuilt steel

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 115 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by BigPoser View Post
Morning. Last night I went and played with the frame a bit and through some gentle massaging I was able to cold set the angle do the desired setting. I was careful not to overdo it, and kept measuring the straightness both the ST and DT themselves while doing so. I can't measure any deviations whatsoever in either tube and my angles are what they should be. So I then proceeded to pin and flux the remaining joints and tack them all in place so that the main triangle is set. Everything went as well as I could have hoped considering my initial miscues. I checked the alignment along the way and it seems to be spot on from what I can see.

This week I will braze the joints completely and move on with the build. I'm a bit relieved. Throughout this process of building frames I love that there are times that certain mistakes that initially seem catastrophic (to me at least) , are actually able to be fixed. That hasn't always been the case, but I'm learning so much it's very exciting to me. I can't get enough.

Thanks everyone for your advice and support.

Brandon
Well done Brandon!

Ed
