Columbus Flat Mount Chainstays

Has anyone used these yet? If so, can you mention what you like and dislike about them? They look intriguing.

Thanks in advance.

Brandon
BigPoser is offline
Old 07-06-20, 02:45 PM
  #2
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 23,123
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 2,699 Times in 1,879 Posts
I have some, but I haven't decided what to do with them yet. I don't like that they are so tall. Also, the crimp for the mounts is rather crude. I only got them because I like the bend. The regular s-bend are meant to make it out to the dropouts right at the end, so using them for discs means something has to be compromised. Mostly chainring clearance.

Did you have some Deda disc stays? I couldn't find them.
unterhausen is offline
Old 07-06-20, 02:56 PM
  #3
BigPoser
Senior Member
Thread Starter

BigPoser's Avatar

Join Date: May 2016
Location: Bakersfield, CA
Posts: 599

Bikes: BAHL Giro, BAHL Uno, BAHL GVL, Cuevas

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 250 Post(s)
Liked 12 Times in 9 Posts
No I don't. I really like the look of S Bend stays, and they'll match the curved seat stays on a build in the queue. However, it looks like I'd have to damn near cut through the whole stay for the caliper mounts which I don't like. I'd rather have some more meat left over in the stay when milling for the mounts.
BigPoser is offline
Old 07-06-20, 03:44 PM
  #4
guy153
Senior Member

Join Date: Dec 2019
Posts: 843
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 293 Post(s)
Liked 222 Times in 181 Posts

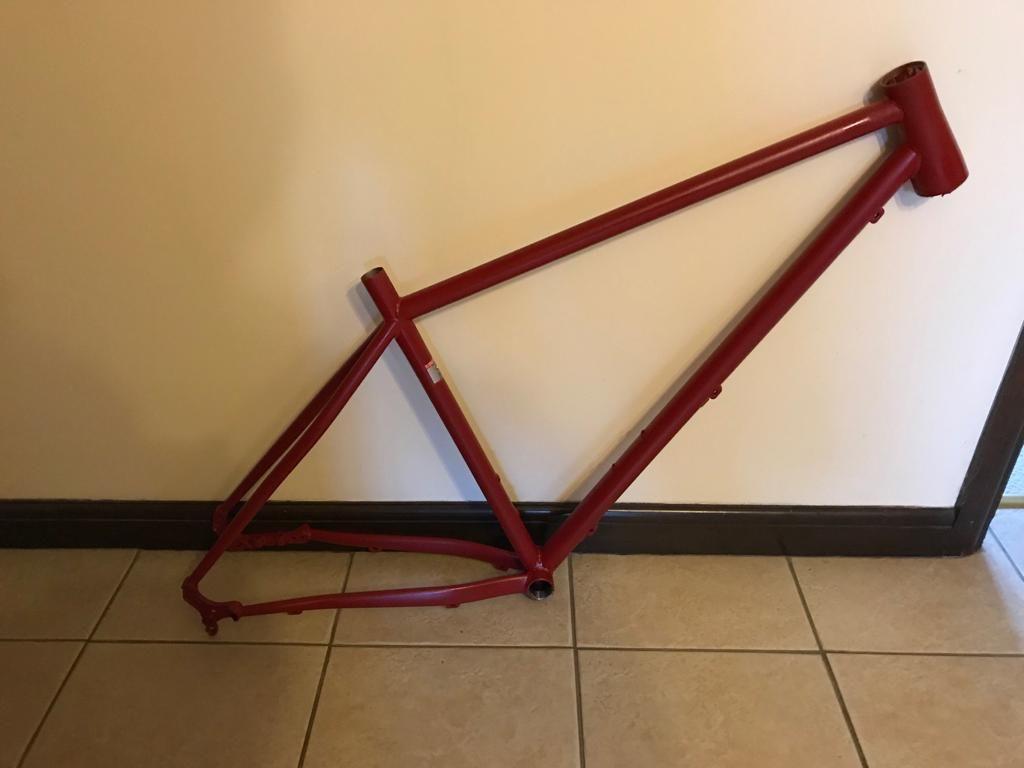

This is the "long low slack" MTB frame I made about a year ago. Columbus S-bend CS and a cast dropout from Ceeway that had the brake mounts included which you can just about see if you zoom into the furthest-away and dingiest corner of the picture. There was plenty of clearance for the cranks and about a 2.5" tyre IIRC. The bike rides like a hot damn.
guy153 is offline
Old 07-06-20, 06:56 PM
  #5
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 23,123
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 2,699 Times in 1,879 Posts

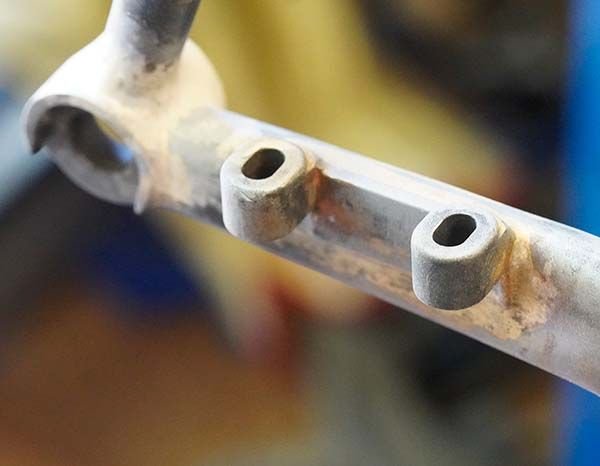

There are some pictures of part of the columbus flat mount stays in this post. I can take more pictures if you want
What happened here?
unterhausen is offline
Old 07-06-20, 10:05 PM
  #6
wsteve464
Senior Member

Join Date: Jul 2016
Posts: 561
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 161 Post(s)
Liked 71 Times in 62 Posts
I have used them. The flat mount crimp is kind of rough but it mostly fills in when brazing, the outside of the stay is a bit uneven from crimping. They are tall/thick at the dropout end but they need that for the mount. I really like that the dropout ends run parallel for the last 4-5inches. If I use them again I might try to get 2 drive side stays and cut out the area for the flat mount to fit.

Here are a couple of pics

one checking the fit of the flat mount the other from the inside


wsteve464 is offline
Likes For wsteve464:
Old 07-07-20, 11:15 AM
  #7
BigPoser
Senior Member
Thread Starter

BigPoser's Avatar

Join Date: May 2016
Location: Bakersfield, CA
Posts: 599

Bikes: BAHL Giro, BAHL Uno, BAHL GVL, Cuevas

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 250 Post(s)
Liked 12 Times in 9 Posts
Originally Posted by wsteve464 View Post
I have used them. The flat mount crimp is kind of rough but it mostly fills in when brazing, the outside of the stay is a bit uneven from crimping. They are tall/thick at the dropout end but they need that for the mount. I really like that the dropout ends run parallel for the last 4-5inches. If I use them again I might try to get 2 drive side stays and cut out the area for the flat mount to fit.

Here are a couple of pics

one checking the fit of the flat mount the other from the inside



They are definitely thick. I'll be using Syntace dropouts it shouldn't be too much of an issue really. I do like the set up though.

How is it getting the placement set up? I assume pretty easy with a flat mount fixture.
BigPoser is offline
Old 07-07-20, 11:06 PM
  #8
wsteve464
Senior Member

Join Date: Jul 2016
Posts: 561
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 161 Post(s)
Liked 71 Times in 62 Posts
Originally Posted by BigPoser View Post
They are definitely thick. I'll be using Syntace dropouts it shouldn't be too much of an issue really. I do like the set up though.

How is it getting the placement set up? I assume pretty easy with a flat mount fixture.
I used the Incepi fixture. The hardest part was getting the distance from the dropout to the mounting crimp as it is a specific place on the stay. Other than that no problem bolt the fixture to the stay and weld/braze it all together.
wsteve464 is offline
Old 07-08-20, 10:00 AM
  #9
BigPoser
Senior Member
Thread Starter

BigPoser's Avatar

Join Date: May 2016
Location: Bakersfield, CA
Posts: 599

Bikes: BAHL Giro, BAHL Uno, BAHL GVL, Cuevas

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 250 Post(s)
Liked 12 Times in 9 Posts
Originally Posted by wsteve464 View Post
I used the Incepi fixture. The hardest part was getting the distance from the dropout to the mounting crimp as it is a specific place on the stay. Other than that no problem bolt the fixture to the stay and weld/braze it all together.
Yeah I would think that could be tricky for sure. Don't over miter the ends!

How much wiggle room is there where the caliper mount sits?
BigPoser is offline
Old 07-08-20, 05:15 PM
  #10
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 23,123
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 2,699 Times in 1,879 Posts
there is very little wiggle, unless you are willing to have a huge gap. Which doesn't seem like a good idea to me. I decided to wimp out and go with IS mounts and TA dropouts with the regular s-bend stays

In this pic, you can make out that if you move the mount forwards or backwards, it will gap out from the stay
