Making a head badge? Anyone have an idea?

Does anyone have ideas of how to make a head badge.

and or any glue or tape to attach the badge and still remove it with no damage.
amckimmey is offline
Old 04-26-10, 02:47 PM
  #2
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 19,913
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 436 Times in 332 Posts
double sided tape works.

It's pretty common to get head badges cut by water jet -- that's going to run about $200 for 20 or so. Cast head tube badges cost about $500 for the first one. Alternately, you can get stainless shim stock and cut it yourself
unterhausen is offline
Old 04-26-10, 03:10 PM
  #3
mudboy
Senior Member

mudboy's Avatar

Join Date: Sep 2008
Location: Collegeville, PA
Posts: 1,352

Bikes: Ruckelshaus Randonneur, Specialized Allez (early 90's, steel), Ruckelshaus Path Bomber currently being built

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
https://www.headbadges.com/id74.html
mudboy is offline
Old 04-26-10, 03:44 PM
  #4
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 19,913
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 436 Times in 332 Posts
Pete, you should get one of those

Last edited by unterhausen; 04-26-10 at 06:00 PM.
unterhausen is offline
Old 04-26-10, 04:08 PM
  #5
Booger1
Senior Member

Join Date: Sep 2007
Location: Gaseous Cloud around Uranus
Posts: 3,741
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 33 Post(s)
Likes: 0
Liked 6 Times in 2 Posts
You can make a better looking one than those with a coping saw and some files.Those things look like they were cast in beach sand.You can attach it with rivets,small screws or clear silly putty(silicone).

Last edited by Booger1; 04-26-10 at 04:11 PM.
Booger1 is offline
Old 04-26-10, 06:01 PM
  #6
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 19,913
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 436 Times in 332 Posts
these guys do a really nice job, not sure about price
unterhausen is offline
Old 03-21-20, 11:50 PM
  #7
biketroubadour
Junior Member

Join Date: Jun 2016
Posts: 15
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 3 Times in 1 Post
I make mine by electro etching. It's super easy but do the etch outside cuz the byproducts (albeit in small, probably unharmful amounts) are chlorine gas & hydrogen...


biketroubadour is offline
Likes For biketroubadour:
Old 03-22-20, 03:02 AM
  #8
guy153
Senior Member

Join Date: Dec 2019
Posts: 192
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Liked 29 Times in 25 Posts
Originally Posted by biketroubadour View Post
I make mine by electro etching.
Interesting! Can you explain how to do this in more detail (or post a link)?
guy153 is offline
Old 03-22-20, 08:48 AM
  #9
biketroubadour
Junior Member

Join Date: Jun 2016
Posts: 15
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 3 Times in 1 Post
Originally Posted by guy153 View Post
Interesting! Can you explain how to do this in more detail (or post a link)?

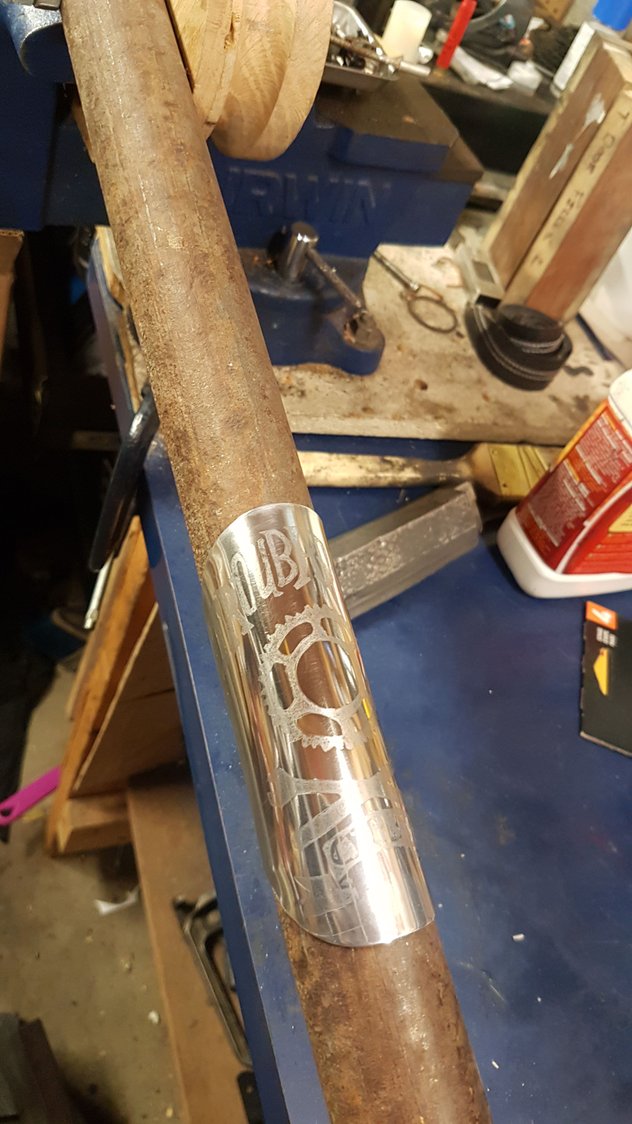

the process is fairly simple. First you need to transfer your image onto the metal plate you want to etch, using a medium that won't wash off in salt water. i stamped the plate with enamel paint in this case, but you could also cover the plate in masking tape & cut out a stenciled image, or I've heard of Laser printer toner working well too. Next, soak some cotton balls or q-tips in heavily salted water, I don't measure but it's in the neighbourhood of 1.5 tbsp salt dissolved in half cup of water. Hook up an alligator clip to the positive terminal of a 6V battery and a corner of the plate you want to etch. Hook up second alligator clip to the negative terminal and a soaked cotton ball (or near the end of a q-tip). Slowly & methodically dab cotton onto your image, for about 3-5 seconds at a time, moving around the image in overlapping dabs. Replace cotton as it gets dirty or dried out. 5 minutes of this will give you a light but well visible etch as seen in my pictures, 10 minutes a deep etch but most resist mediums will start breaking down before then.
make sure you so this outside or in a well ventilated area with no open flame, process creates small amounts of hydrogen & chlorine gas. Not fun to breath or blow up
biketroubadour is offline
Old 03-22-20, 11:50 AM
  #10
duanedr
Senior Member

Join Date: Aug 2012
Location: Seattle
Posts: 292
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 41 Post(s)
Liked 16 Times in 12 Posts
Originally Posted by mudboy View Post
Jennifer makes jewelry quality head badges or quite simple ones. And she's great to work with.
__________________
https://www.flickr.com/photos/54319503@N05/
https://www.draper-cycles.com
duanedr is offline
Old 03-22-20, 04:44 PM
  #11
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 13,621

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2440 Post(s)
Liked 500 Times in 388 Posts
I've had my second batch of "S" badges made and delivered only a few weeks ago. Water cut .044" SS plate, about .875" x 1.55". I do the bending. The first batch of 17 cost about $200 in 2008. The resupply of 20 cost just over $100 recently. First batch was designed on E Machine.com and resupply based on that design file (yes they still had it on record). I silver braze it on then hand finish before masking for paint. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 03-23-20, 07:11 AM
  #12
Tandem Tom
Senior Member

Join Date: Dec 2011
Location: NE Ohio
Posts: 2,196

Bikes: 1992 Serotta Colorado II,Co-Motion Speedster, Giant Escape Hybrid, 1977 Schwinn Super Le Tour

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 310 Post(s)
Likes: 0
Liked 37 Times in 31 Posts
Andy, I see McMaster Carr has .048 available. How difficult would it be to cut and file by hand? As a woodworker this is still a bit foreign!
Thanks!
Tandem Tom is offline
Old 03-23-20, 08:14 AM
  #13
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 13,621

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2440 Post(s)
Liked 500 Times in 388 Posts

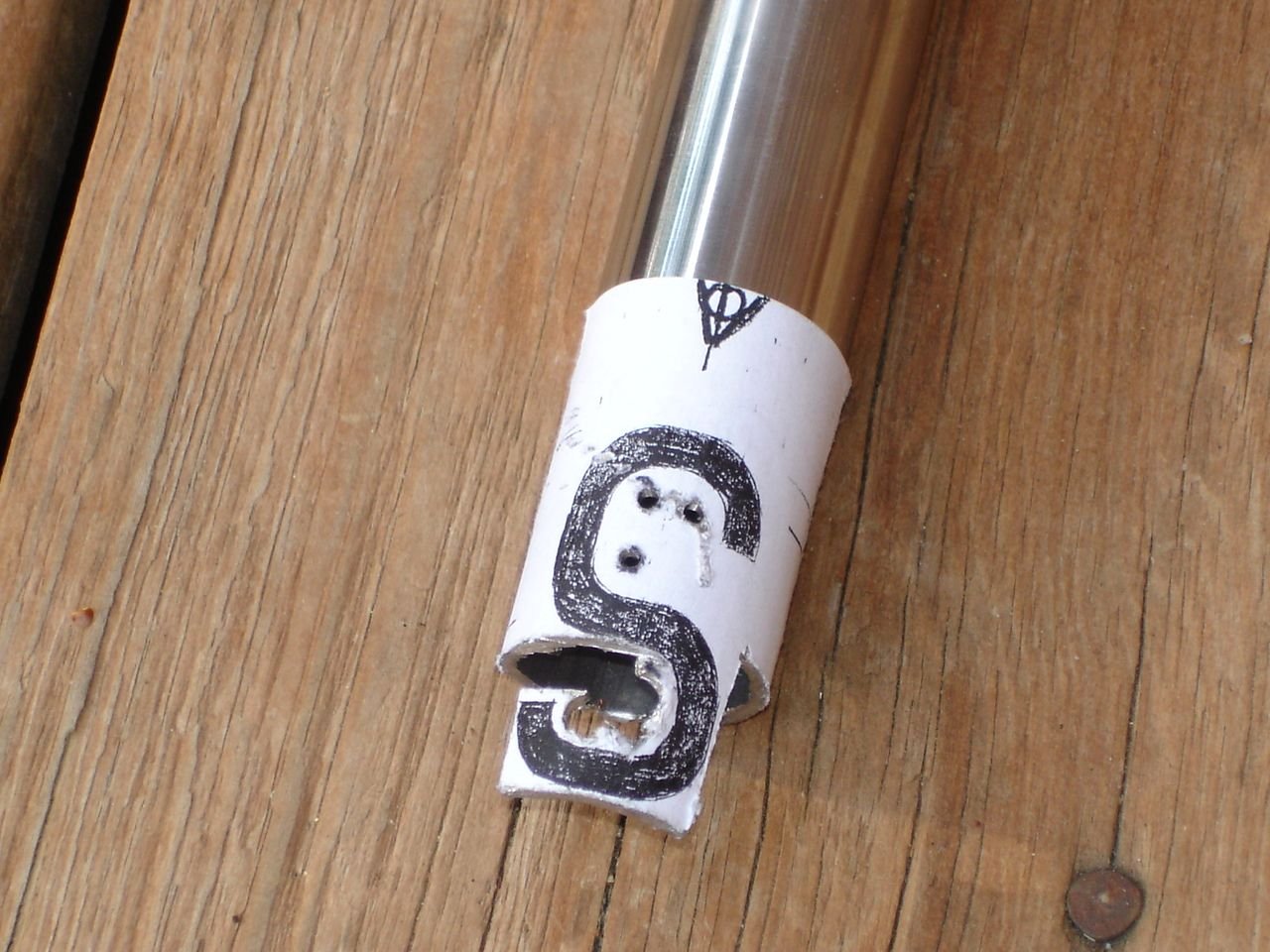

The first attempt I made for a SS badge was by cutting a "S" from a SS tube. I started with drilling a series of holes then opened them up. This was very slow and I still had to file/grind a lot so I next used a jewel's saw. The follow up with files and Dremel took much less time. Here's a shot of the hole drilling step. It was the time it took to do this that motivated me to design a "S" on Emachine.com and seek a quote. I have been very happy with the pre made badges. Andy.
__________________
AndrewRStewart
Andrew R Stewart is offline
Likes For Andrew R Stewart:
Old 03-23-20, 09:11 AM
  #14
Doug Fattic
framebuilder

Join Date: Dec 2009
Location: Niles, Michigan
Posts: 596
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 161 Post(s)
Likes: 0
Liked 185 Times in 95 Posts
I'll add that a good way to make a head badge is the same way I create and cut out designs for blank lugs. I find the right size and then increase it to 200% with my copy machine. By enlarging the size it becomes much easier to draw and when it is reduced back down to 100% size the lines become clearer and sharper. I like to draw on Vellum paper. It can be erased multiple times and is semi-translucent for folding in half to trace the other side if the design has some symmetry. I print a graph paper grid template onto the Velum paper to help with my drawing. Once my drawing is complete I go back to my copier and reduce the size back to 100% and use clear label sheets to print the design onto. This design is now placed on sheet of stainless steel.

I cut out the design using a jeweler's saw and get right to the edge of the design with jeweler's files. I hog out bigger sections with a Dremel cut-off saw. To bend the curve I use half sections of 0.120" wall tubing. The outside diameter of the inner tube is 1/4" smaller than the outside tube used to press against it. Here are some pictures to help illustrate what I am talking about. A couple of my frame building class students did 2 layer head badges. The bottom layer was stainless and the one on top of it was cut from a sheet of copper. That combination had a nice effect.

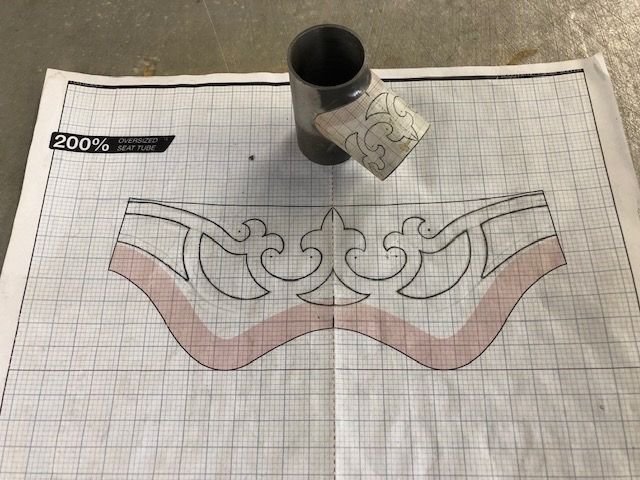

This is a picture of the template drawing being 200% life size and then reduced down to life size and pasted onto a blank lug for cutting.

This is a picture of a frame made in my frame building class. The seat tube badge was made by the process I explained in this post. Now that I look at the picture I realize he cut his own design out of blank lugs too. For those that are interested, I can email a much more complete set of instructions on how to design and cut out blank lugs (which I sell as a fund raiser for our Ukrainian Bicycle Project). The same principles apply to making head badges.
Doug Fattic is offline
Old 03-23-20, 12:42 PM
  #15
Nessism
Senior Member

Nessism's Avatar

Join Date: Jun 2004
Location: Torrance, CA
Posts: 2,832

Bikes: Homebuilt steel

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 175 Post(s)
Liked 34 Times in 29 Posts
This thread has lots of useful information about making head badges...
Head Tube Badge Creation
Nessism is offline
Old 04-06-20, 09:49 AM
  #16
rbrnut
Junior Member

Join Date: Jul 2012
Posts: 7
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by duanedr View Post
Jennifer makes jewelry quality head badges or quite simple ones. And she's great to work with.
I just worked with Jennifer on a custom head badge design. She did great work and is easy to work with, if going that route.
rbrnut is offline
Old 04-06-20, 01:09 PM
  #17
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 19,913
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 436 Times in 332 Posts
I really like her headbadges, but is it always $150 per bike?
unterhausen is offline
Old 04-06-20, 03:31 PM
  #18
dsaul
Senior Member

Join Date: Jan 2013
Location: South Jersey
Posts: 1,566
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 457 Post(s)
Liked 206 Times in 155 Posts
Originally Posted by unterhausen View Post
I really like her headbadges, but is it always $150 per bike?
No. One of my friends had her make a mold for casting bronze headbadges and the per badge cost was around $35 after the initial mold fee.

These guys messaged me on Instagram and gave me some very good prices on an order of 20-50 badges.(around $2 each after initial setup fees) https://www.schildnederland.eu/
dsaul is offline
Old 04-06-20, 06:55 PM
  #19
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 19,913
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 436 Times in 332 Posts
Thanks, I always wondered how people could afford her badges.
I follow Schild on instagram. Problem is I would have to do some design, and that's where it all falls apart
unterhausen is offline
Old 04-14-20, 03:59 PM
  #20
rhm
multimodal commuter

rhm's Avatar

Join Date: Nov 2006
Location: NJ, NYC, LI
Posts: 19,383

Bikes: 1940s Fothergill, 1959 Allegro Special, 1963? Claud Butler Olympic Sprint, Lambert 'Clubman', 1974 Fuji "the Ace", 1976 Holdsworth 650b conversion rando bike, 1983 Trek 720 tourer, 1984 Counterpoint Opus II, 1993 Basso Gap, 2010 Downtube 8h, and...

Mentioned: 483 Post(s)
Tagged: 0 Thread(s)
Quoted: 1692 Post(s)
Liked 155 Times in 115 Posts
A few years ago I restored a 70 year old Armstrong Moth frame. I didn't do much to the paint, just touched up the black paint that was on it (not original) and recreated graphics based on photos of similar bikes (which are hard to find... imagine what happens when you google "armstrong bike"... But I found this photo on bike forums:

I decided to recreate that as a real headbadge. That basically meant making a greyscale drawing, from which a 2D-to-3D software program generated a 3D model. Here is the 'preview' it gave me:


I had that printed in brass (which means the 3D printer put out a wax version, which the 3D printing company cast in brass; I then manually curved it to fit a head tube (somewhat imperfectly) and added some color (imperfectly as well... but I will get back to that). Here is what I have now:

__________________
I put new leather on ruined saddles like Brooks, etc. You can reach me by private message.
rhm is offline
Likes For rhm:
Old 04-14-20, 07:13 PM
  #21
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 19,913
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 436 Times in 332 Posts
All I need to do is get in my time machine and go back 100 years and talk someone named Keller into starting a bike company so I can copy their headbadge
unterhausen is offline
Old 04-15-20, 09:55 AM
  #22
rhm
multimodal commuter

rhm's Avatar

Join Date: Nov 2006
Location: NJ, NYC, LI
Posts: 19,383

Bikes: 1940s Fothergill, 1959 Allegro Special, 1963? Claud Butler Olympic Sprint, Lambert 'Clubman', 1974 Fuji "the Ace", 1976 Holdsworth 650b conversion rando bike, 1983 Trek 720 tourer, 1984 Counterpoint Opus II, 1993 Basso Gap, 2010 Downtube 8h, and...

Mentioned: 483 Post(s)
Tagged: 0 Thread(s)
Quoted: 1692 Post(s)
Liked 155 Times in 115 Posts
Originally Posted by unterhausen View Post
All I need to do is get in my time machine and go back 100 years and talk someone named Keller into starting a bike company so I can copy their headbadge
Be careful, if you do that, you could wind up with Spanish Flu. The irony would be priceless.
__________________
I put new leather on ruined saddles like Brooks, etc. You can reach me by private message.
rhm is offline
Old 04-15-20, 07:43 PM
  #23
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 19,913
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 436 Times in 332 Posts
Aren't we at least partially immune to to the Spanish flu?
unterhausen is offline
Old 04-15-20, 09:55 PM
  #24
oliverh
Newbie

Join Date: Apr 2020
Location: Logan, Utah
Posts: 4

Bikes: 29+ full rigid

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I like cutting them out myself, it adds gives the head badge a little more uniqueness and complexity. The filing is more time consuming. As far as attaching it, any frame builders will drill and tap a tiny threads into the head tube that you can attach the head badge with some tiny hardware.
oliverh is offline
