Any suggestions for this?

Search
Notices
General Cycling Discussion Have a cycling related question or comment that doesn't fit in one of the other specialty forums? Drop on in and post in here! When possible, please select the forum above that most fits your post!

Any suggestions for this?

Thread Tools

Search this Thread

Old 08-13-25 | 03:30 PM
  #1
Thread Starter
Just a cyclist
5 Anniversary

Joined: Dec 2017
Posts: 97
Likes: 72
From: In the middle of NJ

Bikes: Trek Checkpoint ALR4, Giant Cypress DX, Trek 800. Liv Sedona DX (hers)

Any suggestions for this?

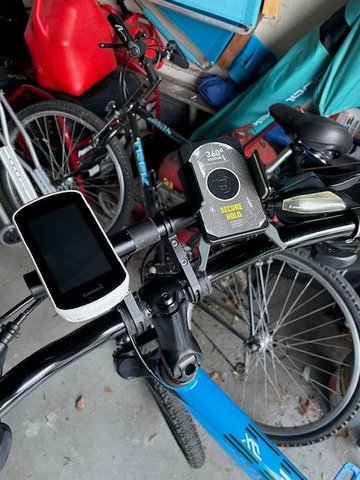

Hello all - Hoping for a suggestion...Installed a bar on my handlebars a while back to hold a GoPro or a headlight or both or my phone and Garmin and whatever. No matter how tight I think I get it it still seems to want to "roll" forward. I tried using gaffers tape under the mount to try to provide a little friction to hold it in place and it's better but still moves. (I'm a videographer - gaffers tape can fix almost anything). Anyone had any luck getting one to stay still? Thanks in advance!


442dude is offline
Reply
Old 08-13-25 | 03:42 PM
  #2
bargainguy's Avatar
Senior Member
Titanium Club Membership
10 Anniversary

Joined: Sep 2012
Posts: 2,443
Likes: 502
From: High desert
If you can't torque it down enough directly to the handlebar, I'm suspecting a design flaw.

In the way distant past, I used to rock a Minoura SpaceBar for lights and a computer. This was the days before Garmins and phones. I don't remember ever having this issue.
bargainguy is offline
Reply
Old 08-13-25 | 04:13 PM
  #3
Bald Paul's Avatar
Senior Member
5 Anniversary

Joined: Sep 2017
Posts: 2,369
Likes: 2,483
From: Upstate SC
Which end is rotating - the clamp to the handlebars, or the clamp that holds the auxiliary bar? The clamp on the handlebars should have come with various rubber inserts to fit different diameter bars.
Bald Paul is offline
Reply
Old 08-13-25 | 04:24 PM
  #4
Thread Starter
Just a cyclist
5 Anniversary

Joined: Dec 2017
Posts: 97
Likes: 72
From: In the middle of NJ

Bikes: Trek Checkpoint ALR4, Giant Cypress DX, Trek 800. Liv Sedona DX (hers)

Originally Posted by Bald Paul
Which end is rotating - the clamp to the handlebars, or the clamp that holds the auxiliary bar? The clamp on the handlebars should have come with various rubber inserts to fit different diameter bars.
The clamp on the handlebars rotates. It came with various inserts but they slid even more than the gaff tape...They were more plastic than rubber - I wonder if I made a couple of rubber ones if they would work?

Last edited by 442dude; 08-13-25 at 04:43 PM.
442dude is offline
Reply
Old 08-14-25 | 12:32 AM
  #5
Newbie

Joined: Aug 2025
Posts: 2
Likes: 1
You can try to use Carbon gripper paste. It's not actually meant for that kind of stuff, but it provides more surface friction and might work.
Lumael is offline
Reply
Old 08-14-25 | 05:56 AM
  #6
Bald Paul's Avatar
Senior Member
5 Anniversary

Joined: Sep 2017
Posts: 2,369
Likes: 2,483
From: Upstate SC
Originally Posted by 442dude
The clamp on the handlebars rotates. It came with various inserts but they slid even more than the gaff tape...They were more plastic than rubber - I wonder if I made a couple of rubber ones if they would work?
Okay, I think I know what you bought. I modified two sets of them to mount an external battery pack for my GoPro with the GoPro mounted to the battery. Both handlebars and battery are the same diameter, give or take a few tenths of a mm.
What is the diameter of your handlebar? I don't use any plastic or rubber inserts on mine and it clamps down tightly.
Bald Paul is offline
Reply
Old 08-14-25 | 07:44 AM
  #7
“We don’t need no badges”

Joined: Sep 2019
Posts: 2,611
Likes: 1,633
From: SF Bay Area

Bikes: 1981 Holdsworth Special, 1993 C-dale MT3000 & 1996 F700CAD3, 2018 & 2019 Cervelo R3’s & 2022 R5, JustGo Runt, Ridley Oval, Kickr Bike 8-)

Wrap the bar with a piece of old inner tube.

Barry
__________________
Barry2 is offline
Reply
Old 08-14-25 | 02:44 PM
  #8
Senior Member
10 Anniversary

Joined: Mar 2012
Posts: 1,455
Likes: 987
Originally Posted by Barry2
Wrap the bar with a piece of old inner tube.
Winner, winner, chicken dinner! The rubber will compress and really grip the bar. The OP just needs to be sure the bar is clean and maybe scuff the inner tube with sandpaper for extra grip.
KerryIrons is offline
Reply
Old 08-14-25 | 02:59 PM
  #9
Thread Starter
Just a cyclist
5 Anniversary

Joined: Dec 2017
Posts: 97
Likes: 72
From: In the middle of NJ

Bikes: Trek Checkpoint ALR4, Giant Cypress DX, Trek 800. Liv Sedona DX (hers)

Originally Posted by Barry2
Wrap the bar with a piece of old inner tube.

Barry
I didn't think of that...I've got an old one laying around too...definitely will try! Thanks for the idea!
442dude is offline
Reply
Old 08-14-25 | 03:02 PM
  #10
Thread Starter
Just a cyclist
5 Anniversary

Joined: Dec 2017
Posts: 97
Likes: 72
From: In the middle of NJ

Bikes: Trek Checkpoint ALR4, Giant Cypress DX, Trek 800. Liv Sedona DX (hers)

Originally Posted by Bald Paul
Okay, I think I know what you bought. I modified two sets of them to mount an external battery pack for my GoPro with the GoPro mounted to the battery. Both handlebars and battery are the same diameter, give or take a few tenths of a mm.
What is the diameter of your handlebar? I don't use any plastic or rubber inserts on mine and it clamps down tightly.
I'd have to measure but I'm pretty sure when I installed it originally that the inserts fell out once while I was tightening it and it didn't clamp tight without something put in there. When I take it apart to take off the gaff tape I can try. Thanks! Appreciate the reply.
442dude is offline
Reply
Old 08-14-25 | 03:03 PM
  #11
Thread Starter
Just a cyclist
5 Anniversary

Joined: Dec 2017
Posts: 97
Likes: 72
From: In the middle of NJ

Bikes: Trek Checkpoint ALR4, Giant Cypress DX, Trek 800. Liv Sedona DX (hers)

Originally Posted by KerryIrons
Winner, winner, chicken dinner! The rubber will compress and really grip the bar. The OP just needs to be sure the bar is clean and maybe scuff the inner tube with sandpaper for extra grip.
Will do and thank you for the reply!
442dude is offline
Reply
Old 08-16-25 | 05:01 PM
  #12
Thread Starter
Just a cyclist
5 Anniversary

Joined: Dec 2017
Posts: 97
Likes: 72
From: In the middle of NJ

Bikes: Trek Checkpoint ALR4, Giant Cypress DX, Trek 800. Liv Sedona DX (hers)

You guys absolutely nailed it. Took all the gaffers tape off the handlebars and cleaned the area with brake cleaner. Cut about a 12" length of innertube and split it so it was flat. Wrapped it nice and tight around the handlebar on each side for the 2 clamps and held it tight with a small strip of gaff tape. Installed and took it on a 25 mile test ride today...solid! Didn't move one bit with a Garmin and phone attached.

Thanks so much!
