Modern Raleigh Record Ace Build Thread

Notices
Road Cycling “It is by riding a bicycle that you learn the contours of a country best, since you have to sweat up the hills and coast down them. Thus you remember them as they actually are, while in a motor car only a high hill impresses you, and you have no such accurate remembrance of country you have driven through as you gain by riding a bicycle.” -- Ernest Hemingway

Modern Raleigh Record Ace Build Thread

Old 09-07-20, 11:16 PM
  #1
speedyspaghetti
Senior Member
Thread Starter

Join Date: Aug 2020
Location: Los Gatos, CA
Posts: 152

Bikes: VeloBuild VB-R-022 // '89 Specialized Allez Full Dura-Ace 7400 // Santa Cruz Stigmata CC // Bridgestone MB-3 BoxTwo 1x Conversion // Bridgestone MB-6 // Santa Cruz Highball C // Ibis Spanky

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 60 Post(s)
Liked 19 Times in 13 Posts
Modern Raleigh Record Ace Build Thread

Hey everyone -


So I recently posted on the WTB forum that I was looking for a steel frame to build up as a secondary/loaner bike since I was going to be replacing my mostly 105 groupset on my VeloBuild R-022 with Ultegra 6600 and I would have these parts laying around. Thankfully, fellow forum member Jaxgtr responded and offered me a Raleigh Record Ace frameset with some extra parts. Originally, I was looking for a more vintage frame to build, but I was tempted by the fact that a more modern frame would not need rear triangle spacing to fit 10-speed parts and would potentially offer greater tire clearance. So, I pulled the trigger and Jaxgtr sent me an awesomely packed box with everything we agreed on.


I let the box sit for about a week as I was busy chasing down some creaky gremlins on my VBR, which turned out to be a worn chain quick link of all things. Finally, today, I fully unpacked the Raleigh and got to work. First thing I noticed about the frame (besides how meticulously it was packed) was that despite being a modern steel frame, the lugs are still a really nice touch. I'm sure there are subtle cues that would give away that it is not a vintage frame, but to the untrained eye, it looks pretty dead-on. My second thought was: "hey, this could be an awesome gravel bike!" Where I live there are quite a few cool road rides that eventually dead-end to gravel trails. Now, many more experienced riders than me would probably be totally fine taking a road bike on 23s over the gravel, but my bike handling skills are rather pedestrian and I've found myself getting my wheel stuck in loose dirt quite a few times which always ends in me on the ground. So, in order to avoid this embarrassment in the future, I figure a gravel-ish bike could be a fun option to have when I don't want to risk it with the skinny tires (the VBR won't fit 28s safely so I'm limited to 25s). Now, similarly, given that the Record Ace is not a true gravel bike, I'm going to run into the same tire clearance issues. However, based on my research of the bike's components from when it was sold new (2011-2016 iirc), it was frequently spec'd with 28s which I think will be good enough for most of the gravel/dirt roads I'm thinking about. Now, I have ordered a pair of Continental Ride Tours in 700x28, but they won't be here until later this week. Hopefully they do fit on the frame - if not, I'll have to find another way around. I plan on running the gravel tires on an old set of Vuelta wheels that used to be on my VBR before upgrading, and keeping some 25s on a pair of Mavic Aksiums that I also bought along with the frame.


Today - I got started on building the bike. I am still missing a few parts - namely a chain and the tires - but I was able to get a good amount done. The projected parts list is below:

Frame: Raleigh Record Ace 55cm

Stem: Specialized 80mm

Bars: Bontrager 44cm

Brifters: Shimano 105 5600 10 speed

Brakes: Was originally going to run Campy Centaurs, but they don't work very well with the Shimano brifters so I've got an pair of older Ultegras on the way.

Crankset: Bontrager Race GXP Triple

Front Der.: Shimano Ultegra Triple

Rear Der.: Shimano Dura Ace Short Cage

Wheelset: Aeromax Alloy Wheelset

Pedals: Look Keo 2 Max

Cassette: Shimano 105 CS-5600 12-27

Chain: SRAM 1031

Saddle: Prologo Q Eddy Mercx Version

Tires: Continental Ride Tour 700x28c (hopefully)


As mentioned in the parts list, I did run into a snag with the brakes, but luckily I have a replacement set on the way. I went with red cable housing which I'm still not 100% sold on but for now it'll do. I was able to get the BB, cranks, FD, and RD all installed without issue today. Hopefully I can get the rest of the parts in by mid-week and get the bike out on the roads and trails soon! I figured some of you would like to follow the build process and evolution of this bike, so I'll be updating here with new pieces and my observations of the ride. Sorry in advance for the horrible image quality - my Samsung Galaxy S8 has apparently decided not to take good photos anymore... Pixel 4a is pre-ordered but not here yet.

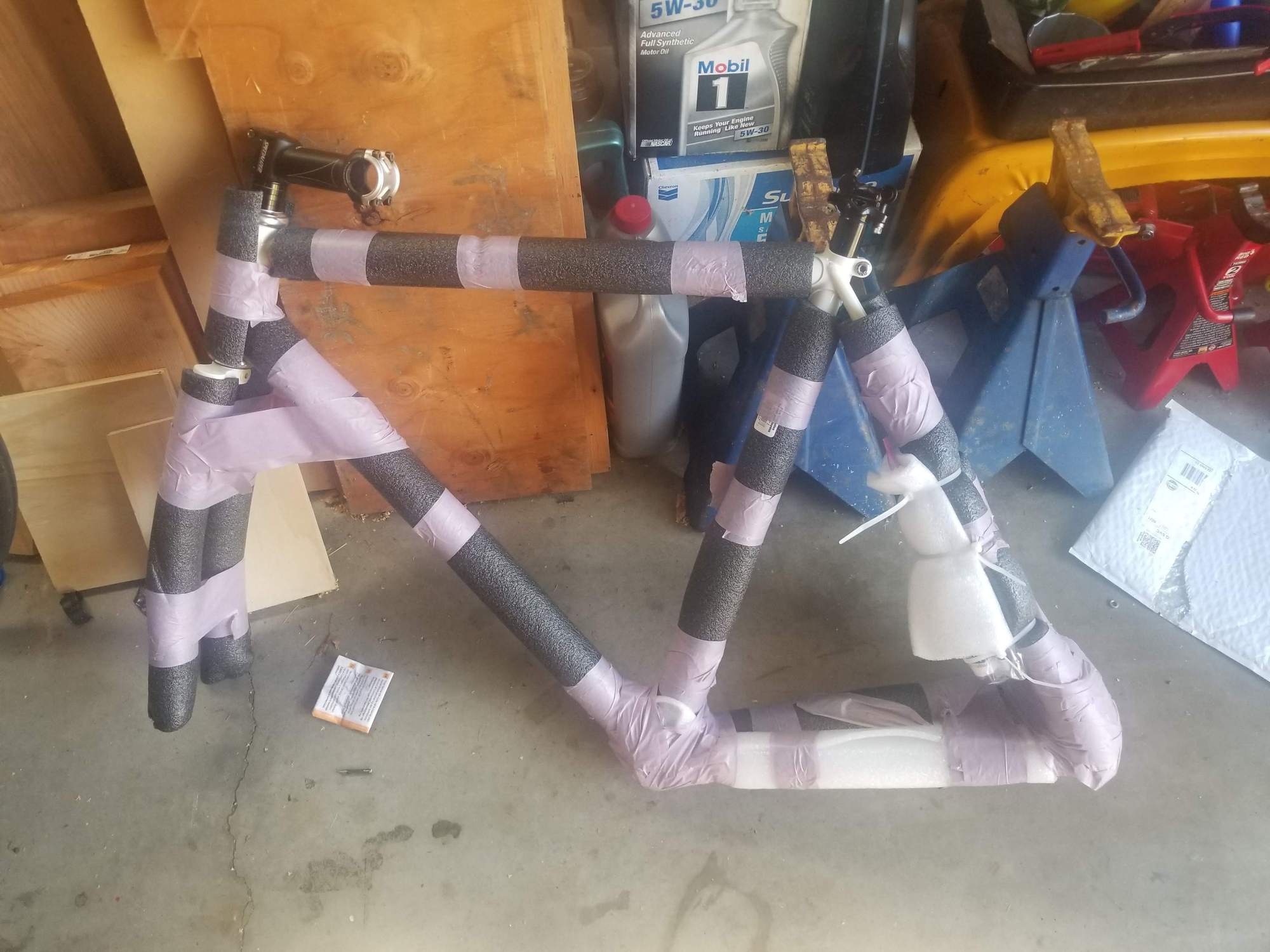

Did I say it was packed awesomely?

Samsung Galaxy Problems

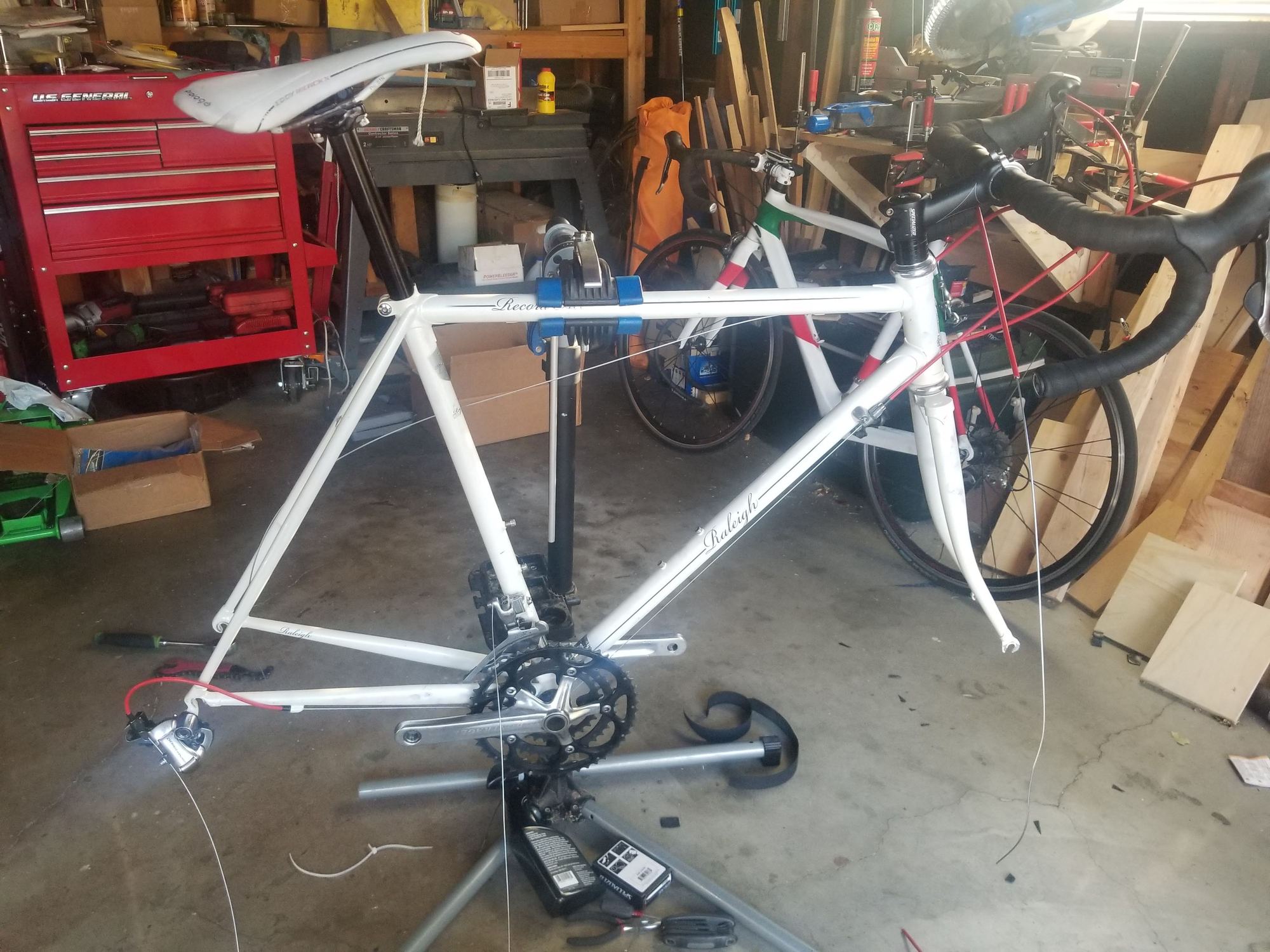

I apparently have a thing for white bikes (spot the VBR in the background)

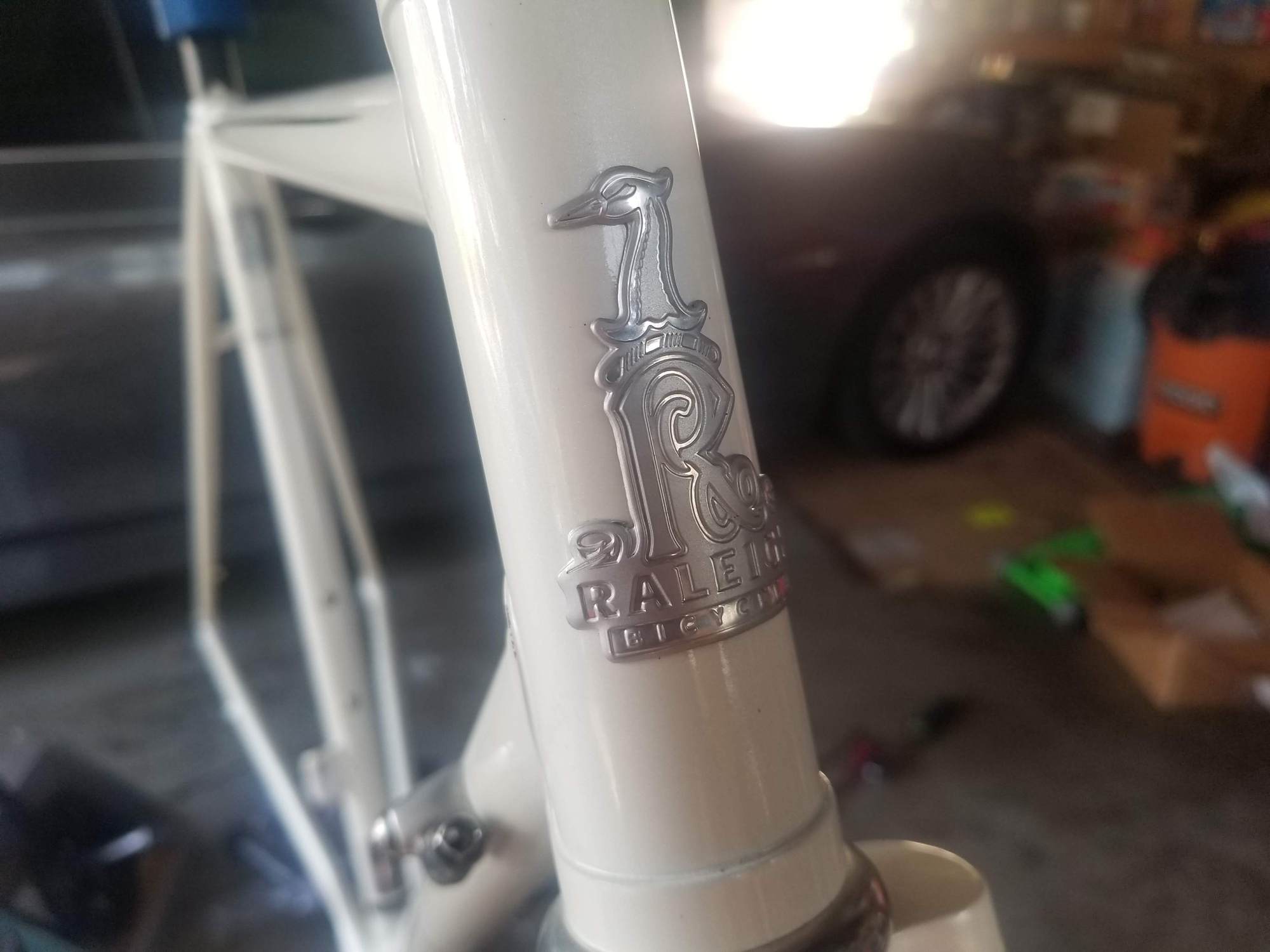

Gotta love the retro-modern.


BB and Cranks installed.

Bontrager Race Lite - not the greatest crankset, but I had it laying aorund.

Probably overkill to go with Dura-Ace for the RD and it does limit me to a smaller cassette with the short cage, but again I had it laying around. I think I'll be ok with the triple, but this might be a point for upgrade in the future.

About as much as I got done today - still waiting on those new parts in order to finish the build.
speedyspaghetti is offline
Likes For speedyspaghetti:
Old 09-08-20, 08:34 AM
  #2
mstateglfr
Sunshine

mstateglfr's Avatar

Join Date: Aug 2014
Location: Des Moines, IA
Posts: 13,182

Bikes: '18 class built steel roadbike, '19 Fairlight Secan, '88 Schwinn Premis , Black Mountain Cycles Monstercross V4, '89 Novara Trionfo

Mentioned: 105 Post(s)
Tagged: 0 Thread(s)
Quoted: 6146 Post(s)
Liked 3,293 Times in 1,899 Posts
The US Raleigh steel frames from 2010-2018 or so are really neat- they put a lot of time into changing them multiple times thru this period, and some models seemed to just disappear at times. Its the story of US Raleigh, really- confusing and unsure of what was ever available or coming up.
But they did some really neat designs and this simple lugged frame is one excellent example. Looking forward to seeing it fully built!
mstateglfr is offline
Old 09-08-20, 10:10 PM
  #3
jaxgtr
Senior Member

jaxgtr's Avatar

Join Date: Jul 2006
Location: Jacksonville, FL
Posts: 5,325

Bikes: Trek Domane SLR 7, Trek Emonda ALR 6, Trek X-Caliber 8

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 257 Post(s)
Liked 510 Times in 320 Posts

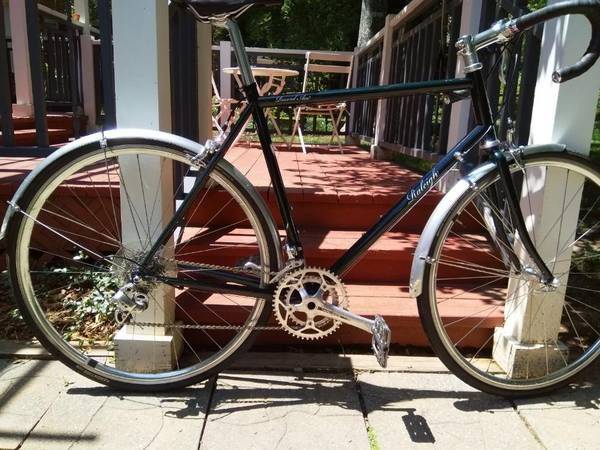

very nice...this was what it looked like when I was riding it. I really liked it, was just a little too big for me.

__________________
Brian | 2021 Trek Domane SLR 7 | 2016 Trek Emonda ALR 6 | 2016 Trek X-Caliber 8
Originally Posted by AEO View Post
you should learn to embrace change, and mock it's failings every step of the way.




jaxgtr is offline
Likes For jaxgtr:
Old 09-09-20, 03:06 AM
  #4
Kimmo
bike whisperer

Kimmo's Avatar

Join Date: Dec 2009
Location: Melbourne, Oz
Posts: 9,406

Bikes: https://weightweenies.starbike.com/forum/viewtopic.php?f=10&t=152015&p=1404231

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1386 Post(s)
Liked 610 Times in 433 Posts
Originally Posted by speedyspaghetti View Post
Originally, I was looking for a more vintage frame to build, but I was tempted by the fact that a more modern frame would not need rear triangle spacing to fit 10-speed parts and would potentially offer greater tire clearance.
What about the fact that steel was still getting better when carbon made it go away?
Kimmo is offline
Old 09-09-20, 09:00 AM
  #5
mstateglfr
Sunshine

mstateglfr's Avatar

Join Date: Aug 2014
Location: Des Moines, IA
Posts: 13,182

Bikes: '18 class built steel roadbike, '19 Fairlight Secan, '88 Schwinn Premis , Black Mountain Cycles Monstercross V4, '89 Novara Trionfo

Mentioned: 105 Post(s)
Tagged: 0 Thread(s)
Quoted: 6146 Post(s)
Liked 3,293 Times in 1,899 Posts
Originally Posted by Kimmo View Post
What about the fact that steel was still getting better when carbon made it go away?
This is an oddly phrased question, at least how I read it.
Carbon didnt make steel go away. Steel isnt used for UCI bikes, but that doesnt mean it went away. In the time since 'it went away', steel tube offerings have continued to develop.
mstateglfr is offline
Likes For mstateglfr:
Old 09-09-20, 09:29 AM
  #6
Iride01
Hits [ENTER] b4 thinking

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 8,347

Bikes: '20 Tarmac Disc Comp '91, '78 Raleigh Competition GS

Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 3289 Post(s)
Liked 1,879 Times in 1,337 Posts
Steel plateaued in it's technology and the methods to make light steel and to make light steel bikes didn't get less expensive as required to stay a viable business in the market for the masses. I think Aluminum is at that point now.

Carbon still has a way to go but carbon frames with less expensive manufacturing costs are moving into the lower tier bikes as higher tech carbon and production methods force the former high end stuff to a lower status.
Iride01 is offline
Old 09-09-20, 09:48 AM
  #7
sced
South Carolina Ed

Join Date: Mar 2007
Location: Greer, SC
Posts: 3,711

Bikes: Holdsworth Super Mistral Fastback, Macario Pro, Ciocc San Cristobal, Viner Nemo, Cyfac Le Mythique, Giant TCR, Tommasso Mondial, Cyfac Etoile

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 283 Post(s)
Liked 122 Times in 65 Posts
A lot of people like steel-framed (and aluminum) bikes for a variety of reasons, including me, and I'd bet they'll be around forever. A few extra pounds doesn't mean anything given the state of most people's waistlines.
sced is offline
Old 09-12-20, 10:03 PM
  #8
speedyspaghetti
Senior Member
Thread Starter

Join Date: Aug 2020
Location: Los Gatos, CA
Posts: 152

Bikes: VeloBuild VB-R-022 // '89 Specialized Allez Full Dura-Ace 7400 // Santa Cruz Stigmata CC // Bridgestone MB-3 BoxTwo 1x Conversion // Bridgestone MB-6 // Santa Cruz Highball C // Ibis Spanky

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 60 Post(s)
Liked 19 Times in 13 Posts
Originally Posted by jaxgtr View Post
very nice...this was what it looked like when I was riding it. I really liked it, was just a little too big for me.


Looks super clean, man. What parts were on it?
speedyspaghetti is offline
Old 09-12-20, 10:05 PM
  #9
speedyspaghetti
Senior Member
Thread Starter

Join Date: Aug 2020
Location: Los Gatos, CA
Posts: 152

Bikes: VeloBuild VB-R-022 // '89 Specialized Allez Full Dura-Ace 7400 // Santa Cruz Stigmata CC // Bridgestone MB-3 BoxTwo 1x Conversion // Bridgestone MB-6 // Santa Cruz Highball C // Ibis Spanky

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 60 Post(s)
Liked 19 Times in 13 Posts
Originally Posted by sced View Post
A lot of people like steel-framed (and aluminum) bikes for a variety of reasons, including me, and I'd bet they'll be around forever. A few extra pounds doesn't mean anything given the state of most people's waistlines.
Agreed. If I'm going for a Strava KOM or PR, I'll take my carbon bike, but if I'm just riding for fun or with friends, I prefer the feeling of the steel bikes. Maybe its just in my head, but my 1989 Allez SE feels even stiffer than my carbon bike and it feels like it accelerates faster. On the hills, its a different story mostly due the gears, but I'm only about 20 seconds slower on a 3/4 mile, 6% hill on my Allez compared to my carbon frame. At the end of the day, I'm not going to win the any UCI events any time soon - I bike to have fun. And steel is real.
speedyspaghetti is offline
Old 09-13-20, 12:20 AM
  #10
Kimmo
bike whisperer

Kimmo's Avatar

Join Date: Dec 2009
Location: Melbourne, Oz
Posts: 9,406

Bikes: https://weightweenies.starbike.com/forum/viewtopic.php?f=10&t=152015&p=1404231

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1386 Post(s)
Liked 610 Times in 433 Posts
Originally Posted by mstateglfr View Post
This is an oddly phrased question, at least how I read it.
Carbon didnt make steel go away. Steel isnt used for UCI bikes, but that doesnt mean it went away. In the time since 'it went away', steel tube offerings have continued to develop.
Steel went away as the dominant material for performance bikes, because it went away as the dominant material for performance. The TCR made a pretty compelling case back in the day that it was aluminium's turn, a while before carbon took over. Steel is yesterday's news as far as performance goes.

However, many folks greatly prefer its aesthetic qualities, including feel, the whole retro nostalgia angle, and maybe even its amenability to repair and modification. I'm just pointing out that steel has definitely moved on since the 80s, with bike tubesets getting lots of development in the 90s which were quite a heyday for steel. Not sure if there's been a whole lot of bike-specific development since, given the majority of demand has evaporated, but for various reasons it's still worth researching steel metallurgy for other fields, some of which is likely to be applied to bikes. Hey, whatever happened to Aermet 100 bikes?
Kimmo is offline
Old 09-13-20, 12:25 AM
  #11
mstateglfr
Sunshine

mstateglfr's Avatar

Join Date: Aug 2014
Location: Des Moines, IA
Posts: 13,182

Bikes: '18 class built steel roadbike, '19 Fairlight Secan, '88 Schwinn Premis , Black Mountain Cycles Monstercross V4, '89 Novara Trionfo

Mentioned: 105 Post(s)
Tagged: 0 Thread(s)
Quoted: 6146 Post(s)
Liked 3,293 Times in 1,899 Posts
Originally Posted by Kimmo View Post
Steel went away as the dominant material for performance bikes, because it went away as the dominant material for performance. The TCR made a pretty compelling case back in the day that it was aluminium's turn, a while before carbon took over. Steel is yesterday's news as far as performance goes.

However, many folks greatly prefer its aesthetic qualities, including feel, the whole retro nostalgia angle, and maybe even its amenability to repair and modification. I'm just pointing out that steel has definitely moved on since the 80s, with bike tubesets getting lots of development in the 90s which were quite a heyday for steel. Not sure if there's been a whole lot of bike-specific development since, given the majority of demand has evaporated, but for various reasons it's still worth researching steel metallurgy for other fields, some of which is likely to be applied to bikes. Hey, whatever happened to Aermet 100 bikes?

Ok to all of that.
I'm still not sure why you asked that question while using the quote you used, but its really not here or there.

Yeah, steel isnt used for racing anymore. A small single digit % of cyclists race, so what pro cyclists use is quite inconsequential for most cyclists.
And yes, steelbqas improving in the 90s. New tubing options have come out in the last 20 years though.
mstateglfr is offline
Likes For mstateglfr:
Old 09-13-20, 09:35 PM
  #12
jaxgtr
Senior Member

jaxgtr's Avatar

Join Date: Jul 2006
Location: Jacksonville, FL
Posts: 5,325

Bikes: Trek Domane SLR 7, Trek Emonda ALR 6, Trek X-Caliber 8

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 257 Post(s)
Liked 510 Times in 320 Posts
Originally Posted by speedyspaghetti View Post
Looks super clean, man. What parts were on it?
Parts I had from an old bike, Derailleurs were 10 speed Ultegra, shifters\crank were 105, Brakes were Ultegra, and some Ultegra hubs on Velocity rims.
__________________
Brian | 2021 Trek Domane SLR 7 | 2016 Trek Emonda ALR 6 | 2016 Trek X-Caliber 8
Originally Posted by AEO View Post
you should learn to embrace change, and mock it's failings every step of the way.





Last edited by jaxgtr; 09-13-20 at 09:46 PM.
jaxgtr is offline
Old 09-15-20, 06:39 PM
  #13
3speedslow
Senior Member

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 8,947

Bikes: A few

Mentioned: 114 Post(s)
Tagged: 0 Thread(s)
Quoted: 1822 Post(s)
Liked 694 Times in 451 Posts
I will have a 2016 RRA in my stable soon.

3speedslow is offline
Old 12-06-20, 10:51 AM
  #14
jfranci3
Senior Member

Join Date: Apr 2009
Posts: 264
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 118 Post(s)
Liked 40 Times in 34 Posts
Did you get 28c tires on this? I have a similar era International sitting here with brakes that will handle the clearance.
jfranci3 is offline
Old 12-06-20, 09:15 PM
  #15
jaxgtr
Senior Member

jaxgtr's Avatar

Join Date: Jul 2006
Location: Jacksonville, FL
Posts: 5,325

Bikes: Trek Domane SLR 7, Trek Emonda ALR 6, Trek X-Caliber 8

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 257 Post(s)
Liked 510 Times in 320 Posts
that frame is pretty narrow in the rear, so 25 is going to be the max tire size, and they are pretty tight and I generally ran 23's on it. I might have had some 25's at some point, but I dont remember them if I did.
__________________
Brian | 2021 Trek Domane SLR 7 | 2016 Trek Emonda ALR 6 | 2016 Trek X-Caliber 8
Originally Posted by AEO View Post
you should learn to embrace change, and mock it's failings every step of the way.




jaxgtr is offline
