Cog life

Hi,

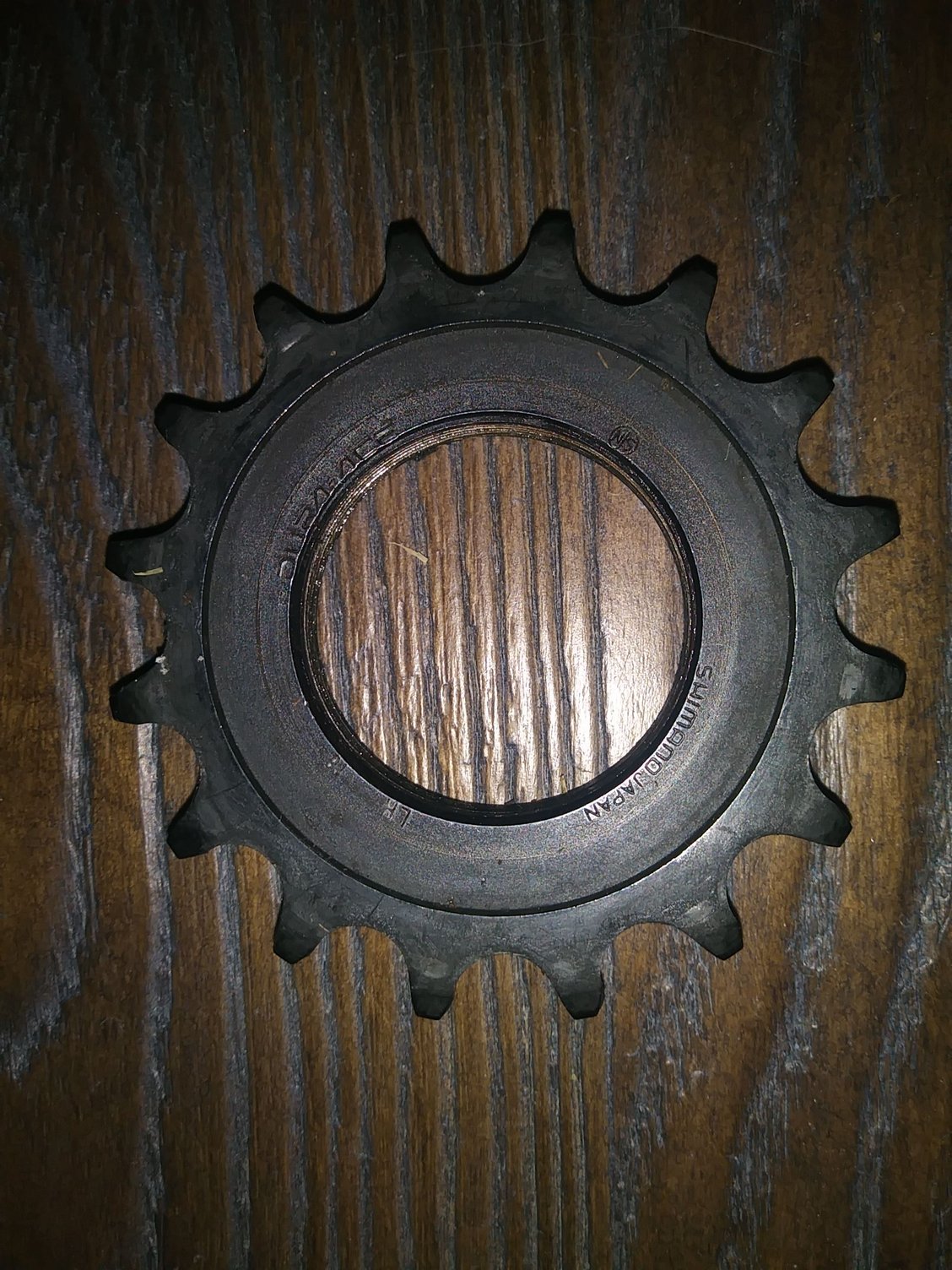

I put this 16t Dura Ace cog on my bike a few days ago, and it was making some noise. Can anyone tell me if it's worn? Was trying to decide if it's just worn out and needs replacement, or if I should measure it to see if the noise was due to a difference in chainline between my old cog and this one. Thanks!

Dave
bonsai171 is offline
Old 09-30-18, 08:16 PM
  #2
seau grateau
Senior Member

seau grateau's Avatar

Join Date: Sep 2009
Location: PHL
Posts: 9,745

Bikes: Litespeed, IRO

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 1237 Post(s)
Liked 156 Times in 88 Posts
It looks fine. Some cogs run a little more noisy than others. You could switch it out for something else if the noise bothers you, but I'd just make sure the whole drivetrain is clean and chain is lubed, and not worry about it. You're never going to have a silent drivetrain for very long.
seau grateau is offline
Old 09-30-18, 08:23 PM
  #3
seamuis
aire díthrub

seamuis's Avatar

Join Date: Sep 2017
Location: chatham-savannah
Posts: 554

Bikes: Raleigh Competition, Pashley Roadster Sovereign, Mercian Vincitore Speciale

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 257 Post(s)
Likes: 0
Liked 50 Times in 31 Posts
If you can’t see a difference in your chainline without breaking out the callipers to measure it, then there’s really no chance that your chainline is the issue. Dura ace cogs are designed for racing. The tooth shape/profile, is designed for strength and positive engagement under heavy torque load. Some cogs are designed with smoother, rounder teeth profiles. My guess is this what’s causing the noise you’re hearing and I would guess it will get quieter over time. From what I can see in the photo, the teeth look fine. But if you’re asking if it’s worn, am I to assume you bought a used cog?

Last edited by seamuis; 09-30-18 at 08:27 PM.
seamuis is offline
Old 09-30-18, 08:30 PM
  #4
bonsai171
Senior Member
Thread Starter

Join Date: Nov 2014
Posts: 965
Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 494 Post(s)
Liked 15 Times in 10 Posts
Originally Posted by seau grateau View Post
It looks fine. Some cogs run a little more noisy than others. You could switch it out for something else if the noise bothers you, but I'd just make sure the whole drivetrain is clean and chain is lubed, and not worry about it. You're never going to have a silent drivetrain for very long.
Very cool. Was hoping to take this thing out for a spin. My chain is a little bit on the dirtier side right now, did some fixed riding last weekend on a paved trail that has a lot of dirt, that might be why. Rode some Singlespeed gravel this weekend too, maybe it's time for a good clean. Amazing how fast the chain gets dirty!

Dave
bonsai171 is offline
Old 09-30-18, 08:37 PM
  #5
bonsai171
Senior Member
Thread Starter

Join Date: Nov 2014
Posts: 965
Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 494 Post(s)
Liked 15 Times in 10 Posts
Originally Posted by seamuis View Post
If you can’t see a difference in your chainline without breaking out the callipers to measure it, then there’s really no chance that your chainline is the issue. Dura ace cogs are designed for racing. The tooth shape/profile, is designed for strength and positive engagement under heavy torque load. Some cogs are designed with smoother, rounder teeth profiles. My guess is this what’s causing the noise you’re hearing and I would guess it will get quieter over time. From what I can see in the photo, the teeth look fine. But if you’re asking if it’s worn, am I to assume you bought a used cog?
I'll have to put the cog back on and really check out the chainline to see if there's a visible difference. Thanks for the background on the DA, almost sounds like its part of the design.

The cog came from a friend. I'm running a 17t now, and wanted to try a 16 T. Its got some miles on it, but I found out the 16 T could fit on one side, and I can run a 17t freewheel without changing the chain length. Going to take this thing for a good spin!

Dave
bonsai171 is offline
Old 09-30-18, 08:40 PM
  #6
seau grateau
Senior Member

seau grateau's Avatar

Join Date: Sep 2009
Location: PHL
Posts: 9,745

Bikes: Litespeed, IRO

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 1237 Post(s)
Liked 156 Times in 88 Posts
Yeah, it's tough to keep on top of the cleaning, but having a drivetrain free of dirt, gunk, and grime makes a pretty significant difference.
seau grateau is offline
Old 09-30-18, 08:59 PM
  #7
seamuis
aire díthrub

seamuis's Avatar

Join Date: Sep 2017
Location: chatham-savannah
Posts: 554

Bikes: Raleigh Competition, Pashley Roadster Sovereign, Mercian Vincitore Speciale

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 257 Post(s)
Likes: 0
Liked 50 Times in 31 Posts
Originally Posted by bonsai171 View Post
I'll have to put the cog back on and really check out the chainline to see if there's a visible difference. Thanks for the background on the DA, almost sounds like its part of the design.

The cog came from a friend. I'm running a 17t now, and wanted to try a 16 T. Its got some miles on it, but I found out the 16 T could fit on one side, and I can run a 17t freewheel without changing the chain length. Going to take this thing for a good spin!

Dave
It is a part of the design. Anything with the Dura Ace name is designed specifically for racing. Not all fixed cogs are for racing and the tooth shape/profile, even the specific metal of the cog or any plating on the metal can make a difference. Shimano has done a lot of experimenting over the decades with teeth profiles and even teeth pitch. Of course none of that guarantees this is what is causing your noise. You could just need to clean your chain.
seamuis is offline
Old 09-30-18, 10:46 PM
  #8
hardboiled718
Senior Member

Join Date: Nov 2014
Posts: 515
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 70 Post(s)
Likes: 0
Liked 12 Times in 10 Posts
That cog looks like it has very little wear. I'm curious how the back of it looks, are the teeth silver from the black coating wearing off?

Despite the cog being used, it could just be that the cog is less worn than your chain and the tiny difference in spacing is making the noise. Most times when you introduce a new part (cog, chain or chainring) there is a break-in period where there will be some noise, but it'll quiet down after you put in some miles.
hardboiled718 is offline
Old 10-01-18, 04:55 AM
  #9
bonsai171
Senior Member
Thread Starter

Join Date: Nov 2014
Posts: 965
Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 494 Post(s)
Liked 15 Times in 10 Posts
Originally Posted by hardboiled718 View Post
That cog looks like it has very little wear. I'm curious how the back of it looks, are the teeth silver from the black coating wearing off?

Despite the cog being used, it could just be that the cog is less worn than your chain and the tiny difference in spacing is making the noise. Most times when you introduce a new part (cog, chain or chainring) there is a break-in period where there will be some noise, but it'll quiet down after you put in some miles.
The teeth do look silver. I measured the chain recently, and it is well beyond .75%. The chain tool drops in very easily on the .75% side. I have a new chain lying around if it will help.

Dave
bonsai171 is offline
Old 10-01-18, 06:47 AM
  #10
hardboiled718
Senior Member

Join Date: Nov 2014
Posts: 515
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 70 Post(s)
Likes: 0
Liked 12 Times in 10 Posts
You might want to change you chain, but I have a feeling it'll still be a bit noisy in the beginning. As long as your chain line and tension is good, just need to give the parts time to mesh together and things usually quiet down.
hardboiled718 is offline
Old 10-01-18, 07:16 AM
  #11
TejanoTrackie
Veteran Racer

TejanoTrackie's Avatar

Join Date: Jul 2009
Location: Ciudad de Vacas, Tejas
Posts: 11,147

Bikes: 29 frames + 72 wheels

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 680 Post(s)
Likes: 0
Liked 4 Times in 3 Posts
Installing a new unstretched chain should definitely help. Dura Ace cogs are not necessarily noisy, depending on the chain that is used. I have a 16T 1/8” DA cog on two of my fixed gear bikes with a SRAM PC-7X chain, and they are both nearly silent.
__________________
What, Me Worry? - Alfred E. Neuman

Originally Posted by Dcv View Post
I'd like to think i have as much money as brains.
I see the light at the end of the tunnel, but the tunnel keeps getting longer - me
TejanoTrackie is offline
Old 10-01-18, 07:23 AM
  #12
joesch
Senior Member

joesch's Avatar

Join Date: Sep 2017
Location: Hotel CA / DFW
Posts: 480

Bikes: 83 Colnago Super, 86 Masi NS, 87 50th Daccordi, 87 Guerciotti, 96 Serotta Colorado TI, 95/05 Colnago C40/C50, 08 Lemond Filmore, 12 Cervelo R3

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 151 Post(s)
Liked 14 Times in 13 Posts
Originally Posted by hardboiled718 View Post
You might want to change you chain, but I have a feeling it'll still be a bit noisy in the beginning. As long as your chain line and tension is good, just need to give the parts time to mesh together and things usually quiet down.
Agree, the SS chain is usually changed with a new cog. Measure your chain against new spec or chain or good one on another SS bike. The park chain wear indicator tool CC-3.2 makes this task simple and consistent.
joesch is offline
Old 10-01-18, 10:12 AM
  #13
bonsai171
Senior Member
Thread Starter

Join Date: Nov 2014
Posts: 965
Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 494 Post(s)
Liked 15 Times in 10 Posts
I used the Park cc-3.2 to measure the chain.. >.75% wear.

Dave
bonsai171 is offline
Old 10-01-18, 10:46 AM
  #14
seamuis
aire díthrub

seamuis's Avatar

Join Date: Sep 2017
Location: chatham-savannah
Posts: 554

Bikes: Raleigh Competition, Pashley Roadster Sovereign, Mercian Vincitore Speciale

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 257 Post(s)
Likes: 0
Liked 50 Times in 31 Posts
Originally Posted by bonsai171 View Post
I used the Park cc-3.2 to measure the chain.. >.75% wear.

Dave
yea, buy a new chain. If your chain is that worn, it’s the most likely cause of the noise as the chain rollers aren’t seating properly between the cog teeth.
seamuis is offline
Old 10-01-18, 07:31 PM
  #15
bonsai171
Senior Member
Thread Starter

Join Date: Nov 2014
Posts: 965
Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 494 Post(s)
Liked 15 Times in 10 Posts
Originally Posted by seamuis View Post

yea, buy a new chain. If your chain is that worn, it’s the most likely cause of the noise as the chain rollers aren’t seating properly between the cog teeth.
Got a KMC Z410 laying around. Got the cog cleaned up a bit, and it runs nice now. I'll probably swap the chain this weekend, and maybe the lockring too. It is made of soft metal, and three notches deformed a bit when I removed it and re-installed it.

Dave
bonsai171 is offline
Old 10-01-18, 07:48 PM
  #16
seamuis
aire díthrub

seamuis's Avatar

Join Date: Sep 2017
Location: chatham-savannah
Posts: 554

Bikes: Raleigh Competition, Pashley Roadster Sovereign, Mercian Vincitore Speciale

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 257 Post(s)
Likes: 0
Liked 50 Times in 31 Posts
Originally Posted by bonsai171 View Post
Got a KMC Z410 laying around. Got the cog cleaned up a bit, and it runs nice now. I'll probably swap the chain this weekend, and maybe the lockring too. It is made of soft metal, and three notches deformed a bit when I removed it and re-installed it.

Dave
Nothing beats a standard dura ace lockring for quality v price.
https://www.retro-gression.com/colle...a-ace-lockring
seamuis is offline
