Determining spoke length?

Looking to build my first set of wheels but I'm not really sure about spoke length. Gonna be DA-7600 28h to TB14
ceelint is offline
Old 04-23-19, 12:06 AM
  #2
ThermionicScott
hungry

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 19,058

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 76 Post(s)
Tagged: 0 Thread(s)
Quoted: 2310 Post(s)
Liked 265 Times in 200 Posts
spocalc.xls
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is online now
Old 04-23-19, 01:55 AM
  #3
hairnet
Fresh Garbage

hairnet's Avatar

Join Date: Apr 2009
Location: Los Angeles
Posts: 13,196

Bikes: N+1

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 346 Post(s)
Liked 11 Times in 5 Posts
https://leonard.io/edd/

It's always best to verify measurements even if there are user submitted dimensions
hairnet is offline
Old 04-23-19, 03:35 AM
  #4
pressed001
glorified 5954

pressed001's Avatar

Join Date: Dec 2014
Location: Zurich, Switzerland
Posts: 672
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 84 Post(s)
Likes: 0
Liked 5 Times in 5 Posts
Originally Posted by ThermionicScott View Post
spocalc.xls


indeed
pressed001 is offline
Old 04-23-19, 08:49 AM
  #5
ceelint
^that guy^
Thread Starter

ceelint's Avatar

Join Date: Aug 2015
Location: Bakersfield, CA
Posts: 455

Bikes: '17 Wabi Classic, '86 Bianchi Vittoria, '92 C'dale R900 , '17 Trek DS 3

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Likes: 0
Liked 19 Times in 10 Posts
Originally Posted by hairnet View Post
https://leonard.io/edd/

It's always best to verify measurements even if there are user submitted dimensions
That's what I was looking for.. a database with the measurements
ceelint is offline
Old 04-23-19, 09:57 AM
  #6
ceelint
^that guy^
Thread Starter

ceelint's Avatar

Join Date: Aug 2015
Location: Bakersfield, CA
Posts: 455

Bikes: '17 Wabi Classic, '86 Bianchi Vittoria, '92 C'dale R900 , '17 Trek DS 3

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Likes: 0
Liked 19 Times in 10 Posts
Now, is there a way to tell if these hubs were laced 2x or 3x previously? I'm assuming they were done 2x
ceelint is offline
Old 04-23-19, 10:49 AM
  #7
seau grateau
Senior Member

seau grateau's Avatar

Join Date: Sep 2009
Location: PHL
Posts: 9,727

Bikes: Litespeed, IRO

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 1228 Post(s)
Liked 153 Times in 87 Posts
Originally Posted by ceelint View Post
Now, is there a way to tell if these hubs were laced 2x or 3x previously?
Not really. You could probably do either one. 3x will generally give you a slightly stronger wheel, but 2x is fine as well.
seau grateau is offline
Old 04-23-19, 11:17 AM
  #8
ThermionicScott
hungry

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 19,058

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 76 Post(s)
Tagged: 0 Thread(s)
Quoted: 2310 Post(s)
Liked 265 Times in 200 Posts
Originally Posted by ceelint View Post
Now, is there a way to tell if these hubs were laced 2x or 3x previously? I'm assuming they were done 2x
Picture isn't working for me.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is online now
Old 04-23-19, 11:27 AM
  #9
ceelint
^that guy^
Thread Starter

ceelint's Avatar

Join Date: Aug 2015
Location: Bakersfield, CA
Posts: 455

Bikes: '17 Wabi Classic, '86 Bianchi Vittoria, '92 C'dale R900 , '17 Trek DS 3

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Likes: 0
Liked 19 Times in 10 Posts
Originally Posted by ThermionicScott View Post
Picture isn't working for me.
😁

ceelint is offline
Old 04-23-19, 11:28 AM
  #10
phobus
Senior Member

Join Date: Aug 2006
Location: South FL
Posts: 298
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 141 Post(s)
Liked 26 Times in 16 Posts
There's also this calculator: https://online2.qbp.com/spokecalculator/

Which you can use to verify the numbers from Edd.
phobus is offline
Old 04-23-19, 11:30 AM
  #11
phtomita
Senior Member

Join Date: Jan 2018
Location: Redmond, WA
Posts: 504

Bikes: '86 Nishiki Tri-A, '84 Centurion PT15, '87 Centurion IM Master

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 156 Post(s)
Liked 19 Times in 18 Posts
I went to https://www.prowheelbuilder.com/cw/ and got the measurements for the spokes when I built Archetype with Bitex rar/raf12... and bought somewhere else....
The TB14 is there, but you don't have DA7600 hub...
phtomita is offline
Old 04-23-19, 11:30 AM
  #12
ceelint
^that guy^
Thread Starter

ceelint's Avatar

Join Date: Aug 2015
Location: Bakersfield, CA
Posts: 455

Bikes: '17 Wabi Classic, '86 Bianchi Vittoria, '92 C'dale R900 , '17 Trek DS 3

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Likes: 0
Liked 19 Times in 10 Posts
Will the rear hub being single fixed affect anything?

It doesn't center up like a fixed/free or fixed/fixed hub does
ceelint is offline
Old 04-23-19, 11:37 AM
  #13
ceelint
^that guy^
Thread Starter

ceelint's Avatar

Join Date: Aug 2015
Location: Bakersfield, CA
Posts: 455

Bikes: '17 Wabi Classic, '86 Bianchi Vittoria, '92 C'dale R900 , '17 Trek DS 3

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Likes: 0
Liked 19 Times in 10 Posts
Prowheelbuilder had the DA high flange track hub aka HB7600, just not a 28h
ceelint is offline
Old 04-23-19, 11:37 AM
  #14
pressed001
glorified 5954

pressed001's Avatar

Join Date: Dec 2014
Location: Zurich, Switzerland
Posts: 672
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 84 Post(s)
Likes: 0
Liked 5 Times in 5 Posts
Spocalc is already somewhat a library. I just add to it when necessary.



You might be able to tell if those were 2 or 3 cross based on the angle which the spoke grooves are formed, coming out of the spoke holes. To me, based on your photo it looks like the crossings were different for front and rear. Maybe 2 and 1, or 3 and 2.
pressed001 is offline
Old 04-23-19, 11:53 AM
  #15
ceelint
^that guy^
Thread Starter

ceelint's Avatar

Join Date: Aug 2015
Location: Bakersfield, CA
Posts: 455

Bikes: '17 Wabi Classic, '86 Bianchi Vittoria, '92 C'dale R900 , '17 Trek DS 3

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Likes: 0
Liked 19 Times in 10 Posts
My main concern is the single fixed.. looks like it may need to be dished slightly
ceelint is offline
Old 04-23-19, 12:08 PM
  #16
pressed001
glorified 5954

pressed001's Avatar

Join Date: Dec 2014
Location: Zurich, Switzerland
Posts: 672
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 84 Post(s)
Likes: 0
Liked 5 Times in 5 Posts
Originally Posted by ceelint View Post
Will the rear hub being single fixed affect anything?

It doesn't center up like a fixed/free or fixed/fixed hub does
The rim should center directly in the middle of the hub. The hub flange R/L distances in relation to this middle point is what you will base your spoke lengths on and will also be the center point for the rim. Spoke hole diameter on the flange (on which diameter the spoke holes sit) is also a critical measurement in determining your spoke lengths. The actual spoke hole diameter is also necessary but not so critical.

The first build is a bit of stress. It gets easier.
pressed001 is offline
Old 04-23-19, 12:10 PM
  #17
ceelint
^that guy^
Thread Starter

ceelint's Avatar

Join Date: Aug 2015
Location: Bakersfield, CA
Posts: 455

Bikes: '17 Wabi Classic, '86 Bianchi Vittoria, '92 C'dale R900 , '17 Trek DS 3

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Likes: 0
Liked 19 Times in 10 Posts

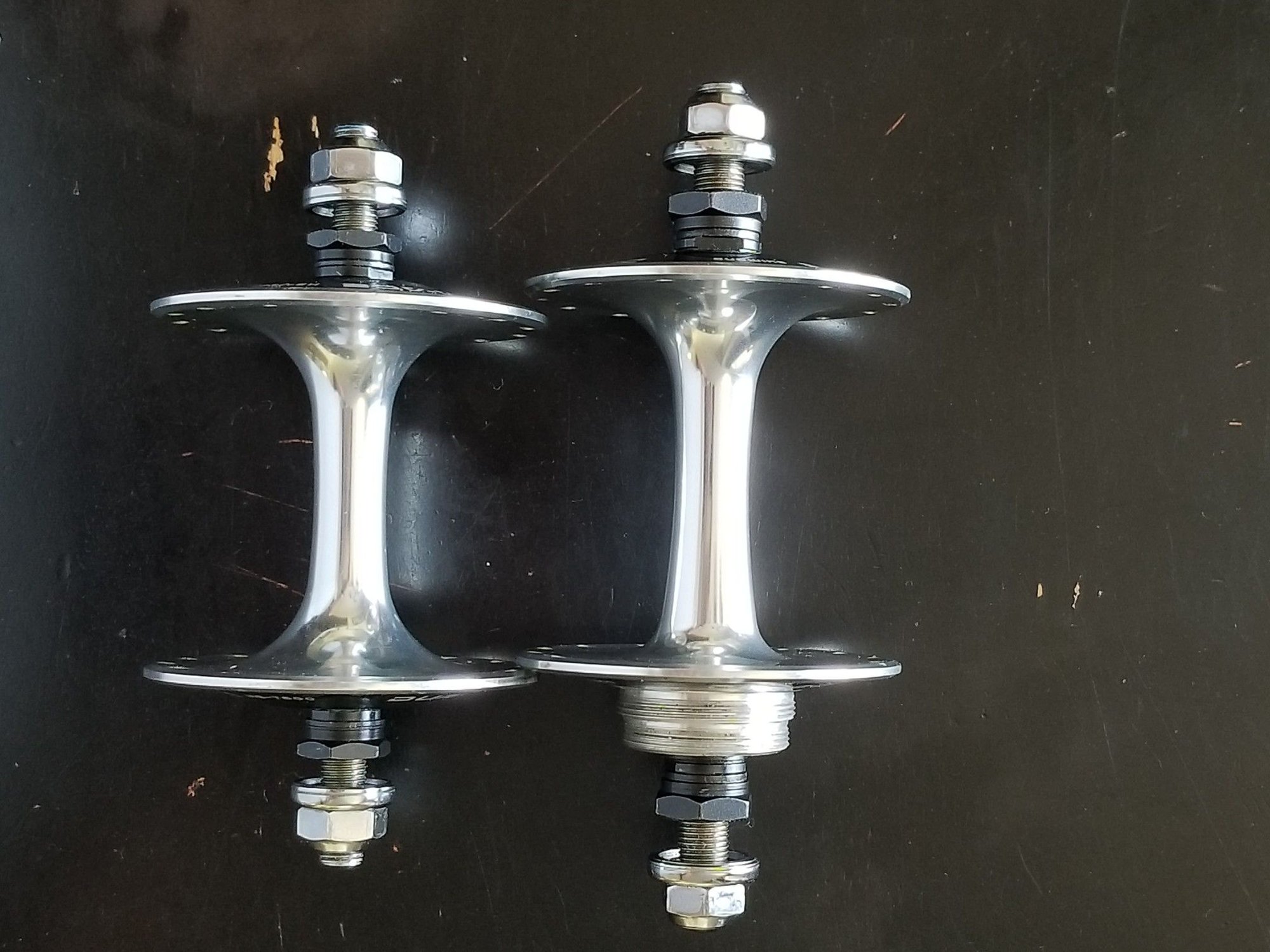

You can see that the rear hub doesn't center the way the front does



This is about centered.. slightly off
ceelint is offline
Old 04-23-19, 12:11 PM
  #18
pressed001
glorified 5954

pressed001's Avatar

Join Date: Dec 2014
Location: Zurich, Switzerland
Posts: 672
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 84 Post(s)
Likes: 0
Liked 5 Times in 5 Posts
Originally Posted by ceelint View Post
My main concern is the single fixed.. looks like it may need to be dished slightly
I have only built 10 speed wheels but pretty much would expect the right flange of a fixed gear bike to also sit closer to center-mass and therefore require shorter spokes for the drive side.
pressed001 is offline
Old 04-23-19, 12:12 PM
  #19
pressed001
glorified 5954

pressed001's Avatar

Join Date: Dec 2014
Location: Zurich, Switzerland
Posts: 672
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 84 Post(s)
Likes: 0
Liked 5 Times in 5 Posts
Yep. The DS spokes will be shorter by a bit.
pressed001 is offline
Old 04-23-19, 12:18 PM
  #20
pressed001
glorified 5954

pressed001's Avatar

Join Date: Dec 2014
Location: Zurich, Switzerland
Posts: 672
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 84 Post(s)
Likes: 0
Liked 5 Times in 5 Posts

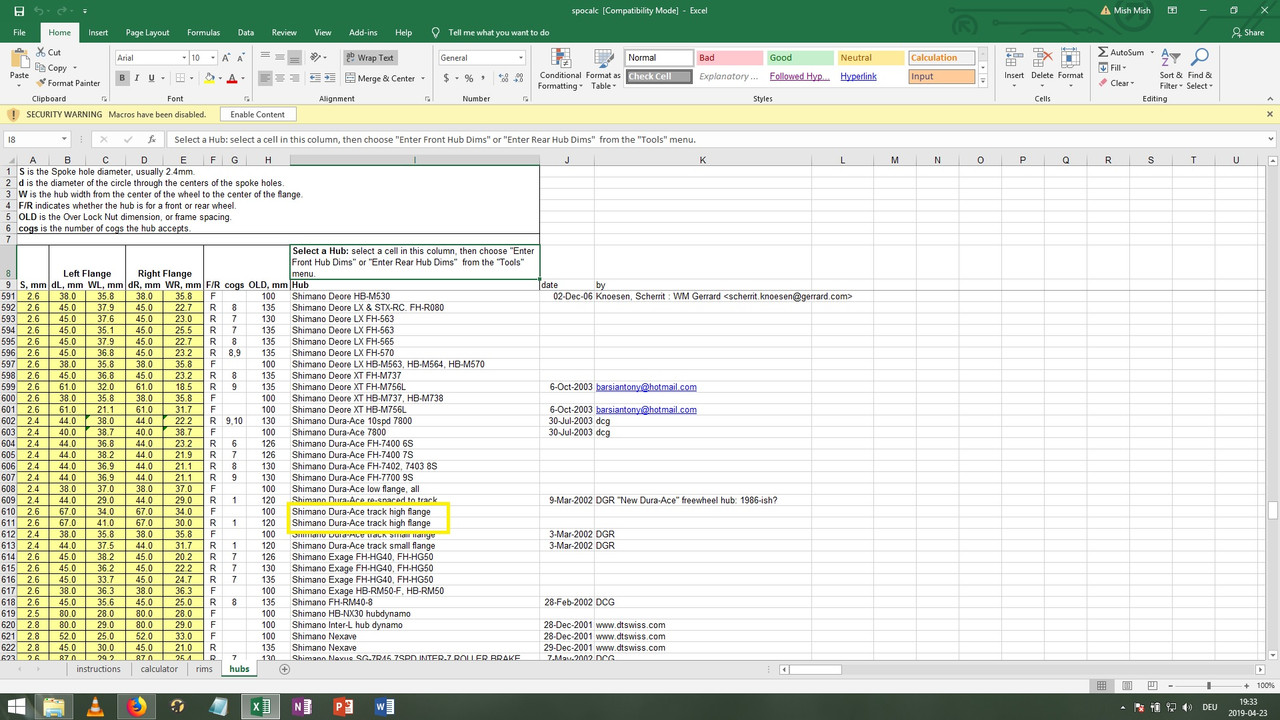

According to Spocalc, for the DA High Flange hubs, the DS flange sits 11mm closer to center mass than the NDS flange. It does not indicate whether these are the DA HB-7600's, so you will have to measure or get the measurements from a known good source.
pressed001 is offline
Old 04-23-19, 12:53 PM
  #21
ThermionicScott
hungry

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 19,058

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 76 Post(s)
Tagged: 0 Thread(s)
Quoted: 2310 Post(s)
Liked 265 Times in 200 Posts
Originally Posted by ceelint View Post
My main concern is the single fixed.. looks like it may need to be dished slightly
"Slightly" is the key word there. You should be able to use the same spoke length for both sides, and the tension imbalance won't be too bad.

Since these hubs have been laced before, it would be good to make sure that you lace leading and following spokes into the same places they were before. As long as you do that, going from 2x to 3x or vice versa shouldn't pose a concern.


P.S. I think @pressed001 is on the right track with the number of spoke crossings. Rear impressions look pretty tangential, while the fronts are a little less so. Maybe 2x in front and 3x in rear? The front may have already been laced more than one way, it's hard to tell.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498

Last edited by ThermionicScott; 04-23-19 at 01:11 PM.
ThermionicScott is online now
Old 04-23-19, 01:51 PM
  #22
ceelint
^that guy^
Thread Starter

ceelint's Avatar

Join Date: Aug 2015
Location: Bakersfield, CA
Posts: 455

Bikes: '17 Wabi Classic, '86 Bianchi Vittoria, '92 C'dale R900 , '17 Trek DS 3

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Likes: 0
Liked 19 Times in 10 Posts
Ok.. did some more searching and got the measurements

Front:
Center to flange - 34
Flange dia - 67

Rear:
Center to left flange - 41
Center to right flange - 30
Flange dia - 67

Rim:
ERD - 610
OSB - 0

Seem about right?
ceelint is offline
Old 04-23-19, 02:10 PM
  #23
ceelint
^that guy^
Thread Starter

ceelint's Avatar

Join Date: Aug 2015
Location: Bakersfield, CA
Posts: 455

Bikes: '17 Wabi Classic, '86 Bianchi Vittoria, '92 C'dale R900 , '17 Trek DS 3

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Likes: 0
Liked 19 Times in 10 Posts
Figured the spoke length out.. thanks a ton guys. Any suggestions on spokes now?

I float around 200lbs so I'll probably go 2x front and 3x rear

Front:
2x: 286 l&r
3x: 300 l&r

Rear:
2x 287 left/ 286 right
3x 301 left/ 300 right
ceelint is offline
Old 04-23-19, 03:54 PM
  #24
phtomita
Senior Member

Join Date: Jan 2018
Location: Redmond, WA
Posts: 504

Bikes: '86 Nishiki Tri-A, '84 Centurion PT15, '87 Centurion IM Master

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 156 Post(s)
Liked 19 Times in 18 Posts
I built it with Sapim Laser and brass nipples for 20 front and 24 rear and very happy with the wheels. I am at 140 lbs.
phtomita is offline
Old 04-23-19, 09:50 PM
  #25
ThermionicScott
hungry

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 19,058

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 76 Post(s)
Tagged: 0 Thread(s)
Quoted: 2310 Post(s)
Liked 265 Times in 200 Posts
Originally Posted by ceelint View Post
Ok.. did some more searching and got the measurements

Front:
Center to flange - 34
Flange dia - 67

Rear:
Center to left flange - 41
Center to right flange - 30
Flange dia - 67

Rim:
ERD - 610
OSB - 0

Seem about right?
Always good to measure what you have before ordering spokes. There is disagreement online about the correct ERD for those rims, and whether a given measurement includes the head of the spoke nipple. Sometimes parts vary from lot to lot, as well.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498

Last edited by ThermionicScott; 04-23-19 at 09:59 PM.
ThermionicScott is online now

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
