First FG, Pedaling Through Turns?

Notices
Singlespeed & Fixed Gear "I still feel that variable gears are only for people over forty-five. Isn't it better to triumph by the strength of your muscles than by the artifice of a derailer? We are getting soft...As for me, give me a fixed gear!"-- Henri Desgrange (31 January 1865 - 16 August 1940)

First FG, Pedaling Through Turns?

Old 10-05-19, 12:19 PM
  #1
Maslin
Member
Thread Starter

Join Date: Sep 2019
Posts: 35
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 6 Times in 6 Posts
First FG, Pedaling Through Turns?

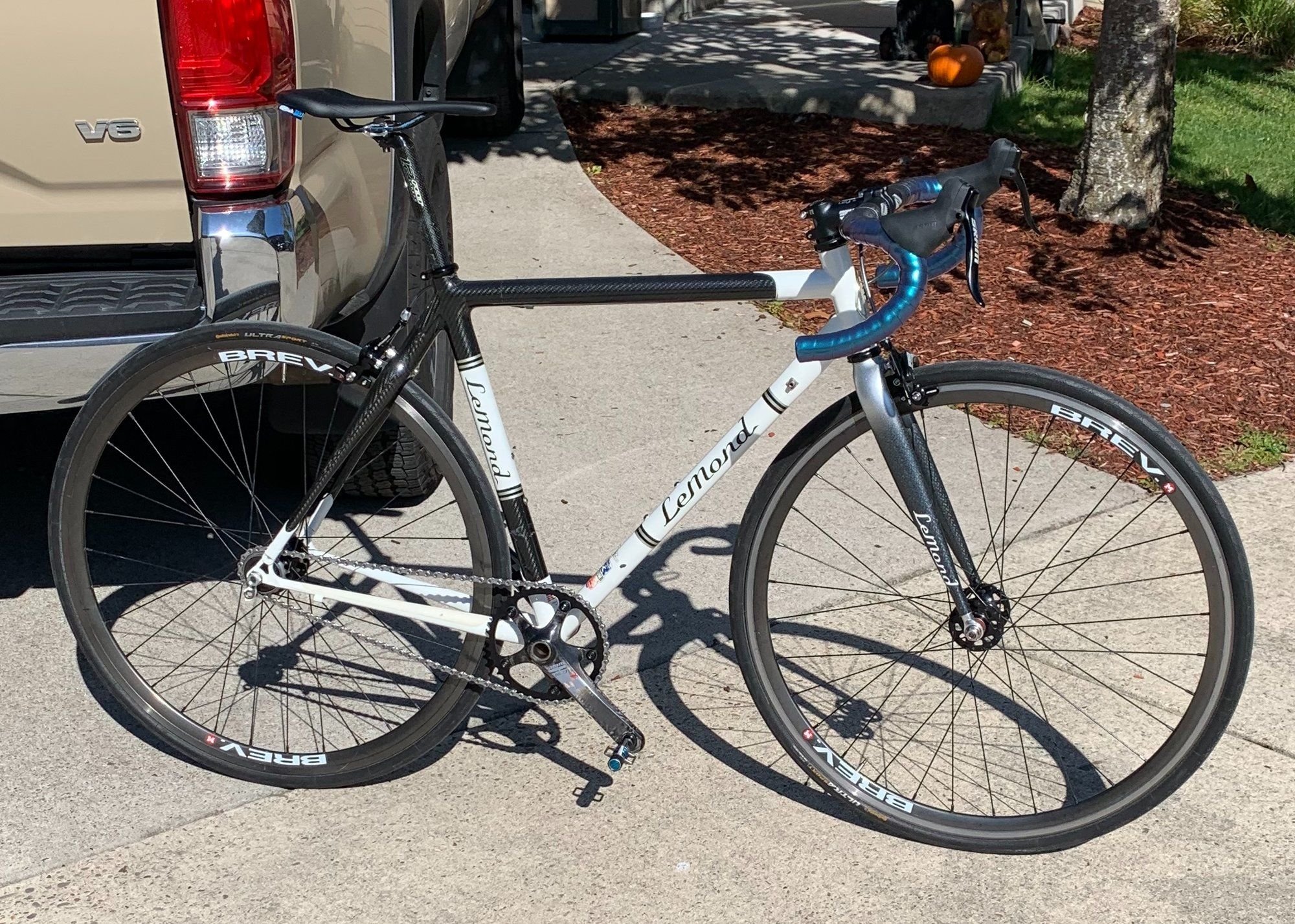

Recently put together my first fixed gear, a LeMond Spine frame custom specíd by someone around 2005. Had a paddywagon 10 years ago or so, never got up the gumption to switch the wheel.

I commute a Salsa Journeyman 650b, 18 miles a day. Recently switched over from spd-sl to eggbeaters for a little extra give and walk-ability.

So my issue... had a good slide across the pavement on the way home Thursday on the Salsa. Pedaling through a right turn I clipped a pedal and immediately went sideways. Easy solution, donít pedal through turns.

Whatís the solution with a fixed gear? Slow down? Eggbeater clearance sucks switch back to spd-sl? Rock the single speed forget about it?

Both bikes have 170mm cranks. Specs say 72mm bb drop on the Salsa, 70mm on the LeMond.

Iím not young enough to bounce and rally too many more times

Last edited by Maslin; 10-05-19 at 12:29 PM.
Maslin is offline
Old 10-05-19, 01:20 PM
  #2
REDMASTA
Senior Member

REDMASTA's Avatar

Join Date: Apr 2016
Location: Traveling through time, will return last week.
Posts: 605

Bikes: Bare Rum Sword Knuckle Runner

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 228 Post(s)
Liked 24 Times in 15 Posts
get a frame designed to be ridden fixed. they have less bb drop for a reason.
REDMASTA is offline
Old 10-05-19, 01:25 PM
  #3
ryan_rides
Senior Member

ryan_rides's Avatar

Join Date: Jan 2018
Location: South Florida
Posts: 166

Bikes: Aventon Cordoba 2018

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 74 Post(s)
Liked 5 Times in 5 Posts
Originally Posted by REDMASTA View Post
get a frame designed to be ridden fixed. they have less bb drop for a reason.
Yeah
ryan_rides is offline
Old 10-05-19, 01:38 PM
  #4
Maslin
Member
Thread Starter

Join Date: Sep 2019
Posts: 35
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 6 Times in 6 Posts
Didnít think of that, 12-18mm is significant.

As popular as fixed gears are in Portland, they havenít found their way down I5 yet.

I have to imagine that a 55mm bb drop frame with platform and straps is fairly close to a 70mm bb drop frame with clipless pedals. So then what? Does slowing down come with experience? Iíve been riding bikes for 30 years, you know when you can pedal through or need to coast without thinking about it.

Last edited by Maslin; 10-05-19 at 02:14 PM.
Maslin is offline
Old 10-05-19, 02:11 PM
  #5
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 20,636

Bikes: Several, mostly not name brands.

Mentioned: 119 Post(s)
Tagged: 0 Thread(s)
Quoted: 1807 Post(s)
Liked 140 Times in 102 Posts
Originally Posted by Maslin View Post
Whatís the solution with a fixed gear? Slow down?
Take it easy until you've learned how fast/hard you can corner without pedal strike. Just about everybody dumps it a couple times when they're first starting out. Take it easy on unfamiliar corners as well. Road conditions and camber can make pedal strike more likely.

Is this a road frame conversion to fixed gear? If so, how long are the crank arms? Road frames tend to have lower bottom brackets (and thus less ground clearance) than true track frames. Shorter crank arms will lessen the likelihood of pedal strike.
JohnDThompson is offline
Old 10-05-19, 02:17 PM
  #6
Maslin
Member
Thread Starter

Join Date: Sep 2019
Posts: 35
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 6 Times in 6 Posts
Originally Posted by JohnDThompson View Post
Take it easy until you've learned how fast/hard you can corner without pedal strike. Just about everybody dumps it a couple times when they're first starting out. Take it easy on unfamiliar corners as well. Road conditions and camber can make pedal strike more likely.

Is this a road frame conversion to fixed gear? If so, how long are the crank arms? Road frames tend to have lower bottom brackets (and thus less ground clearance) than true track frames. Shorter crank arms will lessen the likelihood of pedal strike.
Yes, itís a road frame. 170mm cranks now, it had 175ís when I bought it. Couldnít make it around the block without digging a pedal in.

The track frames Iíve found are all 52-58mm bb drop compared to the LeMondís 70mm. Hoping clipless and my carbon soled road shoes would make up that ~15mm compared to straps and Vans.
Maslin is offline
Old 10-05-19, 02:37 PM
  #7
seau grateau
Senior Member

seau grateau's Avatar

Join Date: Sep 2009
Location: PHL
Posts: 9,724

Bikes: Litespeed, IRO

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 1227 Post(s)
Liked 153 Times in 87 Posts
Definitely have to watch your lean. Slow down and take corners a little more upright while you get a feel for how much you can lean it without striking a pedal.
seau grateau is offline
Old 10-05-19, 03:00 PM
  #8
Loose Chain
Senior Member

Loose Chain's Avatar

Join Date: Sep 2009
Location: USA
Posts: 2,071

Bikes: 84 Pinarello Trevisio, 86 Guerciotti SLX, 96 Specialized Stumpjumper, 2010 Surly Cross Check, 88 Centurion Prestige, 73 Raleigh Sports, GT Force, Bridgestone MB4

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 278 Post(s)
Liked 62 Times in 49 Posts
Again, a bicycle with a high bottom bracket is the ticket. That 12 to 15 mm is significant due to the angles, it matters and cannot be rationalized away. Or, install a free wheel.
Loose Chain is offline
Old 10-05-19, 05:00 PM
  #9
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 20,636

Bikes: Several, mostly not name brands.

Mentioned: 119 Post(s)
Tagged: 0 Thread(s)
Quoted: 1807 Post(s)
Liked 140 Times in 102 Posts
Originally Posted by Maslin View Post
Yes, itís a road frame. 170mm cranks now, it had 175ís when I bought it. Couldnít make it around the block without digging a pedal in.
I use 165mm arms on my fixed gear bikes; one is a road conversion, the other dedicated fixed gear.
JohnDThompson is offline
Old 10-05-19, 06:29 PM
  #10
ThermionicScott
hungry

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 19,051

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 76 Post(s)
Tagged: 0 Thread(s)
Quoted: 2302 Post(s)
Liked 263 Times in 198 Posts
Originally Posted by seau grateau View Post
Definitely have to watch your lean. Slow down and take corners a little more upright while you get a feel for how much you can lean it without striking a pedal.
+1, that's the big thing for now. Whether you're going fast or slow, you can't bank into corners with a FG like you can a road bike.

A high bottom bracket makes up for a lot of issues, but since you can't change that on this frame, there are other things to look at:

- Are you using the correct (short) bottom bracket for this crank? I've seen a number of poorly-thought-out conversions where they just stuck a SS crank on their old bottom bracket, or took the small ring off their road double and wrapped the chain around the big ring. Either way, the cranks are out too far, increasing the risk of pedal strike.
- A crankset with a low Q-factor would help. Some cheap generic SS cranks have a wide Q-factor in order to clear the chainstays on any frame.
- Shorter cranks are a good idea, regardless. See if you can exchange your 170's for 165's.

What crankset and BB are you running now, @Maslin?
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Old 10-05-19, 06:54 PM
  #11
ryan_rides
Senior Member

ryan_rides's Avatar

Join Date: Jan 2018
Location: South Florida
Posts: 166

Bikes: Aventon Cordoba 2018

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 74 Post(s)
Liked 5 Times in 5 Posts

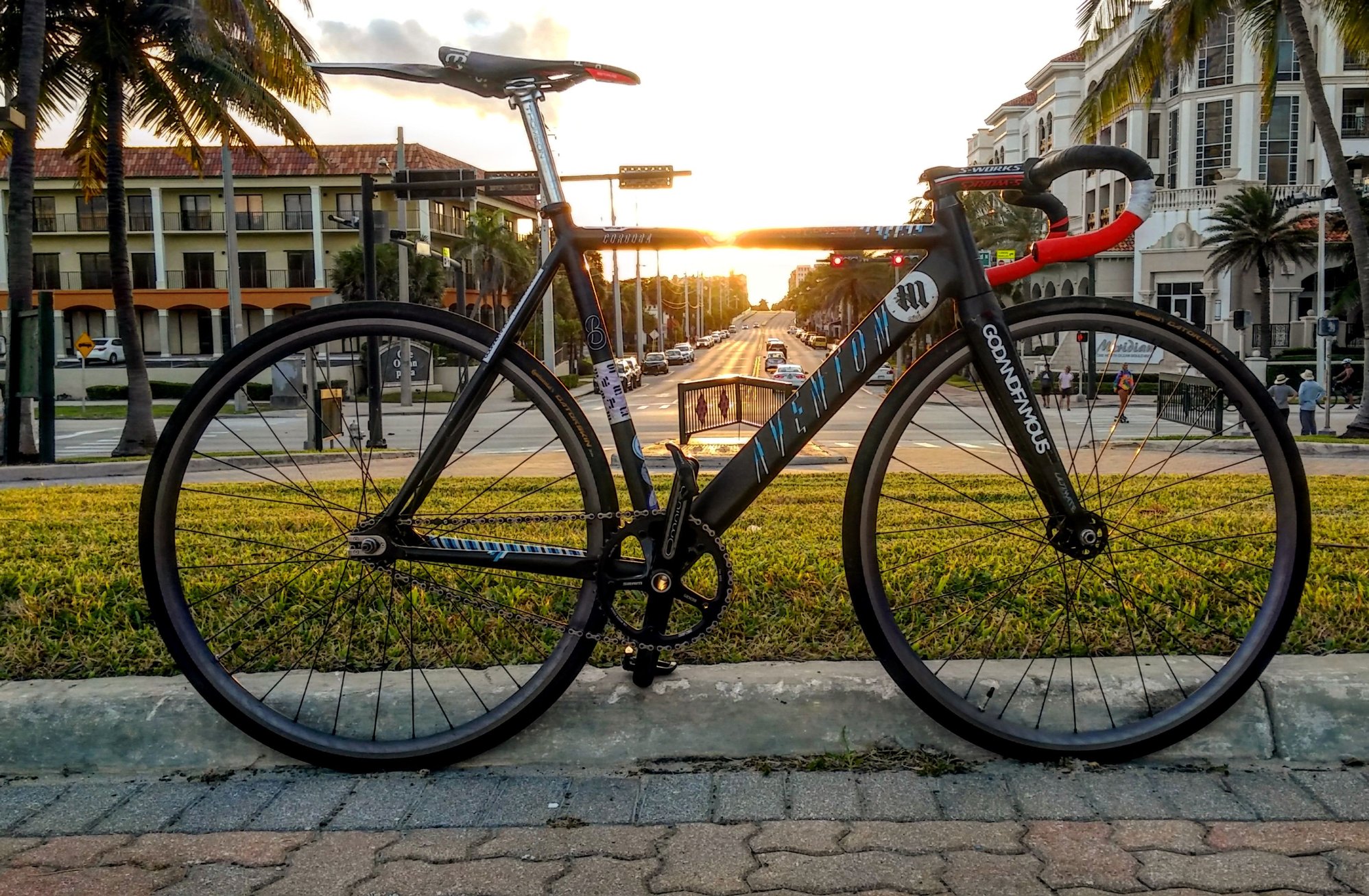

This is the same bike with different cranks but the same length 165 but with BMX platform pedals and straps and I did sometimes have pedal strike but rarely.

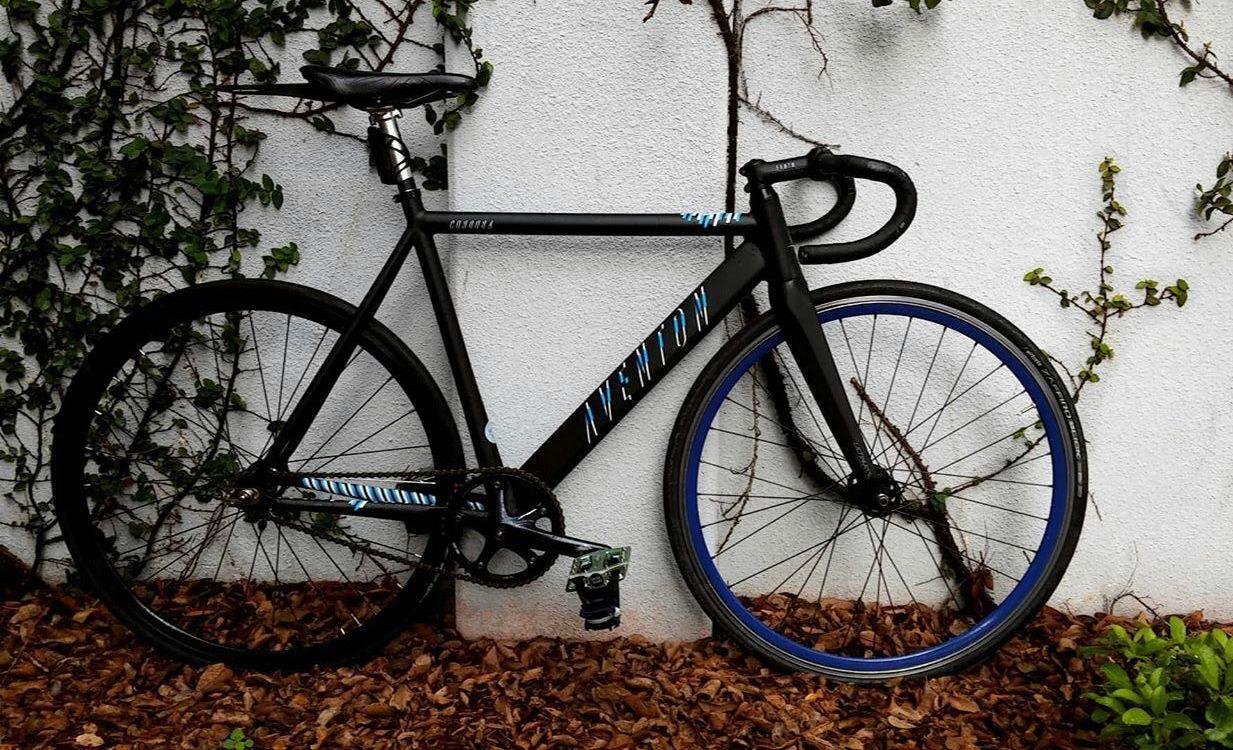

This is my track bike currently with look road pedals and I've never had pedal strike with them.
ryan_rides is offline
Likes For ryan_rides:
Old 10-05-19, 07:08 PM
  #12
Maslin
Member
Thread Starter

Join Date: Sep 2019
Posts: 35
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 6 Times in 6 Posts
170mm Sram Red Carbon 10sp crankset. Chain ring is mounted on the inside of the arm.

looks like it could lose 4-5mm toward the chain stay, although my heels are closer on this than any other bike Iíve had.

Itís definitely a combination of parts that arenít ideal. Iíll keep an eye out for a 165mm single speed crankset.


It would obviously work better as a single speed, but whereís the fun in that.
Maslin is offline
Old 10-08-19, 07:33 AM
  #13
rustystrings61
Senior Member

Join Date: May 2013
Location: Greenwood SC USA
Posts: 926

Bikes: 2002 Mercian Vincitore, 1982 Mercian Colorado, 1976 Puch Royal X, 1973 Raleigh Competition, 1971 Gitane Tour de France and others

Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 308 Post(s)
Liked 95 Times in 63 Posts
For the life of me I can't find the article or discussion online, but I remember reading about the Walden Turn, named for Mike Walden of the Wolverine Sports Club - essentially you kept your bike more upright and leaned your body into the turn, thus allowing you to continue pedaling through the turn. I've been doing that for maybe 15 years now, to where it's ingrained behavior on a fixed-gear, and so far it has worked nicely. I think that maneuver was also described in Delong's Guide to Bicycles and Bicycling. It's a holdover from the era when almost all U.S. racing, road or track, was on fixed-gears.

Last edited by rustystrings61; 10-08-19 at 09:09 AM.
rustystrings61 is offline
Likes For rustystrings61:
Old 10-08-19, 08:47 PM
  #14
FiftySix
I'm the anecdote.

FiftySix's Avatar

Join Date: Apr 2019
Location: S.E. Texas
Posts: 804

Bikes: Norco CityGlide, Schwinn Willy

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 401 Post(s)
Liked 221 Times in 168 Posts
Originally Posted by rustystrings61 View Post
For the life of me I can't find the article or discussion online, but I remember reading about the Walden Turn, named for Mike Walden of the Wolverine Sports Club - essentially you kept your bike more upright and leaned your body into the turn, thus allowing you to continue pedaling through the turn. I've been doing that for maybe 15 years now, to where it's ingrained behavior on a fixed-gear, and so far it has worked nicely. I think that maneuver was also described in Delong's Guide to Bicycles and Bicycling. It's a holdover from the era when almost all U.S. racing, road or track, was on fixed-gears.
Maybe this?

https://www.nytimes.com/1991/12/08/t...ain-of-it.html
FiftySix is offline
Old 10-09-19, 05:33 AM
  #15
Lemond1985
Sophomore Member

Lemond1985's Avatar

Join Date: Jan 2019
Posts: 1,916
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 1117 Post(s)
Liked 429 Times in 288 Posts
European racers use this same technique to get around muddy cobbled turns. I use it lot for turns on pavement where there's sand or gravel and I'm not confident of being able to get good traction.

Last edited by Lemond1985; 10-09-19 at 05:36 AM.
Lemond1985 is offline
Old 10-09-19, 07:42 AM
  #16
smashndash
Senior Member

Join Date: Feb 2018
Posts: 492

Bikes: 2017 Specialized Allez Sprint Comp

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 313 Post(s)
Liked 21 Times in 15 Posts
Originally Posted by Lemond1985 View Post
European racers use this same technique to get around muddy cobbled turns. I use it lot for turns on pavement where there's sand or gravel and I'm not confident of being able to get good traction.
Yep Iíve definitely used this technique when I need to pedal as fast as possible while leaning as hard as possible. For example, when going through a roundabout. OP, find a roundabout or other long sweeping turn and practice. Thatís the best way to get a feel for how much you can lean.

Watch fixed gear crits and see if you can replicate their setups. Those guys lean harder than most normal roadies. It just comes down to high BBs and short cranks. Some guys will time their hardest lean with the moment their pedals are away from the ground. Thatís much tougher but itís high risk, high reward.
smashndash is offline
Old 10-09-19, 11:36 AM
  #17
SquidPuppet
Calamari Marionette Ph.D

SquidPuppet's Avatar

Join Date: Dec 2013
Location: Coeur d' Alene
Posts: 7,883

Bikes: 3 Chinese Gas Pipe Nerdcycles and 2 Chicago Electroforged Boat Anchors

Mentioned: 74 Post(s)
Tagged: 0 Thread(s)
Quoted: 2349 Post(s)
Liked 8 Times in 8 Posts
Originally Posted by Maslin View Post


It would obviously work better as a single speed, but whereís the fun in that.
Hauling ass around corners, carving deep lean angles.
SquidPuppet is offline
Old 10-09-19, 11:45 AM
  #18
Maslin
Member
Thread Starter

Join Date: Sep 2019
Posts: 35
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 6 Times in 6 Posts
Originally Posted by SquidPuppet View Post
Hauling ass around corners, carving deep lean angles.
Yeah... I flipped the flip flop back to freewheel. I'll give fixed another shot, but I'm really enjoying it either way. The simplicity of a single speed is calming. Even commuted on my 18 mile loop Monday, my wife likes that I'm not leaving her behind on it, 42/16 only spins out so fast.

Thanks for the replies, that article was interesting. I'll try some corners superbike style and see how it goes.


Last edited by Maslin; 10-09-19 at 11:50 AM.
Maslin is offline
Old 10-10-19, 10:04 PM
  #19
tashi
Senior Member

Join Date: Apr 2005
Location: Victoria
Posts: 1,280
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 42 Post(s)
Liked 6 Times in 6 Posts
Originally Posted by SquidPuppet View Post
Hauling ass around corners, carving deep lean angles.

I hear ya. I tried a fixed conversion for a while.

Slow down hills and couldn't dive into corners. Boooo. SS instead for me thanks.
tashi is offline
Old 10-10-19, 11:33 PM
  #20
BicycleBicycle
Senior Member

BicycleBicycle's Avatar

Join Date: Jan 2015
Posts: 151
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)
Likes: 0
Liked 6 Times in 6 Posts
I had a conversion once.
I guess I got lucky and the BB was already high.
I would notice small pedal strike, but I thought it was normal and just avoided learning too hard (or I would sorta ease into the turn to see if it was possible).
It never put me on my derrier though.

When I bought a proper FG frame, I never had pedal strike, and I had been in some extremely leany turns.

So, I guess like others have said, the BB height matters.
BicycleBicycle is offline
Old 10-18-19, 05:39 PM
  #21
takenreasy
Senior Member

takenreasy's Avatar

Join Date: Apr 2009
Location: Richmond, VA
Posts: 332

Bikes: í83 Bianchi Special í96 Specialized Stump Jumper Comp í09 Gary Fisher Paragon í09 Surly Cross Check í11 Surly Long Haul Trucker

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 35 Post(s)
Liked 3 Times in 2 Posts
My fixed gear bike is a Surly Cross Check which has a high BB. I can really "hammer it" through the turns (60 yrs old).
takenreasy is offline
Old 10-18-19, 06:26 PM
  #22
BicycleBicycle
Senior Member

BicycleBicycle's Avatar

Join Date: Jan 2015
Posts: 151
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)
Likes: 0
Liked 6 Times in 6 Posts
Originally Posted by Maslin View Post
Yeah... I flipped the flip flop back to freewheel. I'll give fixed another shot, but I'm really enjoying it either way. The simplicity of a single speed is calming. Even commuted on my 18 mile loop Monday, my wife likes that I'm not leaving her behind on it, 42/16 only spins out so fast.

Thanks for the replies, that article was interesting. I'll try some corners superbike style and see how it goes.

Geeze, that crank arm is practically a kickstand.
BicycleBicycle is offline
Old 10-20-19, 08:42 AM
  #23
bedtime
Senior Member

bedtime's Avatar

Join Date: Aug 2019
Location: Hamilton, Ontario
Posts: 114

Bikes: Louis Garneau road bike converted to fixie for artistic cycling

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 46 Post(s)
Liked 29 Times in 21 Posts
My peddles touch, too,and I don't even have to lean in much at all. My bike was initially a road bike. The cranks are 170 mm, ugh. To make matters worse, my peddles are quite long.

Doing tricks, such as steering with feet, can be tricky, as falling from such a position wouldn't be easy to bail from.

I have one ever so partial remedy, but I cannot speak for your safety, unless it is done correctly. Chances are this issue has resulted from using a road bike which has vertical dropouts; so, you could gain a 1/4-1" by using a dropout converter and solve the chain tension problem in one go.

BUT! You must install it correctly, or your bike will be even more dangerous! That may involve welding, so it doesn't move.

I haven't done this yet but am still thinking it over.

Just an idea.

bedtime is offline
Old 10-20-19, 10:11 AM
  #24
REDMASTA
Senior Member

REDMASTA's Avatar

Join Date: Apr 2016
Location: Traveling through time, will return last week.
Posts: 605

Bikes: Bare Rum Sword Knuckle Runner

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 228 Post(s)
Liked 24 Times in 15 Posts
First FG, Pedaling Through Turns?
REDMASTA is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
