Pinion Gear Box Minimum Temp
#1
Thread Starter
No Pain, No Pizza

Joined: Jan 2007
Posts: 503
Likes: 267
From: Unincorporated Boulder County
Bikes: 2024 Tout Terrain Blueridge Xplore GT, 2015 Tarmac Pro Disc, '99 Burley Duet, '10 Velo Vie Vitesse 300R, '94 Trek 2120, '90 Cannondale SR 600, '79 Ross Super Gran Tour, '76 Raleigh Record
Pinion Gear Box Minimum Temp
I have been cautious to avoid commuting under 5°F because the manual said that is the minimum operating temperature, but I recently reached out to a Pinion technician who said the main consideration with temperature is the gearbox becoming pressurized when you bring it back inside from extreme cold. Nothing operationally will damage the gearbox in temperatures below 0, but because the gearbox is completely sealed, a rapid increase in temperature can cause pressure to build inside the gearbox. The pressure won’t hurt the gearbox but can push some oil past the seals causing a temporary oil leak. In that case put a sheet of cardboard under it in the winter then change the oil every spring to make sure it’s still topped up.


#2
Senior Member



Joined: Jul 2023
Posts: 1,965
Likes: 1,207
From: "Driftless" WI
Bikes: 1972 Motobecane Grand Record, 2023 Specialized Tarmac SL7,'26 Spesh Diverge, '22 Kona Dew+
My approach would be either to leave the bike in the cold when not in use, or instead plan on opening the oil fill port when brought inside to equalize the pressure as it returns to room temp.
I'd also want to explore the question with a techy of whether a lower viscosity gear lube would be of advantage when used at low temps outside. Standard stuff may become rather thickish, making pedaling less efficient and maybe also not doing the best job possible of reducing friction in bearings and on gear teeth. It's not like you're gonna be pedaling furiously along enough that friction alone's gonna warm that gear case much....
(BTW I'd like to see your '15 Tarmac Disc sometime here. I bought a '23 model late in '24, love it when I can ride it outside!!)
__________________
"Bramo assai,poco spero,nulla chieggio."
"Bramo assai,poco spero,nulla chieggio."
#3
Thread Starter
No Pain, No Pizza

Joined: Jan 2007
Posts: 503
Likes: 267
From: Unincorporated Boulder County
Bikes: 2024 Tout Terrain Blueridge Xplore GT, 2015 Tarmac Pro Disc, '99 Burley Duet, '10 Velo Vie Vitesse 300R, '94 Trek 2120, '90 Cannondale SR 600, '79 Ross Super Gran Tour, '76 Raleigh Record
OK, so the increased temp coming back in boosts internal pressure? That to my thinking means that, once subjected to cold temps, a gearbox's internal pressure's decreased, maybe causing a small amount of air to be sucked past its seals, yes? It's THAT additional air that expands once warmed, leading to potential for oil leak... no matter how temporary.
My approach would be either to leave the bike in the cold when not in use, or instead plan on opening the oil fill port when brought inside to equalize the pressure as it returns to room temp.
I'd also want to explore the question with a techy of whether a lower viscosity gear lube would be of advantage when used at low temps outside. Standard stuff may become rather thickish, making pedaling less efficient and maybe also not doing the best job possible of reducing friction in bearings and on gear teeth. It's not like you're gonna be pedaling furiously along enough that friction alone's gonna warm that gear case much....
(BTW I'd like to see your '15 Tarmac Disc sometime here. I bought a '23 model late in '24, love it when I can ride it outside!!)
My approach would be either to leave the bike in the cold when not in use, or instead plan on opening the oil fill port when brought inside to equalize the pressure as it returns to room temp.
I'd also want to explore the question with a techy of whether a lower viscosity gear lube would be of advantage when used at low temps outside. Standard stuff may become rather thickish, making pedaling less efficient and maybe also not doing the best job possible of reducing friction in bearings and on gear teeth. It's not like you're gonna be pedaling furiously along enough that friction alone's gonna warm that gear case much....
(BTW I'd like to see your '15 Tarmac Disc sometime here. I bought a '23 model late in '24, love it when I can ride it outside!!)
#4
Senior Member



Joined: Jul 2023
Posts: 1,965
Likes: 1,207
From: "Driftless" WI
Bikes: 1972 Motobecane Grand Record, 2023 Specialized Tarmac SL7,'26 Spesh Diverge, '22 Kona Dew+

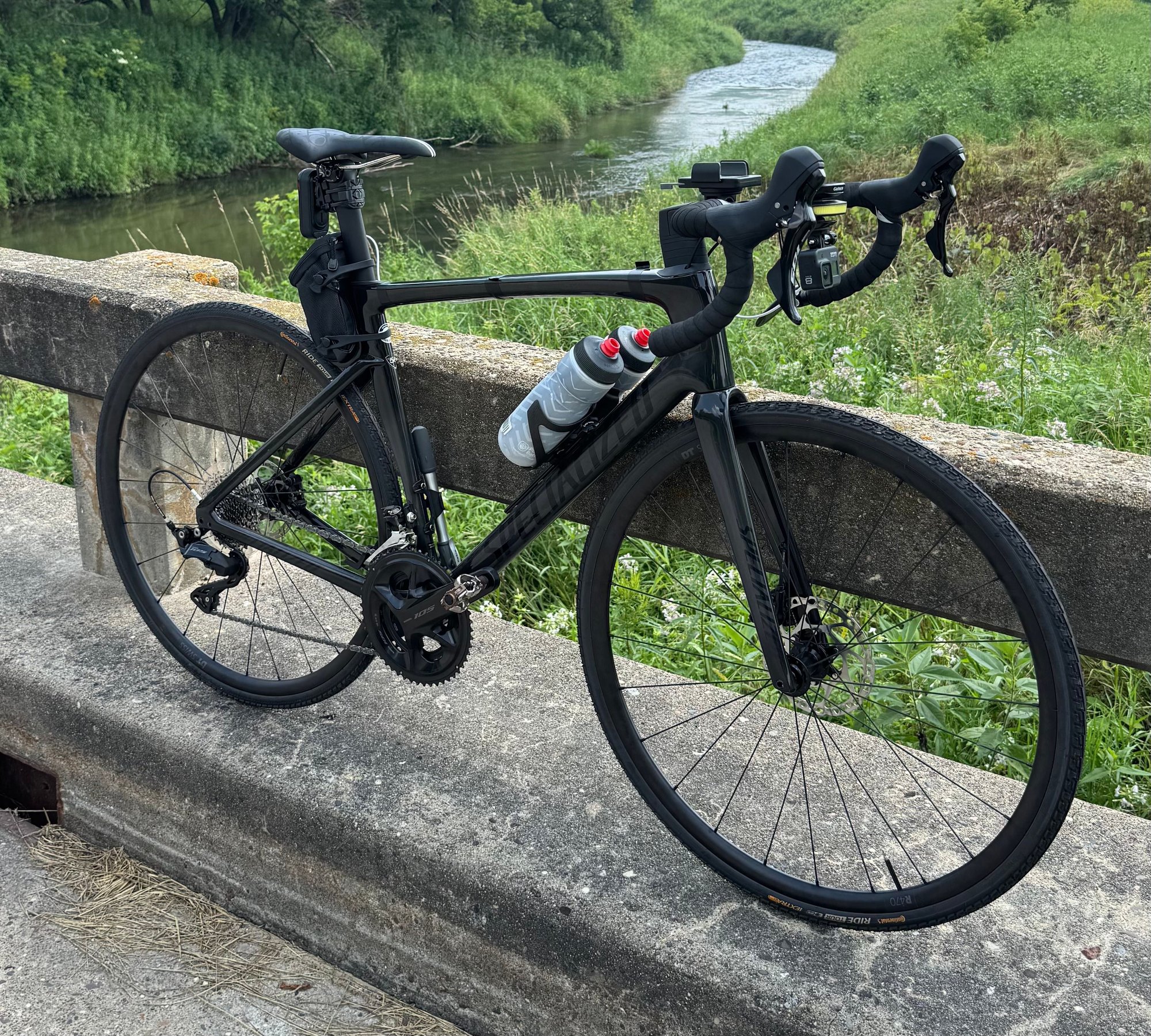

Mine...

I like to climb, there's a lot of that where I ride now, but I'm not too fast at it.
