The part, the tool...or me?
I have '94 Stumpjumper. I'm trying to remove the cassette. I bought a Park Tool removal tool and so far, I'm a big ol' failure at cassette removal.
The whole drivetrain is Deore XT, and AFAIK, the cassette is original equipment.
The splines on the tool seem to line up correctly with the locknut, but won't really grab hold. It will catch, but just barely. I can't get enough of a bite to loosen the locknut.
The tool was from Nashbar, and was indicated for Shimano (FR-1.2).
From this limited info, can you say whether I got the wrong tool, I have a jacked-up locknut, or I shouldn't wrench on bikes without adult supervision?
The whole drivetrain is Deore XT, and AFAIK, the cassette is original equipment.
The splines on the tool seem to line up correctly with the locknut, but won't really grab hold. It will catch, but just barely. I can't get enough of a bite to loosen the locknut.
The tool was from Nashbar, and was indicated for Shimano (FR-1.2).
From this limited info, can you say whether I got the wrong tool, I have a jacked-up locknut, or I shouldn't wrench on bikes without adult supervision?
08-10-16, 06:58 PM
#2
Friendship is Magic
Join Date: Nov 2010
Location: Sacramento, CA
Posts: 22,984
Bikes: old ones
Mentioned: 304 Post(s)
Tagged: 0 Thread(s)
Quoted: 26404 Post(s)
Liked 10,374 Times
in
7,203 Posts
.
...I can only tell you that the tool needs to drop in farther than you describe. It's either the wrong tool or there's some obstruction in the ring teeth or inside where it needs to drop in. Is this one of the tools with a pilot pin, or is it just like a regular freewheel tool (no pin) ?
Sometimes you need to coax those babies a little with some love and stronger emotion to get them in there where they need to be.
(I reread that, and it sounds dirty.
)
...I can only tell you that the tool needs to drop in farther than you describe. It's either the wrong tool or there's some obstruction in the ring teeth or inside where it needs to drop in. Is this one of the tools with a pilot pin, or is it just like a regular freewheel tool (no pin) ?
Sometimes you need to coax those babies a little with some love and stronger emotion to get them in there where they need to be.
(I reread that, and it sounds dirty.
)
08-10-16, 07:00 PM
#3
Senior Member
Join Date: Sep 2010
Location: Roswell, GA
Posts: 8,319
Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta
Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 1438 Post(s)
Liked 1,092 Times
in
723 Posts

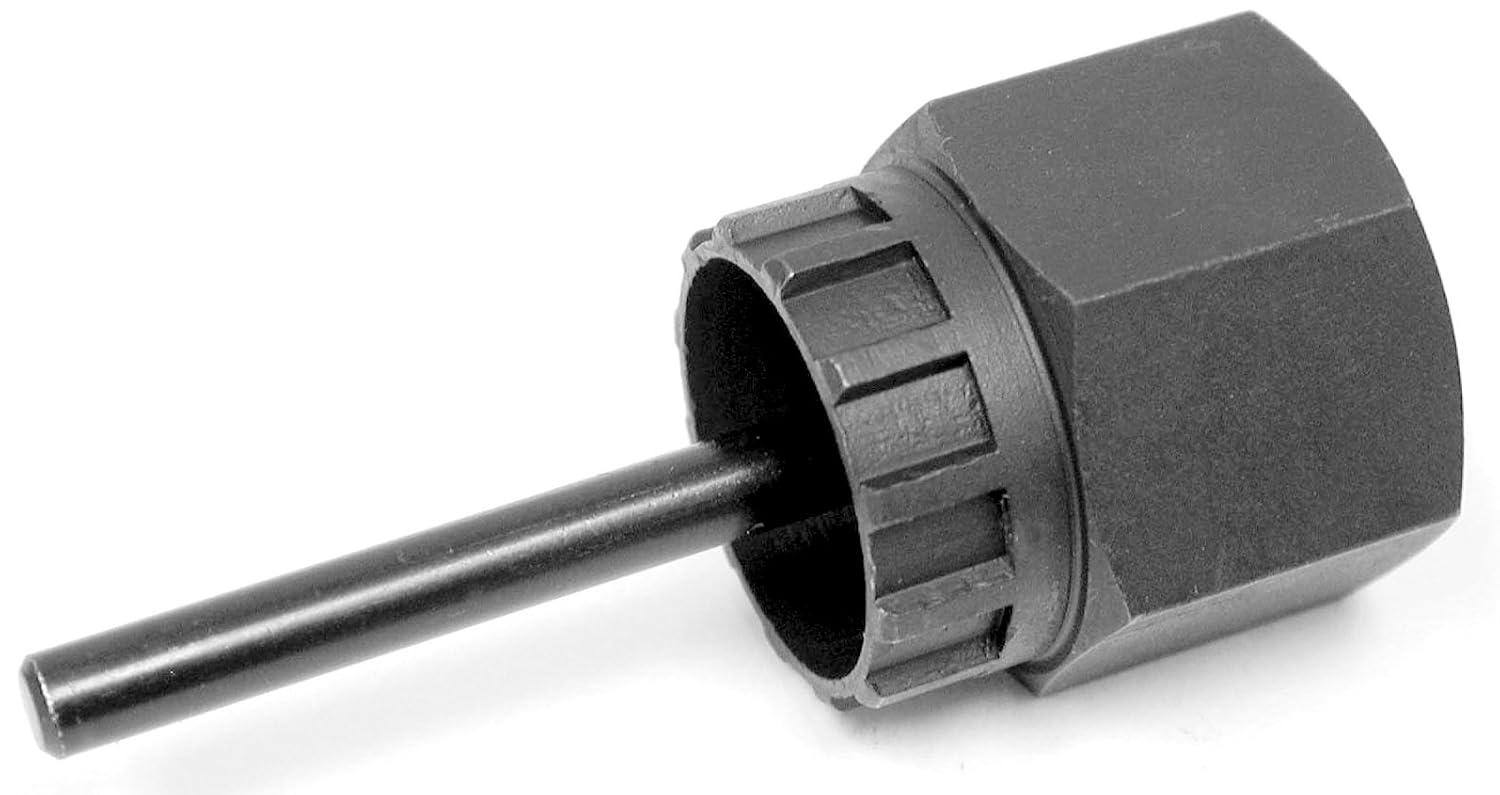

The FR-1.2 is a freewheel remover, if you have a cassette you need a cassette lockring remover. You probably need an FR-5 or equivalent.
08-10-16, 07:03 PM
#4
Senior Member
Thread Starter
Join Date: Jul 2015
Posts: 65
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Likes: 0
Liked 0 Times
in
0 Posts
There's no pin; it's basically just a socket.
It seems to be the right tool, but it just aaaallllllmost locks in.
I thought about a little coaxing, but I tend to go gorilla and break stuff.
It seems to be the right tool, but it just aaaallllllmost locks in.
I thought about a little coaxing, but I tend to go gorilla and break stuff.
08-10-16, 07:13 PM
#5
Senior Member
Thread Starter
Join Date: Jul 2015
Posts: 65
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Likes: 0
Liked 0 Times
in
0 Posts
08-10-16, 07:13 PM
#6
Senior Member
Join Date: Dec 2010
Location: St Cloud Fl.
Posts: 1,945
Bikes: Only my riders left...
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 350 Post(s)
Liked 782 Times
in
389 Posts
Use the QR.
Use the QR to hold the cassett tool in place. Put the cassett tool on, then slide the QR into it's usual place and tighten it up as usual. Don't gorilla it! You can actually use an old QR.
08-10-16, 07:25 PM
#7
Senior Member
Thread Starter
Join Date: Jul 2015
Posts: 65
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Likes: 0
Liked 0 Times
in
0 Posts
I'm afraid I just got the wrong tool.
Thanks for the tip.
08-10-16, 07:32 PM
#8
Friendship is Magic
Join Date: Nov 2010
Location: Sacramento, CA
Posts: 22,984
Bikes: old ones
Mentioned: 304 Post(s)
Tagged: 0 Thread(s)
Quoted: 26404 Post(s)
Liked 10,374 Times
in
7,203 Posts
08-10-16, 08:07 PM
#10
Really Old Senior Member
Leave the skewer 1/3 turn loose and try to initially back off the lock ring a LITTLE BIT.
Readjust the skewer & repeat. You'll get the idea once you do it.
Last edited by Bill Kapaun; 08-10-16 at 08:12 PM.
08-10-16, 10:13 PM
#11
Senior Member
Join Date: Oct 2010
Location: Sacramento, CA
Posts: 526
Bikes: 2015 Redline Conquest Elite; 2014 Fuji Tahoe 1.1 27.5er; 2006 Scott Speedster S30 (sold); 2001 Specialized S-Works CX; 1990 Trek 750 (sold); 1999 Bianchi Volpe; 1988 Bianchi Campione D'Italia.
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Likes: 0
Liked 0 Times
in
0 Posts
I have '94 Stumpjumper. I'm trying to remove the cassette. I bought a Park Tool removal tool and so far, I'm a big ol' failure at cassette removal.
The whole drivetrain is Deore XT, and AFAIK, the cassette is original equipment.
The splines on the tool seem to line up correctly with the locknut, but won't really grab hold. It will catch, but just barely. I can't get enough of a bite to loosen the locknut.
The tool was from Nashbar, and was indicated for Shimano (FR-1.2).
From this limited info, can you say whether I got the wrong tool, I have a jacked-up locknut, or I shouldn't wrench on bikes without adult supervision?
The whole drivetrain is Deore XT, and AFAIK, the cassette is original equipment.
The splines on the tool seem to line up correctly with the locknut, but won't really grab hold. It will catch, but just barely. I can't get enough of a bite to loosen the locknut.
The tool was from Nashbar, and was indicated for Shimano (FR-1.2).
From this limited info, can you say whether I got the wrong tool, I have a jacked-up locknut, or I shouldn't wrench on bikes without adult supervision?
Edited to add: I'm a noob mechanic too, but I have successfully removed and installed a few cassettes on mid 90s MTBs
08-10-16, 10:29 PM
#12
Senior Member
Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 27,547
Mentioned: 217 Post(s)
Tagged: 0 Thread(s)
Quoted: 18373 Post(s)
Liked 4,507 Times
in
3,350 Posts
But, the imported ones are quite cheap now.
08-11-16, 04:20 AM
#13
Senior Member
Thread Starter
Join Date: Jul 2015
Posts: 65
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Likes: 0
Liked 0 Times
in
0 Posts
Yes, I have a chain whip. I guess I didn't mention it because it's functioning fine.
08-11-16, 05:47 PM
#14
Senior Member
Join Date: Dec 2010
Location: St Cloud Fl.
Posts: 1,945
Bikes: Only my riders left...
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 350 Post(s)
Liked 782 Times
in
389 Posts
Nuts.
Have you removed all of the nuts on the axle 'cept the cone? You may not be seated all the way in.
Any pics?
Any pics?
08-11-16, 05:58 PM
#15
Senior Member
Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 33,656
Bikes: '96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '20 Surly Midnight Special, All are 3x10. It is hilly around here!
Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 2026 Post(s)
Likes: 0
Liked 1,096 Times
in
742 Posts
Shimano freewheel removers and cassette lockring tools are very similar in appearance but are not identical and don't work well interchangeably.
08-11-16, 06:42 PM
#16
Senior Member
Thread Starter
Join Date: Jul 2015
Posts: 65
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Likes: 0
Liked 0 Times
in
0 Posts
Unfortunately, my iPhone and this site get along worse than my lockring and my FR-1. I'll keep trying.
08-11-16, 06:44 PM
#17
Senior Member
Thread Starter
Join Date: Jul 2015
Posts: 65
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Likes: 0
Liked 0 Times
in
0 Posts
08-11-16, 07:59 PM
#18
Junior Member
Join Date: Feb 2009
Location: SWMo
Posts: 17
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 0 Times
in
0 Posts
08-11-16, 10:08 PM
#19
Senior Member
Thread Starter
Join Date: Jul 2015
Posts: 65
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Likes: 0
Liked 0 Times
in
0 Posts
Well, thankya. Appearances aside, I'm not completely inept mechanically. On the other hand, I'm not completely ept, either.
This is is a project bike that I'm not in a screaming hurry to get finished, so I have time to wait for tools and parts. I'm just hoping it's worth it in the end. I think it will be.
This is is a project bike that I'm not in a screaming hurry to get finished, so I have time to wait for tools and parts. I'm just hoping it's worth it in the end. I think it will be.
08-11-16, 11:22 PM
#21
Friendship is Magic
Join Date: Nov 2010
Location: Sacramento, CA
Posts: 22,984
Bikes: old ones
Mentioned: 304 Post(s)
Tagged: 0 Thread(s)
Quoted: 26404 Post(s)
Liked 10,374 Times
in
7,203 Posts
08-11-16, 11:24 PM
#22
Friendship is Magic
Join Date: Nov 2010
Location: Sacramento, CA
Posts: 22,984
Bikes: old ones
Mentioned: 304 Post(s)
Tagged: 0 Thread(s)
Quoted: 26404 Post(s)
Liked 10,374 Times
in
7,203 Posts
08-16-16, 07:18 PM
#23
Senior Member
Thread Starter
Join Date: Jul 2015
Posts: 65
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Likes: 0
Liked 0 Times
in
0 Posts
My apologies for resurrecting a dead thread, but I just wanted to give a big ol' internet "attaboy" to those who offered advice.
Got the proper tool for the job, and the cassette removal went smoothly. I'm well on my way to either a cleaner, better performing bike or a random pile of assorted parts.
In any case, thanks.
Got the proper tool for the job, and the cassette removal went smoothly. I'm well on my way to either a cleaner, better performing bike or a random pile of assorted parts.
In any case, thanks.
08-17-16, 10:42 AM
#24
Senior Member
Join Date: Oct 2004
Location: CA SF Bay Area
Posts: 476
Bikes: 2014 CDale EVO, 2007 System Six, 2004 Litespeed Solano, 2002 Burley Duet
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 92 Post(s)
Likes: 0
Liked 0 Times
in
0 Posts
My apologies for resurrecting a dead thread, but I just wanted to give a big ol' internet "attaboy" to those who offered advice.
Got the proper tool for the job, and the cassette removal went smoothly. I'm well on my way to either a cleaner, better performing bike or a random pile of assorted parts.
In any case, thanks.
Got the proper tool for the job, and the cassette removal went smoothly. I'm well on my way to either a cleaner, better performing bike or a random pile of assorted parts.
In any case, thanks.
