This nut is nuts

How do I even get this off? I would hope there's a special tool for it, or you're screwed if you get a flat, but with the way the holes are it looks like it only goes on, not off.

I've tried grabbing it with lock jaw pliers, but couldn't get a good grip.
Retfor is offline
Old 08-13-19, 06:41 PM
  #2
terrymorse
Senior Member

terrymorse's Avatar

Join Date: Dec 2004
Location: Palo Alto, CA
Posts: 3,205

Bikes: Scott Addict R1

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 101 Post(s)
Liked 54 Times in 40 Posts
Those are Pinhead anti-theft nuts, you need the tool that goes with them.

Pinhead Solid Axle Locking Nut
terrymorse is offline
Old 08-13-19, 06:55 PM
  #3
shelbyfv
Senior Member

shelbyfv's Avatar

Join Date: Jun 2007
Posts: 5,413
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 1158 Post(s)
Liked 172 Times in 117 Posts
Stolen bike?
shelbyfv is offline
Old 08-13-19, 07:13 PM
  #4
Retfor
Member
Thread Starter

Join Date: Aug 2019
Posts: 25
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 2 Times in 1 Post
Originally Posted by shelbyfv View Post
Stolen bike?
Nope, junk bike someone gave away. Already deleted the messages, though, so I dunno who it was. I was gonna salvage the wheels for another bike, but I gotta figure out how to get this off, first.



Originally Posted by terrymorse View Post
Those are Pinhead anti-theft nuts, you need the tool that goes with them.

Pinhead Solid Axle Locking Nut



Dang, I was figured it was something like that. Any way to get it off without the tool?
Retfor is offline
Old 08-13-19, 07:16 PM
  #5
MattTheHat
Senior Member

MattTheHat's Avatar

Join Date: Aug 2018
Location: Allen, TX
Posts: 644

Bikes: '20 Specialized Roubaix Expert, '18 Specialized Diverge Comp

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 196 Post(s)
Liked 80 Times in 62 Posts
You could file flats into it and remove with a wrench.

-Matt
__________________
MattTheHat is offline
Old 08-13-19, 07:25 PM
  #6
Retfor
Member
Thread Starter

Join Date: Aug 2019
Posts: 25
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 2 Times in 1 Post
well, that was easy. the other side was a regular nut, which i had already removed, so i just used a regular wrench on the inner nut by the cones, which rotated the whole axle, loosening the nut enough that i could just unscrew it the rest of the way by hand.
Retfor is offline
Old 08-13-19, 07:39 PM
  #7
Retfor
Member
Thread Starter

Join Date: Aug 2019
Posts: 25
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 2 Times in 1 Post

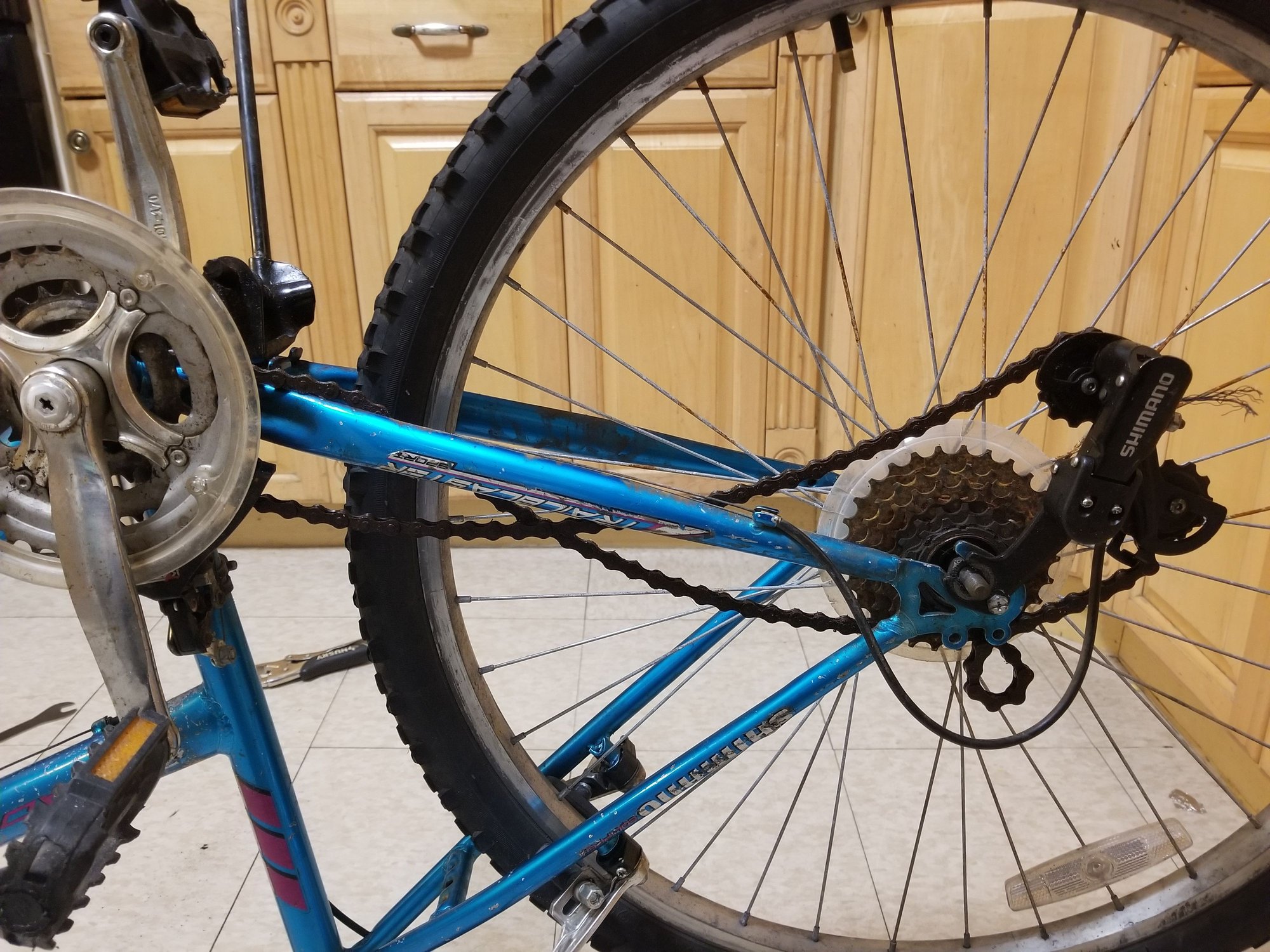

Wow, I'm just having all the luck tonight. This the bike im putting the wheels on. The chain was put on crossed... smh.



Unless somehow that kink would straighten out to flipping the chain around.
Retfor is offline
Old 08-13-19, 08:04 PM
  #8
ThermionicScott
hungry

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 18,584

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 70 Post(s)
Tagged: 0 Thread(s)
Quoted: 2086 Post(s)
Liked 140 Times in 114 Posts
The person from whom this bike was stolen didn't want to make anything easy for the thief!
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Old 08-14-19, 06:04 AM
  #9
Moe Zhoost
Half way there

Moe Zhoost's Avatar

Join Date: Sep 2015
Location: Durham, NC
Posts: 1,369

Bikes: Many, and the list changes frequently

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 375 Post(s)
Liked 58 Times in 38 Posts
Originally Posted by Retfor View Post
Wow, I'm just having all the luck tonight. This the bike im putting the wheels on. The chain was put on crossed... smh.

Unless somehow that kink would straighten out to flipping the chain around.
The cosmic powers are testing you!
Moe Zhoost is offline
Old 08-14-19, 06:11 AM
  #10
Retfor
Member
Thread Starter

Join Date: Aug 2019
Posts: 25
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 2 Times in 1 Post
Originally Posted by Retfor View Post
Wow, I'm just having all the luck tonight. This the bike im putting the wheels on. The chain was put on crossed... smh.



Unless somehow that kink would straighten out to flipping the chain around.
oh, actually, looking at it again this morning, with the wheel out i WOULD have been able to straighten that kink out to get the chain proper. the rear derailleur is flipped down, so what looks like the bottom cog in the pic is actually the top cog. oh, well, already broke it and straightened it out.
Retfor is offline
Old 08-14-19, 08:50 AM
  #11
Unca_Sam
Wannabe

Join Date: Oct 2018
Location: Columbus, OH
Posts: 80

Bikes: Pake C'Mute Touring/Commuter Build

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Likes: 0
Liked 9 Times in 8 Posts
Yeesh

Replace the derailleur cable, would you? I needed a tetanus booster just looking at it.
Unca_Sam is online now
Old 08-14-19, 09:09 AM
  #12
Retfor
Member
Thread Starter

Join Date: Aug 2019
Posts: 25
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 2 Times in 1 Post
Originally Posted by Unca_Sam View Post
Replace the derailleur cable, would you? I needed a tetanus booster just looking at it.
Lol, yeah, that's in the plans.
