Cassette removal tool

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Cassette removal tool

Old 10-22-19, 09:23 PM
  #1
Strosfan5
Junior Member
Thread Starter

Join Date: Aug 2019
Posts: 22
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Cassette removal tool

Hi all,
Have an old Murray Baja 5000 mountain bike. Traditional steel framed 80ís Murray.

Wondering if anyone would have an idea which removal tool would fit the fastener to remove the cassette. It seems there are a few different sizes so to speak.

I plan on taking the back wheel apart and greasing the hub. I did the crank and front hub and they were a little dry. Purchased recently. Practically brand new. Bike was ridden around the blocks a few times and stored in a basement since mid 80ís.

any insight?
Strosfan5 is offline
Old 10-22-19, 09:33 PM
  #2
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 16,970

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Mongoose Tomac ATB, GT Bravado ATB, JCP Folder, Stewart 650B ATB

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3729 Post(s)
Liked 2,790 Times in 1,731 Posts
I'd be surprised at a Murray of that era having a cassette, freewheel would be far more likely. But we can't see your bike... Agreed that more data or photos will help us help you. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 10-23-19, 12:32 AM
  #3
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 27,273
Mentioned: 216 Post(s)
Tagged: 0 Thread(s)
Quoted: 17010 Post(s)
Liked 3,853 Times in 2,856 Posts
@Strosfan5's Album

https://www.bikeforums.net/g/user/503571
https://www.bikeforums.net/g/album/14737828

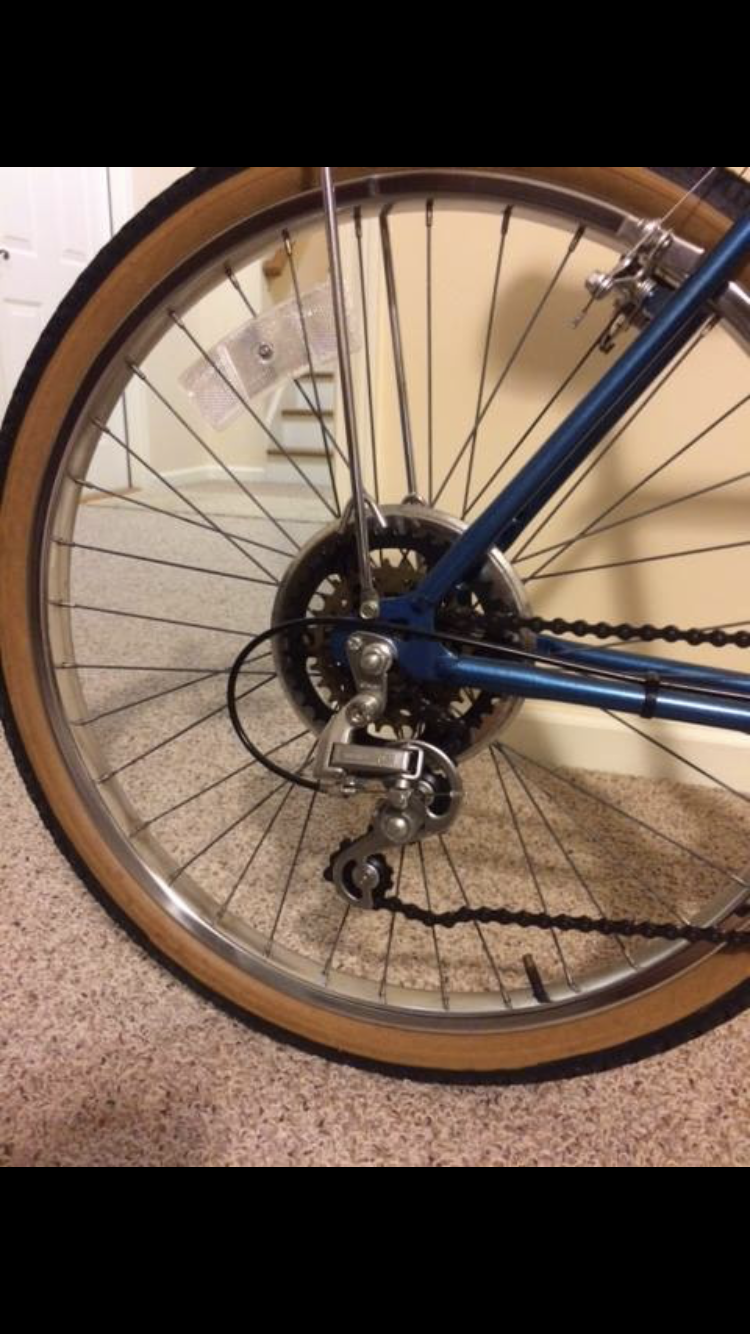

It would be easier to visualize with the wheel off. But, that looks like it may be a Shimano Megarange freewheel.

In which case, the tool would be a Park FR-1, FR-1.2, or FR-1.3 (they are backwards compatible). There are a number of low cost similar tools.

Remove the wheel and verify markings.

You have a kink in your chain indicating it may need some lube, and perhaps has a tight link. Make sure all the chain links move freely.

A few tight chain links can cause symptoms of skipping.
CliffordK is offline
Likes For CliffordK:
Old 10-23-19, 08:24 AM
  #4
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 8,301

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 1427 Post(s)
Liked 1,061 Times in 709 Posts
You might consider replacing the brake pads, which have likely dried out and hardened over the decades.
dsbrantjr is offline
Old 10-23-19, 02:12 PM
  #5
Wilfred Laurier
SeŮor Member

Wilfred Laurier's Avatar

Join Date: Feb 2013
Posts: 5,063
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 647 Post(s)
Liked 285 Times in 209 Posts
If those are original MAFAC cantilever brakes, you could remove them and sell them on EBay, and likely get enough $$$ to buy a better used bike.
Wilfred Laurier is offline
Old 10-23-19, 02:38 PM
  #6
ThermionicScott
working on my sandal tan

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 22,161

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers), All-City Space Horse (hers)

Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 3681 Post(s)
Liked 2,156 Times in 1,362 Posts
Originally Posted by dsbrantjr View Post
You might consider replacing the brake pads, which have likely dried out and hardened over the decades.
Those steel rims need all the help they can get.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Old 10-23-19, 08:31 PM
  #7
Jeff Wills
Insane Bicycle Mechanic

Jeff Wills's Avatar

Join Date: Mar 2008
Location: other Vancouver
Posts: 9,624
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 710 Post(s)
Liked 433 Times in 264 Posts
Originally Posted by Wilfred Laurier View Post
If those are original MAFAC cantilever brakes, you could remove them and sell them on EBay, and likely get enough $$$ to buy a better used bike.
Not on a Murray. There were many copies of MAFAC brakes made back then. I agree with DS: replace the brake pads if you want halfway decent brake performance.

Back to the original question: given the age of the machine and the SunTour derailleur, I think you might have a SunTour AG (for "Alpine Gear") freewheel. This has a very wide range 14 tooth to 38 tooth setup. It requires a Park Tool FR-2: https://www.parktool.com/product/freewheel-remover-fr-2 and careful technique to remove the freewheel. (Freewheel removal has been discussed many times before and there are some good online how-to videos.)
__________________
Jeff Wills

Comcast nuked my web page. It will return soon..
Jeff Wills is offline
Old 10-24-19, 01:28 PM
  #8
Strosfan5
Junior Member
Thread Starter

Join Date: Aug 2019
Posts: 22
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Jeff Wills View Post
Not on a Murray. There were many copies of MAFAC brakes made back then. I agree with DS: replace the brake pads if you want halfway decent brake performance.

Back to the original question: given the age of the machine and the SunTour derailleur, I think you might have a SunTour AG (for "Alpine Gear") freewheel. This has a very wide range 14 tooth to 38 tooth setup. It requires a Park Tool FR-2: https://www.parktool.com/product/freewheel-remover-fr-2 and careful technique to remove the freewheel. (Freewheel removal has been discussed many times before and there are some good online how-to videos.)
Thanks for the info. Much appreciated.

I bought it for a whopping 40$. I know itís a Murray and all that. Purchased it more than anything to really see if I wanted to get back into riding. The bike is what it is and has been flawless.

The chain was real dry. Iíve used Triflow for years and has always been just awesome. That got it going again.

Being that it had knobby tires on it, they are pretty shot after 300 miles on the road in the past two months.

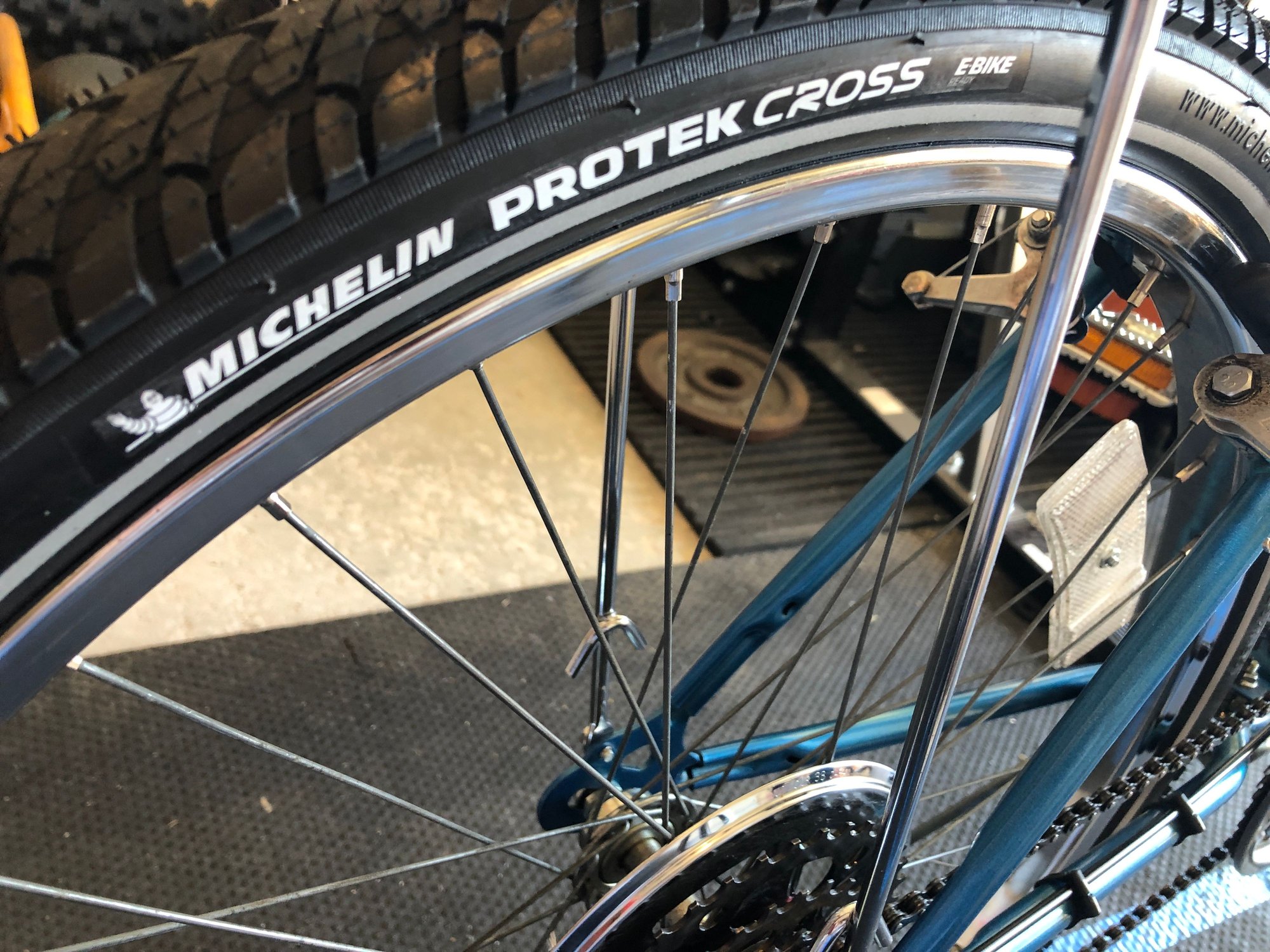

Since it was stored indoors all these years, the rubber on the pads and tires were ok. Tires have now been replaced with Michelinís ($27 bucks each).

Iím not a hardcore rider or whatever. Rides have been between 15-25 miles on weekends at an avg if 13-14mph. Itís been fun minus getting chSed by a couple of dogs last week on a country road.

Thanks again for the insight.
Strosfan5 is offline
Old 10-24-19, 02:07 PM
  #9
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 27,273
Mentioned: 216 Post(s)
Tagged: 0 Thread(s)
Quoted: 17010 Post(s)
Liked 3,853 Times in 2,856 Posts
Originally Posted by Jeff Wills View Post
SunTour AG (for "Alpine Gear") freewheel. This has a very wide range 14 tooth to 38 tooth setup. It requires a Park Tool FR-2: https://www.parktool.com/product/freewheel-remover-fr-2 and careful technique to remove the freewheel. (Freewheel removal has been discussed many times before and there are some good online how-to videos.)
OHHH!!! I was worried about not seeing "Megarange" written on the freewheel like Shimano usually does.

But, the two prong vs splined removal tool would be obvious once the wheel is removed and one looks at the freewheel. Plus the brand is usually inscribed on the center part of the freewheel.

As mentioned, be careful with removing a freewheel with a 2-prong tool (tighten the nut down on the tool, turn a bit, then slowly turn and release the nut).
CliffordK is offline
Old 10-24-19, 03:04 PM
  #10
Homebrew01
Super Moderator

Homebrew01's Avatar

Join Date: Jul 2004
Location: Ffld Cnty Connecticut
Posts: 21,761

Bikes: Old Steelies I made, Old Cannondales

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 1139 Post(s)
Liked 738 Times in 495 Posts
Originally Posted by Strosfan5 View Post
Hi all,
Have an old Murray Baja 5000 mountain bike. Traditional steel framed 80ís Murray.

Wondering if anyone would have an idea which removal tool would fit the fastener to remove the cassette. It seems there are a few different sizes so to speak.

I plan on taking the back wheel apart and greasing the hub. I did the crank and front hub and they were a little dry. Purchased recently. Practically brand new. Bike was ridden around the blocks a few times and stored in a basement since mid 80ís.

any insight?
Looks like your chain has a tight link. A little side-to-side pressure might loosen it.
__________________
Bikes: Old steel race bikes, old Cannondale race bikes, less old Cannondale race bike, crappy old mtn bike.

FYI: https://www.bikeforums.net/forum-sugg...ad-please.html
Homebrew01 is offline
Old 10-24-19, 03:54 PM
  #11
2old
Senior Member

Join Date: Jul 2014
Location: socal
Posts: 3,680
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 740 Post(s)
Liked 579 Times in 438 Posts
Neat looking bike.
2old is offline
Old 10-24-19, 04:11 PM
  #12
Strosfan5
Junior Member
Thread Starter

Join Date: Aug 2019
Posts: 22
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Homebrew01 View Post
Looks like your chain has a tight link. A little side-to-side pressure might loosen it.
A good application of Triflow took care of it.
Have any of you ever used Triflow?
Strosfan5 is offline
Old 10-24-19, 04:18 PM
  #13
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 13,290

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 1558 Post(s)
Liked 887 Times in 632 Posts
Originally Posted by Strosfan5 View Post
A good application of Triflow took care of it.
Have any of you ever used Triflow?
Certainly not on chains. Too expensive and light duty.
Any lube called "chain lube" is bound to be superior.
0000 REM answer
0100 GOTO, discussions, lube, chain, boring, stupid, repetitive
0200 GOTO 0100
0300 END

Although WAX has its advantages if you don't mind a hairy chain.

Last edited by Bill Kapaun; 10-24-19 at 05:28 PM.
Bill Kapaun is online now
