dissasembling a Miche Primato hub for repacking

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

dissasembling a Miche Primato hub for repacking

Old 08-07-21, 09:46 AM
  #1
pstock
Senior Member
Thread Starter

Join Date: May 2008
Location: Toronto, Canada
Posts: 777

Bikes: (much reduced) Columbus Cyclops Campy Victory, 531 Harry Quinn 1st gen DA, SLX Fuso 8-spd DA, Airfriday. Claude Pottie (France) 753 w. 8S Record, Claude Pottie Columbus with 105,Masi Team 3v

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 79 Post(s)
Liked 12 Times in 9 Posts
dissasembling a Miche Primato hub for repacking

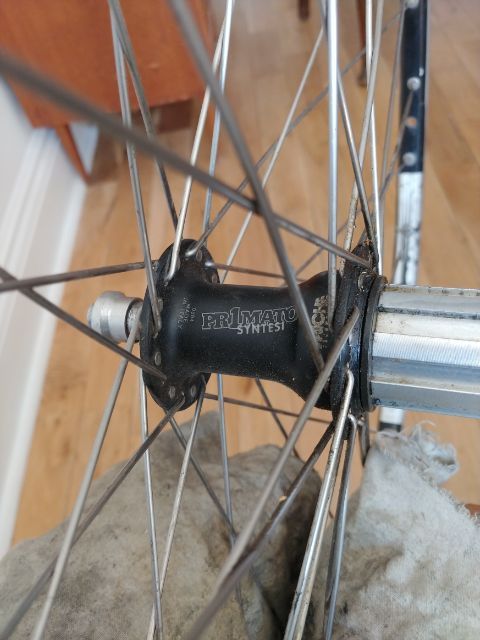

my Miche Primato hubs are a bit rough (particularly the rear hub) and I would like to repack the beatings .
I was able to access the RH side easily.
I cannot though figure out how to access the LH HDS side.

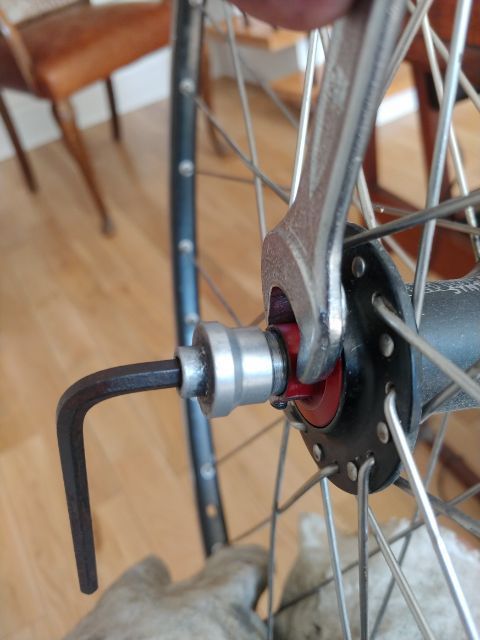

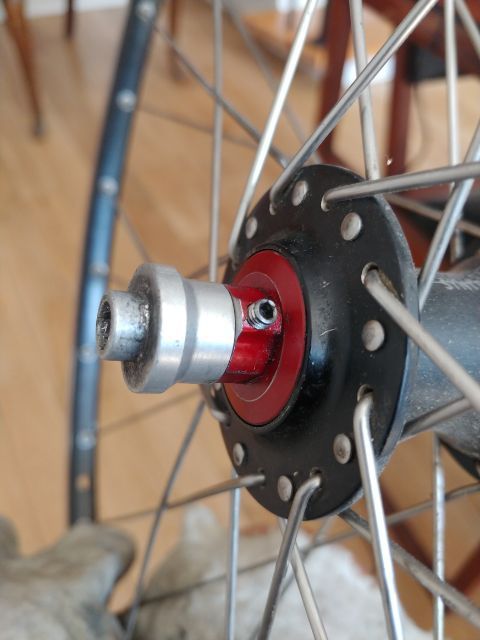

if I loosen the grub screw on red flange and hold it with a wrench an Allen key seems to partly unscrew the silver end cap.
but then it stops.
before I mess something up, I thought I would ask here for guidance for how to proceed?

is that silver NDS cap just friction fit? Should it unthread further? if so, how?



pstock is offline
Old 08-07-21, 10:13 AM
  #2
gearbasher
Senior Member

gearbasher's Avatar

Join Date: May 2009
Location: Sitting on my butt in front of a computer
Posts: 1,275
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 334 Post(s)
Liked 383 Times in 206 Posts
Click on the image and enlarge for easier reading
gearbasher is offline
Old 08-08-21, 04:04 PM
  #3
pstock
Senior Member
Thread Starter

Join Date: May 2008
Location: Toronto, Canada
Posts: 777

Bikes: (much reduced) Columbus Cyclops Campy Victory, 531 Harry Quinn 1st gen DA, SLX Fuso 8-spd DA, Airfriday. Claude Pottie (France) 753 w. 8S Record, Claude Pottie Columbus with 105,Masi Team 3v

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 79 Post(s)
Liked 12 Times in 9 Posts
super helpful. this sheet gave me the confidence to press on.

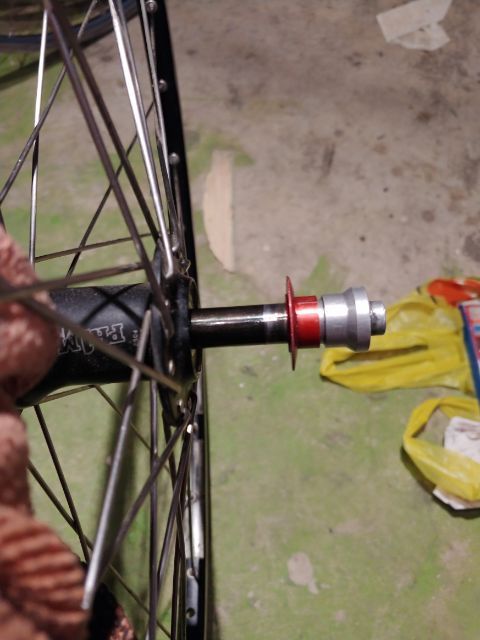

for what's worth things get a bit stiff in the axle after a few years. This one needed the gentle help of a flat bladed screw driver to lever the free hub body off.

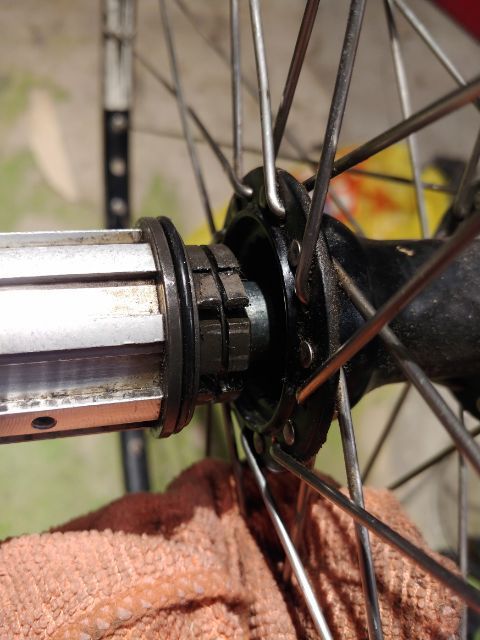

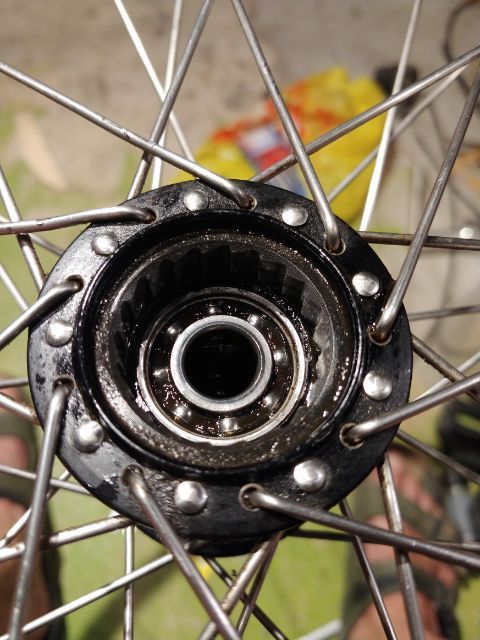

after that, I realized that before I wasn't even close to the hub bearings (I had only accessed the freehubbearings.)
