Chain length for dummies

Watched a few youtube videos explaining how to measure the correct chain link. Got it. Then found online chain length calculators. Makes sense too. But now I totally confused.

So, assuming I know my bike's chain stay...
  • Do I measure the length on my bike or do I simply set the number of links exactly as recommended by calculators
  • Also, this calculator sometimes comes up with odd number of links. Do I round up or down to make it even?
Thanks

Last edited by alexk_il; 07-15-22 at 08:50 AM.
alexk_il is offline
Old 07-15-22, 08:49 AM
  #2
smd4
Senior Member

Join Date: Dec 2020
Location: Wake Forest, NC
Posts: 1,752

Bikes: 1989 Cinelli Super Corsa

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 1028 Post(s)
Liked 760 Times in 496 Posts
No need to use a calculator. The chain should not be too tight on big chain ring/big cog (i.e, the rear derailleur should not be stretched so far that there's no room for it to move any further), nor sagging on small chainring, small cog.
smd4 is offline
Likes For smd4:
Old 07-15-22, 08:51 AM
  #3
Iride01
MotuekaCascadeChinook

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 11,440

Bikes: Tarmac Disc Comp Di2 - 2020

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 4648 Post(s)
Liked 3,147 Times in 2,191 Posts
I'm not sure why you would not follow the advice from the manufacturer of your rear derailleur. Shimano puts it in their DM's and other documents. https://si.shimano.com/#/

Even for the same DR, Shimano sometimes has different procedures to determine chain length depending on how many chainrings the front has.

However you are essentially wanting the chain to be long enough to go into the big/big combo without pulling the rear DR cage to it's forward limits or to the point of it tangling up with the cassette. AND, you don't want it so long that when in the small/small combo the rear DR cage can't take up the chain slack and is on it's rearward limits of travel.

Though it seems like with some old Shimano DR's with a 3x front they actually told you not to use the lowest gearing. This might be when the mantra and dogma of "Don't cross chain or bad stuff will happen" came into wide spread misunderstanding.

Normally I've found that running the chain over the big/big combo without going through the rear DR and adding a couple links works great for the bikes I've had. And seems to be the most universal way to size a chain.

Last edited by Iride01; 07-15-22 at 09:04 AM.
Iride01 is offline
Likes For Iride01:
Old 07-15-22, 08:55 AM
  #4
pdlamb
Senior Member

Join Date: Dec 2010
Location: northern Deep South
Posts: 7,759

Bikes: Fuji Touring, Novara Randonee

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 1996 Post(s)
Liked 1,251 Times in 795 Posts
Originally Posted by Iride01 View Post
I'm not sure why you would follow the advice from the manufacturer of your rear derailleur. Shimano puts it in their DM's and other documents. https://si.shimano.com/#/
Um, aren't you missing a "not" between "would" and "follow"?

Other than that, I agree with @smd4. This is one of those things where a few minutes with hands on hardware will give you results that are probably better than what your calculator gives you, and a lot quicker, too!
pdlamb is offline
Likes For pdlamb:
Old 07-15-22, 08:58 AM
  #5
timdow
Miles to Go

timdow's Avatar

Join Date: Oct 2011
Location: San Diego
Posts: 616

Bikes: 2022 Juiced Crosscurrent X, 2022 Fuji Touring, 2005ish Fuji Club LE, 1998 Schwinn Moab (drop bar conversion), 2010 LHT (Stolen)

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 113 Post(s)
Liked 82 Times in 61 Posts
If you use an on the bike method, without running chain through rear derailleur, wrap chain around big ring and biggest cog, then add two links. I have not used mullet cassettes though.... I just read online that this method is only good for 36T and under.

If it is not exact, I personally err on the short side for the chain as I would never be in big ring big cog combo, or anywhere close to it. On the other hand, it is a lot easier to remove a link if the chain turns out to be too long than to add a link.
timdow is offline
Old 07-15-22, 09:12 AM
  #6
cxwrench
Senior Member

cxwrench's Avatar

Join Date: Jul 2013
Location: Nor-Cal
Posts: 3,519

Bikes: lots

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 1776 Post(s)
Liked 2,607 Times in 1,350 Posts
Originally Posted by timdow View Post
If you use an on the bike method, without running chain through rear derailleur, wrap chain around big ring and biggest cog, then add two links. I have not used mullet cassettes though.... I just read online that this method is only good for 36T and under.

If it is not exact, I personally err on the short side for the chain as I would never be in big ring big cog combo, or anywhere close to it. On the other hand, it is a lot easier to remove a link if the chain turns out to be too long than to add a link.
You should rethink giving advice on a mechanical forum. Please. Whether or not you think you'll 'never go big/big' it's stupid to cut a chain too short to do it. For the OP: Forget calculators. They're not the correct way to adjust chain length. Every manufacturer has instructions for how to size a chain for their numerous derailleurs. Find those instructions. Use those instructions. You will never go wrong doing this.
cxwrench is offline
Likes For cxwrench:
Old 07-15-22, 09:32 AM
  #7
pdlamb
Senior Member

Join Date: Dec 2010
Location: northern Deep South
Posts: 7,759

Bikes: Fuji Touring, Novara Randonee

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 1996 Post(s)
Liked 1,251 Times in 795 Posts
Originally Posted by timdow View Post
If you use an on the bike method, without running chain through rear derailleur, wrap chain around big ring and biggest cog, then add two links. I have not used mullet cassettes though.... I just read online that this method is only good for 36T and under.

If it is not exact, I personally err on the short side for the chain as I would never be in big ring big cog combo, or anywhere close to it. On the other hand, it is a lot easier to remove a link if the chain turns out to be too long than to add a link.
I would never shift into a big-big combo, either. Except that I have on multiple occasions. It's all too easy to lose concentration and shift into the big cog when you were sure you were in a small ring that turned out to be a big ring. Happens to me a couple times a year, when I'm tired, distracted, hot. Because I've sized for big-big, I've managed to avoid damaging anything when I do something stupid like that.
pdlamb is offline
Likes For pdlamb:
Old 07-15-22, 09:36 AM
  #8
smd4
Senior Member

Join Date: Dec 2020
Location: Wake Forest, NC
Posts: 1,752

Bikes: 1989 Cinelli Super Corsa

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 1028 Post(s)
Liked 760 Times in 496 Posts
I just sized my chain using the Shimano instruction for my particular derailleur. Worked great!
smd4 is offline
Likes For smd4:
Old 07-15-22, 09:56 AM
  #9
alexk_il
Junior Member
Thread Starter

Join Date: Jun 2022
Posts: 117
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 76 Post(s)
Liked 11 Times in 7 Posts
Originally Posted by Iride01 View Post
I'm not sure why you would not follow the advice from the manufacturer of your rear derailleur. Shimano puts it in their DM's and other documents. https://si.shimano.com/#/
Looks like you missed the word "dummies" in the Title of this post. Thank you for the tip though. Will read Shimano's guides too.
alexk_il is offline
Old 07-15-22, 10:09 AM
  #10
alexk_il
Junior Member
Thread Starter

Join Date: Jun 2022
Posts: 117
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 76 Post(s)
Liked 11 Times in 7 Posts
Originally Posted by smd4 View Post
I just sized my chain using the Shimano instruction for my particular derailleur. Worked great!
From Shimano instructions for MTBs:

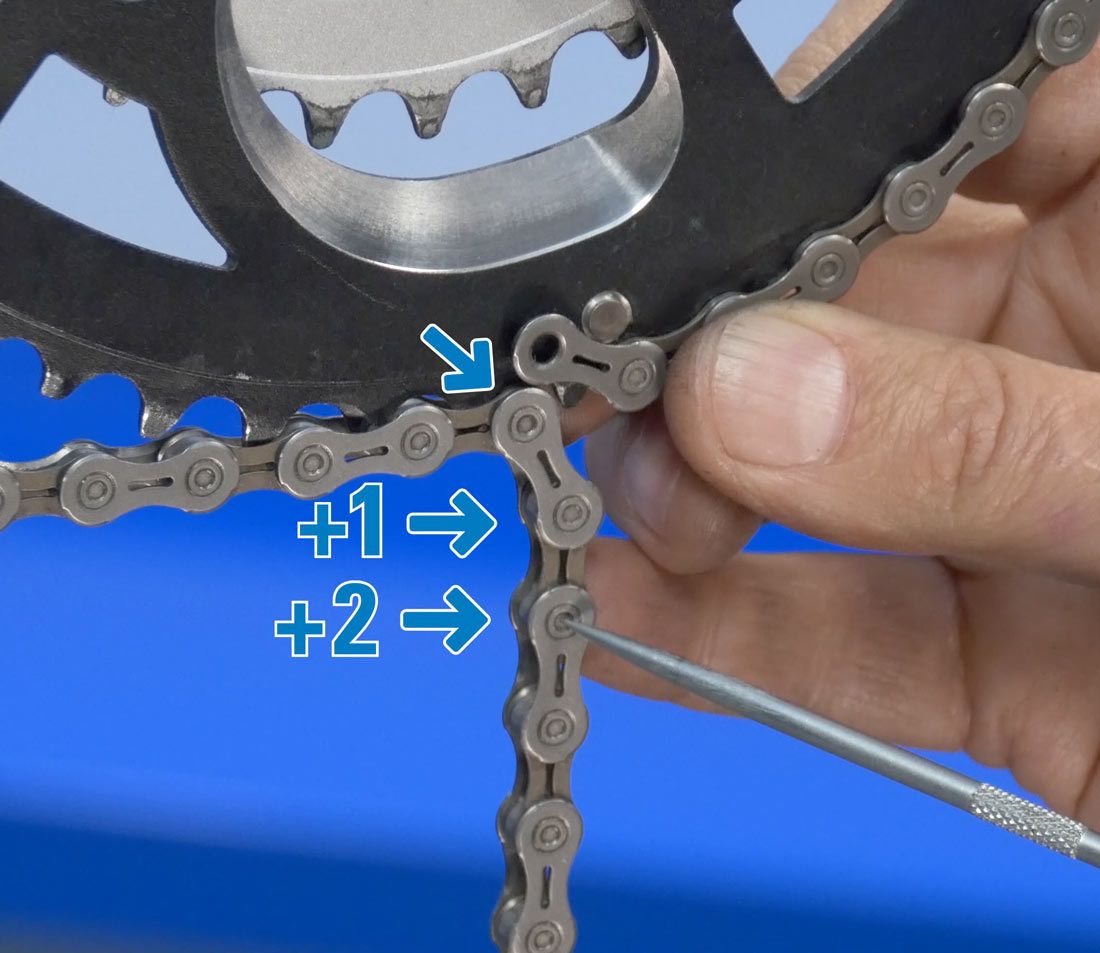

1. Mount the chain on to the largest sprocket and the largest chainring. Next, add 2 links to set the length of the chain.
Seems to be aligned with the calculators and with the internet wisdom.

Thanks
alexk_il is offline
Likes For alexk_il:
Old 07-15-22, 10:16 AM
  #11
smd4
Senior Member

Join Date: Dec 2020
Location: Wake Forest, NC
Posts: 1,752

Bikes: 1989 Cinelli Super Corsa

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 1028 Post(s)
Liked 760 Times in 496 Posts
Originally Posted by alexk_il View Post
From Shimano instructions for MTBs:
1. Mount the chain on to the largest sprocket and the largest chainring. Next, add 2 links to set the length of the chain.
Seems to be aligned with the calculators and with the internet wisdom.

Thanks
Happily, I donít own a mountain bike. The directions for sizing my chain are completely different.
smd4 is offline
Old 07-15-22, 02:25 PM
  #12
SoSmellyAir
Method to My Madness

Join Date: Nov 2020
Location: Orange County, California
Posts: 1,881

Bikes: Cannondale Synapse, Cannondale CAAD4, Trek FX 2

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 902 Post(s)
Liked 592 Times in 451 Posts
Since it does not seem to have been pointed out yet, the OP should recognize that, whichever proper method is used to size the chain, there is a narrow range of chain lengths -- rather than only a single chain length -- which works for a given drivetrain setup. So I would err on the side of slightly longer, and if there is enough slack in big/big and too much slack in small/small, remove a link.
SoSmellyAir is offline
Likes For SoSmellyAir:
Old 07-15-22, 02:41 PM
  #13
alexk_il
Junior Member
Thread Starter

Join Date: Jun 2022
Posts: 117
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 76 Post(s)
Liked 11 Times in 7 Posts
Originally Posted by SoSmellyAir View Post
Since it does not seem to have been pointed out yet, the OP should recognize that, whichever proper method is used to size the chain, there is a narrow range of chain lengths -- rather than only a single chain length -- which works for a given drivetrain setup. So I would err on the side of slightly longer, and if there is enough slack in big/big and too much slack in small/small, remove a link.

​​​​​​You mean, remove two links, right?
alexk_il is offline
Old 07-15-22, 02:44 PM
  #14
SoSmellyAir
Method to My Madness

Join Date: Nov 2020
Location: Orange County, California
Posts: 1,881

Bikes: Cannondale Synapse, Cannondale CAAD4, Trek FX 2

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 902 Post(s)
Liked 592 Times in 451 Posts
Originally Posted by alexk_il View Post
​​​​​​You mean, remove two links, right?
Yes, I meant a pair; otherwise you can no longer reconnect the chain.
SoSmellyAir is offline
Likes For SoSmellyAir:
Old 07-15-22, 02:44 PM
  #15
alexk_il
Junior Member
Thread Starter

Join Date: Jun 2022
Posts: 117
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 76 Post(s)
Liked 11 Times in 7 Posts
Originally Posted by smd4 View Post
Happily, I donít own a mountain bike. The directions for sizing my chain are completely different.
Me neither. Just planning to install mtb gears on my hybrid bike. 🤦🏻😁

But, Shimano instructions are the same for road bikes with more than 28t on the back. No difference with MTB. I think.
alexk_il is offline
Old 07-15-22, 05:45 PM
  #16
mitchmellow62
Full Member

Join Date: Aug 2014
Posts: 243
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 67 Post(s)
Liked 42 Times in 31 Posts
So many people mistakenly call a half link a "link" that to avoid any confusion Park Tool says to add 2 rivets (or 1 inch) to the length of the chain when using the big-big method. A small point but I think it adds some clarity.
mitchmellow62 is offline
Likes For mitchmellow62:
Old 07-15-22, 08:42 PM
  #17
DaveSSS
Senior Member

Join Date: Sep 2008
Location: Loveland, CO
Posts: 6,767

Bikes: Two Cinelli superstar disc with SRAM Force AXS

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 841 Post(s)
Liked 415 Times in 337 Posts
The terminology used by chain manufacturers lists 114 links for a 57 inch road bike chain, so a link is only 1/2 inch, but chain length can only be changed in 2-link or 1 inch increments. There is no half link. Chain length calculators work for road bikes, but suspended MTBs may require other procedures to account for suspension movement.

The calculation is not complicated. Add the total of the big/big chain ring and sprocket and divide by 4. Add twice the chain stay length. Add 1 inch extra to go through the RD. Round up unless the total is barely over an even inch value. That's the shortest possible chain. I can use that length, but I add another inch, as long as the chain doesn't hang loose or rub on itself in the little ring and smallest useable sprocket. With sram axs the RD won't shift into the little ring and 10T, only the 11T. I use a 55 inch chain for 415mm stays and 48/36 big/big.
DaveSSS is offline
Likes For DaveSSS:
Old 07-15-22, 10:01 PM
  #18
cxwrench
Senior Member

cxwrench's Avatar

Join Date: Jul 2013
Location: Nor-Cal
Posts: 3,519

Bikes: lots

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 1776 Post(s)
Liked 2,607 Times in 1,350 Posts
Originally Posted by DaveSSS View Post
The terminology used by chain manufacturers lists 114 links for a 57 inch road bike chain, so a link is only 1/2 inch, but chain length can only be changed in 2-link or 1 inch increments. There is no half link. Chain length calculators work for road bikes, but suspended MTBs may require other procedures to account for suspension movement.

The calculation is not complicated. Add the total of the big/big chain ring and sprocket and divide by 4. Add twice the chain stay length. Add 1 inch extra to go through the RD. Round up unless the total is barely over an even inch value. That's the shortest possible chain. I can use that length, but I add another inch, as long as the chain doesn't hang loose or rub on itself in the little ring and smallest useable sprocket. With sram axs the RD won't shift into the little ring and 10T, only the 11T. I use a 55 inch chain for 415mm stays and 48/36 big/big.
Putting the chain on the bike and sizing it less complicated. Every time. And you don't want the shortest possible chain, you want the longest/safest/most smooth running.
cxwrench is offline
Likes For cxwrench:
Old 07-17-22, 06:45 PM
  #19
mitchmellow62
Full Member

Join Date: Aug 2014
Posts: 243
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 67 Post(s)
Liked 42 Times in 31 Posts
I think we're demonstrating the confusion of terminology I was talking about. For some, such as https://www.supercrossbmx.com/blogs/...alf-link-chain and https://www.sheldonbrown.com/deraile...ent.html#chain a full link of a bicycle chain is 1 inch or 2 pins/rivets/rollers. I still like the way Park Tool counts pins/rivets/rollers when they describe sizing chain.
mitchmellow62 is offline
Old 07-21-22, 09:57 AM
  #20
metalheart44
Senior Member

metalheart44's Avatar

Join Date: Sep 2010
Location: The Northwoods, Wisconsin
Posts: 702

Bikes: Holland Exogrid & Holland HC

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 98 Post(s)
Likes: 0
Liked 8 Times in 6 Posts
Originally Posted by smd4 View Post
I just sized my chain using the Shimano instruction for my particular derailleur. Worked great!
I can't find these instruction on the Shimano website for an Ultegra 8050 rear derailleur .... where did you find them?
metalheart44 is offline
Old 07-21-22, 12:42 PM
  #21
smd4
Senior Member

Join Date: Dec 2020
Location: Wake Forest, NC
Posts: 1,752

Bikes: 1989 Cinelli Super Corsa

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 1028 Post(s)
Liked 760 Times in 496 Posts
Originally Posted by metalheart44 View Post
I can't find these instruction on the Shimano website for an Ultegra 8050 rear derailleur .... where did you find them?
Page 134. Out of a 169 page manual. That electronic crap is way too complicated for me...

Shimano Manual

Last edited by smd4; 07-21-22 at 12:46 PM.
smd4 is offline
Old 07-21-22, 02:10 PM
  #22
metalheart44
Senior Member

metalheart44's Avatar

Join Date: Sep 2010
Location: The Northwoods, Wisconsin
Posts: 702

Bikes: Holland Exogrid & Holland HC

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 98 Post(s)
Likes: 0
Liked 8 Times in 6 Posts
Originally Posted by smd4 View Post
Page 134. Out of a 169 page manual. That electronic crap is way too complicated for me...

Shimano Manual

Thanks, l
metalheart44 is offline
Old 07-21-22, 02:22 PM
  #23
squirtdad
Senior Member

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 8,641

Bikes: 85 team Miyata (modern 5800 105) , '84 Team Miyata,(dura ace old school) 80?? SR Semi-Pro 600 Arabesque

Mentioned: 91 Post(s)
Tagged: 0 Thread(s)
Quoted: 1779 Post(s)
Liked 1,470 Times in 893 Posts
I use and like the small small sizing

__________________
Life is too short not to ride the best bike you have, as much as you can
(looking for Torpado Super light 56,57 or so)

squirtdad is offline
Old 07-21-22, 02:35 PM
  #24
urbanknight
Over the hill

urbanknight's Avatar

Join Date: Mar 2006
Location: Los Angeles, CA
Posts: 23,439

Bikes: Giant Defy

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 509 Post(s)
Liked 544 Times in 335 Posts
Originally Posted by alexk_il View Post
​​​​​​You mean, remove two links, right?
Technically, one link is a set of inner AND outer plates. You're thinking of two "half links".

What matters most is that you all were talking about the same thing and understanding each other.
__________________
It's like riding a bicycle
urbanknight is online now
Likes For urbanknight:
Old 07-21-22, 08:49 PM
  #25
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 25,482

Bikes: Some silver ones, a red one, a black and orange one, and a few titanium ones

Mentioned: 138 Post(s)
Tagged: 1 Thread(s)
Quoted: 5001 Post(s)
Liked 2,582 Times in 1,524 Posts
Originally Posted by urbanknight View Post
Technically, one link is a set of inner AND outer plates. You're thinking of two "half links".

What matters most is that you all were talking about the same thing and understanding each other.
I prefer the Park Tool method which is to use 2 rivets. Itís less ambiguous. Picture stolen from that article


__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Likes For cyccommute:

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
