Trouble Lezyne floor pump.
05-17-25 | 03:37 AM
#1
Thread Starter
Junior Member
Joined: May 2020
Posts: 76
Likes: 4
Trouble Lezyne floor pump.

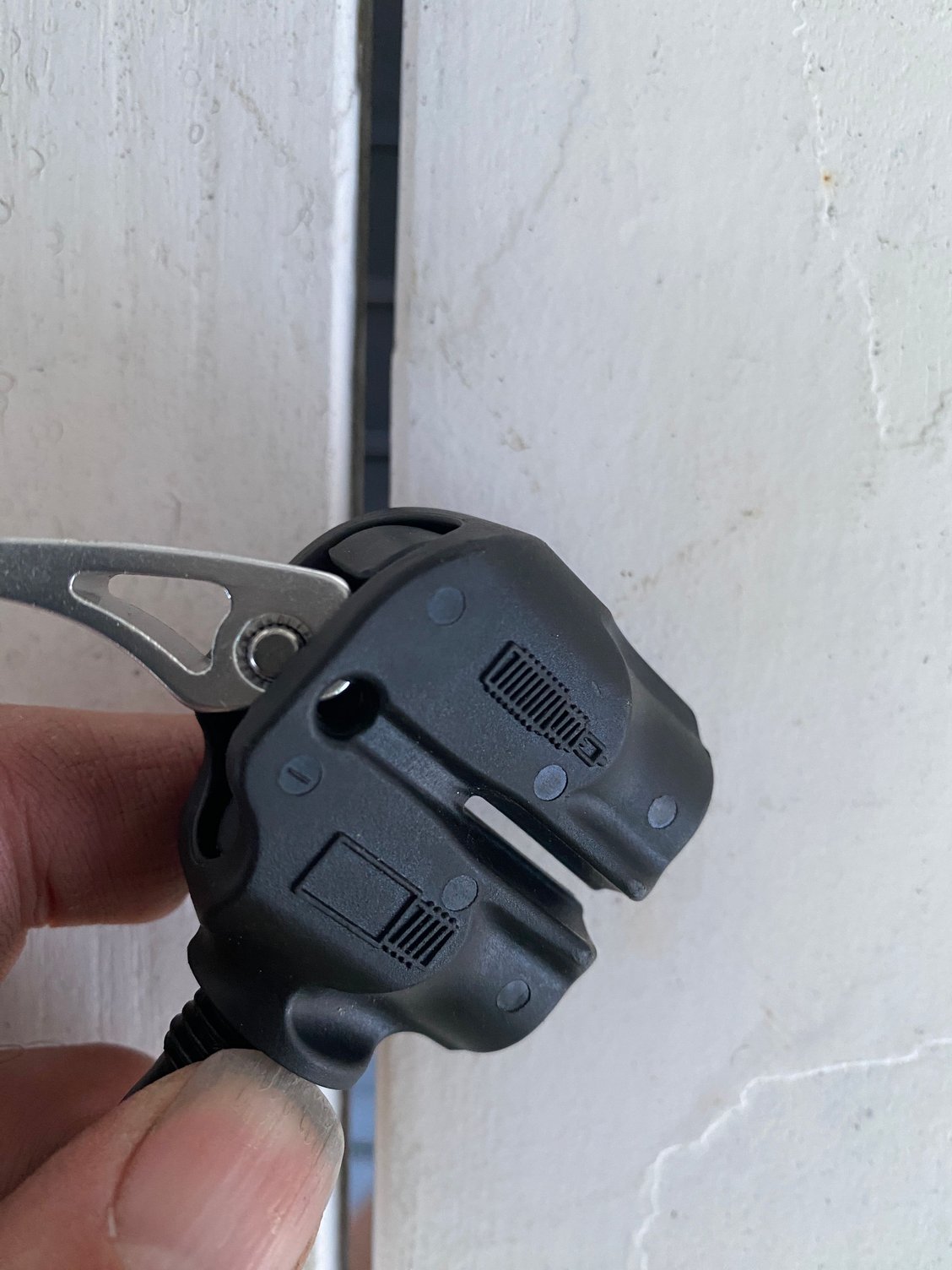

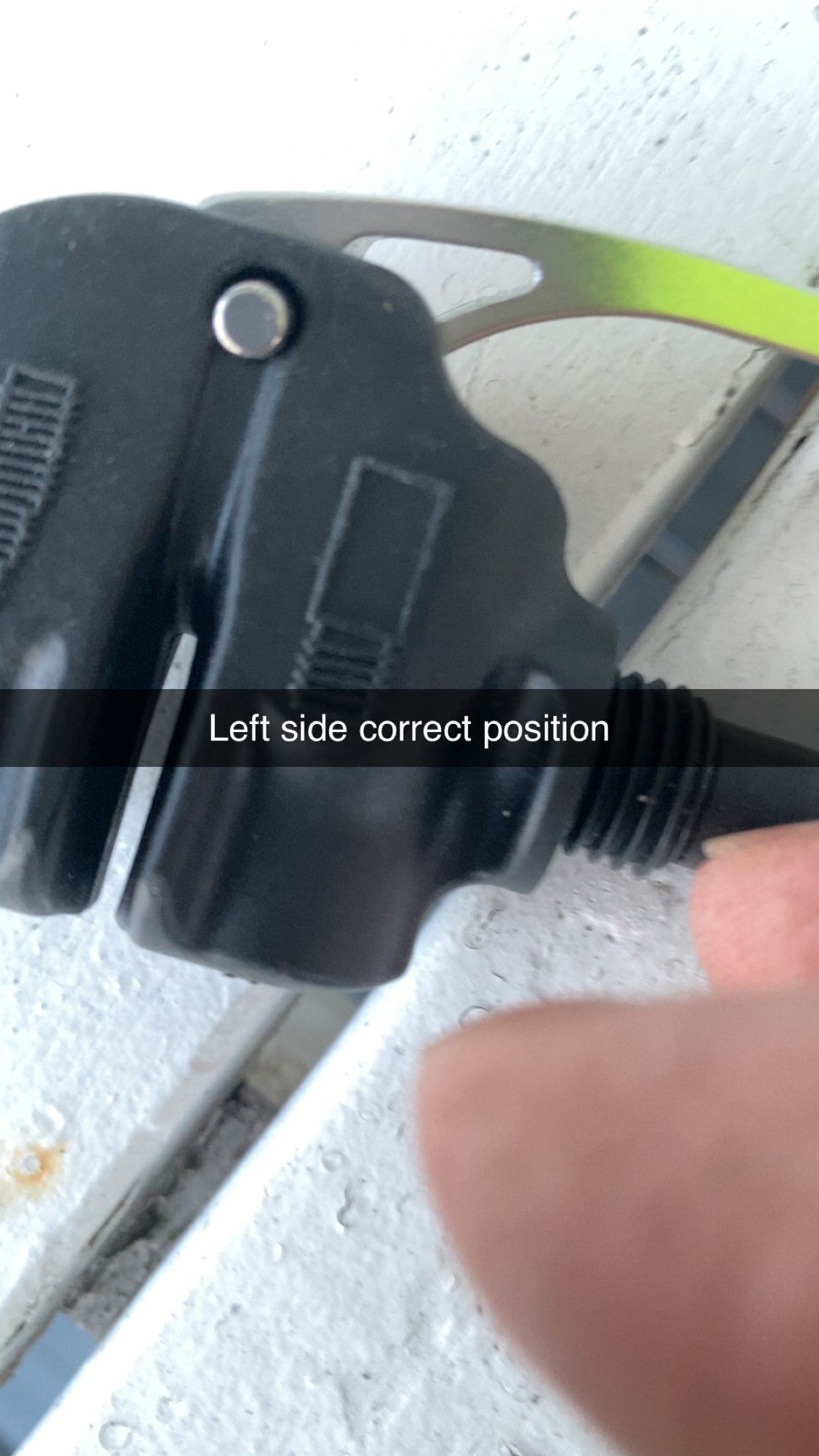

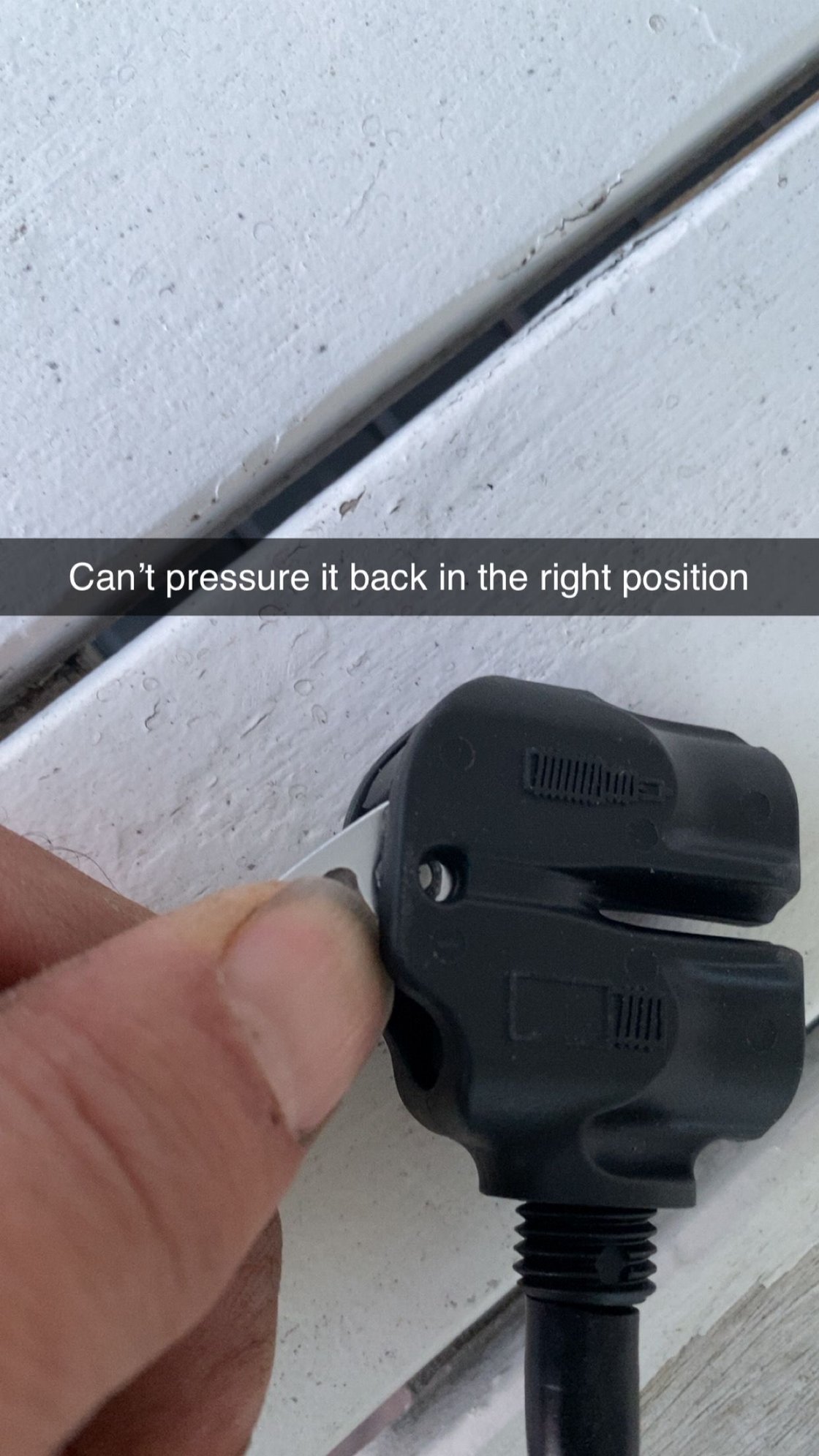

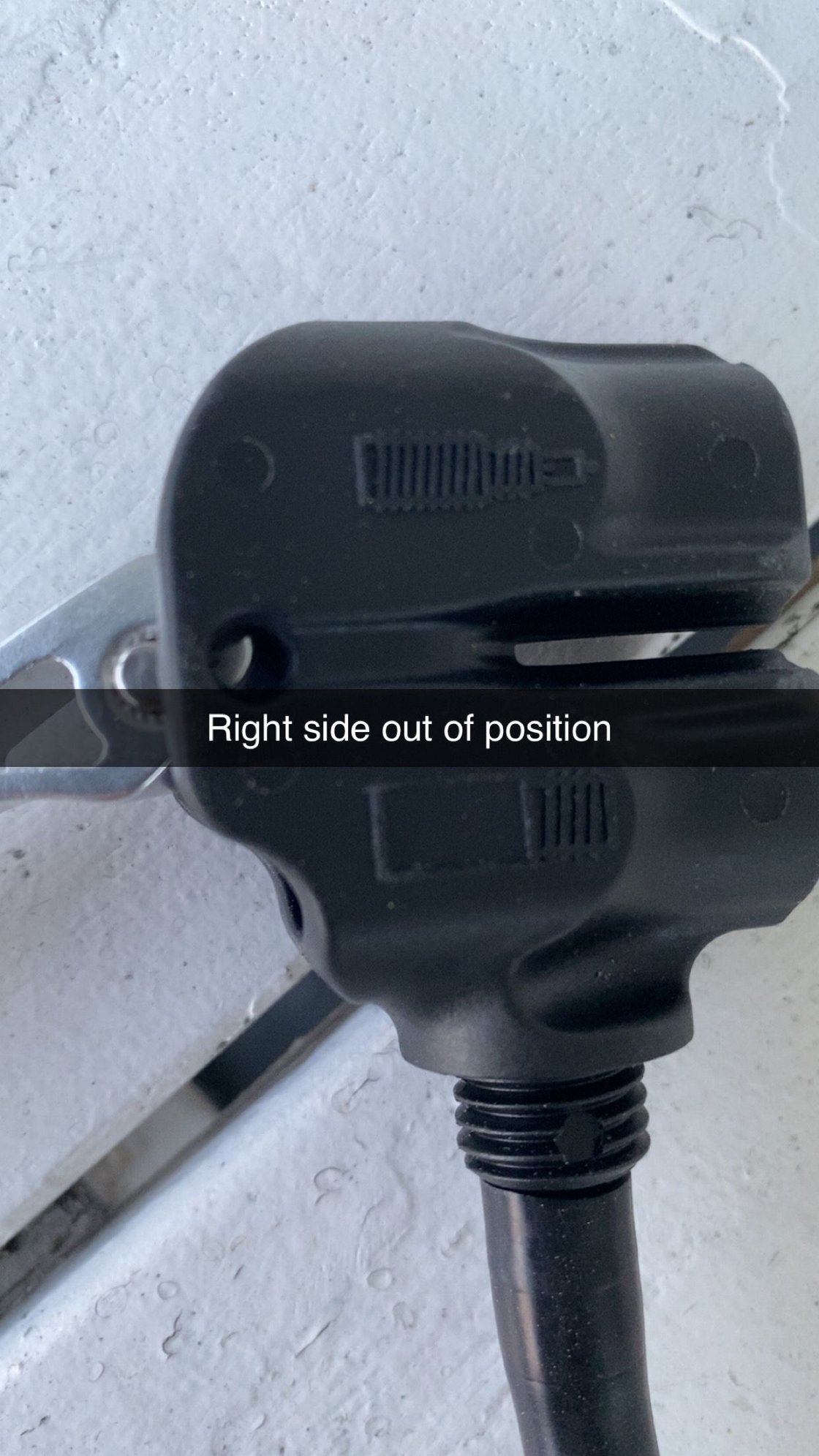

I have a floor pump from Lezyne. The lever is out of position. Trying to push it back but it pops out of position again. Anyone having a solution? Enclosing link to pump and photo of my issue

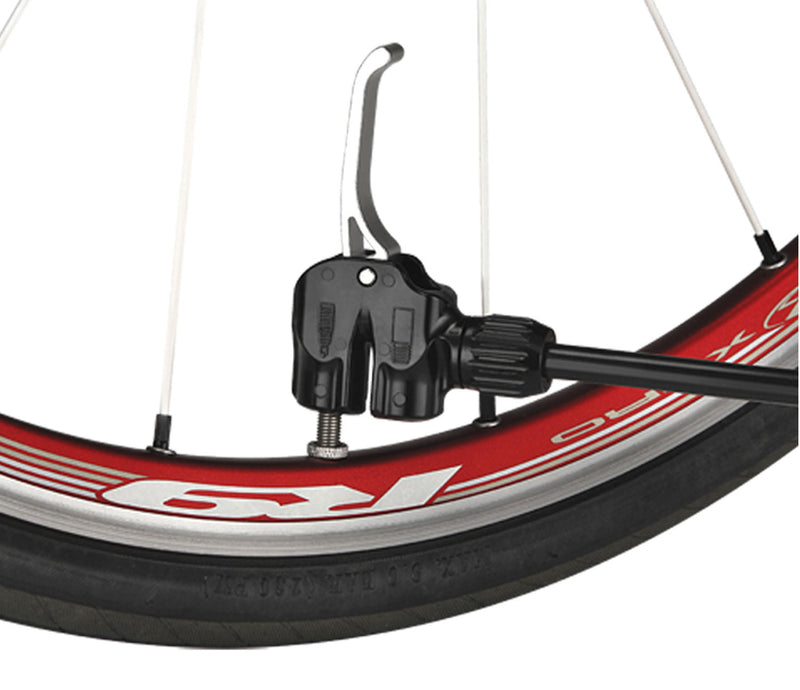

Link to Lezyne pump
Link to Lezyne pump
05-17-25 | 07:26 AM
#3
Senior Member
Joined: Jan 2009
Posts: 4,413
Likes: 1,678
From: San Diego, CA
As far as a fix I would try some JB Weld in the holes for the pin. Having done repairs this way in the past it sometimes works, sometimes not but worth a try. You probably need to have the lever in the unlocked/down position to move the pin into the holes as well, BUT, I would first contact Lezyne for a free replacement. They are usually pretty good with customer service.
05-17-25 | 07:36 AM
#4
Senior Member
Joined: Feb 2012
Posts: 19,373
Likes: 5,515
From: Rochester, NY
Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Mongoose Tomac ATB, GT Bravado ATB, JCP Folder, Stewart 650B ATB
I would think a replacement hose/chuck set would be the usual fix for a broken chuck. It sort of looks like the lever's pivot pin has either broken off at one end or the pin has shifted over so one end is no longer engaged with the chuck body. If the pin isn't broken can it be pushed back in place? Have you contacted Lezyne yet? If they are of no help and if you can't find parts otherwise available look into the Topeak hose kit. I've sold quite a few as a near universal hose/chuck replacements with very good results. The kit has included a variety of optional fittings for different pump/hose connections. Andy
__________________
AndrewRStewart
AndrewRStewart
05-17-25 | 07:42 AM
#5
Old fart
Joined: Nov 2004
Posts: 26,401
Likes: 5,333
From: Appleton WI
Bikes: Several, mostly not name brands.
It looks to me like the pin has shifted in the hole, such that there is insufficient pin projection on the right side to securely engage the hole. Can you push the pin further to the left, to make it easier to align the pin with the hole, then shift it far enough back to the right to engage the hole?
