SRAM Grip Shift Help

Search
Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

SRAM Grip Shift Help

Thread Tools

Search this Thread

Old 05-27-11 | 01:12 AM
  #1
cs1's Avatar
cs1
Thread Starter
Senior Member
20 Anniversary

Joined: Feb 2004
Posts: 7,176
Likes: 56
From: Clev Oh

Bikes: Specialized, Schwinn

SRAM Grip Shift Help

For those of you who are grip shift experts, what does the SRAM alphabet names mean on SRAM grip shifters? I know Shimano use names and SRAM use numbers. I'm a little confused by the designations ie: MRX, SRT and ESP. Is one a better level or just marketing.
cs1 is offline
Reply
Old 05-27-11 | 09:16 AM
  #2
Charles Ramsey
Guest

Posts: n/a
The MRX is worthless the plastic breaks I fish these out of bicycle shops trash and use the rubber grips. The older models ESP are indestructible I put 60000 miles on 2 sets and only changed when I went from a 7 cog to an 8 cog rear setup. Try to find a front shifter with 7 or 8 clicks some times they are called friction they are less finicky that the ones with 3 clicks. I have never used the newer ones for 9 rear cogs I do know they use different rubber grips than the MRX these grips last one year and cost $10 to replace. If you do buy these remove the handlebar fixing bolt and put antiseize on them they are prone to corrosion. If you have problems removing these bolts from older frozen ones it is possible to use the slightly larger english size hex wrench in stripped bolts.

Reply
Old 05-27-11 | 09:29 AM
  #3
Shimagnolo's Avatar
Senior Member

Joined: May 2008
Posts: 9,102
Likes: 6,009
From: Zang's Spur, CO
Originally Posted by cs1
For those of you who are grip shift experts, what does the SRAM alphabet names mean on SRAM grip shifters? I know Shimano use names and SRAM use numbers. I'm a little confused by the designations ie: MRX, SRT and ESP. Is one a better level or just marketing.
Beware there are two different lines of SRAM grip shifters:

2:1 ratio which is Shimano compatible: MRX, Attack, Centera.

1:1 ratio only for SRAM: All other models.
Shimagnolo is offline
Reply
Old 05-31-11 | 02:40 AM
  #4
cs1's Avatar
cs1
Thread Starter
Senior Member
20 Anniversary

Joined: Feb 2004
Posts: 7,176
Likes: 56
From: Clev Oh

Bikes: Specialized, Schwinn

Originally Posted by Shimagnolo
Beware there are two different lines of SRAM grip shifters:

2:1 ratio which is Shimano compatible: MRX, Attack, Centera.

1:1 ratio only for SRAM: All other models.
I know there's a Shimano and SRAM version. What I don't know is what's the difference between the Shimano versions?
cs1 is offline
Reply
Old 05-31-11 | 03:29 AM
  #5
commo_soulja's Avatar
Senior Member

Joined: Aug 2008
Posts: 1,251
Likes: 42
From: C-Ville

Bikes: are fun to ride

Poached from another forum:
Yep.. ESP means 1:1 ratio. For sram, anything that has a number (X.0, X.9, X.7) is 1:1. Anything with a name (Rocket, Attack) is Shimano compatible.
commo_soulja is offline
Reply
Old 04-25-12 | 02:35 PM
  #6
Otter 718's Avatar
Senior Member

Joined: Jun 2007
Posts: 153
Likes: 1
From: Liverpool, NY

Bikes: 2012 Trek 7.2 FX, 2005 Schwinn Mesa, 1978 Raleigh Super Course

Originally Posted by cs1
I know there's a Shimano and SRAM version. What I don't know is what's the difference between the Shimano versions?
I am resurrecting this old thread to give what I think is a solid answer. If I understand the question, it's about the product hierarchy of SRAM's Shimano-compatible 2:1 grip shifters.

From the SRAM spare parts catalog: https://cdn.sram.com/cdn/farfuture/x2...pc_rev_c_0.pdf

pg. 44: SRAM X.0 / SRAM X.9 / SRAM X.7 / ROCKET / ATTACK - TWIST SHIFTER (2005-2011) 3x9
pg. 45: 5.0 / CENTERA - TWIST SHIFTER 3x9
pg. 46: 3.0 COMP / 3.0 / MRX COMP / MRX - TWIST SHIFTER 3x9

So, Attack is somewhere near the upper-end products, Centera is similar to 5.0, and MRX Comp is similar to 3.0
Otter 718 is offline
Reply
Old 09-26-14 | 10:20 AM
  #7
emobo's Avatar
Junior Member

Joined: Jul 2011
Posts: 7
Likes: 0
Thanks 2014 and this thread is useful to me. Looks like SRAM is still keeping the same product line
emobo is offline
Reply
Old 10-11-24 | 01:26 PM
  #8
Newbie

Joined: Oct 2006
Posts: 16
Likes: 2
Originally Posted by Otter 718
I am resurrecting this old thread to give what I think is a solid answer. If I understand the question, it's about the product hierarchy of SRAM's Shimano-compatible 2:1 grip shifters.
....
pg. 44: SRAM X.0 / SRAM X.9 / SRAM X.7 / ROCKET / ATTACK - TWIST SHIFTER (2005-2011) 3x9
pg. 45: 5.0 / CENTERA - TWIST SHIFTER 3x9
pg. 46: 3.0 COMP / 3.0 / MRX COMP / MRX - TWIST SHIFTER 3x9

So, Attack is somewhere near the upper-end products, Centera is similar to 5.0, and MRX Comp is similar to 3.0
the link to SRAM spare parts catalog is LONG dead, but I'm restoring a '95 Stumpjumper Cmp, and the above hierachy STILL aplies. Still seeing X.O, some Centera (actually got a NEW Centera 9spd just last year for the kid's build!) and obvs the MRX Comp and 3.0 Comps are everywhere...

Wonder on what level the "XRAY" 8 speed series falls? The centera grade was barely useable, never touched a SRAM x.0 / Attack series before.
​​​​​​
thchen is offline
Reply
Old 10-11-24 | 04:56 PM
  #9
maddog34's Avatar
Senior Member
10 Anniversary
Community Builder
Community Influencer
Active Streak: 30 Days

Joined: Jul 2015
Posts: 7,370
Likes: 3,218
From: NW Oregon

Bikes: 1982 Trek 930R Custom, '91 Diamondback Ascent w/ XT, XTR updates, Fuji Team Pro CF road flyer, Specialized Sirrus Gravel Convert, '09 Comencal Meta 5.5 XC, '02 Marin MBX500, '84 Gitane Criterium bike

Originally Posted by thchen
the link to SRAM spare parts catalog is LONG dead, but I'm restoring a '95 Stumpjumper Cmp, and the above hierachy STILL aplies. Still seeing X.O, some Centera (actually got a NEW Centera 9spd just last year for the kid's build!) and obvs the MRX Comp and 3.0 Comps are everywhere...

Wonder on what level the "XRAY" 8 speed series falls? The centera grade was barely useable, never touched a SRAM x.0 / Attack series before.
​​​​​​
i've replaced the twist grips on the X0 twist shifters a couple times, since they get gummy and turn to Goopy messes... replacement twist grips are $20 Each.... other than that, they work great, for twisties... basic old "Grip Shift" twisties do the same thing, and the grips don't turn to goop....
X0 trigger shifts/derailleurs work well, but are "Clunky" when you shift to smaller gears... Clah.. CLUNK!
maddog34 is offline
Reply
Old 10-11-24 | 07:25 PM
  #10
Kontact's Avatar
Senior Member
15 Anniversary
Community Builder
Community Influencer
Active Streak: 30 Days

Joined: Apr 2011
Posts: 12,648
Likes: 4,791
Originally Posted by thchen
the link to SRAM spare parts catalog is LONG dead, but I'm restoring a '95 Stumpjumper Cmp, and the above hierachy STILL aplies. Still seeing X.O, some Centera (actually got a NEW Centera 9spd just last year for the kid's build!) and obvs the MRX Comp and 3.0 Comps are everywhere...

Wonder on what level the "XRAY" 8 speed series falls? The centera grade was barely useable, never touched a SRAM x.0 / Attack series before.
​​​​​​
I had X-rays - they were top of the line in the mid-90s, and worked well. But old clear plastic gets brittle.
Kontact is offline
Reply
Old 10-15-24 | 12:25 AM
  #11
Senior Member
20 Anniversary

Joined: Jun 2002
Posts: 3,924
Likes: 589
From: San Jose, CA

Bikes: Too many bikes, too little time to ride

Yup top of the line before the 9 speed came out. So crisp and instant.
tFUnK is offline
Reply
Old 10-15-24 | 09:48 AM
  #12
t2p's Avatar
t2p
Senior Member

Joined: May 2022
Posts: 5,093
Likes: 4,589
From: USA - Pittsburgh / Southwest PA

Bikes: Cannondale - Gary Fisher - Giant - Litespeed - Schwinn Paramount - Schwinn (lugged steel) - Trek OCLV

not exactly a grip shift fan - but have a few bikes with grip shift shifters and they shift well …

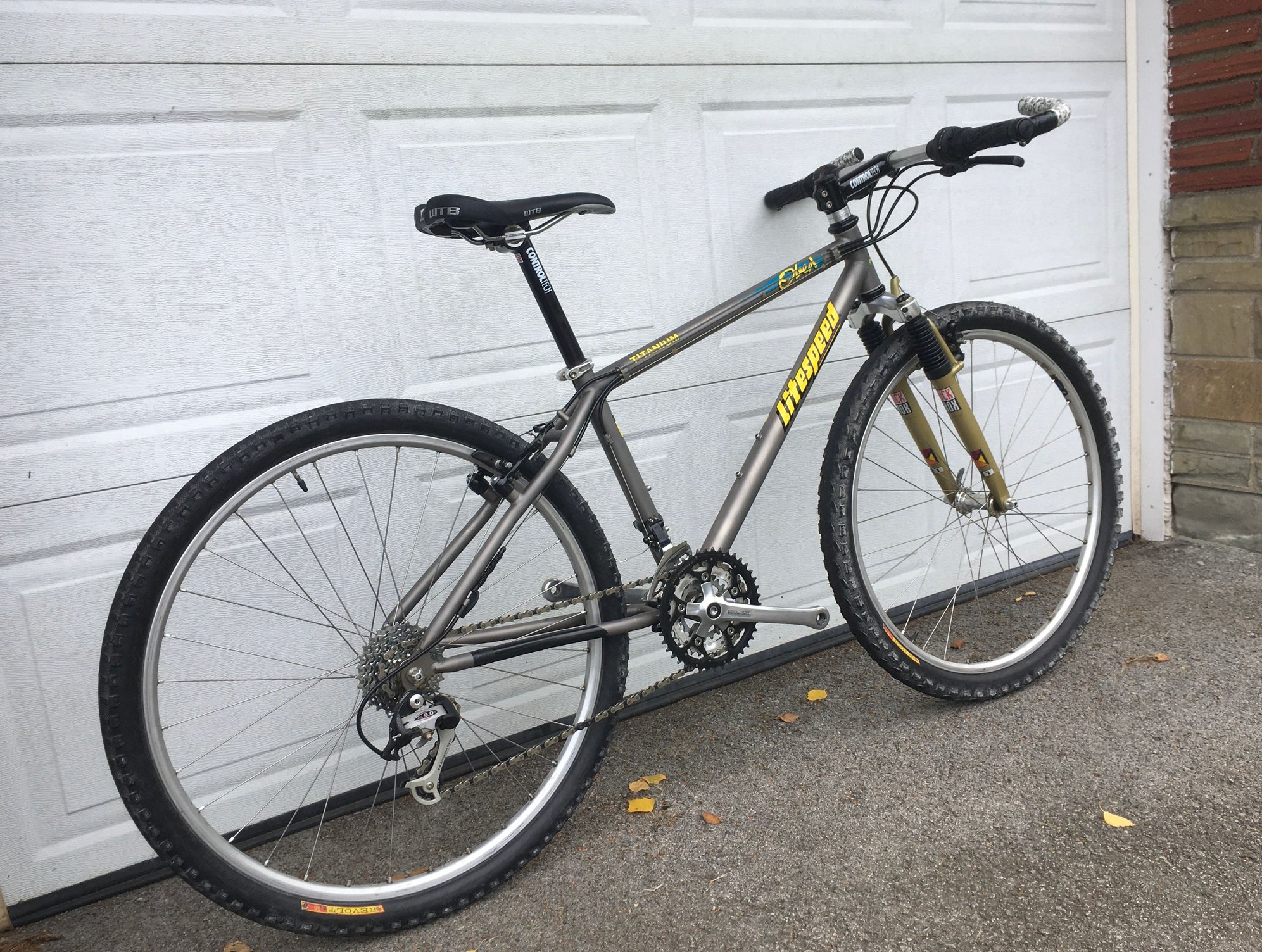

SRT 400, 500, 600 7 speed with Shimano rear derailleurs on a few bikes (including two in background of bottom pic) and the 8 speed bike (Litespeed) below with SRAM shifters and rear derailleur (ESP 9.0 SL rear derailleur ?) …




t2p is offline
