Self Fusing Tape for bar wrap

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Self Fusing Tape for bar wrap

Old 12-22-11, 07:14 AM
  #1
Myosmith
Lover of Old Chrome Moly
Thread Starter

Myosmith's Avatar

Join Date: May 2011
Location: NW Minnesota
Posts: 2,949
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 142 Post(s)
Likes: 0
Liked 20 Times in 15 Posts
Self Fusing Tape for bar wrap

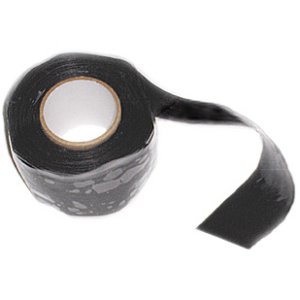

What do you think of this product as a finishing tape for bar wraps in place of vinyl electrical tape? No residue and fuses to itself. I can think of lots of other uses as well, like taping down wires for wired computers, protecting rub prone areas like the drive side chain stay, shimming under loose light or other accessory mounts, underwrap for handlebar tape esp around brake/brifter mounts, etc.



https://www.ecrater.com/p/454202/self...-silicone-tape
Myosmith is offline
Old 12-22-11, 07:39 AM
  #2
Matt Gaunt
Senior Member

Matt Gaunt's Avatar

Join Date: Oct 2004
Location: London, UK
Posts: 2,304
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 18 Post(s)
Liked 1 Time in 1 Post
Originally Posted by Myosmith View Post
What do you think of this product as a finishing tape for bar wraps in place of vinyl electrical tape? No residue and fuses to itself. I can think of lots of other uses as well, like taping down wires for wired computers, protecting rub prone areas like the drive side chain stay, shimming under loose light or other accessory mounts, underwrap for handlebar tape esp around brake/brifter mounts, etc.



https://www.ecrater.com/p/454202/self...-silicone-tape
It could be a royal PITA to remove from your chainstays, despite the website blurb, but I agree it is probably better than insulation tape for bar tape finishing. Where did you see it?
__________________
Matt
2018 Enigma Excel Pic|| 2010 Kinesis Decade Convert2 Pic || 2008 Kinesis RC2 Pics || 2007 Kinesis Pha5e Pics || 2005 Kinesis RC Pics || 1996 Raleigh Max Pics
Matt Gaunt is offline
Old 12-22-11, 07:44 AM
  #3
xenologer
Senior Member

Join Date: Aug 2008
Posts: 2,589
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 239 Post(s)
Likes: 0
Liked 6 Times in 6 Posts
i've finished bar tape with electrical tape, then wrapped a second layer of the self fusing stuff on top as a prevention from when the electrical tape gets old and 'unravels' from the end. dunno if it would hold the bar tape by itself tho considering its so stretchy and gell-like.

have wrapped it around cable houseings where frame gets rubbed, a convenient substitute for the rubber boots you have to slide on.

for everyplace else, you cant beat zip ties and old inner tubes
xenologer is offline
Old 12-22-11, 07:49 AM
  #4
tj90
Senior Member

tj90's Avatar

Join Date: Jan 2008
Posts: 240
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Nice description of the tape except for one detail - How long is it? Id like to see it in action, sounds interesting....
tj90 is offline
Old 12-22-11, 07:50 AM
  #5
RB1-luvr
I don't know.

RB1-luvr's Avatar

Join Date: May 2003
Location: Meriden, CT
Posts: 1,034

Bikes: '90 Bridgestone RB-1 , '89 SuperGo Access Comp, 2009 Access, 2010 Windsor Touring, 2014 Ritchey Road Logic, 2009 Kestrel Evoke SRAM Rival, 2003 Trek OCLV USPS livery, 1936 Westfield Seminole, 1946 Monark, '47 Western Flyer

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 1 Time in 1 Post
I'm not sure if that's the same stuff I use... I think it may be similar. I use what's marketed as a "liner-less electrical splicing tape". I use it for two of the uses you mentioned, an underwrap for bar tape, and I wrap the chain stay on my mtb.

great stuff.
RB1-luvr is offline
Old 12-22-11, 08:07 AM
  #6
cmolway
on a road near you...

cmolway's Avatar

Join Date: Jan 2010
Location: Metro Boston, MA
Posts: 460
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I use it all the time at work. It works great except it can become dry and brittle in the sun. For that very reason, I end up wrapping electrical tape over it when waterproofing electrical connections that are exposed to the elements. That being said it is cheap, readily available at your local Home Depot, and leaves no residue when removed. Won't hurt to try it.

Personally I've always wrapped my bars starting at the stem. That way I don't need finishing tape.
cmolway is offline
Old 12-22-11, 08:48 AM
  #7
Yo Spiff
Carpe Velo

Yo Spiff's Avatar

Join Date: Dec 2011
Location: Fort Worth, Texas
Posts: 2,520

Bikes: 2000 Bianchi Veloce, '88 Schwinn Prologue, '90 Bianchi Volpe,'94 Yokota Grizzly Peak, Yokota Enterprise, '16 Diamondback Haanjo, '91 Bianchi Boardwalk, Ellsworth cruiser

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 11 Times in 10 Posts
Looks like what was called "F-4 tape" when I was in the Air Force. We were not allowed to use regular electrical tape on aircraft, so they issued this stuff in a kind of reddish brown color. Good stuff. I like the idea of using it as a cushioning base under some more attractive bar tape. I wouldn't use it as an outer wrap however. Dust and dirt tend to cling to it and not come off. Thanks for the idea.
Yo Spiff is offline
Old 12-22-11, 08:50 AM
  #8
Myosmith
Lover of Old Chrome Moly
Thread Starter

Myosmith's Avatar

Join Date: May 2011
Location: NW Minnesota
Posts: 2,949
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 142 Post(s)
Likes: 0
Liked 20 Times in 15 Posts
Personally I've always wrapped my bars starting at the stem. That way I don't need finishing tape.
Dang, that seems to make a lot of sense but I've never seen it done that way. Any pictures? I'm fairly new to road biking and have only wrapped a couple of bars so I'm no expert.
Myosmith is offline
Old 12-22-11, 08:52 AM
  #9
RB1-luvr
I don't know.

RB1-luvr's Avatar

Join Date: May 2003
Location: Meriden, CT
Posts: 1,034

Bikes: '90 Bridgestone RB-1 , '89 SuperGo Access Comp, 2009 Access, 2010 Windsor Touring, 2014 Ritchey Road Logic, 2009 Kestrel Evoke SRAM Rival, 2003 Trek OCLV USPS livery, 1936 Westfield Seminole, 1946 Monark, '47 Western Flyer

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by Yo Spiff View Post
Looks like what was called "F-4 tape" when I was in the Air Force. We were not allowed to use regular electrical tape on aircraft, so they issued this stuff in a kind of reddish brown color. Good stuff. I like the idea of using it as a cushioning base under some more attractive bar tape. I wouldn't use it as an outer wrap however. Dust and dirt tend to cling to it and not come off. Thanks for the idea.
It gives a nice cushioned fat feeling to the bars. You'll probably like it. It also keeps the outer wrap from moving.
RB1-luvr is offline
Old 12-22-11, 10:25 AM
  #10
CACycling
Senior Member

CACycling's Avatar

Join Date: Feb 2008
Location: Oxnard, CA
Posts: 4,567

Bikes: 2009 Fuji Roubaix RC; 2011 Fuji Cross 2.0; '92 Diamond Back Ascent EX

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 9 Times in 7 Posts
Originally Posted by Myosmith View Post
Dang, that seems to make a lot of sense but I've never seen it done that way. Any pictures? I'm fairly new to road biking and have only wrapped a couple of bars so I'm no expert.
That is the way it was always done "back in the day". When it was time to replace the tape on my commuter (which came wrapped end to center) I went old school and avoided tape. Just start at the end nearest the stem with the end of the tape at the bottom of the bar with the end facing the front of the bike. Wrap back, up and over the bar till you've trapped the end (if you are not using tape with adhesive, a small piece of tape to hold the end in place helps). Then just spiral your way out. When you hit the end of the bar, just cut, tuck and install the cap.
CACycling is offline
Old 12-22-11, 10:26 AM
  #11
cmolway
on a road near you...

cmolway's Avatar

Join Date: Jan 2010
Location: Metro Boston, MA
Posts: 460
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Myosmith View Post
Dang, that seems to make a lot of sense but I've never seen it done that way. Any pictures? I'm fairly new to road biking and have only wrapped a couple of bars so I'm no expert.


Please forgive the crappy photo (used my laptop at work) and the dirty bar tape.
cmolway is offline
Old 12-22-11, 11:02 AM
  #12
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,599

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,322 Times in 832 Posts
.ending top center, the tape shingles, overlaps so shifting your hands from the tops
around the curved portion, to the hoods wont peel up the edges of the tape.
fietsbob is offline
Old 12-22-11, 11:19 AM
  #13
cmolway
on a road near you...

cmolway's Avatar

Join Date: Jan 2010
Location: Metro Boston, MA
Posts: 460
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by fietsbob View Post
.ending top center, the tape shingles, overlaps so shifting your hands from the tops
around the curved portion, to the hoods wont peel up the edges of the tape.
I don't understand a thing you just typed.

not. a. thing.

These bars have been wrapped since spring (5000+ miles) and they have not slipped, shifted or peeled. They are wrapped with the same orientation that one would use when wrapping from the end of the drops. I was skeptical at first, when someone mentioned to me about wrapping them this way. I see no disadvantage.
cmolway is offline
Old 12-22-11, 12:02 PM
  #14
wrk101
Thrifty Bill

wrk101's Avatar

Join Date: Jan 2008
Location: Mountains of Western NC
Posts: 22,631

Bikes: 86 Katakura Silk, 87 Prologue X2, 88 Cimarron LE, 1975 Sekai 4000 Professional, 73 Paramount, plus more

Mentioned: 79 Post(s)
Tagged: 0 Thread(s)
Quoted: 912 Post(s)
Liked 330 Times in 247 Posts
Its all I use. I have used it for several years now. Here in the south, electrical tape tends to turn into a gooey mess in the heat. I have it in several colors: clear (its more like a cloudy opaque), green and red. I use the clear on most bikes (I am a flipper, so I use this stuff a lot). I tend to buy several of rolls at once, on fleece-bay.

The stuff is super easy to remove. Just cut a slit in it on one edge, and pull it off. The great thing about this stuff is that it ONLY sticks to itself, nothing else.


Here's clear on a 1983 Specialized Sequoia.







And here it is in red (1991 Schwinn Paramount Series 3):



And red again on this 1989 Gazelle:






bill

Last edited by wrk101; 12-22-11 at 12:06 PM.
wrk101 is offline
Old 12-22-11, 01:38 PM
  #15
cycle_maven
Collector of Useless Info

Join Date: Aug 2009
Posts: 1,407
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 1 Time in 1 Post
It's the only stuff I use , too. I get it from Lowes near the electrical tape. https://www.lowes.com/pd_78453-98-2155_4294753694_4294937087_?productId=3129711&Ns=p_product_prd_lis_ord_nbr|0||p_product_qty_sales_do llar|1&pl=1&currentURL=%2Fpl_Electrical%2BTape_4294753694_4294937087_%3FNs%3Dp_product_prd_lis_ord_n br|0||p_product_qty_sales_dollar|1&facetInfo= Few bucks a roll, and a roll will finish 40 bikes' handlebar tape. Sticks only to itself, doesn't get gooey like electrical tape. Seems to be made of some kind of latex rubber rather than silicone.

Last edited by cycle_maven; 12-22-11 at 01:51 PM.
cycle_maven is offline
Old 12-22-11, 05:48 PM
  #16
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 32,910

Bikes: '96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '20 Surly Midnight Special, All are 3x10. It is hilly around here!

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 1690 Post(s)
Likes: 0
Liked 570 Times in 421 Posts
Originally Posted by cmolway View Post
I don't understand a thing you just typed.

not. a. thing.

These bars have been wrapped since spring (5000+ miles) and they have not slipped, shifted or peeled. They are wrapped with the same orientation that one would use when wrapping from the end of the drops. I was skeptical at first, when someone mentioned to me about wrapping them this way. I see no disadvantage.
Fietsbob does tend to be rather cryptic in his phrasing.

Anyway, what he was saying (or trying to) is that wraping from the drops toward the stem overlaps the turns so that the exposed edges are away from your hands and normal hand pressure doesn't tend to pick up the exposed edges. I've done it both ways and find starting at the bar ends does give a more durable wrap. YWMV
HillRider is offline
