Huret Jubilee part needed

Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Huret Jubilee part needed

Old 04-29-12, 11:38 PM
  #1
Lightfoot21
Senior Member
Thread Starter

Lightfoot21's Avatar

Join Date: Dec 2010
Posts: 115
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Huret Jubilee part needed

Nostalgia got the best of me recently and I bought a used huret jubilee rear derailleur without the mounting bolt. I searched the used bins for a mounting bolt to no avail. Does anyone know where I can buy one? Thanks for any insight you might share. It is a beautiful deraillier that may still be the lightest ever produced, it works well on vintage short range clusters (11-23 or so) and I would really like to use it on one of my rebuilds.
Lightfoot21 is offline
Old 04-30-12, 02:56 AM
  #2
Kimmo
bike whisperer

Kimmo's Avatar

Join Date: Dec 2009
Location: Melbourne, Oz
Posts: 7,945

Bikes: https://weightweenies.starbike.com/forum/viewtopic.php?f=10&t=152015&p=1404231

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 383 Post(s)
Liked 16 Times in 13 Posts
http://www.bikeforums.net/forumdispl...ic-amp-Vintage
Kimmo is offline
Old 04-30-12, 10:11 AM
  #3
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 20,419

Bikes: Several, mostly not name brands.

Mentioned: 109 Post(s)
Tagged: 0 Thread(s)
Quoted: 1689 Post(s)
Liked 61 Times in 41 Posts
Alas, AFIAK the Jubilee mounting bolt is unique to that model and has been out of production for several decades now. The bolt is longer than the DuoPar/Success/Challenger bolt but much shorter than the mounting bolts on most other derailleurs of that era. You may have to source another Jubilee to get that part, or have a machine shop fabricate a replacement. Be aware that you will also likely need the specific tabbed washer for your dropout style -- Campy or Huret type.
JohnDThompson is offline
Old 04-30-12, 10:15 AM
  #4
gmt13
Half way there

gmt13's Avatar

Join Date: May 2011
Location: Durham, NC
Posts: 1,110

Bikes: 69 Hercules, 73 Raleigh Sports, 74 Raliegh Competition, 78 Nishiki Professional, 79 Nishiki International, 83 Colnago Super, 83 Viner Junior

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
If you go the machine shop fabrication route, let me know. I would be glad to send you measurement details and pics.

-G
gmt13 is offline
Old 04-30-12, 08:37 PM
  #5
Lightfoot21
Senior Member
Thread Starter

Lightfoot21's Avatar

Join Date: Dec 2010
Posts: 115
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
G, I would much appreciate measurements, details and pictures. It seems I might have to go to a machinist, though I will keep hoping I run into a trashed derailleur with the mounting bolt still attached. No hurry, I can not get to town for another week or so.
Lightfoot21 is offline
Old 05-01-12, 10:22 AM
  #6
gmt13
Half way there

gmt13's Avatar

Join Date: May 2011
Location: Durham, NC
Posts: 1,110

Bikes: 69 Hercules, 73 Raleigh Sports, 74 Raliegh Competition, 78 Nishiki Professional, 79 Nishiki International, 83 Colnago Super, 83 Viner Junior

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I dug it out of the storage bin last night to take a look. It's actually simpler than I thought. I think that if you could find a hex head bolt with the right thread diameter and pitch you may be able to modify it to work. Anyways, I will take some pics and some measurements and post them.

-G
gmt13 is offline
Old 05-01-12, 07:04 PM
  #7
gmt13
Half way there

gmt13's Avatar

Join Date: May 2011
Location: Durham, NC
Posts: 1,110

Bikes: 69 Hercules, 73 Raleigh Sports, 74 Raliegh Competition, 78 Nishiki Professional, 79 Nishiki International, 83 Colnago Super, 83 Viner Junior

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Lightfoot21 View Post
G, I would much appreciate measurements, details and pictures. It seems I might have to go to a machinist, though I will keep hoping I run into a trashed derailleur with the mounting bolt still attached. No hurry, I can not get to town for another week or so.

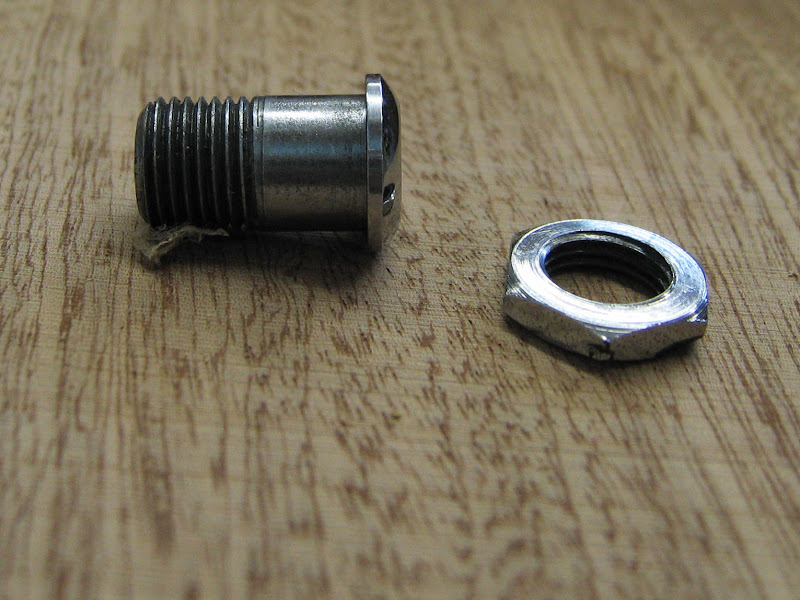

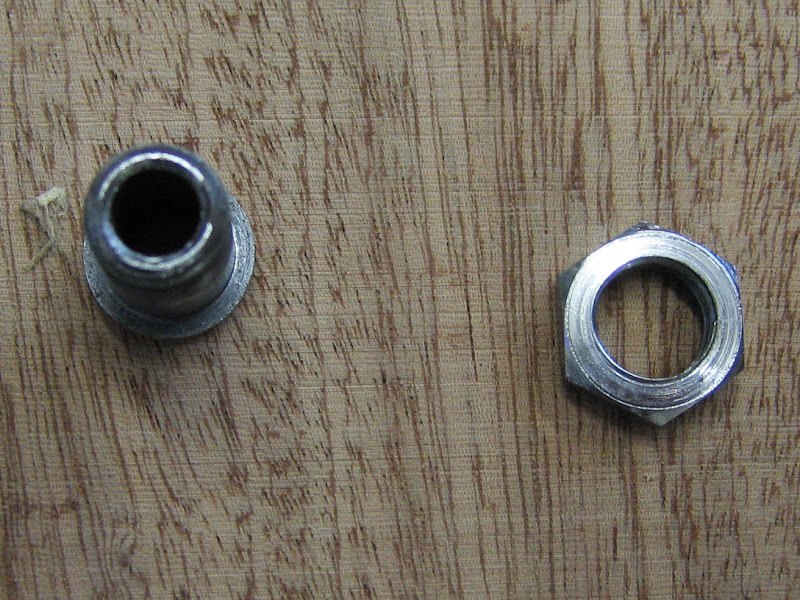

Overall Length = 19mm
Head Diameter = 13mm
Inside diameter = 6mm (hex on the head side)
Shaft diameter = 10mm
Thread length = 8.5mm
Non-threaded length = 7.75mm
Threads are 10mm x 1.0mm
Nut is 14mm hex and is 3.1mm thick

Hope this helps.

-G




gmt13 is offline
Old 05-01-12, 09:42 PM
  #8
Lightfoot21
Senior Member
Thread Starter

Lightfoot21's Avatar

Join Date: Dec 2010
Posts: 115
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
This helps lots

Thanks a million for taking the time to take pictures and send specs. I really appreciate it. RB
Originally Posted by gmt13 View Post
Overall Length = 19mm
Head Diameter = 13mm
Inside diameter = 6mm (hex on the head side)
Shaft diameter = 10mm
Thread length = 8.5mm
Non-threaded length = 7.75mm
Threads are 10mm x 1.0mm
Nut is 14mm hex and is 3.1mm thick

Hope this helps.

-G




Lightfoot21 is offline
Old 05-02-12, 06:11 AM
  #9
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 31,491

Bikes: '''96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '12 Surly Pacer, All are 3x8,9 or 10. It is hilly around here!

Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 1141 Post(s)
Likes: 0
Liked 20 Times in 19 Posts
You may be able to use a rear axle lock nut as the required nut. These are threaded M10x1.0 and in that thickness range. The hex is commonly 17 mm so that may be a problem but give it a try.
