Paint pens, pin stripe tape and lug line detailing.

I am trying to find an old thread from this forum, its about using detailing paint pens for these lines, as well as outlining lugs, that was on this forum a few years back. Not sure if they would give you the crisp look that pin stripe tape gives you when its used at chrome socks for the forks and/or stays.

For the detailing lines at the chrome socks, would you be best served by masking off where the detail line goes at the chrome/paint border? I haven't had any experience with these paint pens, I am not sure that paint would give the thickness that I would be after when applying the line at the socks though.

Mainly, I am considering outlining the lugs on the Medici Pro Strada. Nothing flashy, or a wide width, a simple thin contrasting color outline is all I am considering doing. A thin, white, pewter, or silver outline against the deep green metallic colourway would be the maximum for my taste. It has yellow windows on all of the lug cutouts, I am not sure about using yellow or gold for the outlines, but I haven't ruled it out either.

Any input will be appreciated.

Bill
__________________
I Didn't Chose To Have Parkinson's Disease, I Have Chosen To Not Allow It To Define How I Live
Life Member "Hairy Eared Engineer's Society"
Semper Fi,! Its A Way Of Life.
qcpmsame is offline
Old 11-18-16, 07:51 AM
  #2
rhm
multimodal commuter

rhm's Avatar

Join Date: Nov 2006
Location: NJ, NYC, LI
Posts: 18,976

Bikes: 1940s Fothergill, 1959 Allegro Special, 1963? Claud Butler Olympic Sprint, Lambert 'Clubman', 1974 Fuji "the Ace", 1976 Holdsworth 650b conversion rando bike, 1983 Trek 720 tourer, 1984 Counterpoint Opus II, 1993 Basso Gap, 2010 Downtube 8h, and...

Mentioned: 420 Post(s)
Tagged: 0 Thread(s)
Quoted: 1491 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I have a set of five Sharpie paint pens that I got at Staples. It's really paint, not like your usual Sharpie pens. White, yellow, red, blue, and I think black. I have never even opened that black one, which is why I'm not sure it's a black one at all.

They are easy to use, and the paint is quite opaque. Putting white over a dark color, I had to go over it --two coats-- which was a little tricky. You don't have much time to correct errors. You can wipe it off immediately, but once it dries it's pretty permanent.

The lines are not as thin as I'd like, though.

I've also used silver and gold paint pens. Can't remember the brands; I've tried a few different brands and never found one I liked well enough to want to buy it again. The silver box lining and graphics I put on my Squarebuilt frame, for example, was such a pen; I think it was by Pilot (but would have to check). It went on pretty easy, but didn't really stand out; not quite bright enough. Very easy to remove, though; WD40, pledge, paste wax, any of these take it off in an instant.
__________________
I put new leather on ruined saddles like Brooks, etc. You can reach me by private message.
rhm is offline
Old 11-18-16, 07:57 AM
  #3
arex
Abuse Magnet

arex's Avatar

Join Date: Jun 2012
Location: Colorado
Posts: 1,645

Bikes: '91 Mtn Tek Vertical, '74 Raleigh Sports, '72 Raleigh Twenty, '84 Univega Gran Turismo, '09 Surly Karate Monkey

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 66 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Paint pens are great for outlining lugs. One caveat, though, is if you plan on doing a lot of it in one sitting, get two pens...not because you'll run out of paint in one pen, but because the tip will go mushy after a while, making it impossible to get a crisp, thin line.
arex is offline
Old 11-18-16, 08:04 AM
  #4
Sir_Name
Senior Member

Sir_Name's Avatar

Join Date: Oct 2013
Location: Connecticut
Posts: 2,980

Bikes: are fun!

Mentioned: 60 Post(s)
Tagged: 0 Thread(s)
Quoted: 337 Post(s)
Liked 0 Times in 0 Posts
Any tips on box lining @rhm? I suppose it's fairly straightforward - I remember seeing some video of Jack Taylor performing the process. Looks like a steady hand and practice are the biggies (not that I have either). I note he was using equipment a touch more sophisticated than a pen.

I like the idea of a paint pen that leaves an easy to remove line, for the inevitable first-time shakes.
Sir_Name is online now
Old 11-18-16, 08:21 AM
  #5
Essthreetee
Senior Member

Essthreetee's Avatar

Join Date: Jun 2012
Location: Central California
Posts: 928

Bikes: 2001 LeMond Nevada City, ‘92 Merlin Titanium, '84 Torpado Super Strada, ‘84 Schwinn Tempo, '81 Bianchi Limites, '73 Raleigh Supercourse

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 118 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

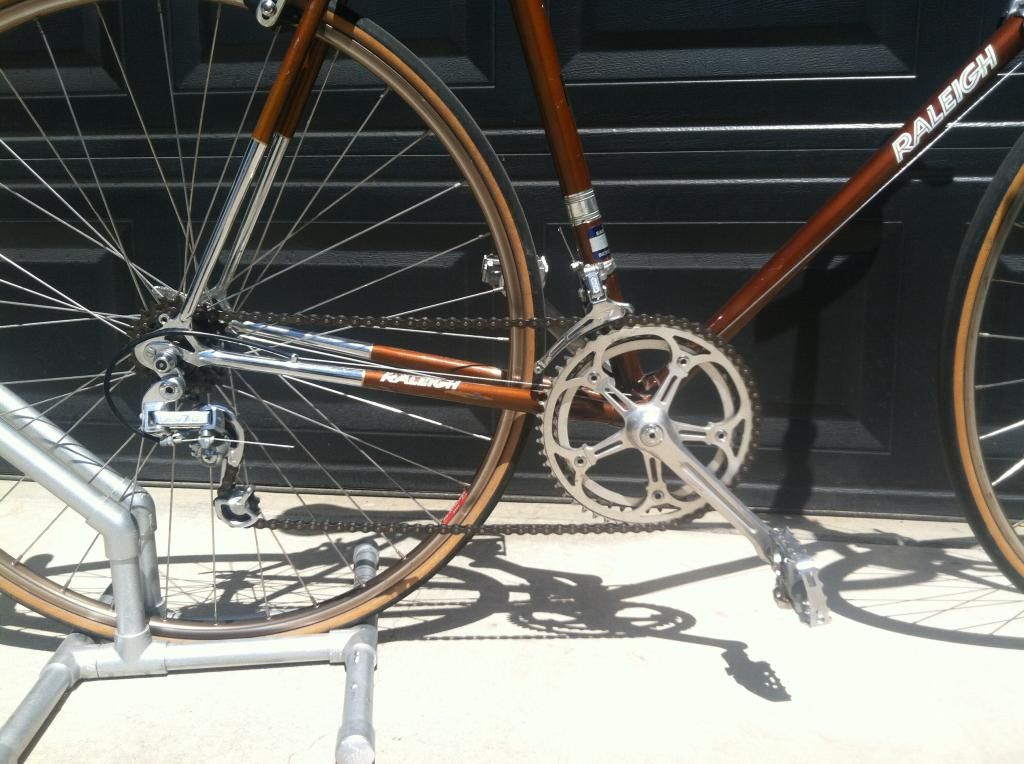

I used the gold paint pens to outline lugs on my '73 Raleigh supercourse. I also added a contrasting stripe on the rear, between the chrome and paint (as you are asking about). The pens worked great, but on the stripes...I used masking tape to create the sharp thin stripe, then used the pens to paint.


Last edited by Essthreetee; 11-18-16 at 08:24 AM.
Essthreetee is offline
Old 11-18-16, 08:27 AM
  #6
repechage
Senior Member

Join Date: Jun 2006
Posts: 13,266
Mentioned: 77 Post(s)
Tagged: 0 Thread(s)
Quoted: 908 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Consider going to a real art supply store, I have found pens with thinner than typical tips there.
repechage is offline
Old 11-18-16, 08:29 AM
  #7
rhm
multimodal commuter

rhm's Avatar

Join Date: Nov 2006
Location: NJ, NYC, LI
Posts: 18,976

Bikes: 1940s Fothergill, 1959 Allegro Special, 1963? Claud Butler Olympic Sprint, Lambert 'Clubman', 1974 Fuji "the Ace", 1976 Holdsworth 650b conversion rando bike, 1983 Trek 720 tourer, 1984 Counterpoint Opus II, 1993 Basso Gap, 2010 Downtube 8h, and...

Mentioned: 420 Post(s)
Tagged: 0 Thread(s)
Quoted: 1491 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Sir_Name View Post
Any tips on box lining @rhm? I suppose it's fairly straightforward - I remember seeing some video of Jack Taylor performing the process. Looks like a steady hand and practice are the biggies (not that I have either). I note he was using equipment a touch more sophisticated than a pen.

I like the idea of a paint pen that leaves an easy to remove line, for the inevitable first-time shakes.
Yeah, if you want Jack Taylor quality workmanship, you might want to get a professional to do it, or at least give up coffee for a few months before trying this. My box lining is shaky and amateurish for sure. I don't really mind. I put the frame flat on a table with plenty of space to walk around. Put the dog outside before trying this. Holding the pen between my thumb and first two fingers, leaving the last two fingers to act as a guide, I kinda lock my fingers with the pen placed on the tube where I want the line to go, then pull my hand down the tube as if it's paralyzed. It's a matter of stepping backward while using shoulder and elbow only for minor adjustments. You want to move briskly; any sign of hesitation will show up on the frame. The short lines are more difficult. If you want a guide for the short lines, the ones that go around the tube rather than up the tube, use something that follows the curve of the tube and is thick enough that the shaft (rather than the tip) of the pen rests on the guide. I do the long lines first, then remember that it would have made a lot of sense to do the short ones first.



__________________
I put new leather on ruined saddles like Brooks, etc. You can reach me by private message.
rhm is offline
Old 11-18-16, 08:39 AM
  #8
Ex Pres
#39

Ex Pres's Avatar

Join Date: Dec 2007
Location: Mountain Brook, AL
Posts: 7,058
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 324 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I use paint pens, and mask when painting the chrome/paint edge for that nice thin crisp line.

Lugs are freehand, but the lug shoreline, as long as the brazing is clean, is your guide. When it's not, my lining suffers.

Never tried box lining. If my hands were that steady I might have considered being a doctor/surgeon

In the absence of a good art supply store close by, Michaels has some with thinner points.
Ex Pres is offline
Old 11-18-16, 08:40 AM
  #9
USAZorro
Señor Member

USAZorro's Avatar

Join Date: Oct 2004
Location: Florence, KY
Posts: 16,148

Bikes: Mostly English - predominantly Raleighs

Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 675 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I'd have to make a jig if I were to attempt box-lining.
__________________
In search of what to search for.
USAZorro is offline
Old 11-18-16, 08:41 AM
  #10
qcpmsame
Semper Fi
Thread Starter

qcpmsame's Avatar

Join Date: Jan 2008
Location: Barrineau Park, Florida
Posts: 12,324

Bikes: '80 Medici Pro Strada, '86 Tommasini Prestige, '12 CAAD 10 Ultegra

Mentioned: 81 Post(s)
Tagged: 0 Thread(s)
Quoted: 947 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
These replies answer my questions, much appreciated for all the input from y'all.
@rhm, I think those are just a bit beyond what I would want to undertake, but they are some beautiful bicycles you show there. I really appreciate you taking time to answer my question, also.

The paint pens are looking like the best bet for me, for some reason my tremors from the PD let up when I am drafting for work, and I can make myself become steady for lettering on drawings, so the pens along with some 3M blue masking tape will be my likely choices. I'm with you USA Zoro, I'd need to make templates before I would even begin to box line any at all. I can adapt some of my drafting pens to doing some of this, and the K&E Leroy pen tips are in a whole slew of sizes.

I do need to look at both Sharpies paint pens, and artist pens from an art supply store, or perhaps the University of West Florida bookstore. I can still scrounge up drafting supplies, and artist quality items, there and at the community college's store.



Again, many thanks to everyone's input.

Bill
__________________
I Didn't Chose To Have Parkinson's Disease, I Have Chosen To Not Allow It To Define How I Live
Life Member "Hairy Eared Engineer's Society"
Semper Fi,! Its A Way Of Life.

Last edited by qcpmsame; 11-18-16 at 08:53 AM.
qcpmsame is offline
Old 11-18-16, 08:48 AM
  #11
rhm
multimodal commuter

rhm's Avatar

Join Date: Nov 2006
Location: NJ, NYC, LI
Posts: 18,976

Bikes: 1940s Fothergill, 1959 Allegro Special, 1963? Claud Butler Olympic Sprint, Lambert 'Clubman', 1974 Fuji "the Ace", 1976 Holdsworth 650b conversion rando bike, 1983 Trek 720 tourer, 1984 Counterpoint Opus II, 1993 Basso Gap, 2010 Downtube 8h, and...

Mentioned: 420 Post(s)
Tagged: 0 Thread(s)
Quoted: 1491 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Bill, for what it's worth, I have had bad luck with masking tape. Capillary action always seems to draw some wet paint under the tape somewhere. User error, no doubt, ymmv.

I got these for my Fuji Finest. Way easier than holding a pen steady:

Fuji Finest Tri Color Stripes (sku 440) - VeloCals



http://www.velocals.com/stripes-or-p...rcation-bands/

I'm going to have a certain forum member do some work on my Holdsworth, after which another repaint will be in order. I may cheat on the box lining this time, and go for this:



http://shop.cowlesproducts.com/c/cal...irected_post=1
__________________
I put new leather on ruined saddles like Brooks, etc. You can reach me by private message.

Last edited by rhm; 11-18-16 at 08:55 AM.
rhm is offline
Old 11-18-16, 08:57 AM
  #12
qcpmsame
Semper Fi
Thread Starter

qcpmsame's Avatar

Join Date: Jan 2008
Location: Barrineau Park, Florida
Posts: 12,324

Bikes: '80 Medici Pro Strada, '86 Tommasini Prestige, '12 CAAD 10 Ultegra

Mentioned: 81 Post(s)
Tagged: 0 Thread(s)
Quoted: 947 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I use a special painters masking tape one of our coating's subcontractors showed me, out on one of the job sites, to avoid the capillary action you mentioned, rhm. I am amazed at the sheer number of different types of 3M painting use masking tapes available, including stick application liquid masking agents. Really handy on glass panes for window sashes.

Bill
__________________
I Didn't Chose To Have Parkinson's Disease, I Have Chosen To Not Allow It To Define How I Live
Life Member "Hairy Eared Engineer's Society"
Semper Fi,! Its A Way Of Life.
qcpmsame is offline
Old 11-18-16, 09:33 AM
  #13
Sir_Name
Senior Member

Sir_Name's Avatar

Join Date: Oct 2013
Location: Connecticut
Posts: 2,980

Bikes: are fun!

Mentioned: 60 Post(s)
Tagged: 0 Thread(s)
Quoted: 337 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by rhm View Post
Yeah, if you want Jack Taylor quality workmanship, you might want to get a professional to do it, or at least give up coffee for a few months before trying this. My box lining is shaky and amateurish for sure. I don't really mind. I put the frame flat on a table with plenty of space to walk around. Put the dog outside before trying this. Holding the pen between my thumb and first two fingers, leaving the last two fingers to act as a guide, I kinda lock my fingers with the pen placed on the tube where I want the line to go, then pull my hand down the tube as if it's paralyzed. It's a matter of stepping backward while using shoulder and elbow only for minor adjustments. You want to move briskly; any sign of hesitation will show up on the frame. The short lines are more difficult. If you want a guide for the short lines, the ones that go around the tube rather than up the tube, use something that follows the curve of the tube and is thick enough that the shaft (rather than the tip) of the pen rests on the guide. I do the long lines first, then remember that it would have made a lot of sense to do the short ones first.
Thanks, that helps. JT quality not necessary here, so hopefully a fun winter project.
Sir_Name is online now
Old 11-18-16, 10:10 AM
  #14
Glennfordx4
Holy Spokes it's Batsman!

Glennfordx4's Avatar

Join Date: Nov 2008
Location: South Jersey
Posts: 1,861

Bikes: Too many Bicycles to list

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 58 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Trick I learned before all the new fangled painting masking tapes were around was to use a brush and some clear coat and trace the tape with it first, once it dries then I paint. The clear will keep the color from bleeding under the tape and ruining your lines.

Glenn
Glennfordx4 is offline
Old 11-18-16, 05:22 PM
  #15
due ruote
Senior Member

due ruote's Avatar

Join Date: Dec 2006
Posts: 6,616
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 462 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I have used a crow quill pen and Testors to do lugs. Not as easy as a paint pen but the variety of nibs is vast, so you can get a nice fine line.
due ruote is offline
Old 11-18-16, 06:40 PM
  #16
gugie
Crapmaster Emeritus

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 7,069

Bikes: JP Weigle'd Raleigh Competition reconstruct, 73 Raleigh Competition 650b'ed, 96 Bike Friday NWT, 83 Lotus Classique, 78 Centurion ProTour, 73 Raleigh Grand Sports

Mentioned: 711 Post(s)
Tagged: 0 Thread(s)
Quoted: 2060 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by due ruote View Post
I have used a crow quill pen and Testors to do lugs. Not as easy as a paint pen but the variety of nibs is vast, so you can get a nice fine line.
Pics!
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 11-18-16, 06:57 PM
  #17
CuttersRidge
Senior Member

CuttersRidge's Avatar

Join Date: Oct 2007
Location: NM & MN
Posts: 1,061
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 93 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

Not my pic but anyway, I can see how one could do basic box-lining or the lugs; but I like some of the fancier lines, this isn't as fancy as some lines I've seen but just this would be nice to be able to do.

When that Australian bike was discussed about a month ago, some pictures in that thread had very extremely nice work; it was a work of art.
CuttersRidge is offline
Old 11-18-16, 07:00 PM
  #18
kroozer
vintage motor

kroozer's Avatar

Join Date: Sep 2008
Location: Tepic, Nayarit, Mexico
Posts: 1,352

Bikes: Automoto, Stallard, Rotrax, Jack Taylor, Atala, Lejeune, Motobecane, RIH, Zieleman, Raleigh, Messina, Brazzo, Davidson, Fisher, Kestrel

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 57 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I have done lug lining on several bikes using a brush. It worked quite well, and if you keep a thinner-soaked rag handy you can easily erase anything you don't like. The trick with a brush is maintaining an even paint flow. For painting rings around the tubes I mask off with Scotch tape, the transparent plastic kind, it lets nothing through. When I mask I prefer to spray paint because the paint goes on much smoother and more evenly. I would be tempted to mask and spray for box lining, too, although if done carefully it would be too perfect and would lose the hand-painted look.
kroozer is offline
Old 11-18-16, 09:03 PM
  #19
Michael Angelo
Senior Member

Michael Angelo's Avatar

Join Date: May 2010
Location: Hurricane Alley , Florida
Posts: 3,874

Bikes: Treks (USA), Schwinn Paramount, Schwinn letour,Raleigh Team Professional, Gazelle GoldLine Racing, 2 Super Mondias, Carlton Professional.

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 59 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I use a paint brush.

Michael Angelo is offline
Old 11-18-16, 10:35 PM
  #20
Charles Wahl
Disraeli Gears

Charles Wahl's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 3,455
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 164 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
http://www.bikeforums.net/classic-vi...ning-pics.html

Decocolor fine point
Charles Wahl is offline
Old 11-18-16, 11:04 PM
  #21
Cougrrcj
Over forty victim of Fate

Cougrrcj's Avatar

Join Date: Jul 2011
Location: NE Ohio
Posts: 2,973

Bikes: A few...

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 288 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Back 40 years ago, just after I had bought the bike, I used automotive pinstripe tape at the delineation of my Fuji S-10S's paint/chrome socks breaks. 1/16" white and black stripes. It is still there. BUT those are straight lines. The lugwork is still outlined/highlighted in the original gold paint as well. I don't mess with 'perfection'... like you couldn't guess that I still love my old Fuji...)
__________________
'75 Fuji S-10S bought new, 52k+ miles and still going!
'84 Univega Gran Tourismo
'84 Univega Viva Sport
'86 Miyata 710
'90 Schwinn Woodlands
Huffy MTB - for trips to corner store
MTB of questionable lineage aka 'Mutt Trail Bike'
Cougrrcj is offline
Old 11-18-16, 11:27 PM
  #22
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 4,698

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 100 Post(s)
Tagged: 0 Thread(s)
Quoted: 1628 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I tried using a striping brush but found paint pens generally superior for lug lining when I did my PX10. There's lots of colors and varieties available at any art supply store.

AFA box lining, I have no idea but as a simple cycling enthusiast, I have to say I like looking at the box lining that isn't perfect, but done by hand as well as possible, like on the old Singers and Herses etc.

Salamandrine is offline
Old 11-19-16, 06:03 AM
  #23
smontanaro
Senior Member

Join Date: Aug 2007
Location: Evanston, IL
Posts: 3,225

Bikes: many

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 403 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by USAZorro View Post
I'd have to make a jig if I were to attempt box-lining.
ISTR that old promo film about the Raleigh factory showed brief use of a jig for box lining. As I recall, the woman was pretty darn fast with it.
__________________
I prefer you contact me by email (skip.montanaro@gmail.com).
smontanaro is offline
Old 11-19-16, 06:35 AM
  #24
St33lWh33ls
Senior Member

St33lWh33ls's Avatar

Join Date: Oct 2014
Location: Sunny Florida
Posts: 347
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 74 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Just up the road...

swanngraphics.com
St33lWh33ls is offline
Old 11-19-16, 06:43 AM
  #25
due ruote
Senior Member

due ruote's Avatar

Join Date: Dec 2006
Posts: 6,616
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 462 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
If you look up videos of pros doing striping on cars, you will see they use a long magnetic strip as a guide. From what I can tell, the paint doesn't contact the strip; it's just there to rest the fingers and/or brush on. Obviously trickier on a bike but maybe it could work.

The other thing I noticed on a couple vids I watched is they loaded up the brush and then went the full length of the car without stopping. Clearly the proper brush and paint consistency would be key. Neither video provided any instruction on that point, but it must be out there somewhere.

Last edited by due ruote; 11-19-16 at 06:52 AM.
due ruote is offline
