Old 05-24-18, 04:51 AM
  #26
RobbieTunes
Half drunk? Finish!

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 26,882
Mentioned: 34 Post(s)
Tagged: 1 Thread(s)
Quoted: 373 Post(s)
Liked 717 Times in 463 Posts
Really nice.

I definitely want one for my next build.

1. I can avoid the heavy 31.8 quill stem (and having to paint it).
2. I can go with a Chairman Mao stem and bars.
3. It won't look silly if it's about an inch above "slammed."

Kudos. Bravo Zulu.
RobbieTunes is offline
Old 09-01-18, 11:25 AM
  #27
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 10,438
Mentioned: 52 Post(s)
Tagged: 0 Thread(s)
Quoted: 414 Post(s)
Liked 75 Times in 62 Posts
I just want to first applaud and second know where and how to buy it: If I search for "innicycles" on Amazon will I find your product? Or contact you directly?
unworthy1 is offline
Old 09-01-18, 02:24 PM
  #28
nomadmax
Senior Member

Join Date: Jun 2018
Location: SW Ohio
Posts: 1,237
Mentioned: 87 Post(s)
Tagged: 0 Thread(s)
Quoted: 533 Post(s)
Liked 462 Times in 251 Posts
Very nice. Now you have me scouring CL for an older bike that has a threaded steerer tube.
nomadmax is offline
Old 09-02-18, 11:47 AM
  #29
joejack951
Senior Member
Thread Starter

joejack951's Avatar

Join Date: May 2004
Location: Wilmington, DE
Posts: 11,928

Bikes: 2016 Hong Fu FM-079-F, 1984 Trek 660, 2005 Iron Horse Warrior Expert, 2009 Pedal Force CX1, 2016 Islabikes Beinn 20 (son's)

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 1161 Post(s)
Liked 24 Times in 16 Posts
Originally Posted by unworthy1 View Post
I just want to first applaud and second know where and how to buy it: If I search for "innicycles" on Amazon will I find your product? Or contact you directly?
Thanks for the hand clapping

For now, it is best to contact me directly if interested. Amazon ordering will happen, just not there yet.
joejack951 is offline
Old 09-02-18, 12:00 PM
  #30
joejack951
Senior Member
Thread Starter

joejack951's Avatar

Join Date: May 2004
Location: Wilmington, DE
Posts: 11,928

Bikes: 2016 Hong Fu FM-079-F, 1984 Trek 660, 2005 Iron Horse Warrior Expert, 2009 Pedal Force CX1, 2016 Islabikes Beinn 20 (son's)

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 1161 Post(s)
Liked 24 Times in 16 Posts
Originally Posted by nomadmax View Post
Very nice. Now you have me scouring CL for an older bike that has a threaded steerer tube.
Thanks! I am constantly looking myself, mostly just hoping for a screaming deal on something even nicer than my 660, and sometimes paying attention for something that will fit my wife...Plenty to choose from if you aren't on a tight budget, and good groupsets, wheels, and cockpit bits are pretty cheap these days.
joejack951 is offline
Old 09-02-18, 12:24 PM
  #31
xrayzebra
Very Verbose Member

Join Date: Jul 2011
Location: Cape Coral, Florida
Posts: 166

Bikes: 62 Schwinn Typhoon with Nexus 8 speed coaster brake, 62 Schwinn Racer with Nexus 3 speed coaster, mostly original 69 Schwinn Varsity, assorted Worksman trikes, half a dozen bikes in pieces

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked 0 Times in 0 Posts
Amazing - thanks for sharing this. It's so interesting to see such smart innovation "as it happens in real time." I realize you must have been working on this for quite some time, but relative to the time line of commercial products, we're seeing this very early. I don't know what the market might be for this product, but it's not going to make anyone a millionaire, so it's also interesting to see a product being developed by someone who just wants it, and is willing to develop a high quality solution primarily out of passion for the idea. Very cool indeed.
__________________
It's all good
xrayzebra is offline
Old 09-02-18, 01:50 PM
  #32
RobbieTunes
Half drunk? Finish!

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 26,882
Mentioned: 34 Post(s)
Tagged: 1 Thread(s)
Quoted: 373 Post(s)
Liked 717 Times in 463 Posts

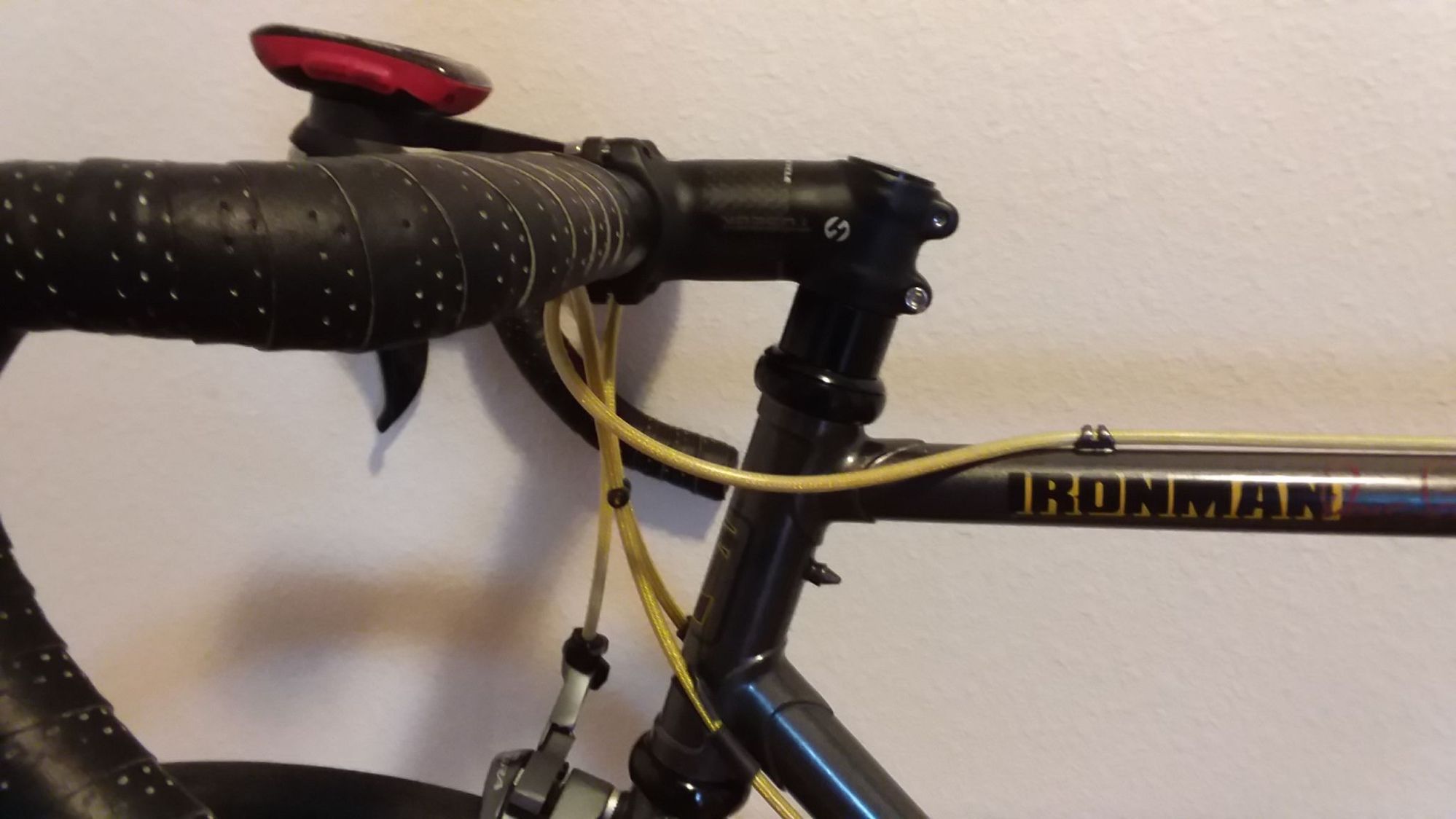

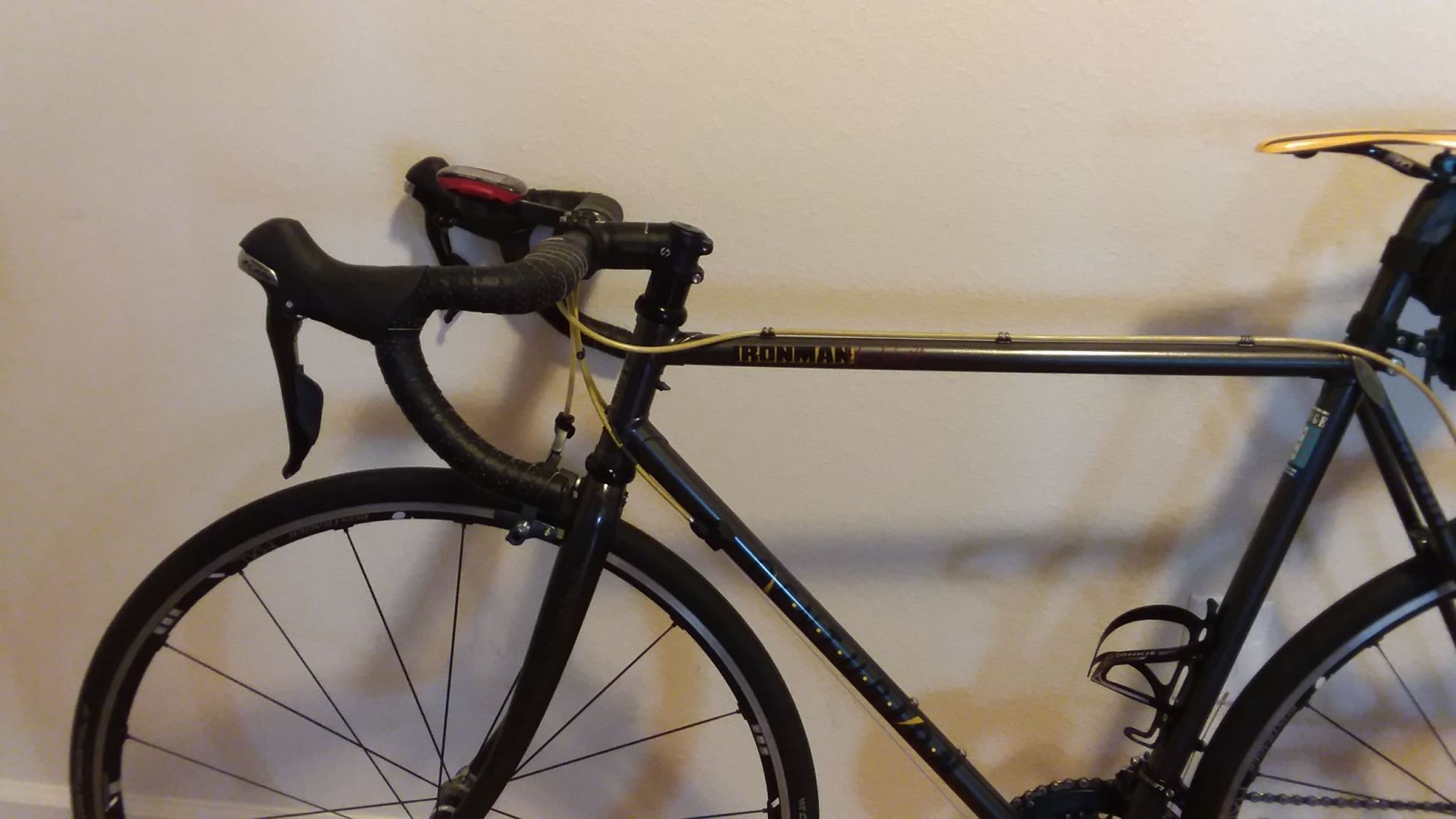

Here is one in use, even after I messed up the installation. Outstanding bike component.

I'm using a 31.8 carbon bar and a 1 1/8" to 31.8 stem.


If I'd chosen a 25.4 or 26.0 bar, I would have found a more petite stem. However, this build was fairly anti-traditional other than the frame, so while I wanted a stem that didn't detract from the appearance of the bike (like a futuristic carbon), I still wanted to use my 31.8 carbon bar.

Note the outside diameter of the steerer spacer/stack is roughly = to the outside diameter of the head tub lugs.
__________________
Robbie ♪♫♪...☻
I have unfinished business.


Last edited by RobbieTunes; 09-02-18 at 01:53 PM.
RobbieTunes is offline
Old 09-24-18, 08:14 AM
  #33
canyoneagle
Senior Member

canyoneagle's Avatar

Join Date: Nov 2007
Location: Chapel Hill, NC (temporary)
Posts: 4,511

Bikes: Jamis Dragon 29er. Frame waiting for roads: 1990 Zullo EL-OS

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 117 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Add another VERY pleased owner of one of these brilliant headsets. Well done, Joe!!!!!!!

I'll get some closeups soon, but at the risk of overposting the post-build photos, here's one that shows how the stem integrates with the bike:

__________________
Main bike: retro-mod build - 1990 Zullo EL-OS frame with 2018 Chorus
canyoneagle is offline
Old 09-24-18, 09:09 AM
  #34
RobbieTunes
Half drunk? Finish!

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 26,882
Mentioned: 34 Post(s)
Tagged: 1 Thread(s)
Quoted: 373 Post(s)
Liked 717 Times in 463 Posts
Again....

I scored a Threadless fork for that Ironman redeaux , so I moved the Innivyclr to my Klein, with a carbon bar. Liked it so much I swapped in a carbon seat post and new saddle.
RobbieTunes is offline
Old 09-24-18, 11:49 AM
  #35
smoothness
Senior Member

Join Date: Jul 2009
Location: Hub of the Universe, MA
Posts: 525

Bikes: Centurions, Shoguns, and Stumpjumpers

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 70 Post(s)
Likes: 0
Liked 5 Times in 3 Posts
sorry if this offends you @joejack951, but do you have any production samples using a "regular" top cap for sale? I've got a few sweet top caps I'd love to use with my ironman and a 31.8 bar.
smoothness is offline
Old 09-24-18, 05:08 PM
  #36
RobbieTunes
Half drunk? Finish!

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 26,882
Mentioned: 34 Post(s)
Tagged: 1 Thread(s)
Quoted: 373 Post(s)
Liked 717 Times in 463 Posts
This creates a market search for more “petite”stems of more slender diameter. My kingdom for a 70mm Salsa or polished Nitto look-alike.
RobbieTunes is offline
Old 09-24-18, 05:17 PM
  #37
joejack951
Senior Member
Thread Starter

joejack951's Avatar

Join Date: May 2004
Location: Wilmington, DE
Posts: 11,928

Bikes: 2016 Hong Fu FM-079-F, 1984 Trek 660, 2005 Iron Horse Warrior Expert, 2009 Pedal Force CX1, 2016 Islabikes Beinn 20 (son's)

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 1161 Post(s)
Liked 24 Times in 16 Posts
Originally Posted by smoothness View Post
sorry if this offends you @joejack951, but do you have any production samples using a "regular" top cap for sale? I've got a few sweet top caps I'd love to use with my ironman and a 31.8 bar.
While I'd love to be able to tell you that you can use any top you wish with this headset, that's not the case. A threadless headset top cap has a much easier job than the top cap in the inni headset. The former merely has to withstand the headset bearing preload forces and only until the steerer clamp bolts on the stem have been tightened. It can be removed at that point if one so chose to.

The inni top cap is more like that on a standard threadless adapter: it has the support the wedge which is anchoring the quill into the steerer tube. This is a pretty critical job if you can imagine and the top cap has to be designed to support that load. The early prototype top caps I made were designed around an M8 socket head cap screw, much like you'd find on a threadless adapter. The new top cap design use an M8 stud integrated into a broached aluminum cap, which I think looks far cleaner and left more room for logos Nearly every threadless top cap is designed around an M6 socket head cap screw. The latter also use much thinner cross sections as they simply will never see the kind of loads that a threadless adapter or the inni top cap will see.

If you want to customize your headset, let's talk and perhaps we can get you what you want without compromising the design/safety.
joejack951 is offline
Old 09-24-18, 05:19 PM
  #38
joejack951
Senior Member
Thread Starter

joejack951's Avatar

Join Date: May 2004
Location: Wilmington, DE
Posts: 11,928

Bikes: 2016 Hong Fu FM-079-F, 1984 Trek 660, 2005 Iron Horse Warrior Expert, 2009 Pedal Force CX1, 2016 Islabikes Beinn 20 (son's)

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 1161 Post(s)
Liked 24 Times in 16 Posts
Originally Posted by RobbieTunes View Post
This creates a market search for more “petite”stems of more slender diameter. My kingdom for a 70mm Salsa or polished Nitto look-alike.
I'd say it creates a business opportunity, one that I plan to address once I get this headset moving more! I'm willing to talk now to anyone who wants something sooner, just be warned that the price will reflect the prototype nature of the stem.
joejack951 is offline
Old 09-24-18, 05:29 PM
  #39
natterberry
Senior Member

natterberry's Avatar

Join Date: Sep 2017
Location: Springfield, IL
Posts: 371

Bikes: ‘83/‘85 Trek 760, ‘82 Trek 614, ‘85 Trek 460

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 143 Post(s)
Liked 25 Times in 17 Posts
How much steerer tube can fit in there?
natterberry is offline
Old 09-25-18, 11:31 AM
  #40
joejack951
Senior Member
Thread Starter

joejack951's Avatar

Join Date: May 2004
Location: Wilmington, DE
Posts: 11,928

Bikes: 2016 Hong Fu FM-079-F, 1984 Trek 660, 2005 Iron Horse Warrior Expert, 2009 Pedal Force CX1, 2016 Islabikes Beinn 20 (son's)

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 1161 Post(s)
Liked 24 Times in 16 Posts
Originally Posted by natterberry View Post
How much steerer tube can fit in there?
Good question, and I will be updating my spec list above with this info:

Steerer tube requirements:
1. Must be 27mm min/45mm max longer than bare headtube measured from fork crown
2. Threads on steerer tube must end no more than 16mm above the edge of the bare headtube (using fork crown as reference)

I need to take some pictures demonstrating how to take these measurements but hopefully they make some sense already. And regarding those measurements, most paired frame/forks will meet those specs. The only ones that won't are when numerous/thick spacers are used between the jam nut and upper race. When trying to combine some random frame and fork that have never previously been assembled, you will want to take some measurements first. Too short is a safety issue. Too long and you won't be able to preload the headset bearings.
joejack951 is offline
Old 09-25-18, 10:46 PM
  #41
RobbieTunes
Half drunk? Finish!

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 26,882
Mentioned: 34 Post(s)
Tagged: 1 Thread(s)
Quoted: 373 Post(s)
Liked 717 Times in 463 Posts
In other words....

I used a fork for a 54cm and put it in a 56cm and it worked just fine. The adapter really helps compensate for stack height issues I've encountered for years.
__________________
Robbie ♪♫♪...☻
I have unfinished business.

RobbieTunes is offline
Old 09-26-18, 08:03 AM
  #42
speedevil
I never finish anyth

speedevil's Avatar

Join Date: Jul 2010
Location: Western KY
Posts: 1,111

Bikes: 2008 Merckx LXM, 2003 Giant XTC mtb, 2001 Lemond Alpe d'Huez, 1997 Lemond Zurich, 1989 Cannondale ST, 1988 Masi Nuovo Strada, 1983 Pinarello Turismo

Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 280 Post(s)
Liked 96 Times in 64 Posts
Originally Posted by joejack951 View Post
2. Threads on steerer tube must end no more than 16mm above the edge of the bare headtube (using fork crown as reference)
Do you mean "not less than" instead of "no more than"?

Sorry if I'm not understanding this properly.
__________________
Dale, NL4T
speedevil is offline
Old 09-26-18, 09:04 AM
  #43
joejack951
Senior Member
Thread Starter

joejack951's Avatar

Join Date: May 2004
Location: Wilmington, DE
Posts: 11,928

Bikes: 2016 Hong Fu FM-079-F, 1984 Trek 660, 2005 Iron Horse Warrior Expert, 2009 Pedal Force CX1, 2016 Islabikes Beinn 20 (son's)

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 1161 Post(s)
Liked 24 Times in 16 Posts
Originally Posted by speedevil View Post
Do you mean "not less than" instead of "no more than"?

Sorry if I'm not understanding this properly.
I am using a double negative which I should know by know by now is a confusing way a stating things

The intent of that measurement is to ensure that there are enough threads on the steerer tube so that the adapter can thread on as far as it needs to. Depending on the excess length of steerer tube present, that could be anywhere from 29mm of threads required (45 [max length steerer] - 16) or only 11mm (27 [min length steerer] - 16). Does that help?

A picture is worth a million of my words so I will work on that.
joejack951 is offline
Old 09-26-18, 10:10 AM
  #44
RobbieTunes
Half drunk? Finish!

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 26,882
Mentioned: 34 Post(s)
Tagged: 1 Thread(s)
Quoted: 373 Post(s)
Liked 717 Times in 463 Posts
Balance

As an innicycle user, maybe I can help.

The streerer can stick up above the head tube just like it would on an normal headset install. There is enough room up inside the adapter to thread down over it. How much extra space there is in there, i do not know.

You cam also use a fork that’s a bit shorter, maybe one “frame” size. You just need to make sure you don’t run out of threads on the fork.

Putting it simply, the adapter is more forgiving of fork steerer length variances.
RobbieTunes is offline
Old 11-24-18, 08:05 PM
  #45
RobbieTunes
Half drunk? Finish!

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 26,882
Mentioned: 34 Post(s)
Tagged: 1 Thread(s)
Quoted: 373 Post(s)
Liked 717 Times in 463 Posts
Time for another one. PM sent.
__________________
Robbie ♪♫♪...☻
I have unfinished business.

RobbieTunes is offline
Old 11-24-18, 10:56 PM
  #46
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 5,139

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci x2, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 123 Post(s)
Tagged: 0 Thread(s)
Quoted: 1485 Post(s)
Liked 338 Times in 259 Posts
Sorry for the hijack but on a related note does anyone remember the Hetchins thread that had the tall stack quill stem setups that were done by the shop in Phoenix?
merziac is offline
Old 11-25-18, 02:27 AM
  #47
gugie
Pimp on a bike

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 7,965

Bikes: It's complicated.

Mentioned: 872 Post(s)
Tagged: 0 Thread(s)
Quoted: 2540 Post(s)
Liked 380 Times in 220 Posts
Reading through the thread, I didn’t see what might be yet another market for you. Weve seen a few damaged fork threads posted on BF, and some steerers cut just a bit short for most any standard quill type headset.

Am I correct in seeing that this could be a nifty “problem solver” fot those instances?
gugie is offline
Old 11-25-18, 08:42 AM
  #48
RobbieTunes
Half drunk? Finish!

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 26,882
Mentioned: 34 Post(s)
Tagged: 1 Thread(s)
Quoted: 373 Post(s)
Liked 717 Times in 463 Posts
Originally Posted by gugie View Post
Reading through the thread, I didn’t see what might be yet another market for you. Weve seen a few damaged fork threads posted on BF, and some steerers cut just a bit short for most any standard quill type headset.

Am I correct in seeing that this could be a nifty “problem solver” fot those instances?
I've installed 3 now, so I'd say yes.
__________________
Robbie ♪♫♪...☻
I have unfinished business.

RobbieTunes is offline
Old 11-26-18, 02:50 PM
  #49
kingston
Jedi Master

kingston's Avatar

Join Date: Sep 2014
Location: Lake Forest, IL
Posts: 2,993

Bikes: http://stinkston.blogspot.com/p/my-bikes.html

Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 1265 Post(s)
Liked 102 Times in 83 Posts
Over the weekend I was riding one of my old bikes with a nitto pearl stem that squeaks sometimes and found myself thinking about replacing it with one of these super-cool threadless conversion headsets. While modern threadless stems are functionally superior to a quill stem in just about every way, I still prefer the aesthetics of a quill stem on an old steel frame. I do have some modern steel frames with threadless headsets and stems that I've learned to live with so still considering.
kingston is online now
Old 11-26-18, 05:34 PM
  #50
RobbieTunes
Half drunk? Finish!

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 26,882
Mentioned: 34 Post(s)
Tagged: 1 Thread(s)
Quoted: 373 Post(s)
Liked 717 Times in 463 Posts
He hasn't responded to my PM. I may have to use a quill stem. Oh, the horrors.
__________________
Robbie ♪♫♪...☻
I have unfinished business.

RobbieTunes is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
