Frame ID. Again.

Interesting frame with some familiar features. Italian BB. What do you think?






MiloFrance is offline
Reply
Old 11-30-18 | 05:53 AM
  #2
MiloFrance's Avatar
Thread Starter
Senior Member
10 Anniversary

Joined: Aug 2014
Posts: 1,376
Likes: 161
From: Capestang, France

Bikes: Lots of French, some British and a couple of Italian

The fork is a Faggin, and the bottle cage bosses (which I didn't manage to get in shot) are large and round. Maybe addons? Paint is so thick that no serial number is visible...
MiloFrance is offline
Reply
Old 11-30-18 | 08:45 AM
  #3
Mr. 66's Avatar
Senior Member
10 Anniversary

Joined: Aug 2015
Posts: 4,165
Likes: 2,897
The frame does not match the fork for period. If it was Faggin it would have this detail.

Mr. 66 is offline
Reply
Old 11-30-18 | 09:51 AM
  #4
MiloFrance's Avatar
Thread Starter
Senior Member
10 Anniversary

Joined: Aug 2014
Posts: 1,376
Likes: 161
From: Capestang, France

Bikes: Lots of French, some British and a couple of Italian

Indeed, it's not the fork that is hard to identify
MiloFrance is offline
Reply
Old 11-30-18 | 11:05 AM
  #5
randyjawa's Avatar
Senior Member
Titanium Club Membership
15 Anniversary

Joined: Apr 2007
Posts: 12,563
Likes: 2,739
From: Thunder Bay, Ontario, Canada - burrrrr!

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 196? Torpado Professional, 2000 Marinoni Piuma

My guess would be Olmo of middle range quality, perhaps a Grand Prix...
__________________
"98% of the bikes I buy are projects".
randyjawa is offline
Reply
Old 11-30-18 | 11:15 AM
  #6
USAZorro's Avatar
Señor Member
Titanium Club Membership
Sheldon Brown Memorial - Titanium
20 Anniversary

Joined: Oct 2004
Posts: 18,462
Likes: 1,554
From: Hardy, VA

Bikes: Mostly English - predominantly Raleighs

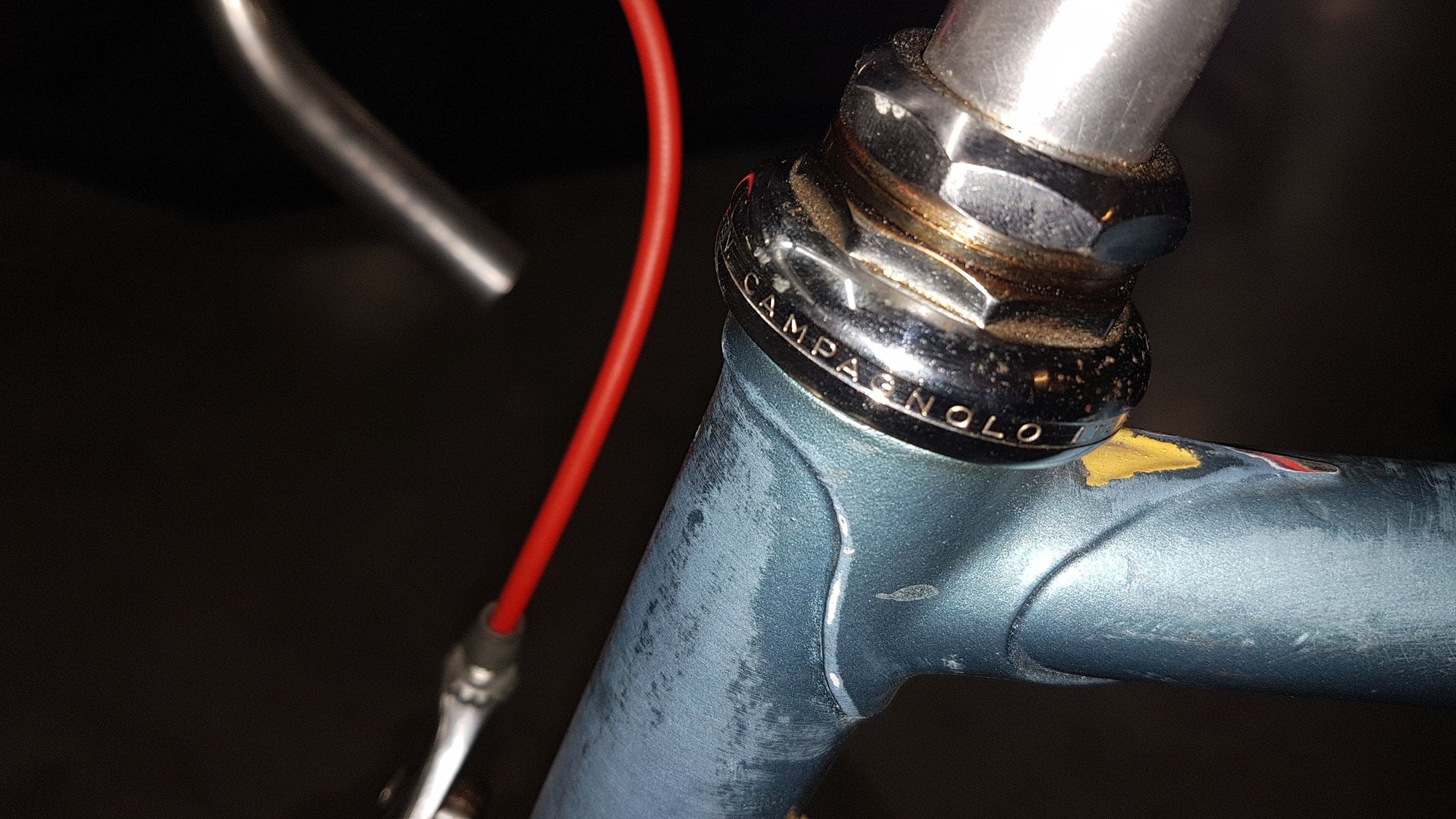

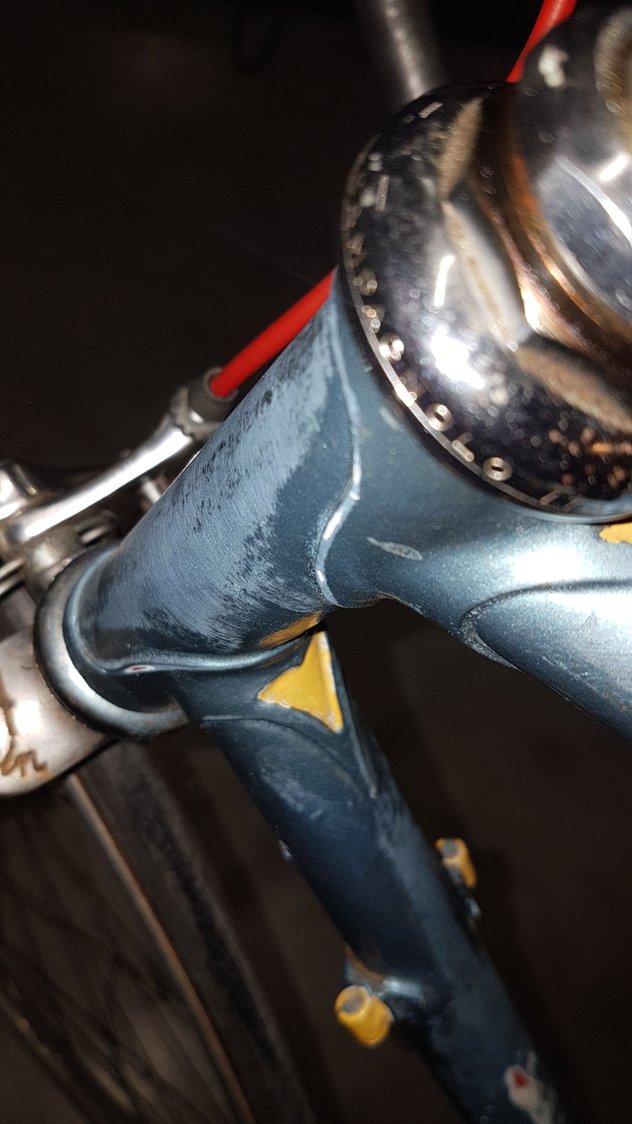

I have a Raleigh Team Pro and an Argos with those same lugs. (Yours isn't either of those). They seem to have been relatively popular on nicer bicycles in the mid-late 70's.
__________________
In search of what to search for.
USAZorro is offline
Reply
Old 11-30-18 | 03:24 PM
  #7
MiloFrance's Avatar
Thread Starter
Senior Member
10 Anniversary

Joined: Aug 2014
Posts: 1,376
Likes: 161
From: Capestang, France

Bikes: Lots of French, some British and a couple of Italian

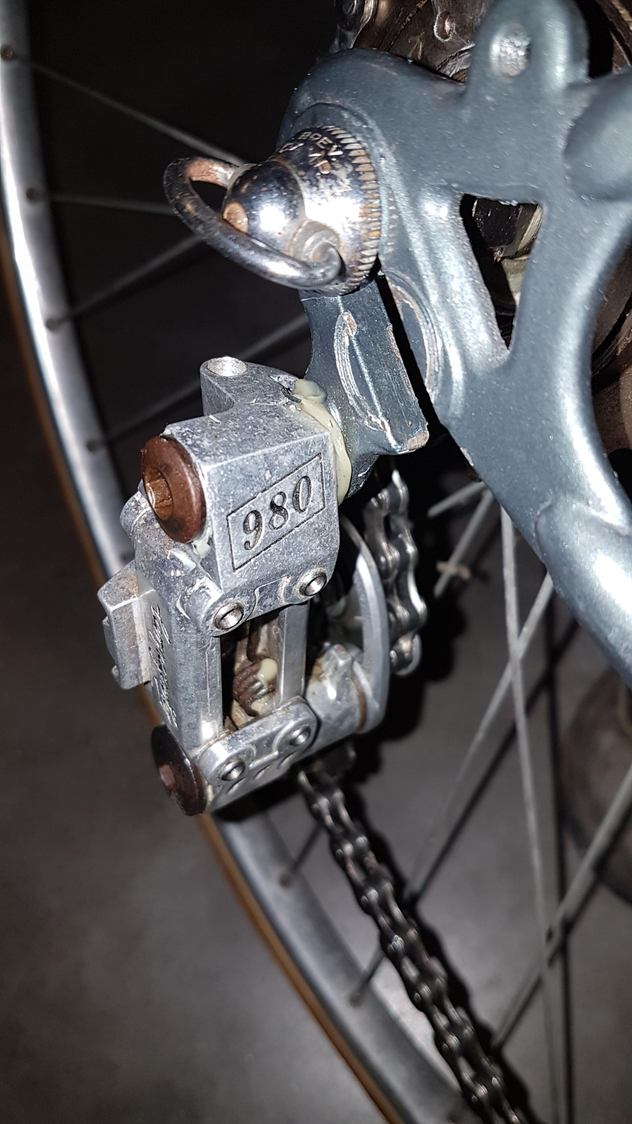

I just noticed the Valero with the 980 steerer and 531 decals has the same lugs
MiloFrance is offline
Reply
Old 11-30-18 | 04:20 PM
  #8
Senior Member
15 Anniversary
Community Builder

Joined: Jun 2006
Posts: 21,804
Likes: 3,704

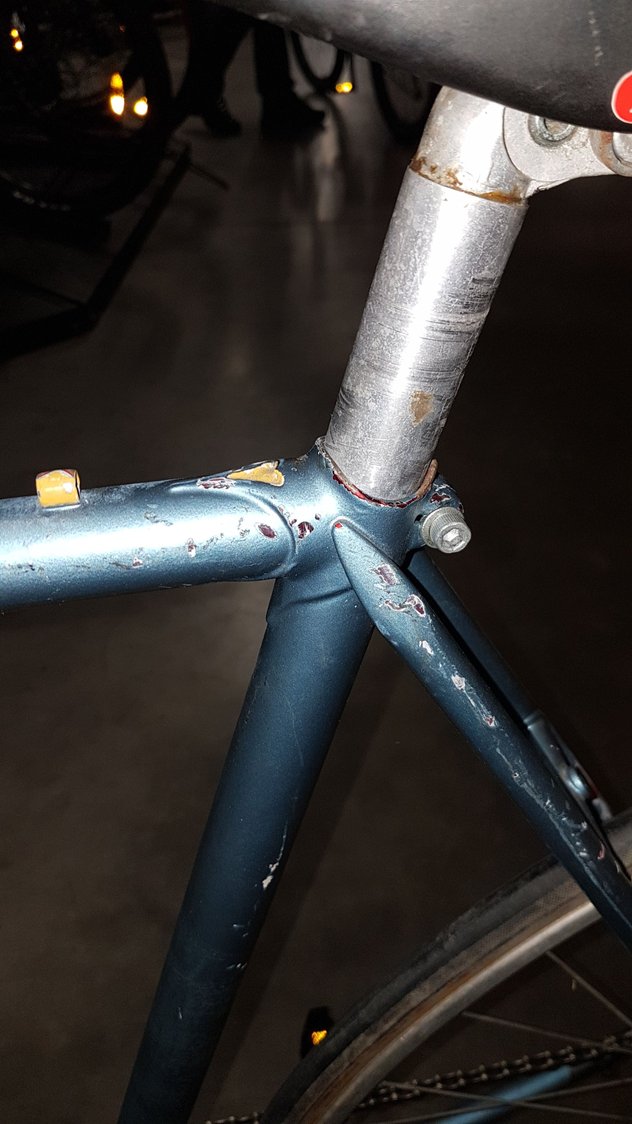

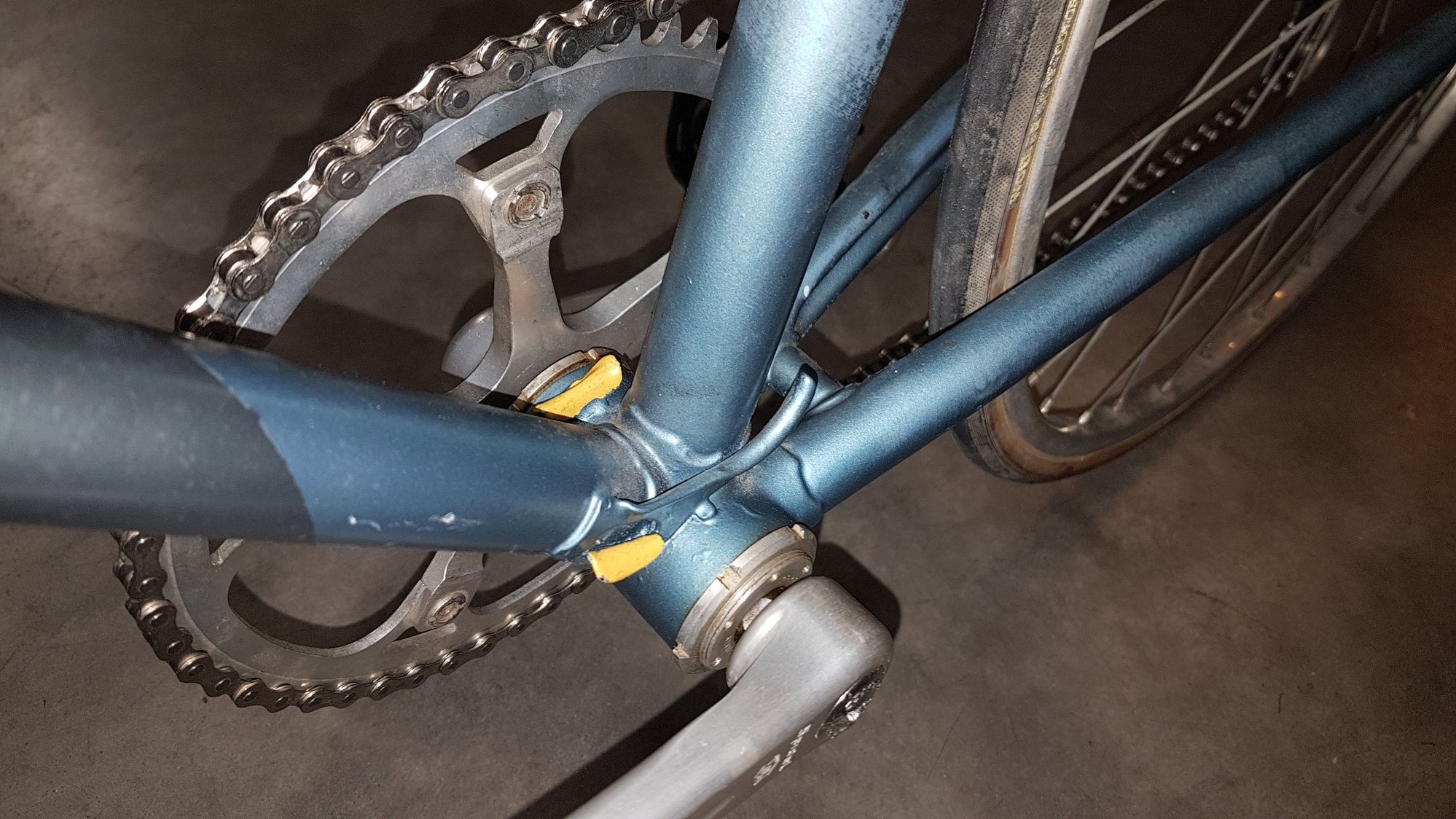

The brazed on bottom bracket cable guides are I think from a clamp on unit cut apart... could be silver soldiered... hope they did not breath the chrome vapors...
Forged rear ends are brand X- not Campagnolo.
Seat stay tops are kind of basic, slit and fold.
While it is Italian threaded... check the shell width... tossing aside the fork, does not look especially Italian... things can get tapped oversize.
The frame I conjecture has seen post creation work. One has to be careful placing any not on those type of modifications to guide the maker.

BTW, when I was a starving student, and putting back into service a frame I had, I bought a 980 rear mech, Just could not buy Japanese on what was otherwise a full Campagnolo bike... well save for the Miche hubs, but they looked the part. Worked as well as a Nuovo Record unit.

Last edited by repechage; 11-30-18 at 04:25 PM.
repechage is offline
Reply
Old 11-30-18 | 06:31 PM
  #9
unworthy1's Avatar
Stop reading my posts!
20 Anniversary
Community Builder

Joined: Sep 2004
Posts: 13,994
Likes: 2,185

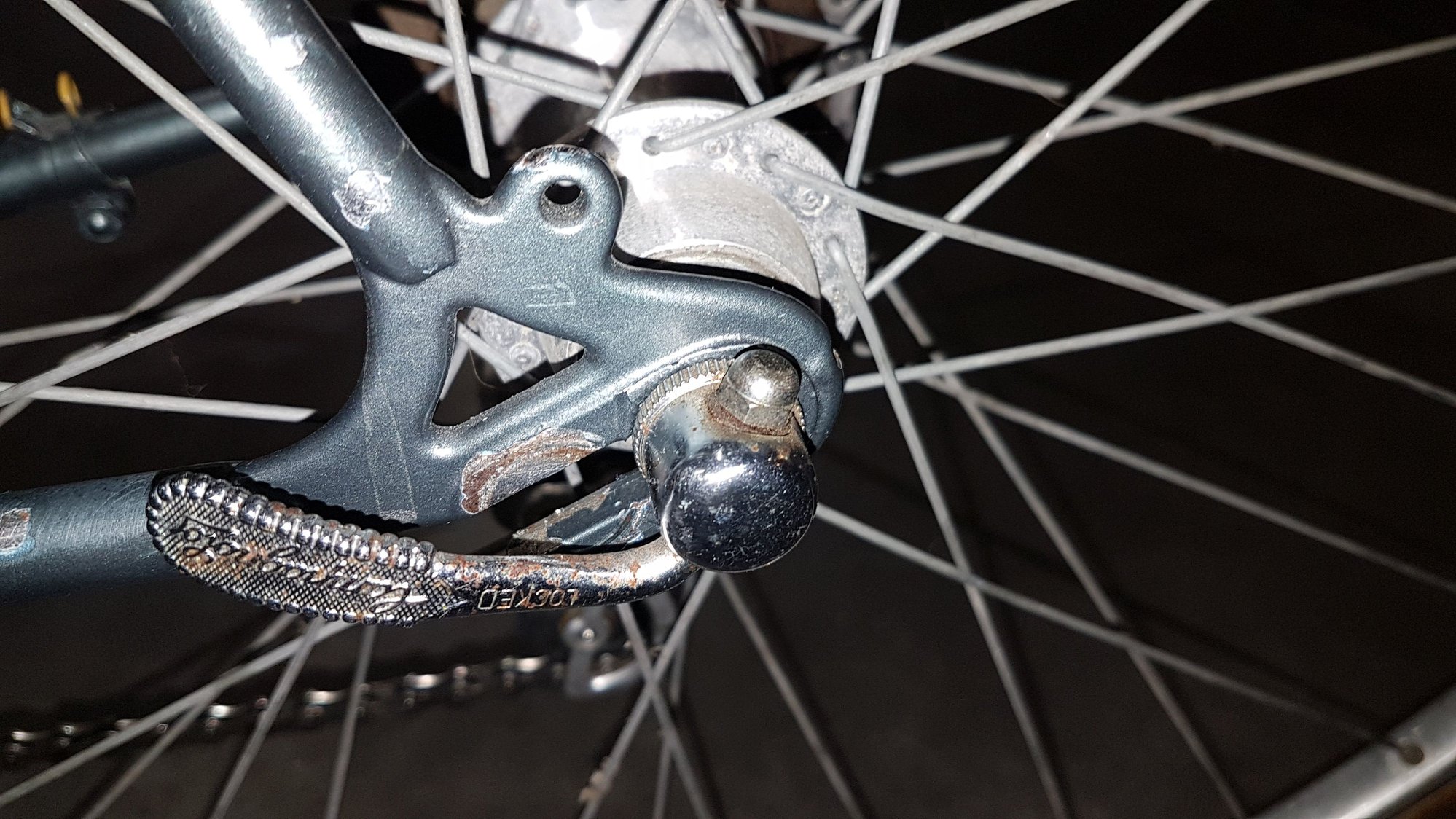

dropouts look like they might be Zeus Gran Sport, check out Velobase. Not sure where that leads (if true) with an Italian BB...
