Help me date this Centurion LeMans!

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Help me date this Centurion LeMans!

Old 01-09-19, 04:43 PM
  #1
Newbie
Thread Starter

Join Date: Jan 2019
Location: Rockville, MD
Posts: 21

Bikes: '86 Bianchi Limited'78 Centurion LeMans, '89 Centurion Ironman Master

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 4 Times in 3 Posts
Help me date this Centurion LeMans!

Hey all. I recently acquired this Centurion LeMans and need your help dating it! Centurions can be more easily dated if they are '80s models and newer because of their colour schemes and serial numbers. According to Sheldon Brown,

Japanese Centurions made between 1980-1990 use a serial number format WXYZZZZ where:

W = a letter, purpose uncertain, but probably indicates a manufacturer or Centurion;
X = a number, indicating the calendar year of manufacture;
Y = a letter, indicating the fortnight of manufacture (A = wk 1 & 2, B = wk 3 & 4, etc)
ZZZZ = four digit number, probably indicating frame number during fortnight of manufacture.




Grimy drivechain, I know.


Example: N4E0283 indicates the 283 frame made during the period of weeks 9-10 in 1984.

My bike has this serial number: NB87571, which does not follow this format. I think it might be a mid to late '70s model, but if anyone has any information that can narrow it down to the year, I'd really appreciate it!

Note: 1979 LeMans were apparently 12-speeds, according to the 1979 catalog. However, mine is a 10-speed. Otherwise, the design and some components seem to match up.
eugew23 is offline
Old 01-09-19, 06:05 PM
  #2
Senior Member

due ruote's Avatar

Join Date: Dec 2006
Posts: 7,704
Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 902 Post(s)
Liked 523 Times in 317 Posts

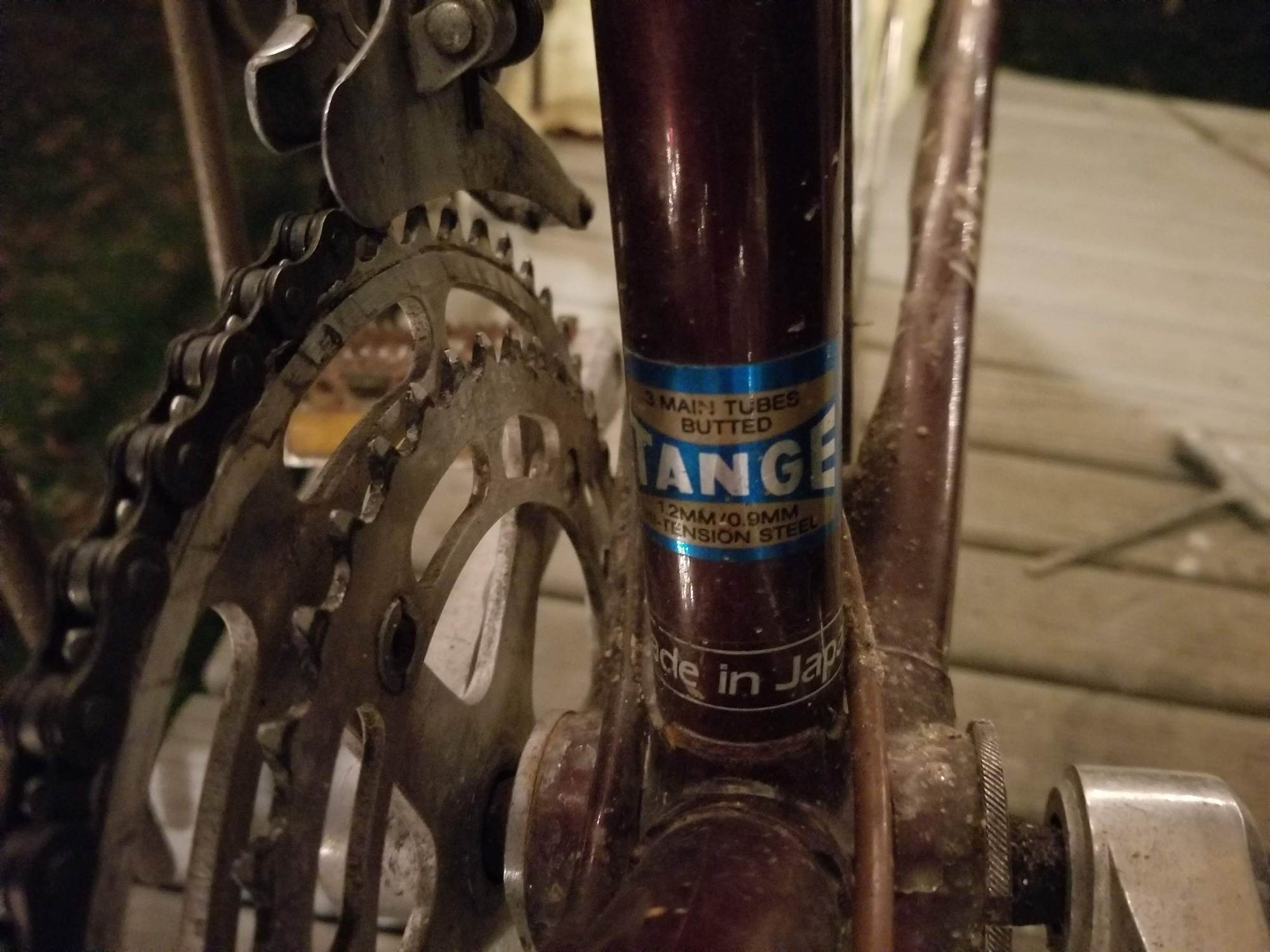

I donít know, but itís cool that the tubing specs are included on the sticker. I donít recall seeing that before. Pretty bike.
due ruote is offline
Old 01-09-19, 09:20 PM
  #3
Banned.

Join Date: Dec 2007
Posts: 27,297
Mentioned: 34 Post(s)
Tagged: 1 Thread(s)
Quoted: 378 Post(s)
Liked 1,407 Times in 908 Posts
1983, I think, went decal vs. headbadge, so it's pre-that.
Your headbadge is the same as a 1979 model, so figure 1979 or earlier.
Most models in 1979 were 2x6, so you can use that as a guide, perhaps.
Graphics match late 70's, early 80's.
That bike will really pop if you completely disassemble it, and then clean/shine each chrome part with 0000 steel wool, polish it up, go after the frame with WD40, elbow grease.


A drive side pic would help, and the components can surely help date it.
RobbieTunes is offline
Old 01-10-19, 09:25 AM
  #4
Senior Member

Join Date: Nov 2004
Posts: 23,233
Mentioned: 651 Post(s)
Tagged: 1 Thread(s)
Quoted: 4719 Post(s)
Likes: 0
Liked 3,030 Times in 1,870 Posts
It's a 1978 model.
T-Mar is offline
Old 01-10-19, 09:31 AM
  #5
Newbie
Thread Starter

Join Date: Jan 2019
Location: Rockville, MD
Posts: 21

Bikes: '86 Bianchi Limited'78 Centurion LeMans, '89 Centurion Ironman Master

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 4 Times in 3 Posts
Here are some new pictures from recently. I'm starting to think it's a '79 model with different a different freewheel.
eugew23 is offline
Old 01-10-19, 09:34 AM
  #6
Newbie
Thread Starter

Join Date: Jan 2019
Location: Rockville, MD
Posts: 21

Bikes: '86 Bianchi Limited'78 Centurion LeMans, '89 Centurion Ironman Master

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 4 Times in 3 Posts


Originally Posted by eugew23
Here are some new pictures from recently. I'm starting to think it's a '79 model with different a different freewheel.



Suntour VX Derailleurs
eugew23 is offline
Old 01-10-19, 09:36 AM
  #7
Newbie
Thread Starter

Join Date: Jan 2019
Location: Rockville, MD
Posts: 21

Bikes: '86 Bianchi Limited'78 Centurion LeMans, '89 Centurion Ironman Master

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 4 Times in 3 Posts
Originally Posted by T-Mar
It's a 1978 model.
Makes sense. Do you know if '78 models had 5 speed freewheels?
eugew23 is offline
Old 01-10-19, 09:50 AM
  #8
Senior Member

Join Date: Jun 2006
Posts: 20,283
Mentioned: 129 Post(s)
Tagged: 0 Thread(s)
Quoted: 3433 Post(s)
Liked 2,773 Times in 1,956 Posts
Originally Posted by eugew23
Makes sense. Do you know if '78 models had 5 speed freewheels?
Nishiki came out with the Olympic 12 about late 1977- early 78, Centurion was quick to market trends, I would not be surprised of a mid cycle change to 6.

The Niko bikes (Bikecology house brand) actually came out with the color co-ordinated cable housings, tape, saddle coverings first, Centurion was quick to respond- so quick that we felt there was corporate espionage.

it was a competitive time.
repechage is offline
Old 01-10-19, 12:12 PM
  #9
Senior Member

fleslider's Avatar

Join Date: Feb 2014
Location: Fort Collins, CO
Posts: 1,504

Bikes: 1974 Paramount ~ 1974 Raleigh Pro ~ 1977 Pro-Tour ~ 1978 TX900 ~ IronMan 85,87:E/M,88:M/Pro,89:E ~ 98 Peugeot Festina Replica

Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 471 Post(s)
Liked 152 Times in 85 Posts
My guess would be a 1979 Model. as it looks like the 78 models had the earlier badge. and the 1979 model Lemans had a 6 speed freewheel.

here is the 79 catalog

https://vintage-centurion.com/literat...on_Catalog.pdf
fleslider is offline
Old 01-10-19, 06:18 PM
  #10
Banned.

Join Date: Dec 2007
Posts: 27,297
Mentioned: 34 Post(s)
Tagged: 1 Thread(s)
Quoted: 378 Post(s)
Liked 1,407 Times in 908 Posts
Originally Posted by repechage
Nishiki came out with the Olympic 12 about late 1977- early 78, Centurion was quick to market trends, I would not be surprised of a mid cycle change to 6.

The Niko bikes (Bikecology house brand) actually came out with the color co-ordinated cable housings, tape, saddle coverings first, Centurion was quick to respond- so quick that we felt there was corporate espionage.

it was a competitive time.
It probably didn't hurt that Alan Goldsmith was associated with both Bikecology and Centurion at the time.

He negotiated the Cinelli deal with Centurion, and had a hand in the last 3-4 years of the Ironman.

He later got involved with ParkPre. Last I heard, he was also involved with Specialized (in his 80's).
RobbieTunes is offline
Old 01-11-19, 07:07 AM
  #11
Senior Member

Join Date: Nov 2004
Posts: 23,233
Mentioned: 651 Post(s)
Tagged: 1 Thread(s)
Quoted: 4719 Post(s)
Likes: 0
Liked 3,030 Times in 1,870 Posts
I have an April 1979 comparison test stating that the Le Mans employed a 5 speed freewheel, specifically 14-17-20-24-30T. Given the time to get an article to print during the era, the test may have been conducted using 1978 models. Consequently, it would appear that the Le Mans was 10 speed through at least 1978 and there is a good probability that the current freewheel is OEM.

If the OP wants a higher degree of confidence regarding the originality of his freewheel (and the model year of the bicycle), he can start checking component date codes using the information here; Date of Manufacture of Bicycle Components can be used to date a bike: component dating . I suspect he'll find late 1977 to very early 1978 date codes, which would be consistent with a 1978 model.
T-Mar is offline
Old 01-11-19, 11:52 AM
  #12
Senior Member

fleslider's Avatar

Join Date: Feb 2014
Location: Fort Collins, CO
Posts: 1,504

Bikes: 1974 Paramount ~ 1974 Raleigh Pro ~ 1977 Pro-Tour ~ 1978 TX900 ~ IronMan 85,87:E/M,88:M/Pro,89:E ~ 98 Peugeot Festina Replica

Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 471 Post(s)
Liked 152 Times in 85 Posts
Originally Posted by T-Mar
I have an April 1979 comparison test stating that the Le Mans employed a 5 speed freewheel, specifically 14-17-20-24-30T. Given the time to get an article to print during the era, the test may have been conducted using 1978 models. Consequently, it would appear that the Le Mans was 10 speed through at least 1978 and there is a good probability that the current freewheel is OEM.

If the OP wants a higher degree of confidence regarding the originality of his freewheel (and the model year of the bicycle), he can start checking component date codes using the information here; Date of Manufacture of Bicycle Components can be used to date a bike: component dating . I suspect he'll find late 1977 to very early 1978 date codes, which would be consistent with a 1978 model.
Interesting T Mar, Does the bike in the article have the round headbadge or the earlier style?
fleslider is offline
Old 01-11-19, 01:39 PM
  #13
Sunshine

mstateglfr's Avatar

Join Date: Aug 2014
Location: Des Moines, IA
Posts: 16,412

Bikes: '18 class built steel roadbike, '19 Fairlight Secan, '88 Schwinn Premis , Black Mountain Cycles Monstercross V4, '89 Novara Trionfo

Mentioned: 123 Post(s)
Tagged: 0 Thread(s)
Quoted: 10802 Post(s)
Liked 7,273 Times in 4,079 Posts
very cool that the tubing badge includes the butting measurements.
mstateglfr is offline
Old 01-11-19, 03:56 PM
  #14
Senior Member

Join Date: Nov 2004
Posts: 23,233
Mentioned: 651 Post(s)
Tagged: 1 Thread(s)
Quoted: 4719 Post(s)
Likes: 0
Liked 3,030 Times in 1,870 Posts
Originally Posted by fleslider
Interesting T Mar, Does the bike in the article have the round headbadge or the earlier style?
There weren't any pictures for the bicycles included in the article.
T-Mar is offline
