Replacing Superbe Pro Pads

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Replacing Superbe Pro Pads

Old 02-16-19, 08:28 PM
  #1
Classtime
Senior Member
Thread Starter

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 1,549

Bikes: 69 PX-10, 81 Medici, 84 Turbo, 87 IM, 2010 Milwaukee Road, 2011 RS

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 542 Post(s)
Liked 21 Times in 18 Posts
Replacing Superbe Pro Pads


Are there any tricks? I'm about to order some new Koolstops for my Centurion Turbo. Do I destroy the originals and "squeeze" the Koolstops in?
Classtime is offline
Old 02-16-19, 09:18 PM
  #2
Vintage_Cyclist
Senior Member

Vintage_Cyclist's Avatar

Join Date: Nov 2013
Location: Big Apple
Posts: 1,236

Bikes: yes

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 316 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Carefully, pry down one end of the metal holder. Push out the rubber pad. Push in the new rubber pad. Bend the metal end back in place.

I had them angled in a bench vise to do the pushing in and out. The head of the threaded bolt protrudes slightly, which is why the center of the pad is recessed; this will slightly obstruct the pads as you push the old one out and new one in.

If you manage to break off the end tab completely, just do as above and orient the tab so the braking direction is towards the remaining tabbed end.
Vintage_Cyclist is offline
Old 02-16-19, 09:33 PM
  #3
crank_addict
Senior Member

crank_addict's Avatar

Join Date: Aug 2013
Posts: 6,417
Mentioned: 80 Post(s)
Tagged: 0 Thread(s)
Quoted: 1060 Post(s)
Likes: 0
Liked 17 Times in 12 Posts
There's no need to bend or manipulate a tab. The old pad is pried out, and often just by gripping with a slip joint plier and leverage.

The new pad is installed by starting one long side in and then with a flat blade screwdriver, work the other side of the rubber -to fully insert.

Work with patience, carefully but firm. I've done many.

Excellent choice with Kool Stop

Last edited by crank_addict; 02-16-19 at 09:36 PM.
crank_addict is offline
Old 02-16-19, 09:55 PM
  #4
Fahrenheit531
50th Anniversary Edition

Fahrenheit531's Avatar

Join Date: Aug 2013
Location: Tucson, AZ
Posts: 3,451

Bikes: Schwinn Paramount ('71) and Volare ('78); Raleigh Competition GS ('79)

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 543 Post(s)
Liked 55 Times in 30 Posts
Originally Posted by crank_addict View Post
There's no need to bend or manipulate a tab. The old pad is pried out, and often just by gripping with a slip joint plier and leverage.

The new pad is installed by starting one long side in and then with a flat blade screwdriver, work the other side of the rubber -to fully insert.

Work with patience, carefully but firm. I've done many.

Excellent choice with Kool Stop
+1 on the patience part.
You will use swear words.
__________________
A race bike in any era is a highly personal choice that at its "best" balances the requirements of fit, weight, handling, durability and cost tempered by the willingness to toss it and oneself down the pavement at considerable speed. ~Bandera
Fahrenheit531 is offline
Old 02-16-19, 11:08 PM
  #5
davester
Senior Member

davester's Avatar

Join Date: Oct 2012
Location: Berkeley CA
Posts: 1,518

Bikes: 1981 Ron Cooper, 1974 Cinelli Super Corsa, 2000 Gary Fisher Sugar 1, 1986 Miyata 710, 1983 Nishiki Cresta

Mentioned: 44 Post(s)
Tagged: 0 Thread(s)
Quoted: 396 Post(s)
Likes: 0
Liked 15 Times in 13 Posts
Originally Posted by Vintage_Cyclist View Post
Carefully, pry down one end of the metal holder. Push out the rubber pad. Push in the new rubber pad. Bend the metal end back in place.

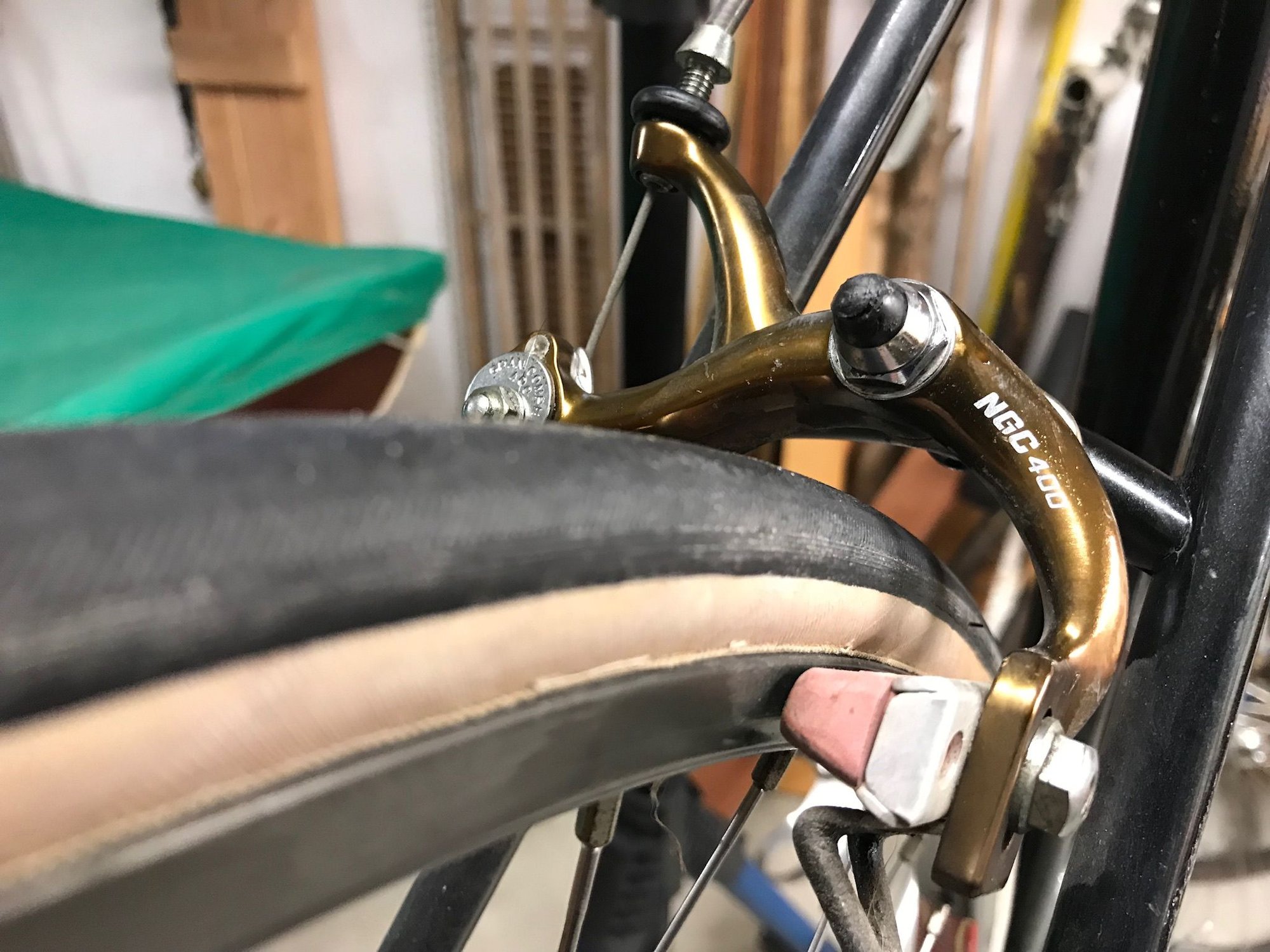

With all due respect to vintage cyclist, absolutely don't do this! I did this many years ago and the aluminum holders snapped off. After buying Superbe pads from Koolstop a year ago I simply pried out the pads with a screwdriver and then pressed them back in with a woodworking clamp. Easy peasy! No bending of metal necessary. I do note that you said Superbe Pro pads, which (at least for the later generation) are rounded at the end. However the photo posted suggests that we are talking regular Superbe pads, or first generation Superbe Pro.
davester is offline
