Freewheel Question

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Freewheel Question

Old 03-16-19, 10:08 AM
  #1
cpsqlrwn
OldSchool
Thread Starter

Join Date: Jul 2007
Location: Chesapeake, VA
Posts: 1,214
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 77 Post(s)
Liked 25 Times in 17 Posts
Freewheel Question

I've got a 1982 Trek 613 that has an Atom rear hub (not a helicomatic hub). Presently, this is a 6-speed. I want to change the freewheel and I am wondering what threads I would be needing. The Trek brochure indicates that the hubs were originally mated up with a Suntour Mighty-6 freewheel. Thinking I would replace the 6 speed freewheel with another 6-speed or move up to 7 speed. Could I look for any Suntour freewheel, like a Winner or Winner Pro or New Winner? How about, Sachs, Regina, etc.? Just don't know what kind of threads would be on a French hub. Thanks for any info.
cpsqlrwn is offline
Old 03-16-19, 10:56 AM
  #2
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 5,259

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 66 Post(s)
Tagged: 0 Thread(s)
Quoted: 1609 Post(s)
Liked 2,184 Times in 1,078 Posts
Its possible it doesnt have french threads.
52telecaster is offline
Old 03-16-19, 11:11 AM
  #3
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 23,230
Mentioned: 631 Post(s)
Tagged: 1 Thread(s)
Quoted: 4706 Post(s)
Likes: 0
Liked 2,978 Times in 1,844 Posts
The best way to determine the hub threading would be to examine the current freewheel. Most freewheels are marked if they are other than their native threading. Maeda stamps the notched removal barrel with an "M" or "Metric" if it is French threaded (see photo). If not marked as such, Maeda freewheels are their native English threading.
T-Mar is offline
Old 03-16-19, 11:14 AM
  #4
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 5,259

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 66 Post(s)
Tagged: 0 Thread(s)
Quoted: 1609 Post(s)
Liked 2,184 Times in 1,078 Posts
Originally Posted by T-Mar View Post
The best way to determine the hub threading would be to examine the current freewheel. Most freewheels are marked if they are other than their native threading. Maeda stamps the notched removal barrel with an "M" or "Metric" if it is French threaded (see photo). If not marked as such, Maeda freewheels are their native English threading.
excellent post!
52telecaster is offline
Old 03-16-19, 12:36 PM
  #5
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: New York, NY, USA
Posts: 40,212

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 498 Post(s)
Tagged: 0 Thread(s)
Quoted: 7037 Post(s)
Liked 1,834 Times in 1,126 Posts
I'd be surprised if Trek ever shipping a bike with a French threaded freewheel. Very surprised.
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

When man invented the bicycle he reached the peak of his attainments. Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Old 03-16-19, 12:47 PM
  #6
SurferRosa
seor miembro

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 6,683

Bikes: Old school lightweights

Mentioned: 77 Post(s)
Tagged: 0 Thread(s)
Quoted: 2816 Post(s)
Liked 4,023 Times in 2,137 Posts
This is one of those situations where it comes in handy to have too many bikes and too many freewheels on hand.
SurferRosa is offline
Old 03-16-19, 01:14 PM
  #7
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 24,077

Bikes: Several, mostly not name brands.

Mentioned: 147 Post(s)
Tagged: 0 Thread(s)
Quoted: 3195 Post(s)
Liked 2,505 Times in 1,473 Posts
Originally Posted by noglider View Post
I'd be surprised if Trek ever shipping a bike with a French threaded freewheel. Very surprised.

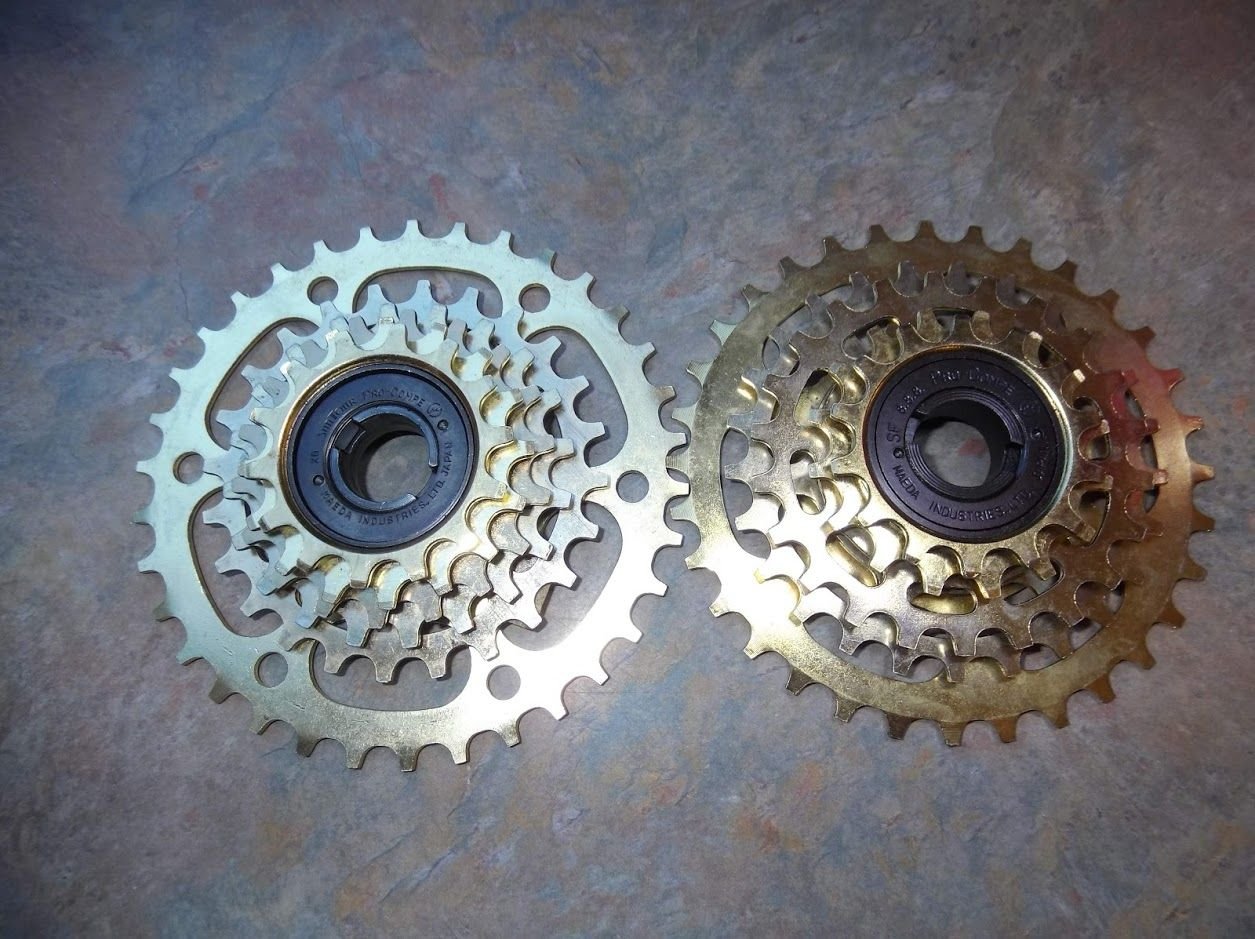

If it's the original wheel, it will be English thread. If you're not certain about the wheel's provenance, check the threads. The freewheel itself may be marked as T-Mar notes, and as below:


Source: Sutherland's 4th Edition

Otherwise, a known, English thread bottom bracket lockring will thread onto an English thread freewheel hub, but not onto a metric thread freewheel hub.

Last edited by JohnDThompson; 03-16-19 at 01:17 PM.
JohnDThompson is offline
Old 03-16-19, 03:34 PM
  #8
ramzilla
Senior Member

ramzilla's Avatar

Join Date: Dec 2014
Location: Fernandina Beach FL
Posts: 3,546

Bikes: Vintage Japanese Bicycles, Tange, Ishiwata, Kuwahara

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 690 Post(s)
Liked 287 Times in 230 Posts
I'd grab a Shimano freewheel and grease everything up real good first and then very gently try to thread it on the hub. Completely back it off if there's any resistance at all. Or, clean the threads on the hub. Get a magnifying glass. Put a 1" mark on it & see if you can count 24 threads or something. Or, just chunk it in the trash & buy a new set of wheels on sale for $125.
ramzilla is offline
Old 03-16-19, 04:02 PM
  #9
Mr. Spadoni
Senior Member

Join Date: Jan 2015
Posts: 706
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 269 Post(s)
Liked 217 Times in 126 Posts
+1 on the no French threads on Trek. Everything else they had was BSA, why muck up the supply chain with parts of a different standard? Helio hubs were a different matter....there was an end user reason that they spec’d those hubs.
Mr. Spadoni is offline
Old 03-16-19, 06:36 PM
  #10
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: An Island on the Coast of GA!
Posts: 12,330

Bikes: Snazzy* Schwinns, Classy Cannondales, Aero Lotus & a Lonely '83 Santana Tandem (* Ed.)

Mentioned: 120 Post(s)
Tagged: 0 Thread(s)
Quoted: 1098 Post(s)
Liked 1,152 Times in 559 Posts
I can't say I've ever heard of a "Suntour Mighty" freewheel. Has anyone else?

Try a Sachs Aris 7 speed freewheel.
__________________
Bob
Enjoying the GA coast all year long!

Thanks for visiting my website: www.freewheelspa.com





pastorbobnlnh is offline
Old 03-17-19, 03:17 PM
  #11
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 24,077

Bikes: Several, mostly not name brands.

Mentioned: 147 Post(s)
Tagged: 0 Thread(s)
Quoted: 3195 Post(s)
Liked 2,505 Times in 1,473 Posts
Originally Posted by pastorbobnlnh View Post
I can't say I've ever heard of a "Suntour Mighty" freewheel. Has anyone else?
I suspect he meant "Ultra-Six."
JohnDThompson is offline
Old 03-17-19, 04:07 PM
  #12
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 23,230
Mentioned: 631 Post(s)
Tagged: 1 Thread(s)
Quoted: 4706 Post(s)
Likes: 0
Liked 2,978 Times in 1,844 Posts
I haven't heard of a Mighty-6 freewheel either but in the OP's defence they were simply quoting from the Trek literature, where it states this freewheel in multiple places for several models. It must have been one of those days when JDT was injured and assigned to vet catalogue copy.
T-Mar is offline
Old 03-17-19, 06:33 PM
  #13
cpsqlrwn
OldSchool
Thread Starter

Join Date: Jul 2007
Location: Chesapeake, VA
Posts: 1,214
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 77 Post(s)
Liked 25 Times in 17 Posts
Originally Posted by T-Mar View Post
I haven't heard of a Mighty-6 freewheel either but in the OP's defence they were simply quoting from the Trek literature, where it states this freewheel in multiple places for several models. It must have been one of those days when JDT was injured and assigned to vet catalogue copy.

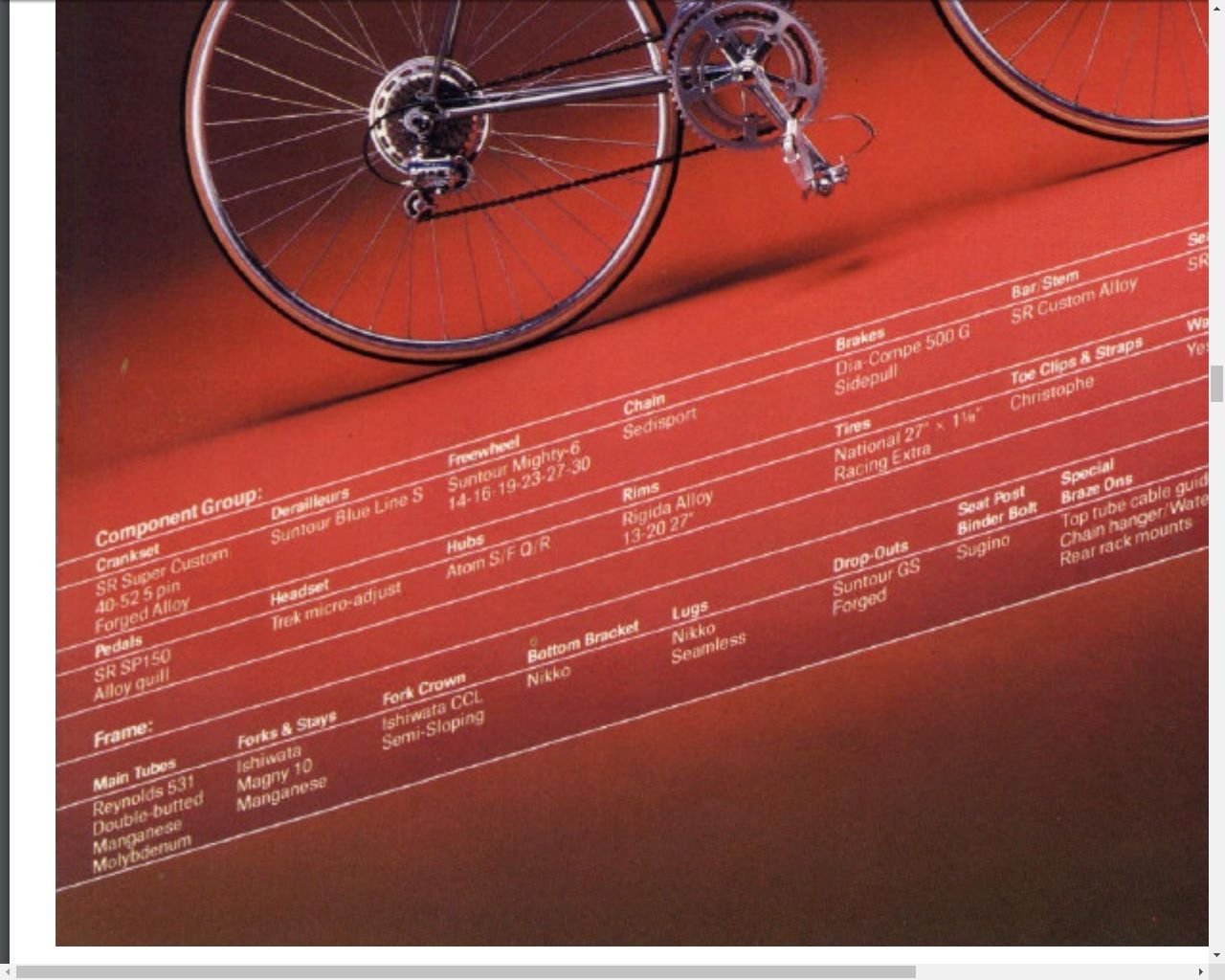

Thanks to everyone for all the feedback. I am thoroughly satisfied that the threads are not French or some other weird thing. I have several nice Sachs freewheels and I am going to go that route first. Here is the page in the Trek catalog that references the Suntour Mighty-6 freewheel. Thanks for having my back, T-Mar!


cpsqlrwn is offline
Old 03-18-19, 03:59 AM
  #14
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: An Island on the Coast of GA!
Posts: 12,330

Bikes: Snazzy* Schwinns, Classy Cannondales, Aero Lotus & a Lonely '83 Santana Tandem (* Ed.)

Mentioned: 120 Post(s)
Tagged: 0 Thread(s)
Quoted: 1098 Post(s)
Liked 1,152 Times in 559 Posts
I wonder if "Suntour Mighty-6" shouldn't have been "Suntour Maeda-6?" And while this is a guess and I'm hoping someone familiar with Japanese can chime in, can "maeda" be defined as "mighty" or "strong?"

Based on the 14T small sprocket my guess is this was either a Perfect which @T-Mar pictured above or a ProCompe which sometimes came stamped as "Suntour and Maeda" or just "8.8.8. and Maeda."
"
__________________
Bob
Enjoying the GA coast all year long!

Thanks for visiting my website: www.freewheelspa.com





pastorbobnlnh is offline
Old 03-18-19, 07:12 AM
  #15
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 6,258
Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 2120 Post(s)
Liked 1,266 Times in 911 Posts
I bought an '82 613 new, and remember the "Mighty-6" reference in the catalog (wish I'd kept the paper copy). IIRC, it was a Perfect that it actually came with.
madpogue is offline
Old 03-18-19, 07:51 AM
  #16
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 23,230
Mentioned: 631 Post(s)
Tagged: 1 Thread(s)
Quoted: 4706 Post(s)
Likes: 0
Liked 2,978 Times in 1,844 Posts

Maeda =前田
前= previous
田= rice field

T-Mar is offline
