Decoding of Eddy Merckx frames

Old 04-03-21, 05:55 PM
  #476
M1T
Member

Join Date: Sep 2017
Location: Basalt, Colorado
Posts: 43

Bikes: Several Italian bikes from the 60's - 80's, 4 English Lightweights (1949-1970), Riding bikes- SOMA Triple Cross gravel bike, SOMA SAGA DC touring bike, Pivot Les Fat for winter riding and long distance bikepacking. One modern Carbon bike.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 22 Times in 7 Posts

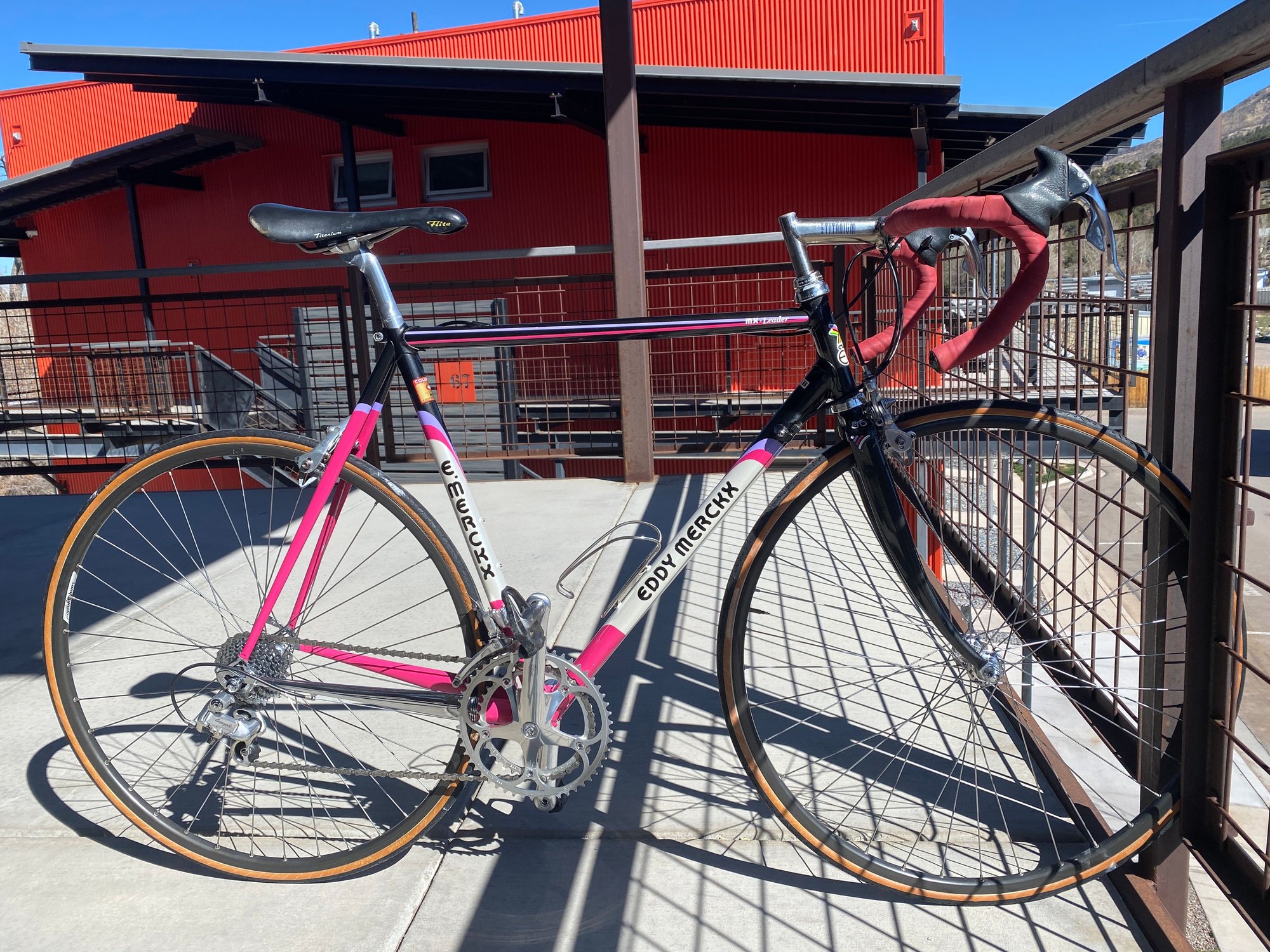

Hello... last one (for a while). L - D (?- too much paint to tell), R - D 1624. 54 CM C to C



MX Leader in almost new shape, purchased on eBay from Italy. Thank you!
M1T is offline
Old 04-03-21, 11:27 PM
  #477
CyclesMakaron
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 720
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 150 Post(s)
Likes: 0
Liked 278 Times in 193 Posts
H D1624 - 5 weeks younger brother... same version
CyclesMakaron is offline
Old 04-06-21, 04:38 PM
  #478
Randizzle76
Junior Member

Join Date: Mar 2021
Location: Oregon
Posts: 21
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 1 Time in 1 Post

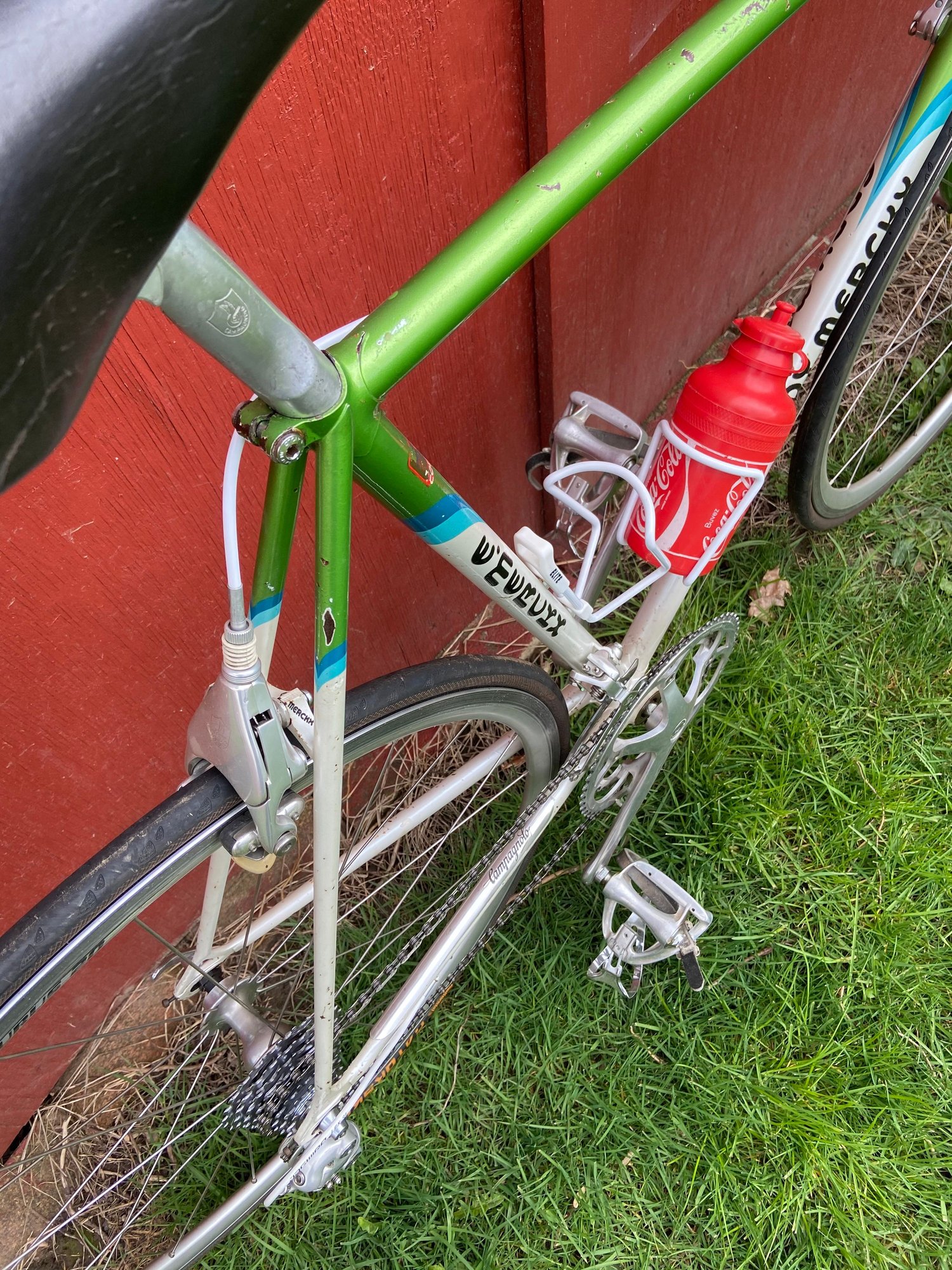

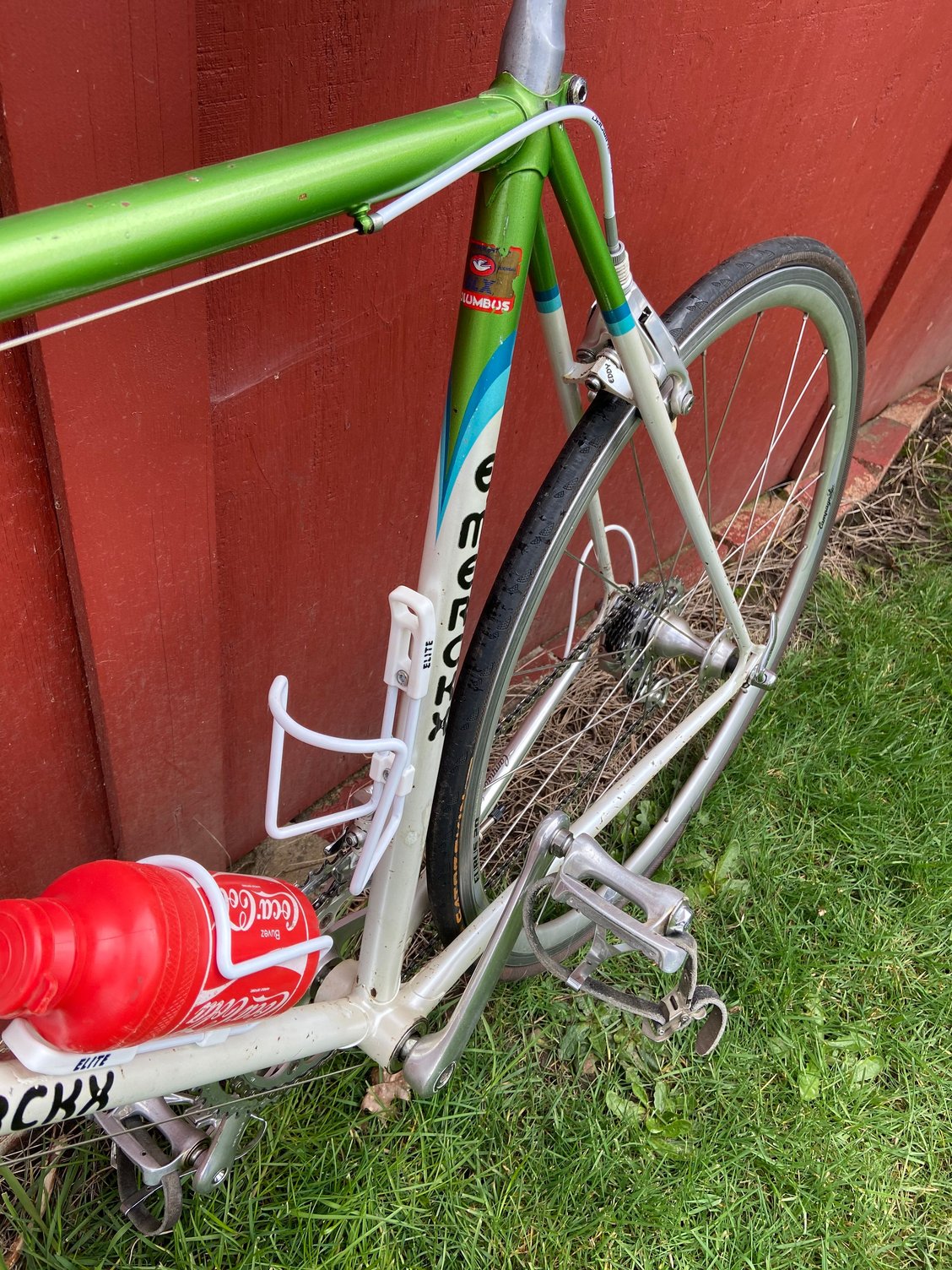

This is my current build. I really am not changing much from how I received it, except I changed the wheels, and am installing new cables, hoods and bar tape, as well as replacing a few worn out components. This is a Kelme team bike that came from rider Jose Dario Hernandez (Kelme 1989-90). This frame is very well used with tons of wear. I believe I saw in another post that this paint was only used by Kelme in 1990. BB stamp: D4X B8228. Number hanger, no chain hanger. Interesting the decal says TSX, but if I understand correctly the X on the BB indicates SLX. Thanks for any information!



Last edited by Randizzle76; 04-07-21 at 09:11 AM.
Randizzle76 is offline
Old 04-07-21, 01:28 PM
  #479
CyclesMakaron
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 720
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 150 Post(s)
Likes: 0
Liked 278 Times in 193 Posts
Team bikes generally did not have full "technical" factory markings (due to unusual "rider specific" geometry and frequent "tube mixing").
X is always the SLX/SPX designation.
The TSX sticker may have appeared for "promotional" reasons (a common occurrence on team profi frames).
Frame built November/December 1989, colors definitely Kelme 1990.
Nice frame
CyclesMakaron is offline
Old 04-07-21, 04:20 PM
  #480
Randizzle76
Junior Member

Join Date: Mar 2021
Location: Oregon
Posts: 21
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Great info, thank you!

This one may not be on the correct forum, and if not I apologize, but any info would as always be appreciated. This one is a Caloi by Eddy Merckx in Motorola paint. All I really know is that Motorola rode these toward the end and that the frames were Merckx branded as Caloi. It is Columbus tubing, but I do not know which tubing. It looks similar to a Corsa Extra, so maybe SLX. BB stamp: on left an oval or “O” F6205. Thank you!




Randizzle76 is offline
Old 04-07-21, 11:34 PM
  #481
CyclesMakaron
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 720
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 150 Post(s)
Likes: 0
Liked 278 Times in 193 Posts
This is definitely the right forum That looks like a 1995 Eddy Merckx Strada built with Columbus Cromor/Gara tubing
"Flipped 0" is the frame size (60) - at that time "full markings" were not always used
...but just in case, check the inside of the tubes visible through the BB cover (photo helps)
CyclesMakaron is offline
Old 04-08-21, 08:31 AM
  #482
Randizzle76
Junior Member

Join Date: Mar 2021
Location: Oregon
Posts: 21
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Wow, very interesting. Here is inside the BB, hopefully this is what you needed to see.



Randizzle76 is offline
Old 04-08-21, 04:47 PM
  #483
Randizzle76
Junior Member

Join Date: Mar 2021
Location: Oregon
Posts: 21
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Last one... for now. Although I love them all, this one may very well be my favorite. I have always loved this Kelme paint scheme and this appears to be a team bike. I would love to know the rider, but probably will never know. BB stamp: A A2308. I love this bike! Thanks for any information on this one!






Randizzle76 is offline
Likes For Randizzle76:
Old 04-10-21, 12:42 AM
  #484
CyclesMakaron
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 720
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 150 Post(s)
Likes: 0
Liked 278 Times in 193 Posts
You left the best for last
If this is indeed a team bike built for Kelme for the 1988 season (and there is no reason to think otherwise) then.... just shattered my theory (actually two theories) of dating the EMC 1986 - 1989 frame.
...and very well - since they were wrong
At the same time he clarified some "anomalies" (as I thought so far) regarding the introduction of "teams" paint schemes in the A-series.
Sometimes it's good to turn the puzzle table over - especially if a picture of the Eiffel Tower emerges .... and on the box you have the Leaning Tower of Pisa....
Kelme was using 86/87 (red/white) paint scheme still in Vuelta a Galicia in August 1987 so our hero didn't appear until September 1987 at the earliest - so far I can't get used to the idea that maybe even later
So far I dated such a frame to the beginning (maybe March) 1987... this is enough for a whole comment
OK, I'm putting it together from the beginning - let's hope the Empire State Building doesn't appear
CyclesMakaron is offline
Likes For CyclesMakaron:
Old 04-20-21, 11:08 AM
  #485
Philippe66
Newbie

Join Date: Apr 2021
Posts: 2
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Naked MXL

Hello,
I have bought a completely stripped MXL frame (no fork) and would like to get some more insight on its year of fabrication and, possibly, the original paint. Two things stand out for me on this frame. The first is that the headtube and the headtube lugs are chromed. I suspect the headtube was painted and only the chrome on the lugs were visible. The second is that the chainstay and, in fact, the entire rear triangle, is *not* chromed. Frame stampings are "P" (drive side) and G6207 (non drive side). Thanks for any help giving this frame its original colors back!
Philippe66 is offline
Old 04-20-21, 11:48 AM
  #486
CyclesMakaron
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 720
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 150 Post(s)
Likes: 0
Liked 278 Times in 193 Posts
P G6207 is a mid-1997 frame
Front lugs chrome plating is a paid option (1190 Belgian francs)
More interesting is the lack of chrome plating on the right chainstay - this was standard at the time.
Remnants of the main color may have been preserved inside the tubes visible through the BB cover.
There are several paint schemes to choose from:
- old, introduced in 93 and 94 VL and FN
- new, DR of 96 or RA of 97
- classic one-color
(to be seen in 1995-1998 catalogs)
CyclesMakaron is offline
Old 04-20-21, 01:00 PM
  #487
Philippe66
Newbie

Join Date: Apr 2021
Posts: 2
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by CyclesMakaron View Post
P G6207 is a mid-1997 frame
Front lugs chrome plating is a paid option (1190 Belgian francs)
More interesting is the lack of chrome plating on the right chainstay - this was standard at the time.
Remnants of the main color may have been preserved inside the tubes visible through the BB cover.
There are several paint schemes to choose from:
- old, introduced in 93 and 94 VL and FN
- new, DR of 96 or RA of 97
- classic one-color
(to be seen in 1995-1998 catalogs)
Merci !
Philippe66 is offline
Old 05-06-21, 09:54 AM
  #488
messy11
Member

Join Date: Jul 2015
Location: Jakarta
Posts: 26

Bikes: Salsa Colossal, Merckx Corsa Extra Max

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked 5 Times in 2 Posts
Hi cyclesmakaron, back again in here to ask about some merckx i found, its corsa extra with similar fork to mxl. Probably the newer one looking from the paint scheme (is it gan?)

The number is H D6928. Is this come with New SLX tube? Your feedback is well appreciated🙏

messy11 is offline
Old 05-06-21, 12:31 PM
  #489
alex_iacob
Junior Member

Join Date: Nov 2016
Posts: 11

Bikes: Moser Pista 51.151, Colnago Superissimo, Vallega Road SLX, Koga Miyata Gentsracer

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Heeelp

Spoiler

Regards,
Alex
alex_iacob is offline
Old 05-07-21, 12:06 AM
  #490
CyclesMakaron
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 720
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 150 Post(s)
Likes: 0
Liked 278 Times in 193 Posts
H D6928 built in spring 1993, Corsa Extra frame, Mx Leader fork.
Repainted with M9B pattern used since 1998 (this is not GAN)
New SLX was not used then.
Unusual is the lack of X-marking (surely this is Columbus?) and the frame +fork combination.
I saw something like this only in profi team frame (Telekom)
Markings on the steering tube?

H4X 4258 - This is a 1992 Corsa Extra SLX, the "EMC man" forgot the letter D
CyclesMakaron is offline
Old 05-07-21, 09:21 PM
  #491
Seanaus
Member

Join Date: Jul 2020
Location: Australia
Posts: 48
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 30 Times in 13 Posts
Originally Posted by CyclesMakaron View Post
H D6928 built in spring 1993, Corsa Extra frame, Mx Leader fork.
Repainted with M9B pattern used since 1998 (this is not GAN)
New SLX was not used then.
Unusual is the lack of X-marking (surely this is Columbus?) and the frame +fork combination.
Jacek, what is your opinion on the chainstays having no EM pantograph or engraved seatstay caps? Thanks, Sean.
Seanaus is offline
Old 05-07-21, 11:42 PM
  #492
CyclesMakaron
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 720
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 150 Post(s)
Likes: 0
Liked 278 Times in 193 Posts
"chainstay having no EM pantograph" - ?
"engraved seatstay caps" - "narrow" seatstay, it's just an option - introduced in 1984 with the Pro model.
CyclesMakaron is offline
Old 05-07-21, 11:52 PM
  #493
Seanaus
Member

Join Date: Jul 2020
Location: Australia
Posts: 48
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 30 Times in 13 Posts
Originally Posted by CyclesMakaron View Post
"chainstay having no EM pantograph" - ?
"engraved seatstay caps" - "narrow" seatstay, it's just an option - introduced in 1984 with the Pro model.
Thanks, was unaware this was an available option always learning
Seanaus is offline
Old 05-10-21, 10:14 AM
  #494
messy11
Member

Join Date: Jul 2015
Location: Jakarta
Posts: 26

Bikes: Salsa Colossal, Merckx Corsa Extra Max

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked 5 Times in 2 Posts
Originally Posted by CyclesMakaron View Post
H D6928 built in spring 1993, Corsa Extra frame, Mx Leader fork.
Repainted with M9B pattern used since 1998 (this is not GAN)
New SLX was not used then.
Unusual is the lack of X-marking (surely this is Columbus?) and the frame +fork combination.
I saw something like this only in profi team frame (Telekom)
Markings on the steering tube?

H4X 4258 - This is a 1992 Corsa Extra SLX, the "EMC man" forgot the letter D
thanks mate! your "merckx" knowledge is second to none!

the corsa extra with mx leader fork quite unusual. lucky its a tad too big for me.

also found this mx leader with number L - D8586 - a repainted one. is it produced in 94?
messy11 is offline
Old 05-10-21, 12:58 PM
  #495
CyclesMakaron
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 720
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 150 Post(s)
Likes: 0
Liked 278 Times in 193 Posts
L D8586 = Fall 1993
CyclesMakaron is offline
Old 05-13-21, 05:34 AM
  #496
messy11
Member

Join Date: Jul 2015
Location: Jakarta
Posts: 26

Bikes: Salsa Colossal, Merckx Corsa Extra Max

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked 5 Times in 2 Posts
Originally Posted by CyclesMakaron View Post
L D8586 = Fall 1993
Thanks again, Jacek. Can you identify the type of paintwork from the frame number?

Trying to make the seller to ship the frame now, looks like it will be a quite challenging task in this pandemic

​​​​​​
messy11 is offline
Old 05-13-21, 07:27 AM
  #497
CyclesMakaron
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 720
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 150 Post(s)
Likes: 0
Liked 278 Times in 193 Posts
Unfortunately the serial number is not linked to the paint scheme
Last chance: "old" paint on steering tube and "card" - maybe it survived
Over the past year I have shipped frames from Poland to the US, Australia and India - successfully
CyclesMakaron is offline
Old 05-17-21, 11:02 PM
  #498
messy11
Member

Join Date: Jul 2015
Location: Jakarta
Posts: 26

Bikes: Salsa Colossal, Merckx Corsa Extra Max

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked 5 Times in 2 Posts
thanks Jacek! The thing is, the seller lives in a city/district that enforce strict lockdown, so he can't get the proper box for shipment. So sad.

I might need to ask you privately in hunting the MXL one haha. a bit out of topic, I found an interesting forum post that states there's a seller in Poland that sells a few of NOS Merckx frames, have you heard about this?
messy11 is offline
Old 05-18-21, 12:39 AM
  #499
CyclesMakaron
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 720
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 150 Post(s)
Likes: 0
Liked 278 Times in 193 Posts
Yes, frames without forks - mostly Arcobaleno; these are frames sold off after the 2008 inventory, they look OK.
CyclesMakaron is offline
Old 05-21-21, 06:02 AM
  #500
Foex60
Newbie

Join Date: May 2021
Location: Gent
Posts: 2

Bikes: Merckx Gios track

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
My Merckx bikes

Hi ,
I ‘m new on this forum. Like to enter my Merckx codes.
A-E6717
G-E632
4 ( nothing more)
G4 - 858
tnx in advance.
Foex60 is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
