How are you guys eyeballing frame sizes?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

How are you guys eyeballing frame sizes?

Old 11-13-20, 05:42 PM
  #1
ScottRiqui
Senior Member
Thread Starter

Join Date: Jun 2020
Posts: 91
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked 33 Times in 21 Posts
How are you guys eyeballing frame sizes?

I see a lot of posts here where someone will post a picture of a bike or a frame without saying what size it is, and other people will say something like "Oh, I'd buy that if it were a little bigger/smaller," or they'll just somehow just know the size outright. How are you doing that - is it just experience?

If I'm browsing through pictures on Craigslist or eBay, I look at how much space there is between where the top and down tubes join the head tube, but other than that I have no clue how to estimate the size. Are there other tips/tricks?
ScottRiqui is offline
Old 11-13-20, 05:47 PM
  #2
Lemond1985
Sophomore Member

Lemond1985's Avatar

Join Date: Jan 2019
Posts: 2,690
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1623 Post(s)
Liked 1,045 Times in 626 Posts
Head tube size. I know roughly what a 56 cm (my ideal frame size) head tube looks like, so that's my visual target.
Lemond1985 is offline
Old 11-13-20, 05:49 PM
  #3
nlerner
Senior Member

Join Date: Dec 2005
Posts: 14,146
Mentioned: 338 Post(s)
Tagged: 0 Thread(s)
Quoted: 2144 Post(s)
Liked 1,644 Times in 863 Posts
Yeah, for traditional diamond frames, head tube length is an excellent indicator but there are always exceptions.
nlerner is offline
Likes For nlerner:
Old 11-13-20, 05:50 PM
  #4
noobinsf
Senior Member

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 2,362

Bikes: CURRENT: '82 Univega Competizione, '72 Motobecane Grand Record, '74 Campania Professional, '83 Mercian KOM Touring, '91 Univega Alpina Comp PAST: '72 Puch Bergmeister, '72ish Peugeot UO-8, '86 Univega Gran Premio, '85 Univega Viva Touring

Mentioned: 47 Post(s)
Tagged: 0 Thread(s)
Quoted: 741 Post(s)
Liked 503 Times in 337 Posts
Me too, head tube is the first place I look. With the classic geometry from the mid- to late-20th century, that's a good rule of thumb since it was fairly consistent from one bike type to another.
noobinsf is online now
Old 11-13-20, 05:52 PM
  #5
Kilroy1988
Senior Member

Join Date: Aug 2016
Location: Visalia, CA
Posts: 1,525
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 648 Post(s)
Liked 440 Times in 216 Posts
I focus on frames that are roughly my size while I'm browsing eBay and have had enough of my own, so that I can rather quickly tell the proportions between the main tubes to figure things out approximately. What throws me for a loop are larger or smaller frames with awkward proportions that sometimes make them seem to mirror what I usually see in my size range, which is between 60-62cm. It most frequently happens with slightly smaller frames that have high bottom brackets and longer-than-usual head tubes to compensate for the rise.

It's just a matter of looking at bicycles way too much, really... That's all!

-Gregory
Kilroy1988 is offline
Likes For Kilroy1988:
Old 11-13-20, 05:58 PM
  #6
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 9,363

Bikes: Yes, please.

Mentioned: 236 Post(s)
Tagged: 0 Thread(s)
Quoted: 1591 Post(s)
Liked 1,259 Times in 671 Posts
Originally Posted by nlerner View Post
Yeah, for traditional diamond frames, head tube length is an excellent indicator but there are always exceptions.
In general older bikes have shorter head tubes, as a result of bigger clearances. Early nineties Giants have also fooled me, because of their slightly forward-sloping top tube.
__________________
It was the last one ...
non-fixie is offline
Old 11-13-20, 06:54 PM
  #7
rhm
multimodal commuter

rhm's Avatar

Join Date: Nov 2006
Location: NJ, NYC, LI
Posts: 19,603

Bikes: 1940s Fothergill, 1959 Allegro Special, 1963? Claud Butler Olympic Sprint, Lambert 'Clubman', 1974 Fuji "the Ace", 1976 Holdsworth 650b conversion rando bike, 1983 Trek 720 tourer, 1984 Counterpoint Opus II, 1993 Basso Gap, 2010 Downtube 8h, and...

Mentioned: 521 Post(s)
Tagged: 0 Thread(s)
Quoted: 1782 Post(s)
Liked 277 Times in 187 Posts
Yeah, if the head tube looks like my bike, i know we're in the 58-60 range, and i kinda extrapolate from there.

Obviously we base these guesses on a bunch of assumptions that we may not recognize. So when I bought a 1940 Schwinn New World on ebay some years ago, i failed to consider that it had 26“ wheels. Sadly it proved to be a much smaller frame than I'd expected. Doh!
__________________
www.rhmsaddles.com.
rhm is offline
Old 11-13-20, 07:09 PM
  #8
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 19,395

Bikes: old ones

Mentioned: 274 Post(s)
Tagged: 0 Thread(s)
Quoted: 20631 Post(s)
Liked 3,683 Times in 2,704 Posts
Originally Posted by ScottRiqui View Post
I see a lot of posts here where someone will post a picture of a bike or a frame without saying what size it is, and other people will say something like "Oh, I'd buy that if it were a little bigger/smaller," or they'll just somehow just know the size outright. How are you doing that - is it just experience?

If I'm browsing through pictures on Craigslist or eBay, I look at how much space there is between where the top and down tubes join the head tube, but other than that I have no clue how to estimate the size. Are there other tips/tricks?
...I once drove all the way to Merced and back to look at a 58cm Paramount that turned out to be a 21" frame, even after I asked the guy to measure it. So I always ask the current owner, and then I don't count on getting correct information. I want to measure the top tube length and the stem to saddle distance as currently configured anyway, so while I can sort of get a feeling from a photo, I don't count on my feeling being correct either.

The tip is to bring along a tape measure.
3alarmer is offline
Old 11-13-20, 07:24 PM
  #9
seypat
Senior Member

Join Date: Oct 2010
Posts: 5,514
Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 1719 Post(s)
Liked 598 Times in 428 Posts
If the head tube has a pump peg, it's placement will give you some indication. 56cm frames generally look square or close to it. 58cm and up the TT looks shorter than the rest of the triangle. 54 and down, the TT generally looks longer than the rest of the triangle. Buy yourself one of the small 6ft. tape measures and put it somewhere in the vehicle you go to look at bikes in.
seypat is offline
Old 11-13-20, 11:16 PM
  #10
polymorphself
Senior Member

Join Date: Oct 2017
Location: Arizona
Posts: 1,267
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 506 Post(s)
Liked 477 Times in 237 Posts
Like everyone has said: head tube length (on traditional frames). But you gotta combine that with a lot of time spent looking at pictures of bikes. After getting into the hobby I realized that after a month or so I was starting to eyeball frame sizes, not long after that I was a natural.

So it sounds like you’re on the right track, you just maybe haven’t looked through countless thousands of photos of bicycles like the rest of us

Last edited by polymorphself; 11-13-20 at 11:21 PM.
polymorphself is offline
Old 11-14-20, 04:59 AM
  #11
seypat
Senior Member

Join Date: Oct 2010
Posts: 5,514
Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 1719 Post(s)
Liked 598 Times in 428 Posts
It's also important to note that you are only looking for 2 sizes.

Size 1: "Thats my size. I can ride that."
Size 2: "I better list that one in the Looking
For/Ebay thread so someone else can see it."

seypat is offline
Likes For seypat:
Old 11-14-20, 06:06 AM
  #12
t1k
Senior Member

Join Date: Jul 2019
Location: Calgary, AB
Posts: 111

Bikes: C&V primarily

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 58 Post(s)
Liked 11 Times in 10 Posts
As others already mentioned, the length of the head tube gives a good clue on the frame size.

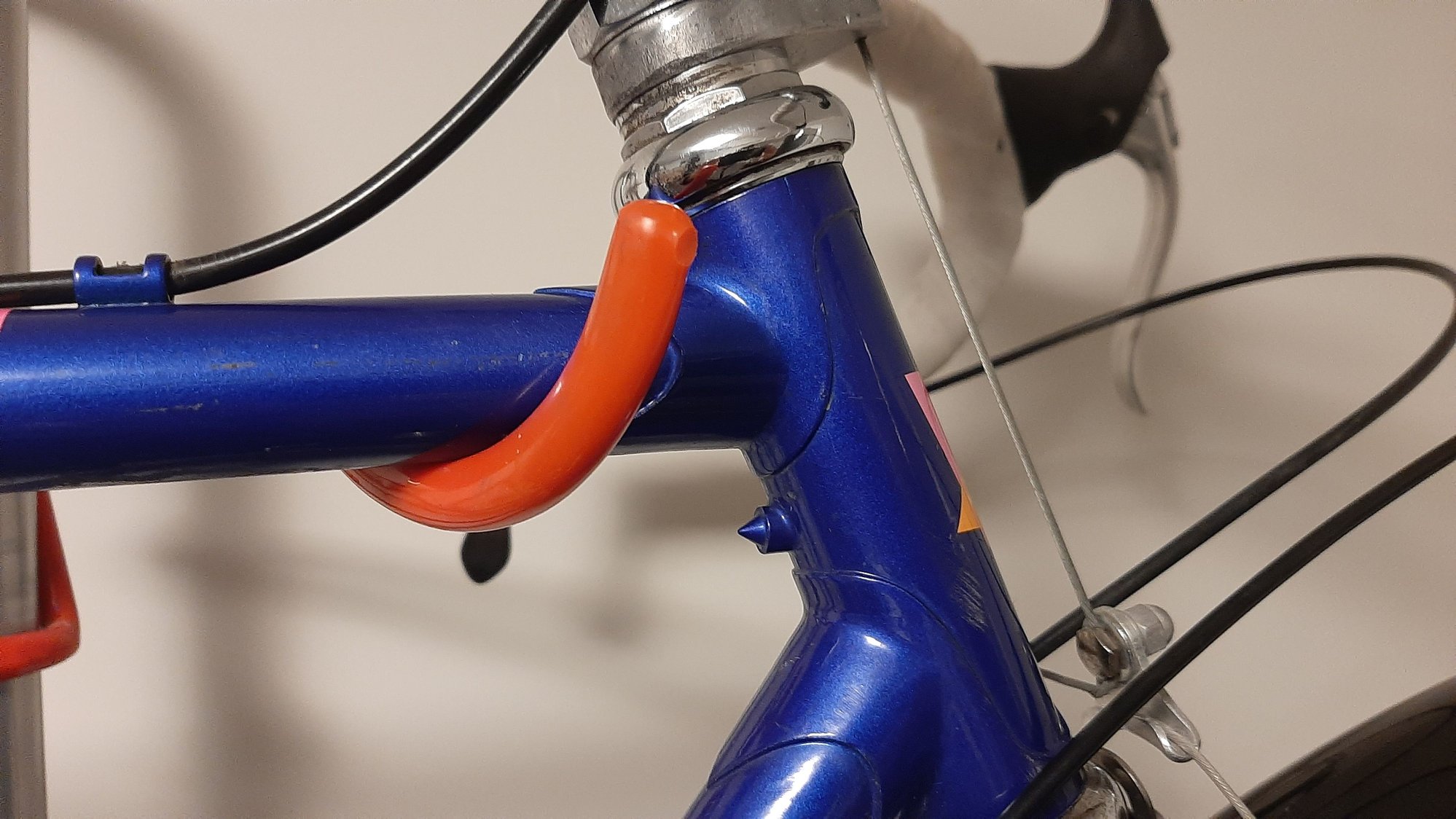

I also pay attention to the location of a pump peg (if present of course) and the distance from the peg to the top and the down tubes.

If the distance between the peg and down tube is roughly double of the distance between the peg and the top tube then that's a good indication of a 56cm frame:




If the distances from the peg to the top tube and the bottom tube are about the same - its 54 cm. Important note here: the distance should be roughly equal to the top tube to peg distance on 56cm frame (about 1"). On 52 cm frames the distances from the peg to top/down tubes are about the same too but they are much smaller (about 1/2").
Example of 54 cm frame:


if the peg to down tube distance is about 2.5-3 times greater than the peg to top tube distance then it could be 57-58 cm frame. But it's much harder to eyeball the frames that are larger than 56cm (in my experience). Here's an example of a 57 cm frame:



As far as I remember, the 50cm frames and smaller will not have the pump peg.

Hope this helps.

And yes, I am showing off my bikes ... cause i love them and they are pretty
t1k is offline
Likes For t1k:
Old 11-14-20, 10:15 AM
  #13
Road Fan
Senior Member

Road Fan's Avatar

Join Date: Apr 2005
Location: Ann Arbor, MI
Posts: 15,352

Bikes: 1980 Masi, 1984 Mondonico, 1984 Trek 610, 1980 Woodrup Giro, 2005 Mondonico Futura Leggera ELOS, 1967 PX10E, 1971 Peugeot UO-8

Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 1237 Post(s)
Liked 212 Times in 180 Posts
Originally Posted by 3alarmer View Post
...I once drove all the way to Merced and back to look at a 58cm Paramount that turned out to be a 21" frame, even after I asked the guy to measure it. So I always ask the current owner, and then I don't count on getting correct information. I want to measure the top tube length and the stem to saddle distance as currently configured anyway, so while I can sort of get a feeling from a photo, I don't count on my feeling being correct either.

The tip is to bring along a tape measure.
If the camera position is good, you can take a ruler or caliper and scale the TT length against the wheel diameter, and come up pretty close to an in-person measurement. Of course it's possible to mess up an in-person measurement as well.
Road Fan is offline
Likes For Road Fan:
Old 11-14-20, 05:36 PM
  #14
ScottRiqui
Senior Member
Thread Starter

Join Date: Jun 2020
Posts: 91
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked 33 Times in 21 Posts
Originally Posted by t1k View Post

And yes, I am showing off my bikes ... cause i love them and they are pretty
Thanks for that! And the pictures were particularly helpful, since I just recently got my first vintage bike, and it's a Miyata 1400!
ScottRiqui is offline
Old 11-14-20, 06:44 PM
  #15
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 10,580

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 196? Torpado Professional, 2000 Marinoni Piuma

Mentioned: 182 Post(s)
Tagged: 0 Thread(s)
Quoted: 1020 Post(s)
Likes: 0
Liked 749 Times in 462 Posts
Head tube size. I know roughly what a 56 cm (my ideal frame size) head tube looks like, so that's my visual target.
And that is exactly what works for me until I got this Quintanna Roo which I though to be way too big, due to the length of the head tube. Turns out the bike, fitted with 650a wheels, was a perfect fit for me...
__________________
"98% of the bikes I buy are projects".
randyjawa is offline
Old 11-14-20, 07:39 PM
  #16
t1k
Senior Member

Join Date: Jul 2019
Location: Calgary, AB
Posts: 111

Bikes: C&V primarily

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 58 Post(s)
Liked 11 Times in 10 Posts
Originally Posted by ScottRiqui View Post
Thanks for that! And the pictures were particularly helpful, since I just recently got my first vintage bike, and it's a Miyata 1400!
Miyata 1400 is an awesome bike. What year is your bike? Looks like Miyata was selling 1400 only for two years. In 1989 the bike had a steel frame, in 1990 - aluminum. They are fairly high end bikes. Second from the top of the Miyata steel bikes lineup (step down from Team Miyata).

Post pictures of your Miyata. I'd love to see it.

Another thing that helps identifying the frame size is looking into manufacturers catalog and finding out what sizes were available for the given model. For example, Miyata's touring models (600, 615, 618 and 1000) were available in 54 and 57cm, but the rest of their road bikes had 56 cm option.

Here's a link to the Miyata catalogs: https://www.ragandbone.ca/Miyata/miyata_selector.html
t1k is offline
Likes For t1k:
Old 11-14-20, 11:17 PM
  #17
repechage
Senior Member

Join Date: Jun 2006
Posts: 15,486
Mentioned: 103 Post(s)
Tagged: 0 Thread(s)
Quoted: 1748 Post(s)
Liked 620 Times in 482 Posts
Headtube length is reasonable with these modifiers-
frame era- 60’s bikes will most often have more generous clearances, and often a longer top tube- making for a shorter headtube verses
an 80’s bike with tight clearances for only smaller tires and a short reach brake in front.
One gets a visual Ref. After a while.

I have been fooled, but not often.
worst was a reportedly 57 center to top frame that looked “right”. It arrived and was a 54!
even marked as such on the bottom bracket.
the image was distorted- very strange.
referencing the images later it still looked like a 57 in the seller’s sale image set.
seller went awol after.
Vanished.
fortunately it was a good size for my son later.
repechage is offline
Old 11-15-20, 03:05 AM
  #18
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 10,580

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 196? Torpado Professional, 2000 Marinoni Piuma

Mentioned: 182 Post(s)
Tagged: 0 Thread(s)
Quoted: 1020 Post(s)
Likes: 0
Liked 749 Times in 462 Posts
I bought this Marinoni off of Kijiji. The bike was listed as a 52cm, a perfect size for my one of my grand daughters. I did not even question the bike's size until a bit later...


When I got the bike home, something did not jive. The lady who owned the bike was the same approximate height as I am. With that in mind, I straddled the bike? Got off and snapped up the measuring tape. Not a 52, but a 56cm machine. No good for my grand daughter but perfect for you know who. Yup, me and the Marinoni is now my daily rider, when I can actually ride (been off the bike for a couple of months now with worn out hands that cannot pull a brake lever).

I got fooled by the over sized tubing which make the head tube appear to be short and proper for a 52cm size. I was wrong but still tend to look at head tube to approximate a vintage road bicycle's size.
__________________
"98% of the bikes I buy are projects".
randyjawa is offline
Old 11-15-20, 06:29 AM
  #19
gearbasher
Senior Member

gearbasher's Avatar

Join Date: May 2009
Location: Sitting on my butt in front of a computer
Posts: 962
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 212 Post(s)
Liked 85 Times in 59 Posts
You tell by lookin' from the dorsal to the tail.
gearbasher is offline
Old 11-15-20, 06:57 AM
  #20
Lemond1985
Sophomore Member

Lemond1985's Avatar

Join Date: Jan 2019
Posts: 2,690
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1623 Post(s)
Liked 1,045 Times in 626 Posts
It's really top tube length that's most important, but fortunately, it doesn't vary as much as seat tube length, and can usually be corrected with the right length stem.

I had a 59.5 cm frame that was perfect in the "reach" department, but I just couldn't clear the top tube standing over it. Why a taller person needs to have the top tube right under their crotch when the reach is already fine ... I will never know. I prefer the smaller frame sizes anyway, most 58 cm and larger steel frames flex like crazy for me, why anyone taller than me would want that, if they could use a smaller stiffer frame size ... also a mystery.
Lemond1985 is offline
Old 11-15-20, 09:20 AM
  #21
JaccoW
Overdoing projects

JaccoW's Avatar

Join Date: Oct 2011
Location: Rotterdam, The Netherlands
Posts: 2,024

Bikes: Batavus Randonneur GL, Gazelle Orange Excellent, Gazelle Super Licht, Gazelle Grand Tourist, Gazelle Lausanne, Gazelle Tandem, Koga-Miyata SilverAce, Koga-Miyata WorldTraveller

Mentioned: 47 Post(s)
Tagged: 0 Thread(s)
Quoted: 659 Post(s)
Liked 696 Times in 435 Posts
Originally Posted by Lemond1985 View Post
Why a taller person needs to have the top tube right under their crotch when the reach is already fine ... I will never know. I prefer the smaller frame sizes anyway, most 58 cm and larger steel frames flex like crazy for me, why anyone taller than me would want that, if they could use a smaller stiffer frame size ... also a mystery.
Mostly because seat post lengths tend to top out at 250-300mm. I'm already at the maximum safe length for my 64cm frame's seat post. And I can ride taller bikes than that.
But most taller frames often use stiffer tubing (less butting or oversized) to compensate for the flex.

As for OP, practice and looking at head tubes.


57cm Koga-Miyata WorldTraveller


66cm Koga-Miyata WorldTraveller
JaccoW is offline
Old 11-15-20, 09:39 AM
  #22
Lemond1985
Sophomore Member

Lemond1985's Avatar

Join Date: Jan 2019
Posts: 2,690
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1623 Post(s)
Liked 1,045 Times in 626 Posts
I have a couple of un-butted "plain gauge" frames, and really like them for their stiffness. I do think butting causes unnecessary flex in many frames, maybe that's why Miyaya and others went to "triple butting" their frame tubes, to try to minimize this.

Beautiful bikes, BTW.
Lemond1985 is offline
Likes For Lemond1985:
Old 11-15-20, 09:55 AM
  #23
Dylansbob
2k miles from the midwest

Dylansbob's Avatar

Join Date: Feb 2005
Location: Washington
Posts: 1,100

Bikes: Cinelli Hobootleg, Falcon San Remo, Benotto 2000 are the top 3 now

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 181 Post(s)
Liked 252 Times in 125 Posts
Originally Posted by JaccoW View Post
Mostly because seat post lengths tend to top out at 250-300mm. I'm already at the maximum safe length for my 64cm frame's seat post. And I can ride taller bikes than that.
But most taller frames often use stiffer tubing (less butting or oversized) to compensate for the flex.

As for OP, practice and looking at head tubes.


57cm Koga-Miyata WorldTraveller


66cm Koga-Miyata WorldTraveller
Is that just a normal dt braze-on mounted on the back of the seattube for fd duty? I may have to find someone to do that to one or more of my frames. All the contortioning of a suicide shifter, but lighter and easier setup.

Actually I've got a sscx frame that I've put a chain tensioner with a rd hanger to make into a 1x. That would be the best way to add a multispeed crank.
Dylansbob is offline
Old 11-15-20, 10:28 AM
  #24
Reynolds
Passista

Reynolds's Avatar

Join Date: Jul 2005
Posts: 7,189

Bikes: 1998 Pinarello Asolo, 1992 KHS Montaña pro, 1980 Raleigh DL-1, IGH Hybrid, IGH Utility

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 713 Post(s)
Liked 349 Times in 203 Posts
On horizontal top tube frames, you can also look at the distance between the rear tire and the top of the seat cluster.
Reynolds is online now
Old 11-15-20, 10:36 AM
  #25
JaccoW
Overdoing projects

JaccoW's Avatar

Join Date: Oct 2011
Location: Rotterdam, The Netherlands
Posts: 2,024

Bikes: Batavus Randonneur GL, Gazelle Orange Excellent, Gazelle Super Licht, Gazelle Grand Tourist, Gazelle Lausanne, Gazelle Tandem, Koga-Miyata SilverAce, Koga-Miyata WorldTraveller

Mentioned: 47 Post(s)
Tagged: 0 Thread(s)
Quoted: 659 Post(s)
Liked 696 Times in 435 Posts
Originally Posted by Dylansbob View Post
Is that just a normal dt braze-on mounted on the back of the seattube for fd duty? I may have to find someone to do that to one or more of my frames. All the contortioning of a suicide shifter, but lighter and easier setup.

Actually I've got a sscx frame that I've put a chain tensioner with a rd hanger to make into a 1x. That would be the best way to add a multispeed crank.
Bottom bracket dynamo.

But if I weren't going for bar ends that would be a pretty sweet option.
JaccoW is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
