Cables cutting into bottom bracket

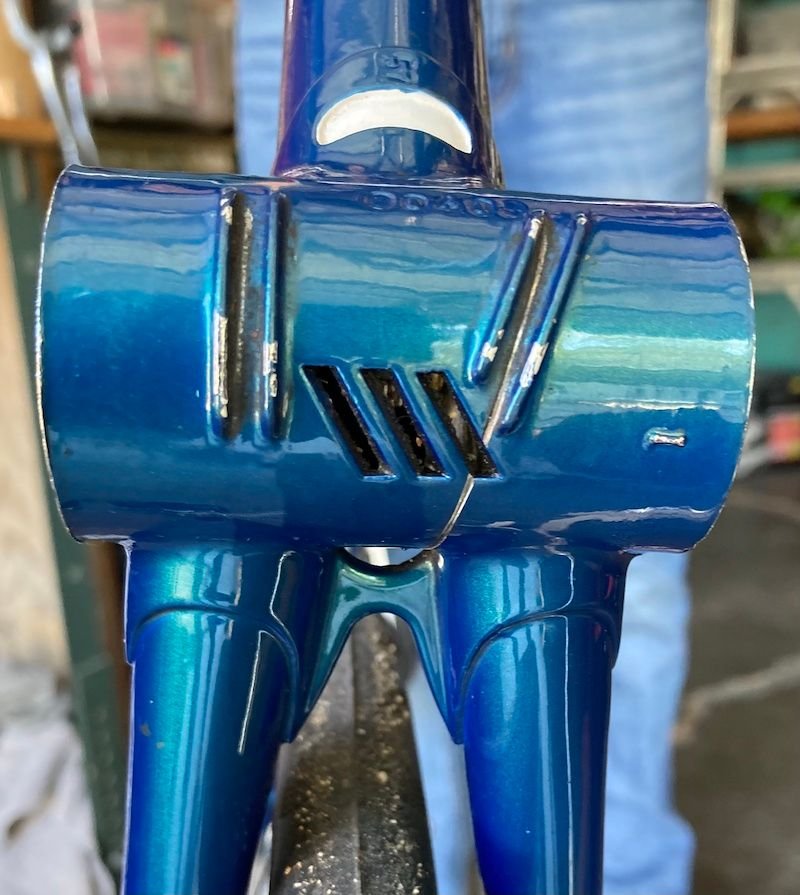

I bought an 80s frame which I'm building up and wondering if there's a better way than letting the cables keep cutting into the bottom bracket shell.
For comparison, the red bike is my Bridgestone RB-2, which has a plastic guide.
Sheldon Brown recommends a scrap of shifter housing, which he says will stay in place due to the tension.
Elsewhere on the web I saw suggestions to try heat shrink tubing, or something called jagwire housing.
Sheldon also says you can drill and tap a new hole to install a plastic cable guide.
If you drill a hole, how do you keep the screw from hitting a sealed cartridge bearing?
For the scrap of shifter housing trick, does it really stay in place purely from cable tension?

lajt is offline
Likes For lajt:
Old 03-13-21, 02:11 PM
  #2
repechage
Senior Member

Join Date: Jun 2006
Posts: 17,566
Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 2454 Post(s)
Liked 1,380 Times in 1,039 Posts
A section of cable inner lining, should do the trick
repechage is offline
Likes For repechage:
Old 03-13-21, 02:40 PM
  #3
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 5,839

Bikes: Old school lightweights

Mentioned: 73 Post(s)
Tagged: 0 Thread(s)
Quoted: 2434 Post(s)
Liked 3,259 Times in 1,756 Posts
I wouldn't use anything. Just clean it really well. Remove any burrs. Maybe add a tiny amount of wd-40 after you install the cables. Generally, the designer/manufacturer did not use any liner on his builds.
SurferRosa is offline
Old 03-13-21, 02:57 PM
  #4
lajt
Member
Thread Starter

Join Date: Mar 2021
Location: Los Angeles, CA
Posts: 48
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked 14 Times in 12 Posts
Thanks for the perspective from both of you.
Repechage, what is cable inner lining? The soft plastic part of the housing if you cut away the metal outside?
SurferRosa, you might be right that some lube in there and maybe it will slide fairly friction free that now there's already a channel worn away after 30 years.
lajt is offline
Old 03-13-21, 03:01 PM
  #5
lajt
Member
Thread Starter

Join Date: Mar 2021
Location: Los Angeles, CA
Posts: 48
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked 14 Times in 12 Posts
I wonder how long it would take before it would actually cut its way completely through?
It reminds me of a MythBusters episode where they tested whether you could cut through jail cell bars with dental floss. They rigged up a machine that pulled a loop of floss around the bar for a few days. It did cut through a minuscule amount--almost just an etching really. Their estimate of actually cutting through was something insane like a year of 24/7 cutting.
lajt is offline
Old 03-13-21, 03:33 PM
  #6
Steel1
Newbie

Join Date: Jan 2018
Posts: 72
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked 31 Times in 18 Posts
You can search Amazon for example of the housing, it is cheap.

“Jagwire Black Housing Liner 30 Meter Roll, Fits up to 1.8mm Cables” $12.99


I just bought several feet at local bike shop for a few dollars.


Steel1 is offline
Likes For Steel1:
Old 03-13-21, 03:40 PM
  #7
ridelikeaturtle
Senior Member

ridelikeaturtle's Avatar

Join Date: Nov 2015
Location: Dublin, Ireland
Posts: 1,222

Bikes: Bianchi Ti Megatube; Colnago Competition; Planet-X EC-130E; Klein Pulse; Amp Research B4; Litespeed Catalyst; Fondriest Squadra Corse; Trek Y11

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 577 Post(s)
Liked 402 Times in 235 Posts
What's stopping you from just running a piece of housing over the cable at that location? Doesn't cost you anything to try.
ridelikeaturtle is offline
Old 03-13-21, 04:57 PM
  #8
canklecat
Me duelen las nalgas

canklecat's Avatar

Join Date: Aug 2015
Location: Texas
Posts: 13,223

Bikes: Centurion Ironman, Trek 5900, Univega Via Carisma, Globe Carmel

Mentioned: 196 Post(s)
Tagged: 0 Thread(s)
Quoted: 4388 Post(s)
Liked 2,429 Times in 1,577 Posts
If you don't have any cable liner handy, a cotton swab with hollow plastic stem will do. That's what I use on my bikes after my last bit of cable liner ran out. Snip off the cotton ball ends. The stem is hollow and just the right size for most shifter and brake cables. I use 'em on my bottom brackets and the convoluted metal guide noodles brazed onto the seat cluster on my old Univega with cantilever brakes.

Works great. Reduces cable friction a little too.
canklecat is offline
Likes For canklecat:
Old 03-13-21, 05:08 PM
  #9
Dean51
Senior Member

Dean51's Avatar

Join Date: Feb 2016
Location: Olympic Peninsula, WA
Posts: 575

Bikes: '82 Ron Cooper, '83 Allez, '86 Tommasini Racing, '86? Klein Quantum, '87 Ciocc Designer 84, '95 Trek 5500, '98 S-Works Mtb, '01 Allez

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 205 Post(s)
Liked 172 Times in 81 Posts
Originally Posted by repechage View Post
A section of cable inner lining, should do the trick
I've done this on my bikes....for shift cables that run below as well as above the bottom bracket. I haven't been concerned about the cable wearing on the metal, I'm just trying to preserve the paint / eliminate a potential rust spot. Short pieces of inner cable lining stay in place nicely.

Dean
__________________
Roll Me Up and Smoke Me When I Die

Last edited by Dean51; 03-13-21 at 05:12 PM.
Dean51 is offline
Old 03-13-21, 09:04 PM
  #10
Seanaus
Junior Member

Join Date: Jul 2020
Location: Australia
Posts: 76
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Liked 50 Times in 23 Posts
Shimano Y80098100 is what I use, essentially the same as the Jagwire version mentioned previously. Stays in place fine.
Seanaus is offline
Old 03-13-21, 09:35 PM
  #11
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 26,930

Bikes: https://www.theheadbadge.com

Mentioned: 83 Post(s)
Tagged: 0 Thread(s)
Quoted: 1698 Post(s)
Liked 2,185 Times in 1,222 Posts
Originally Posted by ridelikeaturtle View Post
What's stopping you from just running a piece of housing over the cable at that location? Doesn't cost you anything to try.
A thick piece of full housing could allow the cable to pop to the side if the lever is downshifted when the chain isn't moving, as the cable housing strands will be working against the curve of the cable.

Granted, the cable popping off one of the grooves is a possibility even with the thin lining - but it's less likely to go wrong, looks neater, and is easier to set with hot glue in a discreet manner.

-Kurt
__________________







cudak888 is offline
Likes For cudak888:
Old 03-13-21, 09:52 PM
  #12
lajt
Member
Thread Starter

Join Date: Mar 2021
Location: Los Angeles, CA
Posts: 48
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked 14 Times in 12 Posts
Smart idea about hot glue! I use it for all the kids' art projects, but didn't think of it for this.
Is the cable liner easy to extract from a scrap piece of housing? Do you tug it out with needlenose pliers? Or use a utility knife to scrape off the outer coating and then peel off the strands of housing body?
lajt is offline
Old 03-13-21, 11:04 PM
  #13
repechage
Senior Member

Join Date: Jun 2006
Posts: 17,566
Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 2454 Post(s)
Liked 1,380 Times in 1,039 Posts
Originally Posted by lajt View Post
I wonder how long it would take before it would actually cut its way completely through?
It reminds me of a MythBusters episode where they tested whether you could cut through jail cell bars with dental floss. They rigged up a machine that pulled a loop of floss around the bar for a few days. It did cut through a minuscule amount--almost just an etching really. Their estimate of actually cutting through was something insane like a year of 24/7 cutting.
neurosurgeons use a diamond coated cable to saw through skull ( well they used to- most use a buzzy saw now ) takes a lot of time.
advantage is the cable saw kerf will be at an angle- staples not required to put it all back together. I know, too much information.
the chances of sawing through the bottom bracket shell by shifting - nada.
Aztec brand cables had a Teflon impregnated cable that slipped well. I use it on a bike with early under the BB cable guides- no room for liner.
repechage is offline
Likes For repechage:
Old 03-14-21, 04:43 AM
  #14
P!N20
Senior Member

P!N20's Avatar

Join Date: Aug 2010
Posts: 1,908
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 827 Post(s)
Liked 1,181 Times in 617 Posts
+1 for cable liner. Although I do find the cable eventually saws through the liner - takes a while though and is cheap to replace.
P!N20 is offline
Old 03-14-21, 05:14 AM
  #15
gearbasher
Senior Member

gearbasher's Avatar

Join Date: May 2009
Location: Sitting on my butt in front of a computer
Posts: 1,249
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 322 Post(s)
Liked 353 Times in 191 Posts
Originally Posted by lajt View Post
I wonder how long it would take before it would actually cut its way completely through?
.
I've always left the bare cables on all my bikes. The most wear I experienced was on an Alan aluminum frame. The cable cut into the BB about half the thickness of the cable. That was after 55,000 miles. Then seat lug cracked and that frame went to the great recycler in the sky. Let me add, I shift a lot.
gearbasher is offline
Old 03-14-21, 05:18 AM
  #16
Johno59
Senior Member

Join Date: Oct 2016
Location: Cambridge UK
Posts: 775

Bikes: 1903 24 spd Sunbeam, 1927 Humber, 3 1930 Raleighs, 2 1940s Sunbeams, 2 1940s Raleighs, Rudge, 1950s Robin Hood, 1958 Claud Butler, 2 1973 Colnago Supers, Eddie Merckx, 2 1980 Holdsworth, EG Bates funny TT bike, another 6 or so 1990s bikes

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 308 Post(s)
Liked 279 Times in 151 Posts
There's a lotta salt hitting this area so I would be careful using something that salty water can creep into. Just make certain when you wash your bike to keep this area nice and clean and waxed.
Johno59 is offline
Old 03-14-21, 06:42 AM
  #17
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 7,045

Bikes: Bob Jackson, Wizard, Pegoretti Duende, Merckx ProSLX, Pelizzoli, Cannondale ST, Schwinn Tempo, Davidson Sport Custom, Canyon Endurace, Richard Sachs, Davidson Discovery

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 1782 Post(s)
Liked 1,821 Times in 734 Posts
OP lives is California, no salt used there.
Nothing is really required, but cable lining will ensure a nice, smooth shift. Most bike shops will give you the 6-8 inches needed for this task.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Old 03-14-21, 12:19 PM
  #18
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 11,935
Mentioned: 73 Post(s)
Tagged: 0 Thread(s)
Quoted: 990 Post(s)
Liked 508 Times in 416 Posts
Originally Posted by rccardr View Post
OP lives is California, no salt used there.
Nothing is really required, but cable lining will ensure a nice, smooth shift. Most bike shops will give you the 6-8 inches needed for this task.
No, not ALL of California is "Malibu Barbie Land".
"SACRAMENTO (CBS13) — As the winter storm continues, so do Caltrans crews who are hard at work treating and clearing snow-covered roads. ... Now they use a sand-salt mixture and pre-treat roads with a mixture of water and salt that prevents freezing."
unworthy1 is offline
Likes For unworthy1:
Old 03-14-21, 06:06 PM
  #19
lajt
Member
Thread Starter

Join Date: Mar 2021
Location: Los Angeles, CA
Posts: 48
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked 14 Times in 12 Posts
That is true, some of CA gets a lot of snow! It always amazes me when I read that Mammoth has, say, 10 feet of snow in a really snowy winter. I actually live in the Los Angeles area, so it's pretty snow-free here (although Malibu had a freak storm a couple of months ago and did get a little dusting of snow). I bought the frame from Rccardr which is how he knew that.
lajt is offline
Old 03-17-21, 05:56 AM
  #20
Johno59
Senior Member

Join Date: Oct 2016
Location: Cambridge UK
Posts: 775

Bikes: 1903 24 spd Sunbeam, 1927 Humber, 3 1930 Raleighs, 2 1940s Sunbeams, 2 1940s Raleighs, Rudge, 1950s Robin Hood, 1958 Claud Butler, 2 1973 Colnago Supers, Eddie Merckx, 2 1980 Holdsworth, EG Bates funny TT bike, another 6 or so 1990s bikes

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 308 Post(s)
Liked 279 Times in 151 Posts
There's always snow in CA. Some of it goes on the road and some it goes elsewhere.

OMG I can see your BB is worn!

Last edited by Johno59; 03-17-21 at 06:00 AM.
Johno59 is offline
Likes For Johno59:
Old 03-17-21, 09:20 AM
  #21
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 8,623

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '89 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 62 Post(s)
Tagged: 0 Thread(s)
Quoted: 1257 Post(s)
Liked 1,262 Times in 694 Posts
I think you can tell how much a bike is used by how deep the groves are. Wish there was a depth to years/miles/shift chart!
P1030586 on Flickr
P1040813 on Flickr
P1040818 on Flickr
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Likes For SJX426:
Old 03-17-21, 10:01 AM
  #22
Johno59
Senior Member

Join Date: Oct 2016
Location: Cambridge UK
Posts: 775

Bikes: 1903 24 spd Sunbeam, 1927 Humber, 3 1930 Raleighs, 2 1940s Sunbeams, 2 1940s Raleighs, Rudge, 1950s Robin Hood, 1958 Claud Butler, 2 1973 Colnago Supers, Eddie Merckx, 2 1980 Holdsworth, EG Bates funny TT bike, another 6 or so 1990s bikes

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 308 Post(s)
Liked 279 Times in 151 Posts
Slip sliding away

They question I'd like answered is there any difference with the insert and what happens when the cable starts cutting through the piece of outer.
Johno59 is offline
Old 03-17-21, 12:34 PM
  #23
francophile
PM me your cotters

francophile's Avatar

Join Date: Jun 2015
Location: ATL
Posts: 3,844
Mentioned: 77 Post(s)
Tagged: 0 Thread(s)
Quoted: 1102 Post(s)
Liked 500 Times in 381 Posts
@lajt if you're in LA area and don't mind waiting a few days, I have a whole roll of that Jagwire liner, I use it on the kids bikes to cut down on cable rust.

Shoot me a PM with an address, I'll sent you a few feet. I'll literally never get through this roll otherwise.
__________________
███████████████

francophile is offline
Old 03-17-21, 12:44 PM
  #24
tiger1964
Senior Member

tiger1964's Avatar

Join Date: Apr 2011
Location: Maryland, USA
Posts: 1,678

Bikes: Drysdale/Gitane/Zeus/Masi/Falcon/Palo Alto

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 605 Post(s)
Liked 238 Times in 174 Posts
Wow, I am beginning to understand the plastic under-BB guides secured with a thorough-bolt.

Originally Posted by SJX426 View Post
I think you can tell how much a bike is used by how deep the groves are. Wish there was a depth to years/miles/shift chart!
__________________
Larry:1958 Drysdale, 1961 Gitane Gran Sport, 1974 Zeus track, 1988 Masi Gran Corsa, 1974 Falcon, 1980 Palo Alto. Susan: 1976 Windsor Profesional.
tiger1964 is offline
Old 03-17-21, 01:10 PM
  #25
squirtdad
Senior Member

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 8,517

Bikes: 85 team Miyata (modern 5800 105) , '84 Team Miyata,(dura ace old school) 80?? SR Semi-Pro 600 Arabesque

Mentioned: 89 Post(s)
Tagged: 0 Thread(s)
Quoted: 1745 Post(s)
Liked 1,376 Times in 834 Posts
cable liner for the win i also have a roll of it and would put some in an envelope if people needed
__________________
Life is too short not to ride the best bike you have, as much as you can
(looking for Torpado Super light 56,57 or so)

squirtdad is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
