Is this a frame drain plug?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Is this a frame drain plug?

Old 04-08-21, 02:39 PM
  #1
Lbxpdx
Senior Member
Thread Starter

Join Date: Oct 2020
Location: Portland
Posts: 171
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 75 Post(s)
Likes: 0
Liked 69 Times in 33 Posts

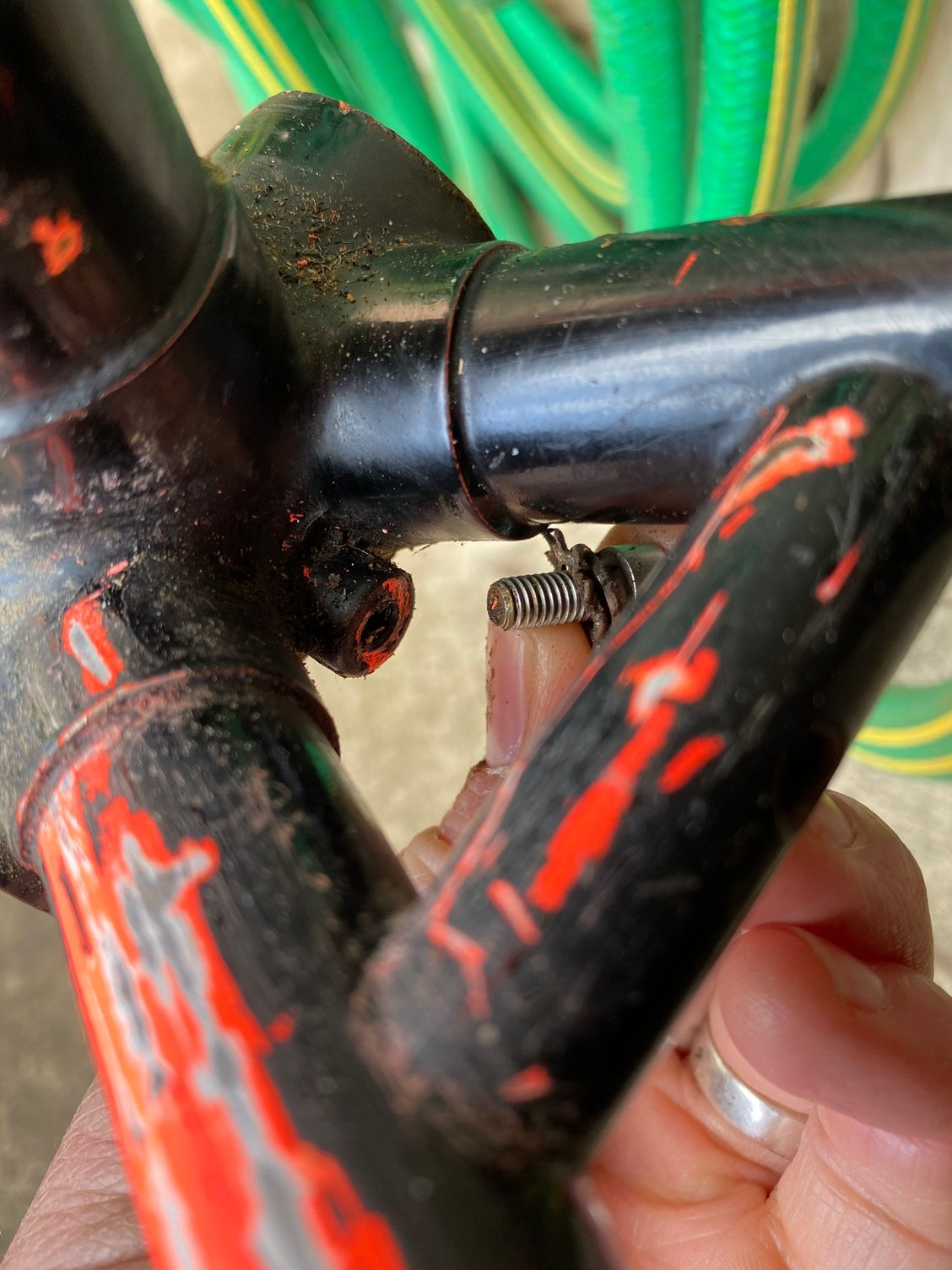

Is this a frame drain plug?

If so, that is such a cool idea.


Lbxpdx is offline
Old 04-08-21, 02:41 PM
  #2
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 10,974

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 196? Torpado Professional, 2000 Marinoni Piuma

Mentioned: 189 Post(s)
Tagged: 0 Thread(s)
Quoted: 1144 Post(s)
Likes: 0
Liked 1,027 Times in 616 Posts
What does the removed piece look like? My first thought would be it is for adding grease but cannot really tell without seeing what was removed (fingers blocking adequate view).
__________________
"98% of the bikes I buy are projects".
randyjawa is offline
Old 04-08-21, 02:47 PM
  #3
degan
Mote of Dust

degan's Avatar

Join Date: Nov 2010
Location: Oregon
Posts: 887
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 106 Post(s)
Liked 51 Times in 36 Posts
For draining water? How could enough water get in there to necessitate a drain plug? +1 on the grease port idea, just not the standard location.
degan is offline
Old 04-08-21, 02:53 PM
  #4
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 9,828

Bikes: Yes, please.

Mentioned: 247 Post(s)
Tagged: 0 Thread(s)
Quoted: 1765 Post(s)
Liked 1,888 Times in 912 Posts
Looks more like an attachment braze-on of sorts to me. Rear fender? Generator?
__________________
Autumn Leaves











non-fixie is offline
Old 04-08-21, 03:05 PM
  #5
gugie
Bike Butcher of Portland

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 9,654

Bikes: It's complicated.

Mentioned: 1057 Post(s)
Tagged: 0 Thread(s)
Quoted: 3490 Post(s)
Liked 2,194 Times in 1,036 Posts
I doubt it's a drain plug. Collecting water in a BB for later removal doesn't make sense, just use the BKM and put a hole on the bottom for drainage.

Rear fender attachment also doesn't make sense, it would attach to the chainstay bridge. Fenders curve away from the BB in that area.

Maybe a generator?
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 04-08-21, 04:34 PM
  #6
AeroGut
Senior Member

Join Date: Jun 2019
Posts: 587
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 217 Post(s)
Likes: 0
Liked 133 Times in 107 Posts
Is there a mount high up on the back of the seat tube for a lever to activate a generator?
AeroGut is offline
Old 04-08-21, 05:04 PM
  #7
Doug Fattic
framebuilder

Join Date: Dec 2009
Location: Niles, Michigan
Posts: 963
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 347 Post(s)
Liked 808 Times in 315 Posts
I've seen generators somewhere that are placed in that area. They contact the rear wheel in the center rather than the side of the tire. I don't remember how they were activated. Sheldon Brown shows a picture of one in their descriptions of different kinds of generators. They note they are no longer being made and have the difficulty of turning on and off.
Doug Fattic is online now
Old 04-08-21, 05:19 PM
  #8
AeroGut
Senior Member

Join Date: Jun 2019
Posts: 587
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 217 Post(s)
Likes: 0
Liked 133 Times in 107 Posts
Typically there is a lever on the back of the seat tube that looks like a shift lever and it pulls the generator into contact with the tire via a shift cable. I’ve seen them most often on Japanese touring bikes
AeroGut is offline
Old 04-08-21, 05:26 PM
  #9
Lbxpdx
Senior Member
Thread Starter

Join Date: Oct 2020
Location: Portland
Posts: 171
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 75 Post(s)
Likes: 0
Liked 69 Times in 33 Posts
This is a 1991 Trek 990 by the way.
Lbxpdx is offline
Old 04-08-21, 05:29 PM
  #10
iab
Senior Member

iab's Avatar

Join Date: Jun 2006
Location: NW Burbs, Chicago
Posts: 11,015
Mentioned: 158 Post(s)
Tagged: 0 Thread(s)
Quoted: 2324 Post(s)
Liked 1,688 Times in 745 Posts
Originally Posted by gugie View Post
I doubt it's a drain plug. Collecting water in a BB for later removal doesn't make sense, just use the BKM and put a hole on the bottom for drainage.
An oil drain hole was standard equipment on the Cinelli SC from 1951 to about 1965. Not to say I think the OP ting is an oil drain hole, I don't. Bad location.

iab is offline
Old 04-08-21, 05:35 PM
  #11
CO_Hoya
Señor Member

Join Date: Dec 2007
Location: Colorado
Posts: 878

Bikes: Yes

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 222 Post(s)
Liked 163 Times in 92 Posts
Originally Posted by Lbxpdx View Post
This is a 1991 Trek 990 by the way.

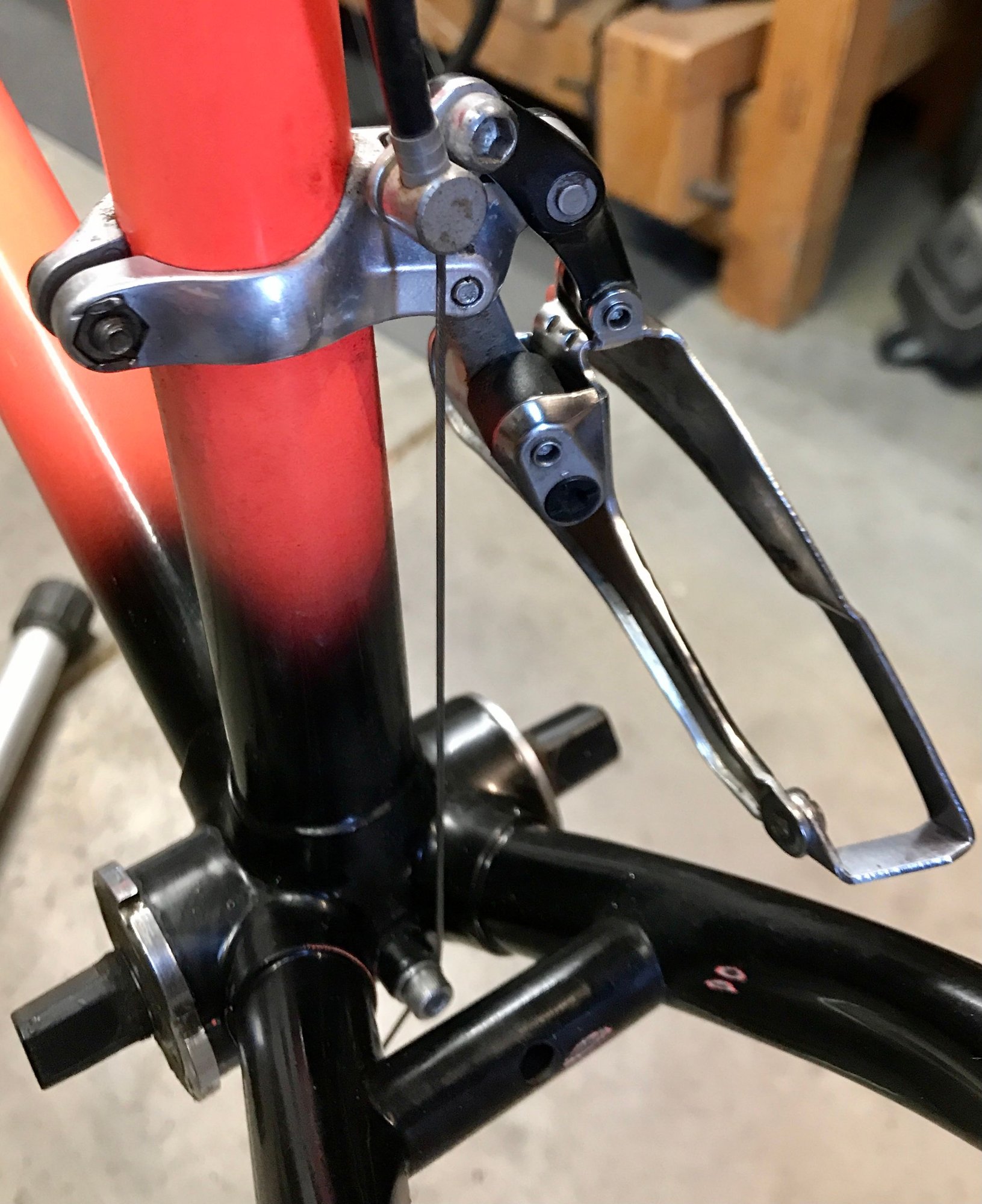

In that case, that is the anchor point for the cable for the front derailleur.

There was a short period of time where some MTBs used a modified bottom pull FD with top tube mounted cabling.



Note: I think my pic is for the same year/model frame. I can't recall which year my frameset is, but the colors look the same as yours.

Last edited by CO_Hoya; 04-08-21 at 05:38 PM.
CO_Hoya is offline
Old 04-08-21, 06:18 PM
  #12
Reynolds
Passista

Reynolds's Avatar

Join Date: Jul 2005
Posts: 7,277

Bikes: 1998 Pinarello Asolo, 1992 KHS Montaña pro, 1980 Raleigh DL-1, IGH Hybrid, IGH Utility

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 756 Post(s)
Liked 429 Times in 241 Posts
On some MTBs the FD cable coming from the TT/ST went through a pulley to reverse its travel to work with a bottom pull FD. That looks like the mounting place for that pulley.
Reynolds is offline
Old 04-08-21, 06:27 PM
  #13
Erzulis Boat
3rd Grade Dropout

Erzulis Boat's Avatar

Join Date: Oct 2005
Location: Santa Barbara Calif.
Posts: 1,437
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 200 Post(s)
Liked 190 Times in 98 Posts
Originally Posted by CO_Hoya View Post
In that case, that is the anchor point for the cable for the front derailleur.

There was a short period of time where some MTBs used a modified bottom pull FD with top tube mounted cabling.



Note: I think my pic is for the same year/model frame. I can't recall which year my frameset is, but the colors look the same as yours.
Haha! Love this forum section. I'll be damned......................
Erzulis Boat is offline
Old 04-08-21, 11:04 PM
  #14
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 24,609

Bikes: Some silver ones, a red one, an orange one and a few titanium ones

Mentioned: 129 Post(s)
Tagged: 1 Thread(s)
Quoted: 4461 Post(s)
Liked 1,994 Times in 1,196 Posts
Originally Posted by CO_Hoya View Post
In that case, that is the anchor point for the cable for the front derailleur.

There was a short period of time where some MTBs used a modified bottom pull FD with top tube mounted cabling.

Note: I think my pic is for the same year/model frame. I can't recall which year my frameset is, but the colors look the same as yours.
Yup. In the early 90s, mountain bike builders realized that running the cable along the top tube is cleaner but top pull derailers hadn’t been developed yet. There were a number of pulley systems around that era but Trek’s approach was unique.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Old 04-09-21, 03:51 AM
  #15
oneclick
Senior Member

Join Date: Feb 2020
Posts: 1,586
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 603 Post(s)
Likes: 0
Liked 552 Times in 347 Posts
In general, using the outer cable to push rather than the inner cable to pull is a Bad Idea. It makes the action less precise, and this is worsened unless the cable outer is cut and mounted as best it can be to minimize that loss. Of course, you loose extra points for having a U-shaped outer section with the U at the bottom, and if you don't run stainless inners you get another reverse bonus; and if you DO have all those things and you DON'T use oil then you deserve what happens.
oneclick is offline
Old 04-09-21, 11:27 AM
  #16
Velo Mule
Senior Member

Velo Mule's Avatar

Join Date: Dec 2016
Location: Long Island, NY
Posts: 1,346

Bikes: Trek 800 x 2, Schwinn Heavy Duti, Schwinn Traveler, Schwinn Le Tour Luxe, Schwinn Continental, Cannondale M400 and Lampert

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 466 Post(s)
Liked 368 Times in 283 Posts
Good idea. I had never seen that before. It is an effective way to get top pull before top pull derailleurs became available. I always thought that a pulley like a Sturmey-Archer 3-speed pully would reverse the direction, but this is more direct. Of course, it does require a braze-on.
Velo Mule is offline
Old 04-09-21, 01:03 PM
  #17
gugie
Bike Butcher of Portland

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 9,654

Bikes: It's complicated.

Mentioned: 1057 Post(s)
Tagged: 0 Thread(s)
Quoted: 3490 Post(s)
Liked 2,194 Times in 1,036 Posts
Originally Posted by oneclick View Post
In general, using the outer cable to push rather than the inner cable to pull is a Bad Idea. It makes the action less precise, and this is worsened unless the cable outer is cut and mounted as best it can be to minimize that loss. Of course, you loose extra points for having a U-shaped outer section with the U at the bottom, and if you don't run stainless inners you get another reverse bonus; and if you DO have all those things and you DON'T use oil then you deserve what happens.
Which is why you don't see builds done this way anymore, excellent analysis however.
