Stronglight 99 Crank question

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Stronglight 99 Crank question

Old 02-19-22, 04:56 PM
  #1
mountaindave
tantum vehi
Thread Starter

mountaindave's Avatar

Join Date: Jul 2008
Location: Flathead Valley, MT
Posts: 4,207

Bikes: More than I care to admit

Mentioned: 137 Post(s)
Tagged: 0 Thread(s)
Quoted: 1019 Post(s)
Liked 564 Times in 317 Posts
Stronglight 99 Crank question

I acquired a Stronglight 99 a while back without the bolts. Itís an 86 bcd crank that SR copied with the Apex and Super Custom. I happen to have all three. I just started exploring putting together a triple on the Stronglight for a Peugeot build and noticed something very different compared to the SR versions - the inner side of the chainring has bolt recesses for the head of a chainring nut and no shelf for the ring to sit on. Itís as if itís built to be used as a single speed. Was that a thing with 99ís? Photos with the Stronglight on left:



I can make it work with the bolts from the SR, but then I need more bolts for the SR. Am I missing something or was this normal? According to photos from a Stronglight catalog, the 99 should look like the SR. Itís my first Stronglight so I have no comparisons.

Thanks for any insight.
David
mountaindave is offline
Old 02-19-22, 04:59 PM
  #2
nlerner
Senior Member

Join Date: Dec 2005
Posts: 15,663
Mentioned: 402 Post(s)
Tagged: 0 Thread(s)
Quoted: 2951 Post(s)
Liked 3,675 Times in 1,644 Posts
Hmm, that’s a later model 99, might even take a standard puller. I’ve had plenty of those and have never seen the single plateau type.
nlerner is online now
Old 02-19-22, 05:32 PM
  #3
mountaindave
tantum vehi
Thread Starter

mountaindave's Avatar

Join Date: Jul 2008
Location: Flathead Valley, MT
Posts: 4,207

Bikes: More than I care to admit

Mentioned: 137 Post(s)
Tagged: 0 Thread(s)
Quoted: 1019 Post(s)
Liked 564 Times in 317 Posts
Originally Posted by nlerner View Post
Hmm, thatís a later model 99, might even take a standard puller. Iíve had plenty of those and have never seen the single plateau type.
Kinda weird, right?
mountaindave is offline
Old 02-19-22, 07:10 PM
  #4
oneclick
Senior Member

Join Date: Feb 2020
Posts: 1,909
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 713 Post(s)
Likes: 0
Liked 745 Times in 448 Posts
I think you have have a track crank; or one modified to be so.

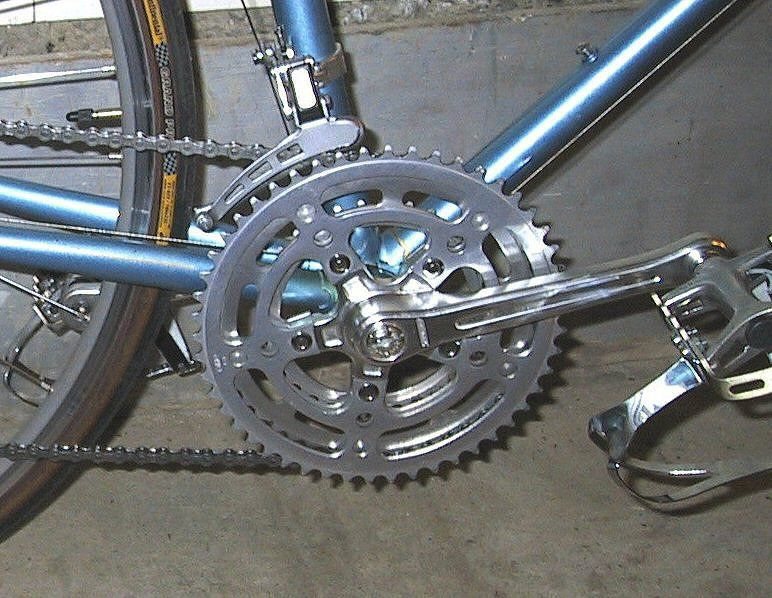

Here's a 99 triple, pulled from the mystery peugeot tourer - you can see the ledges inboard of the middle ring:





However, go ahead and run a double if you like, it'll all fit and the ledge does nothing other than locate the ring, the bolts transmit all the torque.
oneclick is offline
Likes For oneclick:
Old 02-19-22, 07:24 PM
  #5
mountaindave
tantum vehi
Thread Starter

mountaindave's Avatar

Join Date: Jul 2008
Location: Flathead Valley, MT
Posts: 4,207

Bikes: More than I care to admit

Mentioned: 137 Post(s)
Tagged: 0 Thread(s)
Quoted: 1019 Post(s)
Liked 564 Times in 317 Posts

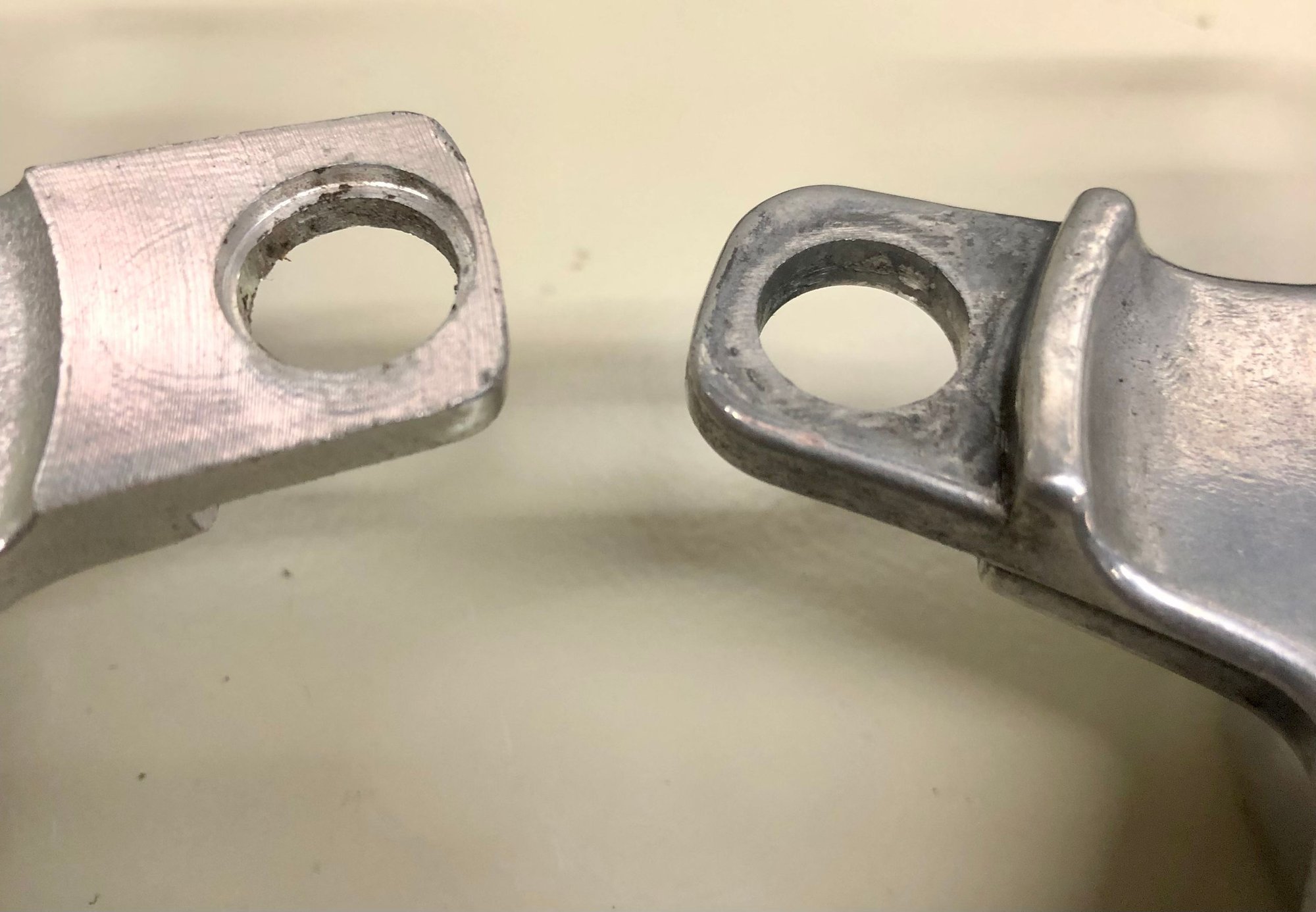

So without the ledges, my crank is even lighter!

It sure is interesting. I know the bolts do the work, but makes me wonder if I donít want to save if for a single speed build. Or let someone else use it for such a build.

Paralysis by analysis.
mountaindave is offline
Old 02-19-22, 08:00 PM
  #6
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,506

Bikes: Several, mostly not name brands.

Mentioned: 136 Post(s)
Tagged: 0 Thread(s)
Quoted: 2949 Post(s)
Liked 1,973 Times in 1,180 Posts

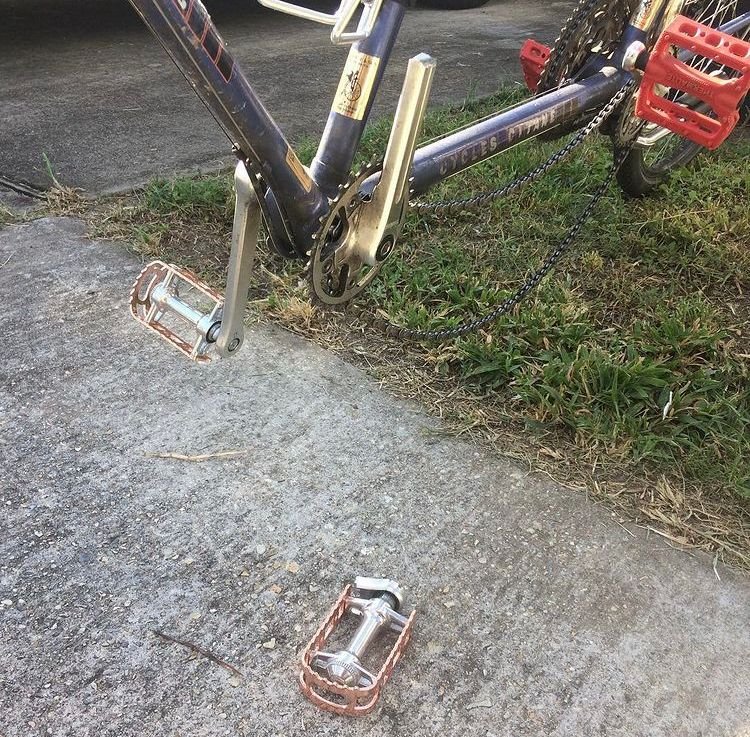

Note the "L" on the left arm in the picture:



That's a tandem crank arm for the timing chain, with left hand pedal thread, so only a single ring would be expected to mount there.
JohnDThompson is offline
Likes For JohnDThompson:
Old 02-19-22, 09:01 PM
  #7
noobinsf
Senior Member

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 3,016

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 982 Post(s)
Liked 956 Times in 577 Posts
Originally Posted by JohnDThompson View Post
Note the "L" on the left arm in the picture:



That's a tandem crank arm for the timing chain, with left hand pedal thread, so only a single ring would be expected to mount there.
This feels like an Encyclopedia Brown solve. Nicely done.
noobinsf is offline
Old 02-19-22, 10:01 PM
  #8
nlerner
Senior Member

Join Date: Dec 2005
Posts: 15,663
Mentioned: 402 Post(s)
Tagged: 0 Thread(s)
Quoted: 2951 Post(s)
Liked 3,675 Times in 1,644 Posts
I think L is the symbol for "piste" in archaic French.
nlerner is online now
Likes For nlerner:
Old 02-20-22, 12:24 AM
  #9
mountaindave
tantum vehi
Thread Starter

mountaindave's Avatar

Join Date: Jul 2008
Location: Flathead Valley, MT
Posts: 4,207

Bikes: More than I care to admit

Mentioned: 137 Post(s)
Tagged: 0 Thread(s)
Quoted: 1019 Post(s)
Liked 564 Times in 317 Posts
Originally Posted by JohnDThompson View Post
Note the "L" on the left arm in the picture:



That's a tandem crank arm for the timing chain, with left hand pedal thread, so only a single ring would be expected to mount there.
Holy bucket of merde, Batman - that is it!! I was wondering why it had an L. I mean, I knew that the French were weird about their bike stuff (like thumbing their noses at threading standards), but they donít just randomly stamp stuff in their gear.

I checked the threads with a right pedal - it went in half way by hand before it got stiff. Then I checked a left pedal and it did the same thing! The threads are crossed, I can see it looking close up. But the left arm is a legit left arm.

And of course the lack of an inner shelf is because this was for the single ring of a timing chain only. Why waste material with that extra shelf?

However, this all makes me a little nervous - I donít know if Iíd want to use that as a single speed crank now that I know that it has be re-tapped for a right pedal.

BF members for the win!
Nice job, Encyclopedia Brown!
mountaindave is offline
Old 02-20-22, 04:19 AM
  #10
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 3,942

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 195 Post(s)
Tagged: 0 Thread(s)
Quoted: 992 Post(s)
Liked 1,043 Times in 580 Posts
Stronglight 99 Cranks

JohnDThompson BINGO! I was thinking pista/track crank arm at first but 86mm BCD wouldn't make sense.

I don't recall ever seeing these tandem cranks in any Stronglight catalog.

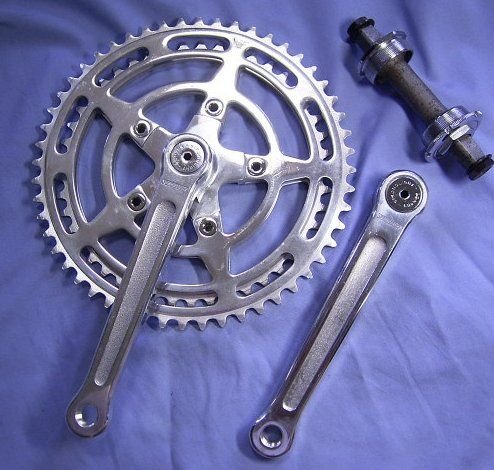

The Stronglight 99 cranks were introduced in 1971 for cyclotouring. They could be fitted with a chainring as small as 28T and easily made into a triple. The original version 99 cranks were handsome forgings with square sides, non-anodized with a highly polished finish like the model 93 cranks.



Started seeing these in 1973-74 on some Peugeot PX-10s and Bertin C37s. We suspected that they had been substituted for Stronglight 93 cranks because of bike boom availability problems. By 1975 both of those models were coming with Stronglight 105 cranks.

Never felt real comfortable selling those SL 99 cranks because we though that they might flex a lot due to the small 86mm BCD. Turns out that was never an issue.

Unfortunately these elegant cranks never caught on... They were a product ahead of their time. When the cyclotouring craze hit the US in 1975-76 they would have been a perfect choice. Much more robust than the ever popular TA Cyclotouriste cranks.

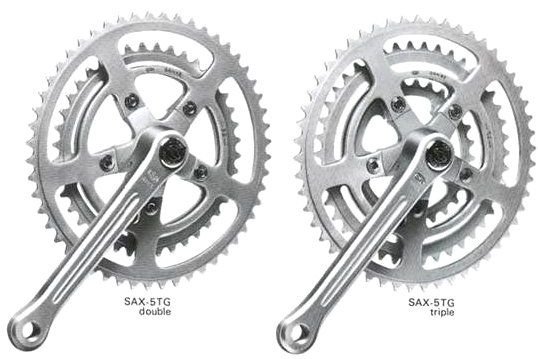

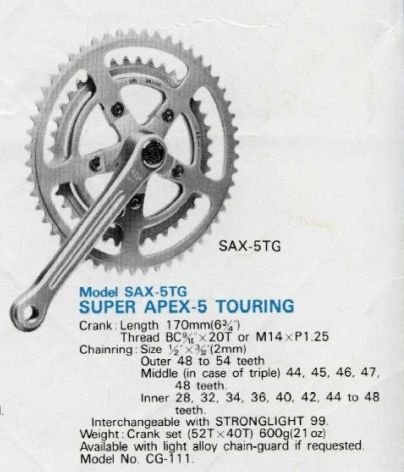

Around 1978 SR Sakae Ringyo introduced their SAX-5TG Super Apex 5 Touring cranks which were a knock off of the Stronglight 99 86mm BCD design. They were available as doubles and triples and their catalog even states that they were interchangeable with the Stronglight 99.




Around the same time Stronglight brought out their second generation model 99 cranks. They had rounded edges and a satin anodized finish, they looked just like the SR cranks. The new 99 crank arms appear to have been "melt forged", the Japanese euphemism for injection molded/pressure cast rather than forged like earlier Stronglight cranks.

I put a set of those on my Moto touring bike with 50-46-32T chainrings. They worked great but I sold the bike because is was a little to big for me.




verktyg
__________________
Don't believe everything you think! History is written by those who weren't there....

Chas. ;-)


Last edited by verktyg; 02-20-22 at 04:26 AM.
verktyg is offline
Likes For verktyg:
Old 02-20-22, 07:14 AM
  #11
jonwvara
Senior Member

jonwvara's Avatar

Join Date: Apr 2006
Location: Washington County, Vermont, USA
Posts: 3,563

Bikes: 1966 Dawes Double Blue, 1976 Raleigh Gran Sport, 1975 Raleigh Sprite 27, 1980 Univega Viva Sport, 1971 Gitane Tour de France, 1984 Lotus Classique, 1976 Motobecane Grand Record

Mentioned: 70 Post(s)
Tagged: 0 Thread(s)
Quoted: 627 Post(s)
Liked 417 Times in 226 Posts
I have said it before, but I love this forum.
__________________
www.redclovercomponents.com

"Progress might have been all right once, but it has gone on too long."
--Ogden Nash
jonwvara is offline
Old 02-20-22, 07:22 AM
  #12
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,506

Bikes: Several, mostly not name brands.

Mentioned: 136 Post(s)
Tagged: 0 Thread(s)
Quoted: 2949 Post(s)
Liked 1,973 Times in 1,180 Posts
Originally Posted by mountaindave View Post
However, this all makes me a little nervous - I donít know if Iíd want to use that as a single speed crank now that I know that it has be re-tapped for a right pedal.
A helicoil insert would fix that, better than new.
JohnDThompson is offline
Old 02-20-22, 07:23 AM
  #13
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,506

Bikes: Several, mostly not name brands.

Mentioned: 136 Post(s)
Tagged: 0 Thread(s)
Quoted: 2949 Post(s)
Liked 1,973 Times in 1,180 Posts
Originally Posted by verktyg View Post
JohnDThompson BINGO! I was thinking pista/track crank arm at first but 86mm BCD wouldn't make sense.

I don't recall ever seeing these tandem cranks in any Stronglight catalog.
I have a set of those Stronglight cranks on my Gitane tandem.
JohnDThompson is offline
Old 02-20-22, 09:54 AM
  #14
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 22,771
Mentioned: 605 Post(s)
Tagged: 1 Thread(s)
Quoted: 4490 Post(s)
Likes: 0
Liked 2,567 Times in 1,629 Posts
Originally Posted by verktyg View Post
...I don't recall ever seeing these tandem cranks in any Stronglight catalog....

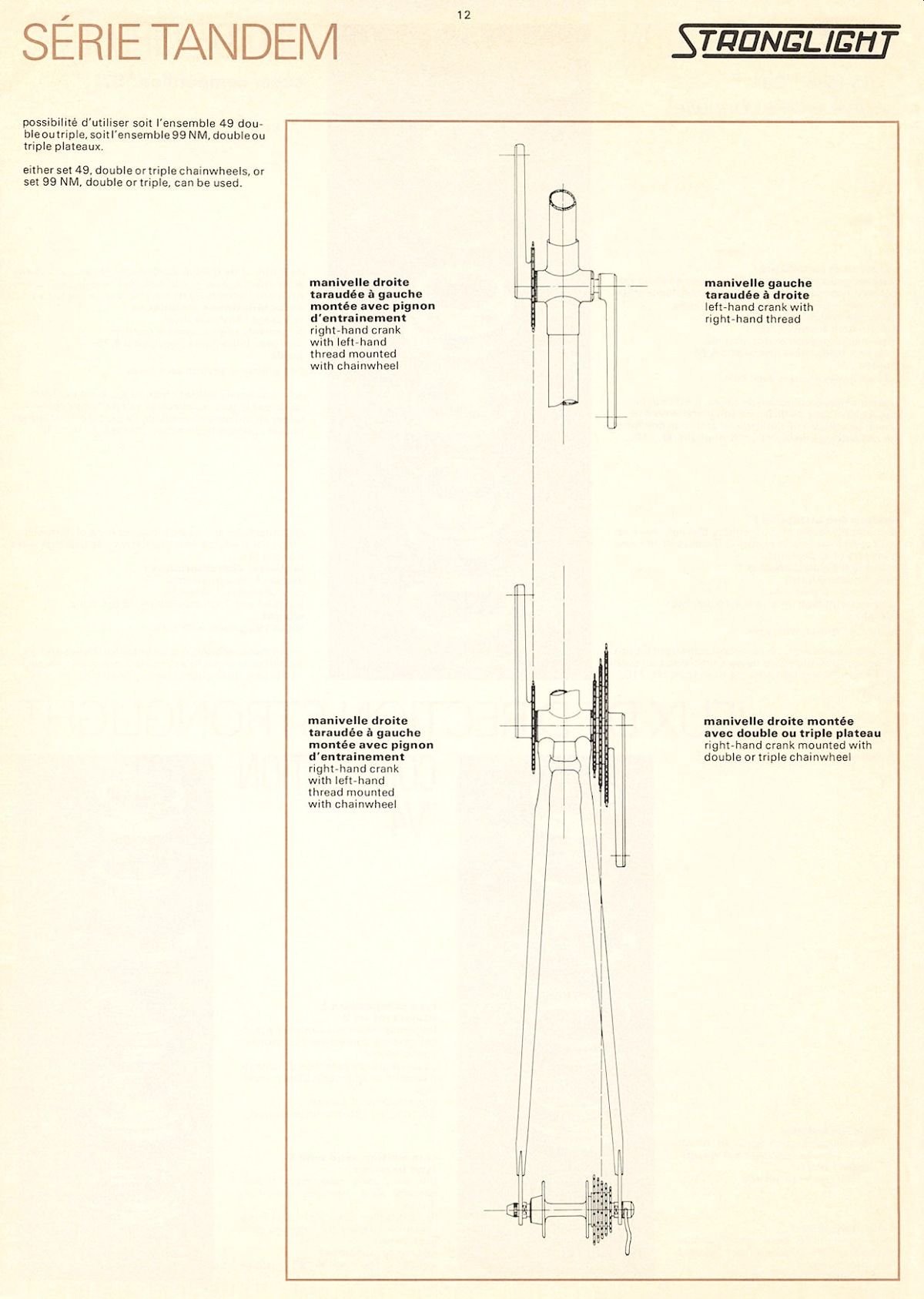

Here's the page from a Stronglight catalogue that mentions the the availability of the ""99" tandem crankset.
T-Mar is offline
Likes For T-Mar:
Old 02-20-22, 10:10 AM
  #15
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 1,794

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx, Renť Herse tandem

Mentioned: 65 Post(s)
Tagged: 0 Thread(s)
Quoted: 823 Post(s)
Liked 1,083 Times in 584 Posts
Originally Posted by mountaindave View Post
I mean, I knew that the French were weird about their bike stuff (like thumbing their noses at threading standards), but they donít just randomly stamp stuff in their gear.
They don't?? I beg to differ..

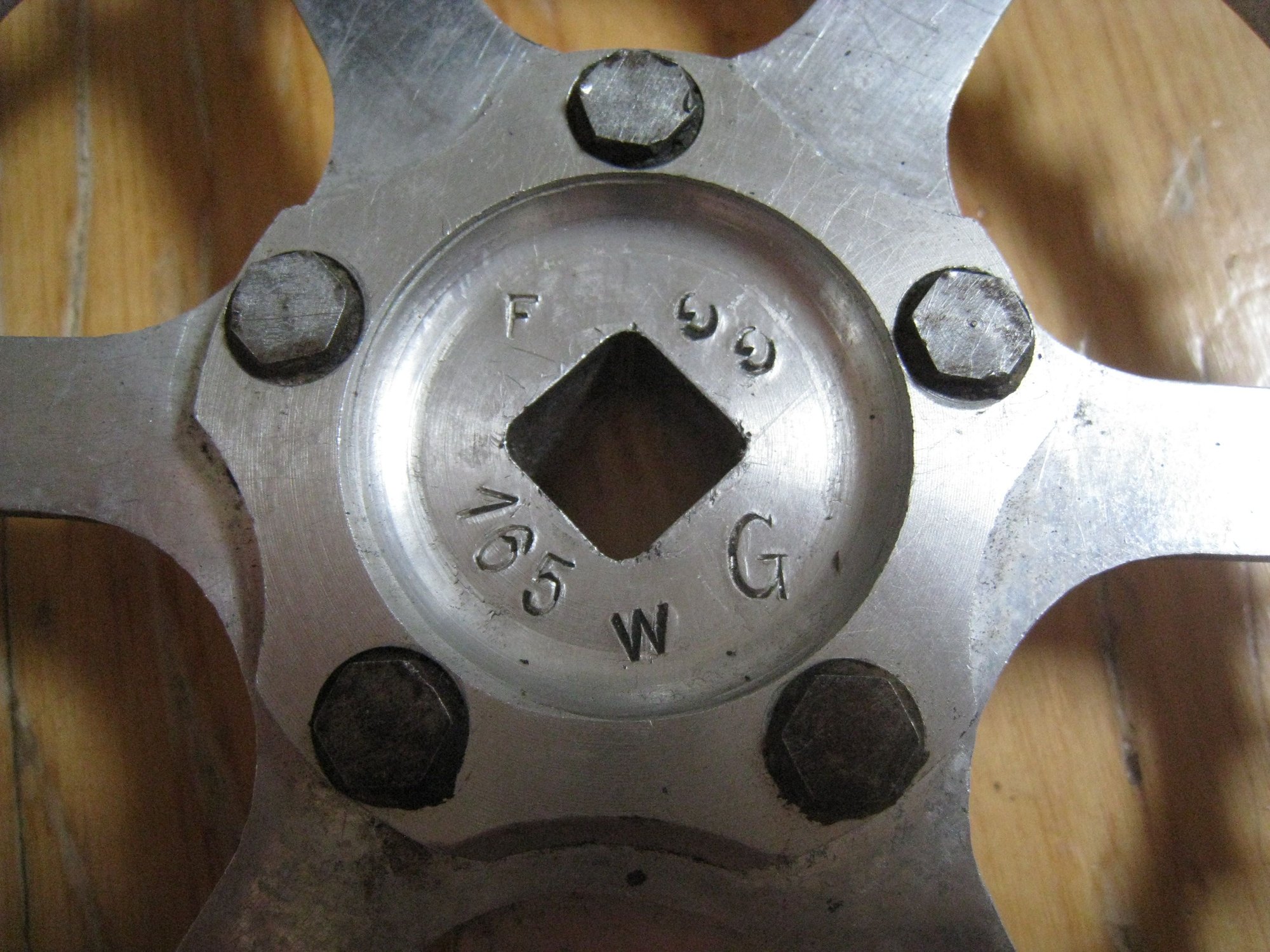

The double-G and the F on my TAs are still a mystery to me.
__________________
Owner & co-founder, Cycles Renť Hubris. Unfortunately attaching questionable braze-ons to perfectly good frames since about 2015. With style.
scarlson is offline
Likes For scarlson:
Old 02-20-22, 11:47 AM
  #16
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 13,022

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 79 Post(s)
Tagged: 0 Thread(s)
Quoted: 2364 Post(s)
Liked 1,010 Times in 597 Posts
Originally Posted by nlerner View Post
Hmm, thatís a later model 99, might even take a standard puller.

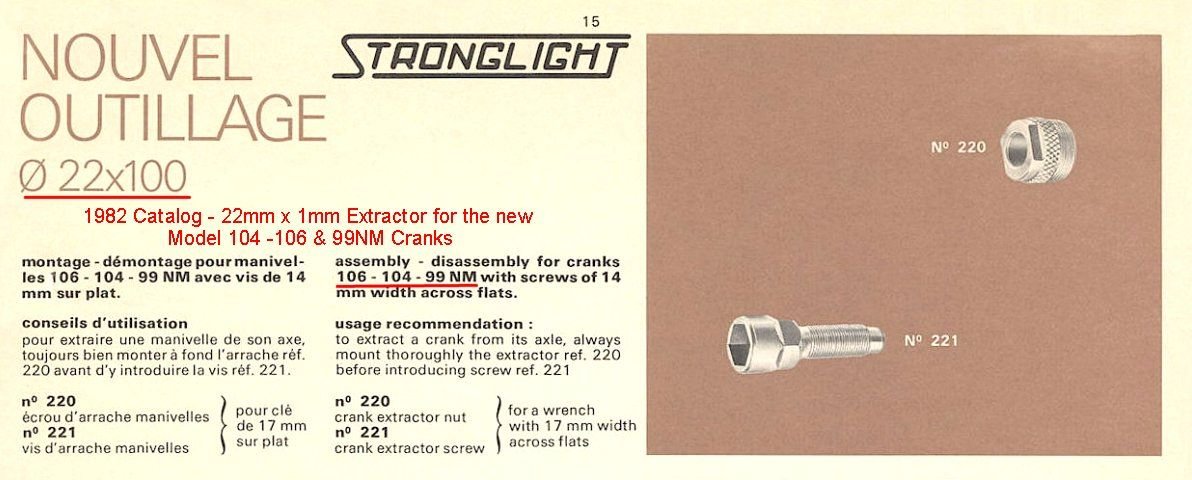

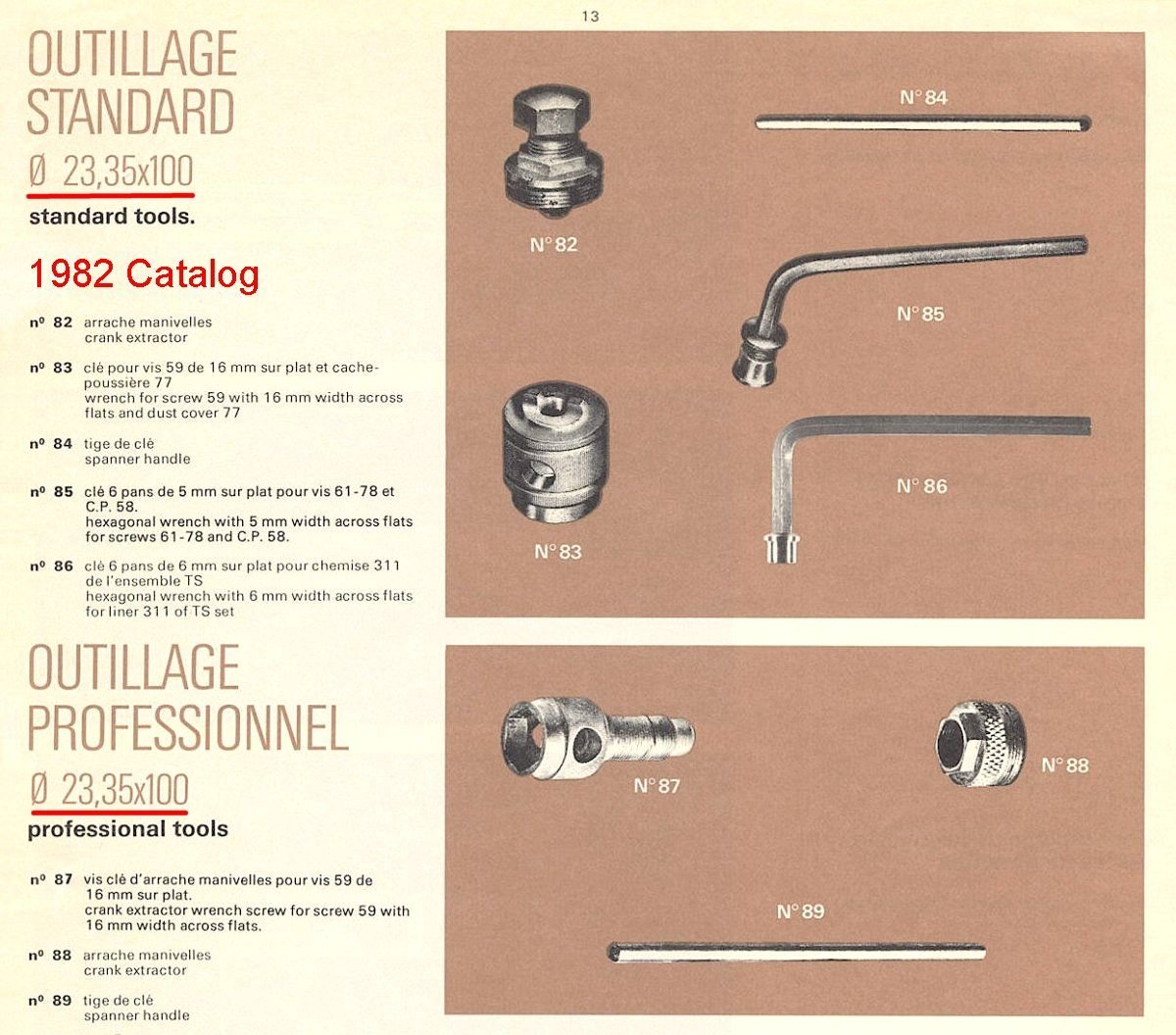

And just for those that stumble upon this thread in the future- You can tell because of the little decorative indents/depressions in the spider arms. That generally means it'll take a standard puller.

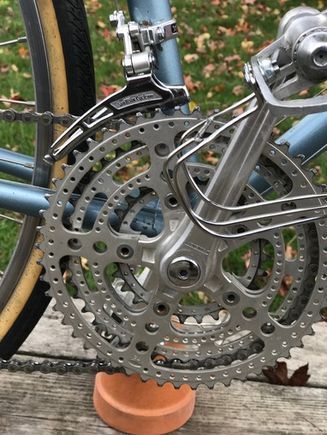

And, my goodness, does a 99BIS crankset look stunning.


__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jiggliní huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Likes For The Golden Boy:
Old 02-20-22, 12:25 PM
  #17
droppedandlost
small ring

droppedandlost's Avatar

Join Date: Jul 2012
Location: PNW
Posts: 862
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 360 Post(s)
Liked 566 Times in 263 Posts
Originally Posted by The Golden Boy View Post
And, my goodness, does a 99BIS crankset look stunning.
Yes, but I cringe at the thought of cleaning it after a dirty ride
__________________
droppedandlost is offline
Old 02-20-22, 12:57 PM
  #18
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 1,794

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx, Renť Herse tandem

Mentioned: 65 Post(s)
Tagged: 0 Thread(s)
Quoted: 823 Post(s)
Liked 1,083 Times in 584 Posts
Originally Posted by droppedandlost View Post
Yes, but I cringe at the thought of cleaning it after a dirty ride
It's true. I have always wondered how much of the weight savings of drillium are offset once the holes fill up with crud.
__________________
Owner & co-founder, Cycles Renť Hubris. Unfortunately attaching questionable braze-ons to perfectly good frames since about 2015. With style.
scarlson is offline
Old 02-20-22, 01:11 PM
  #19
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,506

Bikes: Several, mostly not name brands.

Mentioned: 136 Post(s)
Tagged: 0 Thread(s)
Quoted: 2949 Post(s)
Liked 1,973 Times in 1,180 Posts
Originally Posted by verktyg View Post
Around 1978 SR Sakae Ringyo introduced their SAX-5TG Super Apex 5 Touring cranks which were a knock off of the Stronglight 99 86mm BCD design. They were available as doubles and triples and their catalog even states that they were interchangeable with the Stronglight 99.

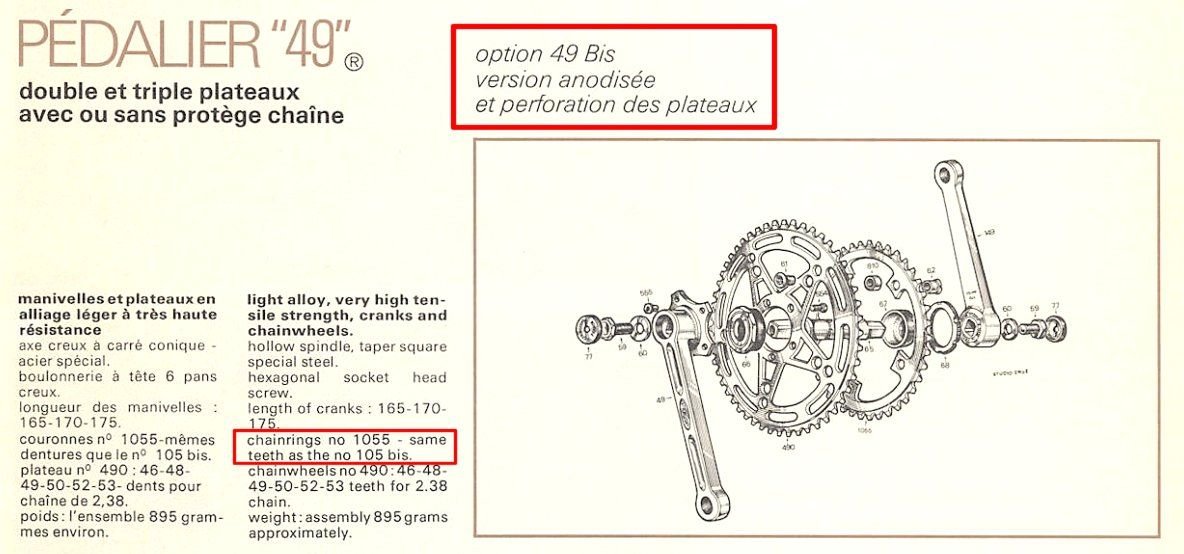

Yes, they are. Here are some 99bis rings on a Sakae Ringyo crank:
Attached Images
File Type: jpg
JohnDThompson is offline
Old 02-20-22, 05:22 PM
  #20
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 3,942

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 195 Post(s)
Tagged: 0 Thread(s)
Quoted: 992 Post(s)
Liked 1,043 Times in 580 Posts

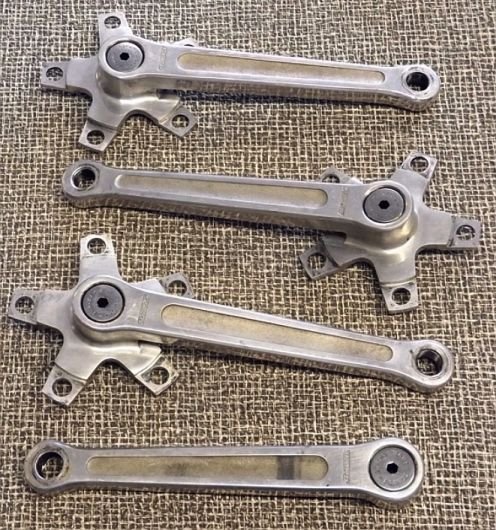

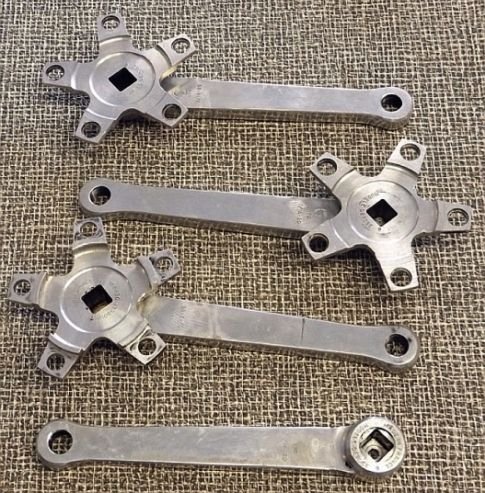

Stronglight Tandem Cranksets

Originally Posted by JohnDThompson View Post

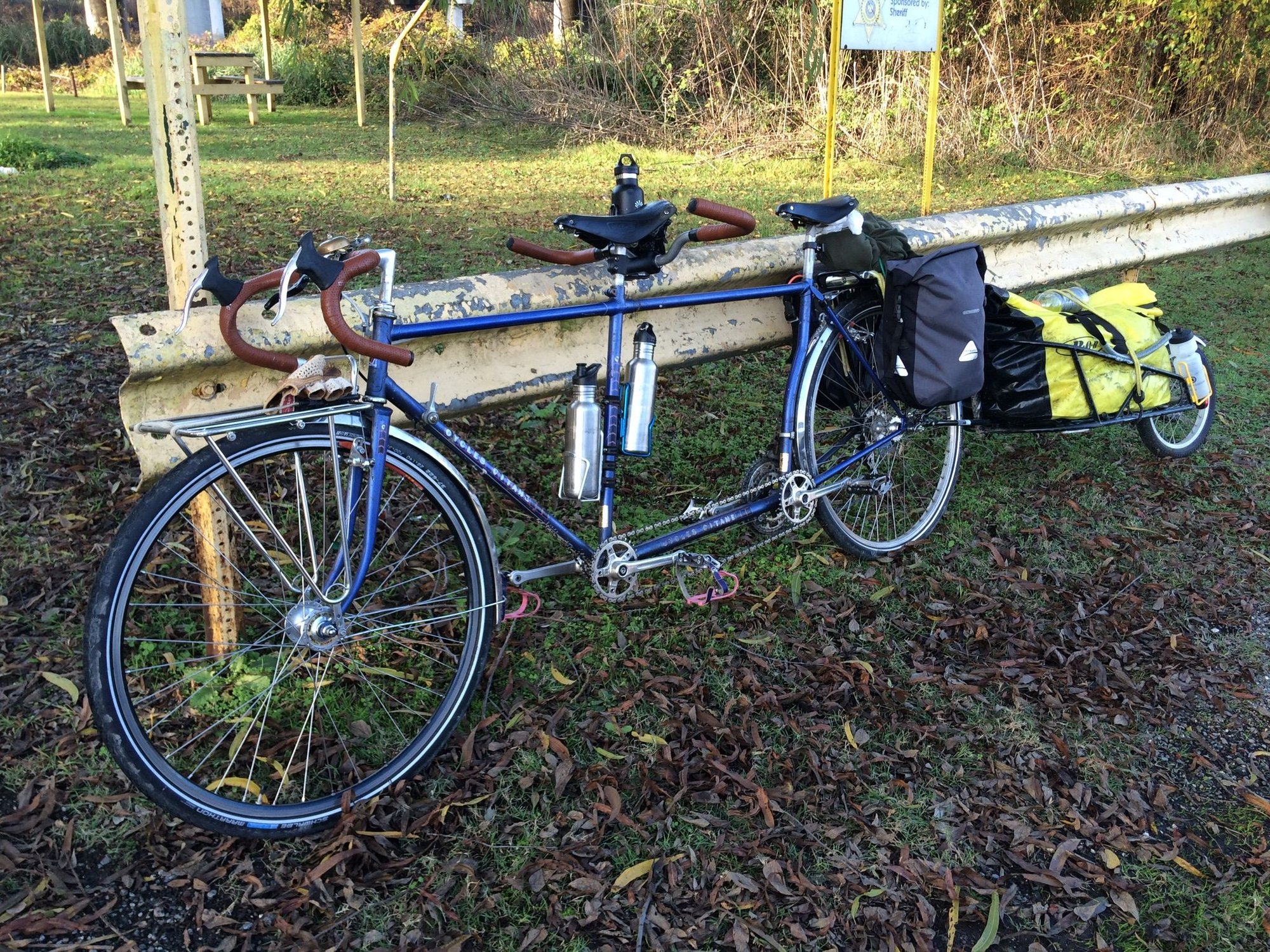

I have a set of those Stronglight cranks on my Gitane tandem.
The 1983 & 1984 Gitane catalogs show the Ralley tandems with Stronglight 99 cranks. I was out of the bike business by then so I never saw one:





Originally Posted by T-Mar View Post
Here's the page from a Stronglight catalogue that mentions the the availability of the ""99" tandem crankset.
T-Mar, thinks for pointing that out, That's from the 1978 Stronglight Catalog # 24. I have a copy because we imported Stronglight and TA cranks in the late 80's. I remember seeing that "chart" in the catalog but I guess that I ignored it because there were no part numbers or parts breakdown like all of the other items in their catalogs. On closer examination they offered tandem sets in both 49 and 99 models - perhaps on special order? The chart was in the 1980 # 25 and 1982 # 26 catalogs too.

Changed orientation in the 1982 # 26 catalog:



Is it wrong... or just French!

verktyg
__________________
Don't believe everything you think! History is written by those who weren't there....

Chas. ;-)


Last edited by verktyg; 02-20-22 at 05:40 PM.
verktyg is offline
Old 02-20-22, 05:58 PM
  #21
bboy314
Senior Member

bboy314's Avatar

Join Date: Dec 2008
Location: Pioneer Valley
Posts: 329
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 71 Post(s)
Liked 123 Times in 72 Posts



While weíre on the subject! Our Gitane tandem (heavily modified, a couple incarnations). Also the Stronglight Crank when we pushed off to go for a ride one dayÖ crankarm had already been gouged from a bent pedal cage ridden by previous owner. This was the day it decided to give up.
bboy314 is online now
Old 02-20-22, 06:02 PM
  #22
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,506

Bikes: Several, mostly not name brands.

Mentioned: 136 Post(s)
Tagged: 0 Thread(s)
Quoted: 2949 Post(s)
Liked 1,973 Times in 1,180 Posts
Originally Posted by verktyg View Post
The 1983 & 1984 Gitane catalogs show the Ralley tandems with Stronglight 99 cranks. I was out of the bike business by then so I never saw one:


My Rallye tandem is an '83. As noted by @The Golden Boy above, the cast arms and recesses on the crank spider indicate standard 22 x 1mm extractor thread.
JohnDThompson is offline
Old 02-20-22, 06:10 PM
  #23
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,506

Bikes: Several, mostly not name brands.

Mentioned: 136 Post(s)
Tagged: 0 Thread(s)
Quoted: 2949 Post(s)
Liked 1,973 Times in 1,180 Posts
Originally Posted by bboy314 View Post
While we’re on the subject! Our Gitane tandem (heavily modified, a couple incarnations). Also the Stronglight Crank when we pushed off to go for a ride one day… crankarm had already been gouged from a bent pedal cage ridden by previous owner. This was the day it decided to give up.
The Rallye was kind of an odd-duck, spec-wise. It had some nice tandem-appropriate features like oversize fork blades and hubs axles, a 4-pawl tandem freewheel, and 40-spoke wheels, but then was awfully cheap in other areas. The stock Hutchison tires barely lasted a month, and the P3 headset barely one season. I put Specialized "tandem" tires on, which served well, and a Stronglight "Delta" roller bearing headset, which is still going strong to this day.

I put a "kid-back" attachment on when my children were small, and used it to ride them to school. Always a hit with the other kids!
JohnDThompson is offline
Old 02-20-22, 06:48 PM
  #24
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 3,942

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 195 Post(s)
Tagged: 0 Thread(s)
Quoted: 992 Post(s)
Liked 1,043 Times in 580 Posts
Stronglight 99 Crank Variations

Originally Posted by JohnDThompson View Post
My Rallye tandem is an '83. As noted by @The Golden Boy above, the cast arms and recesses on the crank spider indicate standard 22 x 1mm extractor thread.
Not necessarily all of the 2nd generation 99 cranks???

The 1982 Stronglight catalog # 25 lists a model 99 bis "NM" crank - bis chainrings are "drillium" but they came non-drillium too.

In the tool section of the 1982 catalog they list 2 different crank extractors, the original 23.35mm and a new style 22mm for 104, 106 and 99 NM model cranks. The 1984 catalog only lists the 22mm extractor.

Old style 23.35mm extractors



New 22mm extractor - 2 pages behind the 23.35 extractors in the 1982 catalog...


Reason that I mention this is there's been some confusion over the correct extractor for the second generation 99 cranks. The original ones that came out ~1978 may have - probably did use a 23.35mm extractor. When Stronglight introduced their next generation cranks in the 1982 catalog. The new models all used 22mm extractors. That included the Campy knockoff 106 model.

To muddy the water further, 1982 was the last hurrah for the venerable Stronglight 49 cranks. I've seen some discussions where some of the last model 49 cranks also used 22mm extractors???



I pulled the 99 cranks off of my Moto when I sold it. I'll check the threads on that one.

verktyg "50"
__________________
Don't believe everything you think! History is written by those who weren't there....

Chas. ;-)


Last edited by verktyg; 02-20-22 at 06:54 PM.
verktyg is offline
Old 02-20-22, 06:59 PM
  #25
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 5,736
Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 1892 Post(s)
Liked 991 Times in 744 Posts
Originally Posted by scarlson View Post
The double-G and the F on my TAs are still a mystery to me.
Obviously intended for a French girl named Gigi.
madpogue is offline
Likes For madpogue:

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
