1984 Trek 850

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

1984 Trek 850

Old 06-19-22, 06:39 PM
  #1
theblackbullet
Senior Member
Thread Starter

theblackbullet's Avatar

Join Date: Jan 2010
Location: Georgia
Posts: 695

Bikes: I don't even

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 48 Post(s)
Liked 66 Times in 24 Posts

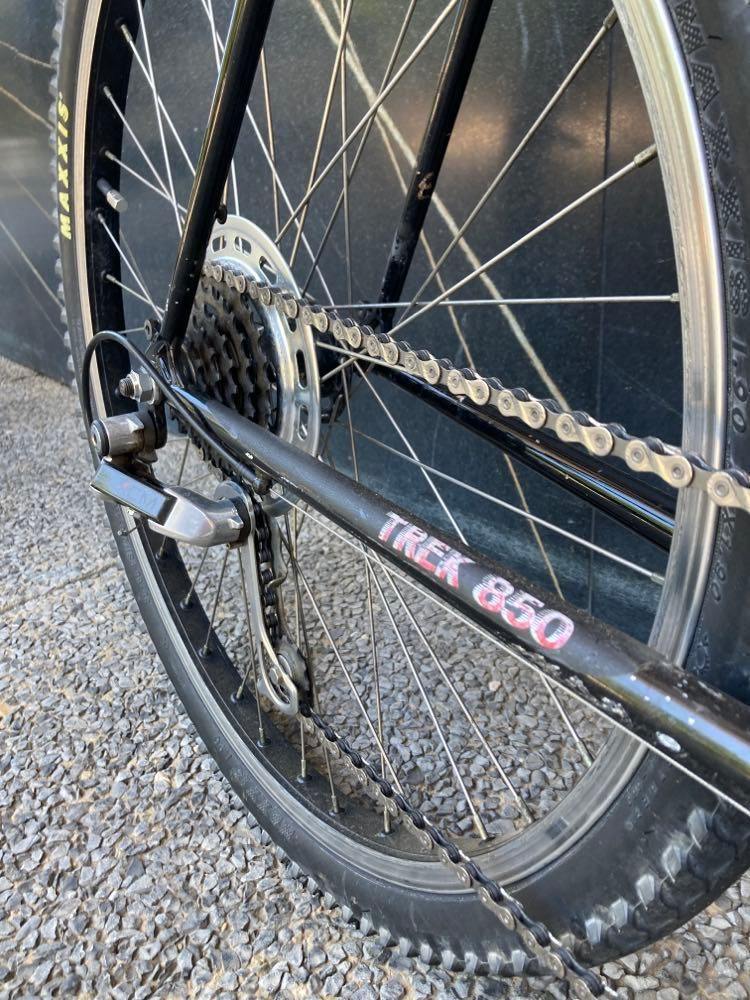

1984 Trek 850

After a few weeks of navigating the messed up algorithms of facebook marketplace and endless craigslist ads, I finally came across an early all-terrain bike that was my size. Making the drive from Atlanta to Charlotte was a lot, but I was able to add in some track racing at the velodrome in Rock Hill, South Carolina to help make the driving worthwhile. Here is what I brought home!






theblackbullet is offline
Likes For theblackbullet:
Old 06-19-22, 06:47 PM
  #2
theblackbullet
Senior Member
Thread Starter

theblackbullet's Avatar

Join Date: Jan 2010
Location: Georgia
Posts: 695

Bikes: I don't even

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 48 Post(s)
Liked 66 Times in 24 Posts
So some questions, if you're willing and able to help:
Does anyone know the original seatpost diameter for this bike? It came with a 27.0 seatpost and a chopped up wald 13/16" to 7/8" shim. I currently have a 27.2 seatpost in there with a coke can and a half shim. It seems a 27.4 might be the right fit?
At some point someone tried to touch up paint with black spray paint covering up the original beautiful metallic flake. I'd like to try and remove what I can without damaging the original paint. I don't mind the nicks on the frame but the dull black spray paint really bugs me. Any suggestions on how to best approach this?
I love the original stem, but I'd like to consider a wider bar. Do I have any options with this double clamp? I don't think there is a bulge at the clamps. I'll have to measure my diameter when I get a chance.
theblackbullet is offline
Old 06-19-22, 06:50 PM
  #3
prairiepedaler
Senior Member

Join Date: Aug 2016
Location: Winnipeg - traffic ticket central
Posts: 1,384

Bikes: Looking for "the One"

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 213 Times in 143 Posts
Those hardtail biggies are tough to find, ain't they. You just have to make sure the knurling on the new bar is in the right spots and it will certainly work. Those double clamp bars came in several widths. Try to load up with cromo one, the weight difference is noticeable.

Last edited by prairiepedaler; 06-19-22 at 06:54 PM.
prairiepedaler is offline
Old 06-19-22, 06:54 PM
  #4
theblackbullet
Senior Member
Thread Starter

theblackbullet's Avatar

Join Date: Jan 2010
Location: Georgia
Posts: 695

Bikes: I don't even

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 48 Post(s)
Liked 66 Times in 24 Posts
A bonus shot of the bike "as-found" at the velodrome.
theblackbullet is offline
Likes For theblackbullet:
Old 06-19-22, 06:57 PM
  #5
theblackbullet
Senior Member
Thread Starter

theblackbullet's Avatar

Join Date: Jan 2010
Location: Georgia
Posts: 695

Bikes: I don't even

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 48 Post(s)
Liked 66 Times in 24 Posts
Originally Posted by prairiepedaler View Post
Those hardtail biggies are tough to find, ain't they. You just have to make sure the knurling on the new bar is in the right spots and it will certainly work. Those double clamp bars came in several widths. Try to load up with cromo one, the weight difference is noticeable.
I don't think I'll regret making the drive for this one! It's a completely different ride than my 1991 Ironhorse MT600r. I'm really enjoying the loooong stays.
theblackbullet is offline
Old 06-19-22, 08:29 PM
  #6
Korina
Happy banana slug

Korina's Avatar

Join Date: Sep 2015
Location: Arcata, California, U.S., North America, Earth, Saggitarius Arm, Milky Way
Posts: 2,971

Bikes: 1984 Araya MB 261, 1992 Specialized Rockhopper Sport, 1993 Hard Rock Ultra, 1994 Trek Multitrack 750, 1995 Trek Singletrack 930

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 1172 Post(s)
Liked 930 Times in 599 Posts
Originally Posted by theblackbullet View Post
I don't think I'll regret making the drive for this one! It's a completely different ride than my 1991 Ironhorse MT600r. I'm really enjoying the loooong stays.
If you haven't been, Vintage Trek is the resource you need. Here's where you can date it; once you've done that, find the brochure and/or tech manual for it here. HTH. Oh, and make sure to show us pics as you get her back in working order!
Korina is offline
Old 06-19-22, 08:36 PM
  #7
Trakhak
Senior Member

Join Date: Jan 2005
Location: Baltimore, MD
Posts: 3,247
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 1186 Post(s)
Liked 1,097 Times in 639 Posts
Terrific find from the era when solid axles were used even for the high-end mountain bikes, since it was assumed that QR axles wouldn't hold up to the rigors of hard off-road riding.
Trakhak is offline
Likes For Trakhak:
Old 06-20-22, 06:40 AM
  #8
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,649

Bikes: Several, mostly not name brands.

Mentioned: 142 Post(s)
Tagged: 0 Thread(s)
Quoted: 3003 Post(s)
Liked 2,105 Times in 1,253 Posts
Originally Posted by Trakhak View Post
Terrific find from the era when solid axles were used even for the high-end mountain bikes, since it was assumed that QR axles wouldn't hold up to the rigors of hard off-road riding.
Those Deore XT hubs were derived from Dura-Ace track hubs. The front hub uses a 10mm axle with flats milled to fit in a 9mm fork end.
JohnDThompson is offline
Likes For JohnDThompson:
Old 06-20-22, 08:42 AM
  #9
dweenk
Senior Member

dweenk's Avatar

Join Date: Mar 2013
Location: Maryland
Posts: 3,869

Bikes: Lots of English 3-speeds, a couple of old road bikes, 3 mountain bikes, 1 hybrid, and a couple of mash-ups

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 851 Post(s)
Liked 260 Times in 185 Posts
Originally Posted by theblackbullet View Post
So some questions, if you're willing and able to help:
Does anyone know the original seatpost diameter for this bike? It came with a 27.0 seatpost and a chopped up wald 13/16" to 7/8" shim. I currently have a 27.2 seatpost in there with a coke can and a half shim. It seems a 27.4 might be the right fit?
At some point someone tried to touch up paint with black spray paint covering up the original beautiful metallic flake. I'd like to try and remove what I can without damaging the original paint. I don't mind the nicks on the frame but the dull black spray paint really bugs me. Any suggestions on how to best approach this?
I love the original stem, but I'd like to consider a wider bar. Do I have any options with this double clamp? I don't think there is a bulge at the clamps. I'll have to measure my diameter when I get a chance.
Sheldon Brown's site lists 27.2 as the most likely candidate, but you have one in place now plus a shim so another 2mm may be it. As far as the spray bomb touch-up goes; I have used acetone on a rag to remove it. Trek paint is tough, so if you don't go overboard with the acetone it should take care of the problem without harming the original paint - be careful around decals though. Nice bike.
__________________
I hope...that all mankind will at length…have reason and sense enough to settle their differences without cutting throats. Ben Franklin
dweenk is offline
Likes For dweenk:
Old 06-20-22, 10:59 AM
  #10
Velo Mule
Senior Member

Velo Mule's Avatar

Join Date: Dec 2016
Location: Long Island, NY
Posts: 1,568

Bikes: Trek 800 x 2, Schwinn Heavy Duti, Schwinn Traveler, Schwinn Le Tour Luxe, Schwinn Continental, Cannondale M400 and Lampert

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 565 Post(s)
Liked 517 Times in 382 Posts
+1 on the acetone. The paint might have been cured for too long for the acetone to work effectively but that would be my first try. It may take some rubbing and some exposure time for the acetone to work. I was doing some repair work to the hood of my car and discovered that I had two primer drips on my fender after two weeks. It came off. It took some time for the acetone to soften the paint and then some rubbing. I used paper towel. Cotton cloth would have been better but the fenders will get blended in the next few weeks.

The second try would be 1000 grit sandpaper followed by 2000 grit. Use a firm sanding block or a piece of wood or aluminum as a backer. The idea would be to remove the spray paint without removing too much of the original paint. This should leave just the spray paint in the paint divot.

Nice find. I like the lugged frame, lugged fork and character of the bike. Was that made in Wisconsin?

That is a good looking velodrome I had not seen pictures of it until now.
Velo Mule is offline
Likes For Velo Mule:
Old 06-20-22, 11:06 AM
  #11
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,649

Bikes: Several, mostly not name brands.

Mentioned: 142 Post(s)
Tagged: 0 Thread(s)
Quoted: 3003 Post(s)
Liked 2,105 Times in 1,253 Posts
Originally Posted by Velo Mule View Post
I like the lugged frame, lugged fork and character of the bike. Was that made in Wisconsin?
The main triangles were brazed in Waterloo, fork and rear triangle subassemblies were made in Japan and joined with frames in Waterloo before painting. Early production used Reynolds 531 "All Terrain" tubing, later production used Tange Prestige tubing.
JohnDThompson is offline
Likes For JohnDThompson:
Old 06-20-22, 07:45 PM
  #12
theblackbullet
Senior Member
Thread Starter

theblackbullet's Avatar

Join Date: Jan 2010
Location: Georgia
Posts: 695

Bikes: I don't even

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 48 Post(s)
Liked 66 Times in 24 Posts
I will definitely give the acetone a go. Wish me luck!

Originally Posted by Trakhak View Post
Terrific find from the era when solid axles were used even for the high-end mountain bikes, since it was assumed that QR axles wouldn't hold up to the rigors of hard off-road riding.
Originally Posted by JohnDThompson View Post
Those Deore XT hubs were derived from Dura-Ace track hubs. The front hub uses a 10mm axle with flats milled to fit in a 9mm fork end.
The hubs are one of my favorite parts of the bike! They're spinning smooth as butter.

Originally Posted by JohnDThompson View Post
The main triangles were brazed in Waterloo, fork and rear triangle subassemblies were made in Japan and joined with frames in Waterloo before painting. Early production used Reynolds 531 "All Terrain" tubing, later production used Tange Prestige tubing.
That's awesome! I thought it was odd that the catalog spec'd the 531 for the main tubes but Tange Champion for the stays. Any idea why the rear triangles we done in Japan instead of trying to do the whole frame in Waterloo?

Last edited by theblackbullet; 06-21-22 at 03:56 AM.
theblackbullet is offline
Likes For theblackbullet:
Old 06-21-22, 06:45 AM
  #13
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,649

Bikes: Several, mostly not name brands.

Mentioned: 142 Post(s)
Tagged: 0 Thread(s)
Quoted: 3003 Post(s)
Liked 2,105 Times in 1,253 Posts
Originally Posted by theblackbullet View Post
I Any idea why the rear triangles we done in Japan instead of trying to do the whole frame in Waterloo?
The imported subassemblies could be done cheaper in Japan and didn't carry the same import tariff a complete bike would pay.
JohnDThompson is offline
Likes For JohnDThompson:
Old 06-21-22, 07:15 AM
  #14
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 3,419

Bikes: 82 Medici, 2011 Richard Sachs, 2011 Milwaukee Road

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 1326 Post(s)
Liked 815 Times in 514 Posts
Very Cool. I stopped looking at 850s because they weren’t lugged.
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs.
Classtime is offline
Old 06-21-22, 07:31 AM
  #15
theblackbullet
Senior Member
Thread Starter

theblackbullet's Avatar

Join Date: Jan 2010
Location: Georgia
Posts: 695

Bikes: I don't even

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 48 Post(s)
Liked 66 Times in 24 Posts
Originally Posted by JohnDThompson View Post
The imported subassemblies could be done cheaper in Japan and didn't carry the same import tariff a complete bike would pay.
Very interesting. Thanks for the insight! This quirkiness makes me love this bike even more!

Originally Posted by Classtime View Post
Very Cool. I stopped looking at 850s because they weren’t lugged.
I started looking for 850s because I realized that the early ones were! haha
theblackbullet is offline
Old 06-21-22, 04:25 PM
  #16
OutnBack
Senior Member

OutnBack's Avatar

Join Date: Jul 2013
Posts: 326
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 102 Post(s)
Liked 81 Times in 49 Posts
Was wondering who picked it up. It was for sale for several weeks. Sounds like it's going to a good home...glad it worked out for you.
OutnBack is offline
Old 06-22-22, 03:53 AM
  #17
theblackbullet
Senior Member
Thread Starter

theblackbullet's Avatar

Join Date: Jan 2010
Location: Georgia
Posts: 695

Bikes: I don't even

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 48 Post(s)
Liked 66 Times in 24 Posts
Originally Posted by OutnBack View Post
Was wondering who picked it up. It was for sale for several weeks. Sounds like it's going to a good home...glad it worked out for you.
I was surprised how old the listing was when I saw it. Couldn't believe it hadn't come up in any of my earlier searches. I was somewhat surprised when the seller responded and it was still available!
theblackbullet is offline
Old 06-22-22, 04:02 AM
  #18
theblackbullet
Senior Member
Thread Starter

theblackbullet's Avatar

Join Date: Jan 2010
Location: Georgia
Posts: 695

Bikes: I don't even

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 48 Post(s)
Liked 66 Times in 24 Posts
Some small changes/personal touches
theblackbullet is offline
Likes For theblackbullet:
Old 07-15-22, 04:23 AM
  #19
theblackbullet
Senior Member
Thread Starter

theblackbullet's Avatar

Join Date: Jan 2010
Location: Georgia
Posts: 695

Bikes: I don't even

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 48 Post(s)
Liked 66 Times in 24 Posts
Thursday evening cruise.






theblackbullet is offline
Likes For theblackbullet:
Old 07-15-22, 09:09 AM
  #20
Lbxpdx
Full Member

Join Date: Oct 2020
Location: Portland
Posts: 281
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 116 Post(s)
Likes: 0
Liked 144 Times in 64 Posts
Nice find. I picked up mine a year or two ago. Mine was painted at RRB bike shop in Chicago and has years of wear and tear, though I fully appreciate the wabi sabi of it.
It is a very comfortable bike.

Lbxpdx is offline
Old 07-15-22, 02:00 PM
  #21
Hobbiano
Senior Member

Join Date: Sep 2014
Location: Baton Rouge La
Posts: 1,065
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 336 Post(s)
Liked 247 Times in 170 Posts

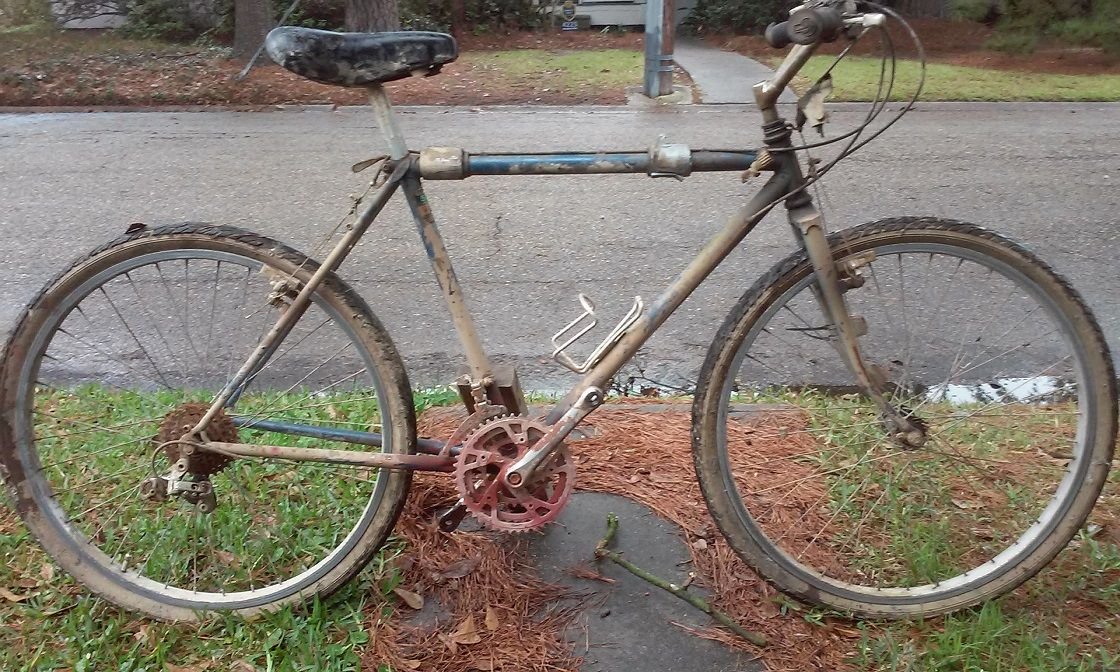

Nice bike! I have an '84 also. Well it's an 830 - one model down - built with Reynolds 501. It needs a little work:

I got a good deal on it. Free. Just had to drive 15 miles to go get it. It had been in a flood in 2016 and was under water for a week or two. When the water receded, there it sat, in the same spot under a shed, until the owner called me up and said come get it, about four years later. So when I got it home I gave it a preliminary scrubbing:

The seatpost and stem were not stuck. The Suntour cartridge bearing hubs still turn as smooth as butter!
I was the original owner of this bike. I bought it new in '84 and sold it after about two or three years, around 1987, give or take. Well, the guy I sold it to, who was a friend, called me and said it was going in the trash, unless I wanted it, around 2020. I think it will be salvageable. It doesn't seem to have too much rust. Maybe it was protected by the layer of bayou scum and toxic waste that remained on it ever since the 2016 flood.
I also got a '69 Schwinn Super Sport at the same time, with the same story (I was the original owner, etc.). My friend bought both bikes from me around the same time, and gave them both back to me thirty six years later.

Last edited by Hobbiano; 07-15-22 at 03:41 PM.
Hobbiano is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
