The role of this dropout part?

Search
Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

The role of this dropout part?

Thread Tools

Search this Thread

Old 04-09-23 | 07:07 AM
  #26
JohnDThompson's Avatar
Old fart
Titanium Club Membership
20 Anniversary
Community Builder

Joined: Nov 2004
Posts: 26,401
Likes: 5,333
From: Appleton WI

Bikes: Several, mostly not name brands.

Originally Posted by bikemig
I recently picked up a 70s era SekineSHR which has a dropout that was manufactured with a stop on the drive side (but not the non DS). It functionally operates like the dropout stop the OP posted about in the first post on this thread. I've never seen a dropout like this but perhaps JohnDThompson has as he has likely forgotten more about dropouts than I'm likely to ever know.

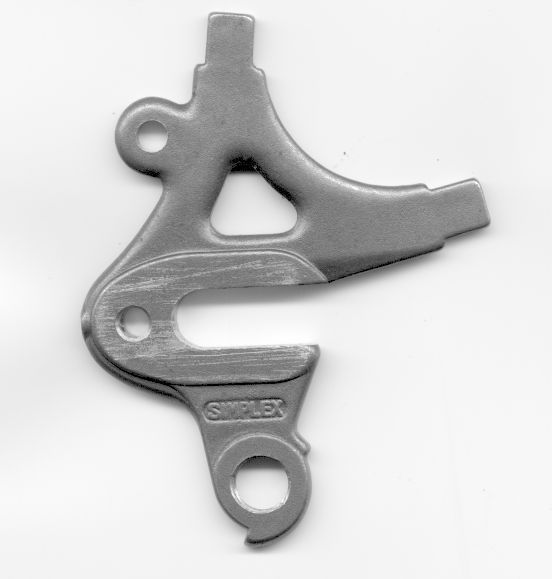

I haven't seen that particular dropout before, but Simplex made a similar one. The hole was to hold a threaded plastic insert through which the adjuster bolt was inserted. If there's a similar hole on the non-drive side dropout, that's likely its purpose.
JohnDThompson is offline
Reply
Old 04-09-23 | 07:27 AM
  #27
bikemig's Avatar
Senior Member
Titanium Club Membership
10 Anniversary
Community Builder
Community Influencer

Joined: Apr 2012
Posts: 21,823
Likes: 5,781
From: Middle Earth (aka IA)

Bikes: A bunch of old bikes and a few new ones

Originally Posted by JohnDThompson
I haven't seen that particular dropout before, but Simplex made a similar one. The hole was to hold a threaded plastic insert through which the adjuster bolt was inserted. If there's a similar hole on the non-drive side dropout, that's likely its purpose.
I'm familiar with the Simplex dropouts. Peugeot used them in the 80s. I have one on my 1982 Peugeot PXN 10. It's a good drop out that works with campy derailleurs as well. The dropout on the Sekine is different. It is not threaded. I think the purpose is just to provide a stop so you can center the wheel. First time I've seen one like this that was manufactured as part of the drop out.
bikemig is offline
Reply
Old 04-09-23 | 08:15 AM
  #28
JohnDThompson's Avatar
Old fart
Titanium Club Membership
20 Anniversary
Community Builder

Joined: Nov 2004
Posts: 26,401
Likes: 5,333
From: Appleton WI

Bikes: Several, mostly not name brands.

Originally Posted by bikemig
I'm familiar with the Simplex dropouts. Peugeot used them in the 80s. I have one on my 1982 Peugeot PXN 10. It's a good drop out that works with campy derailleurs as well. The dropout on the Sekine is different. It is not threaded. I think the purpose is just to provide a stop so you can center the wheel. First time I've seen one like this that was manufactured as part of the drop out.
The Simplex dropout isn't threaded, either; that's the purpose of the threaded plastic insert. Is there a similar hole on the non-drive side dropout?
JohnDThompson is offline
Reply
Old 04-09-23 | 08:21 AM
  #29
bikemig's Avatar
Senior Member
Titanium Club Membership
10 Anniversary
Community Builder
Community Influencer

Joined: Apr 2012
Posts: 21,823
Likes: 5,781
From: Middle Earth (aka IA)

Bikes: A bunch of old bikes and a few new ones

Originally Posted by JohnDThompson
The Simplex dropout isn't threaded, either; that's the purpose of the threaded plastic insert. Is there a similar hole on the non-drive side dropout?
Right, it has a piece that goes through the hole and the plastic piece threads onto it. I haven't thought about how it works since I first set it up.

No hole on the non drive side on this bike. It's just a regular drop out. So DS stop functions much like the piece that the OP linked to in the very first post. I've never seen a drop out like this before. Nice quality bike though as the main triangle is double butted chrome moly.
bikemig is offline
Reply
