Another Headscratcher

Search
Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Another Headscratcher

Thread Tools

Search this Thread

Old 06-27-24 | 04:56 PM
  #1
Thread Starter
Junior Member

Joined: Sep 2021
Posts: 168
Likes: 122
From: Calgary, Canada

Bikes: 1981 Schwinn (Panasonic) Le Tour Tourist 10 speed, 1972? Hiawatha 10 Speed, 1988 Schwinn (Giant) World Tourist w/Shimano FF System, 1971 Schwinn Super Sport (refurbed and ready for sale) 1986 Miyata Terra Runner (now refurbed and ready for sale)

Another Headscratcher

My good buddy just actually BOUGHT the frame you see in the pics below. The seller claimed it was his dad's Peugeot but no serial number plate on the BB (no rivet holes either)
.....or anywhere else for that matter. The headset stuff is Tange. I'll try to get a full pic of the frame from both sides. Please take a look and see if YOU can identify the manufacturer. All contribution/suggestions
greatly appreciated.









H2Rick is offline
Reply
Old 06-27-24 | 05:45 PM
  #2
juvela's Avatar
Senior Member
10 Anniversary

Joined: Feb 2013
Posts: 15,369
Likes: 4,391
From: Alta California
-----

lugs appear BOCAMA

fork evidently a replacement sporting Tange crown and ends; looks like it might be a Mangalloy model

headset appears asian so would expect a 25.4 steerer

still early enough that everything, save fork, should be of metric dimension rather than ISO

measure tube diameters and check headset and bottom bracket thread


-----
juvela is offline
Reply
Old 06-27-24 | 07:49 PM
  #3
Francophile
10 Anniversary

Joined: Nov 2015
Posts: 4,788
Likes: 2,101
From: Seattle

Bikes: Lots

Originally Posted by H2Rick
My good buddy just actually BOUGHT the frame you see in the pics below. The seller claimed it was his dad's Peugeot but no serial number plate on the BB (no rivet holes either)
.....or anywhere else for that matter. The headset stuff is Tange. I'll try to get a full pic of the frame from both sides. Please take a look and see if YOU can identify the manufacturer. All contribution/suggestions
greatly appreciated.

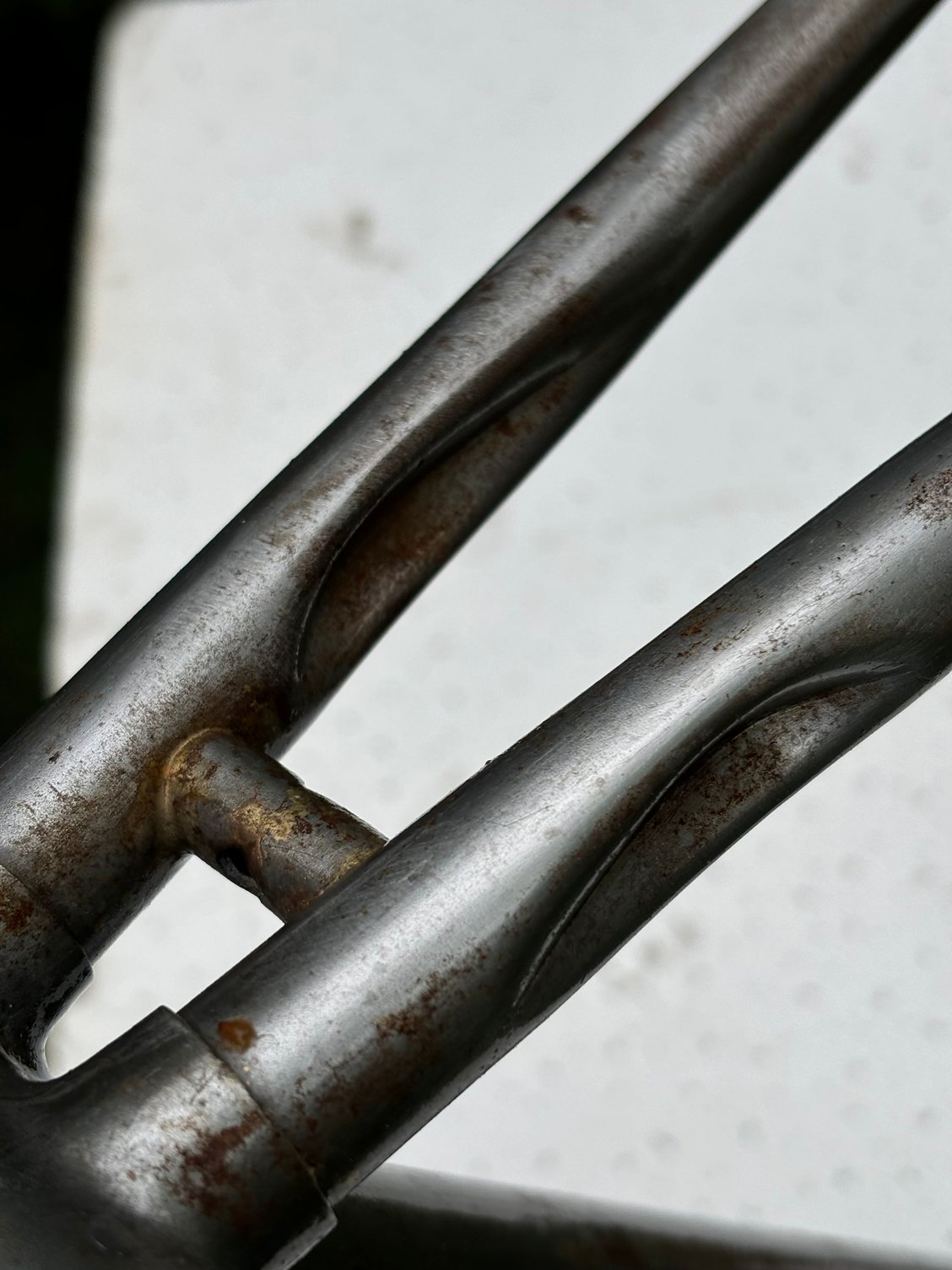

I can't say I've ever seen seat stay ends like those on any Peugeot. I agree with Juvela that the fork is a replacement.
__________________
Keeping Seattle’s bike shops in business since 1978
Aubergine is offline
Reply
Old 06-27-24 | 08:41 PM
  #4
AdventureManCO's Avatar
Senior Member
15 Anniversary

Joined: Jul 2008
Posts: 3,288
Likes: 4,243
From: The Le Grande HQ

Bikes: Gängl, Trek 938, Raleigh Professional, Paramount, Allez, Guerciotti, Specialized Stumpjumper, Trek 750, Miyata 1000 < Huffy

Came here to say great pics.
AdventureManCO is offline
Reply
Old 06-28-24 | 01:54 AM
  #5
MauriceMoss's Avatar
Senior Member
10 Anniversary

Joined: Aug 2014
Posts: 540
Likes: 761
From: Los Angeles, CA

Bikes: None in ridable condition

This is a Canadian made Peugeot PB 12 ("Course" of course), from around 1982/83.
The fork should be original, as they used Tange forks on this model:

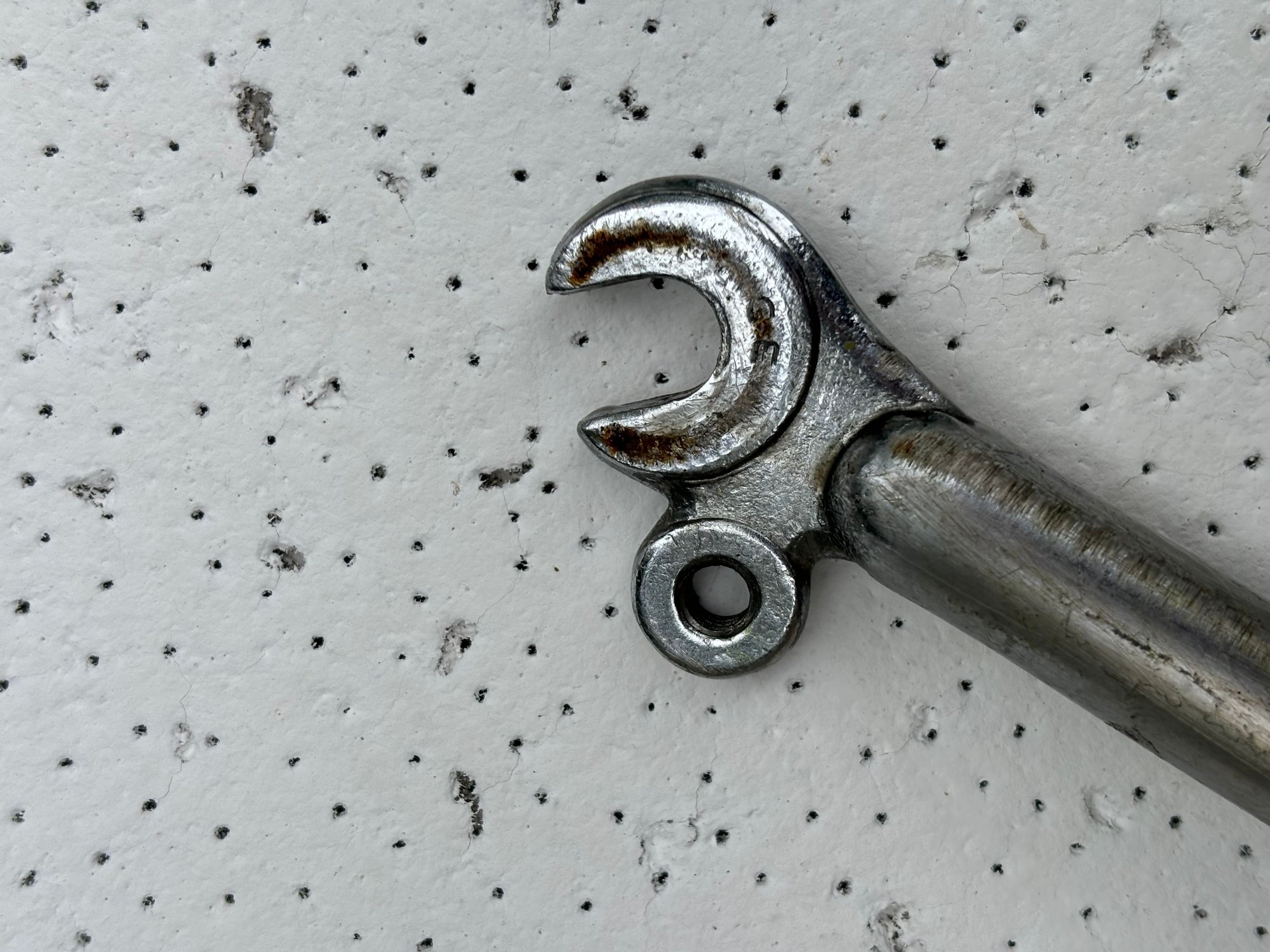

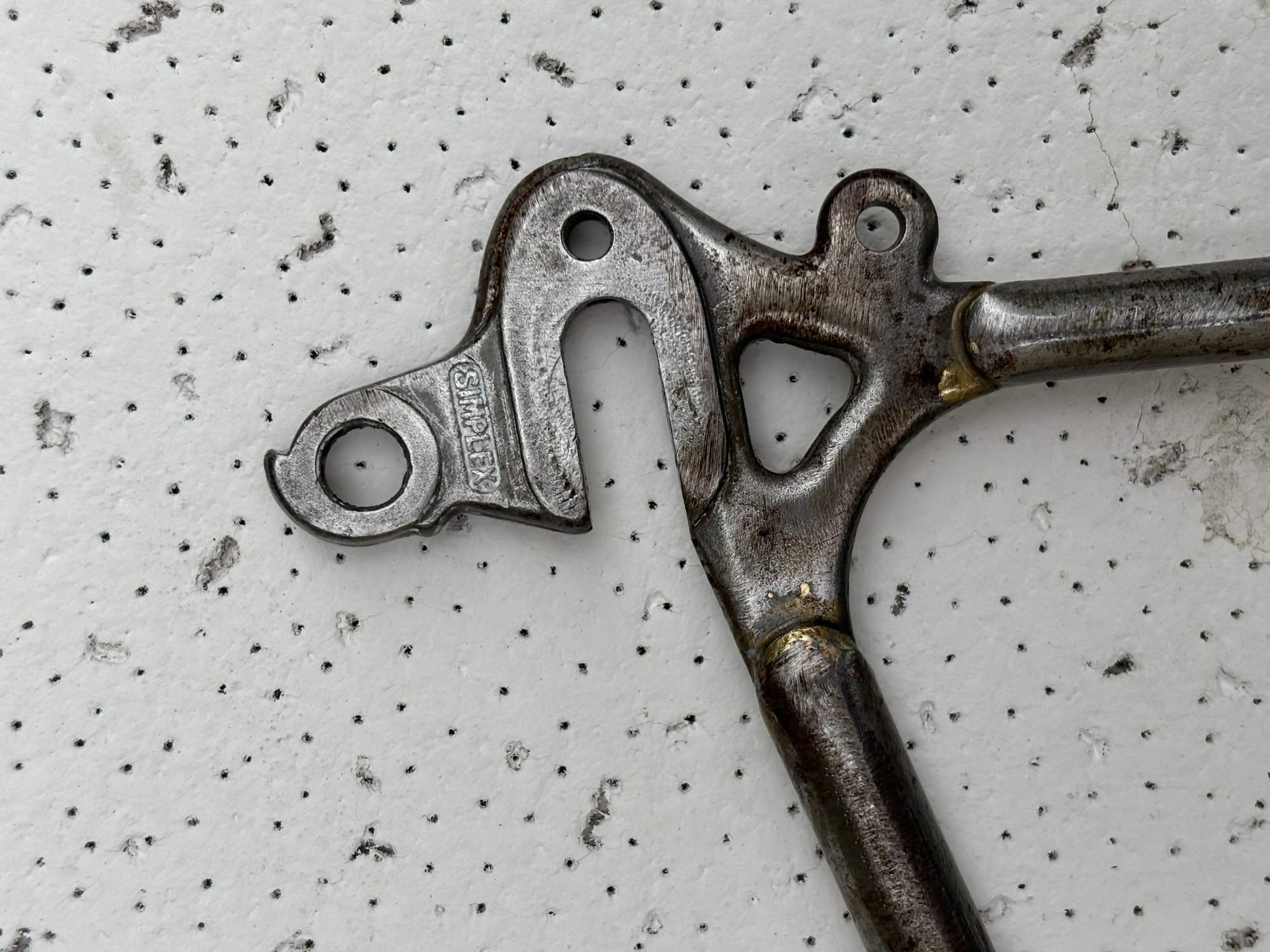

Here's a couple more with a bit clearer view of those seat stay caps:

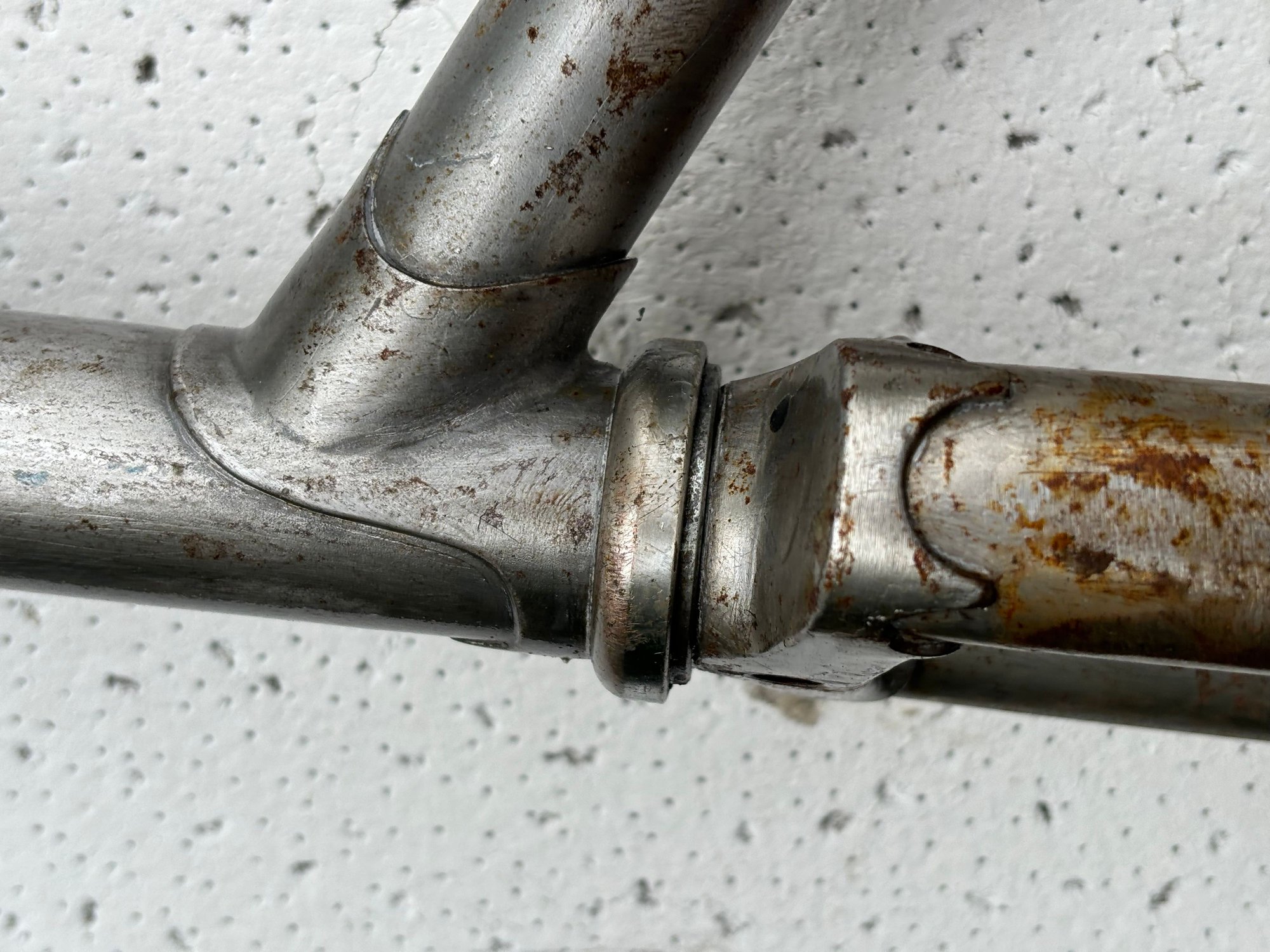

And the 'widow's peak' on those head lugs:



MauriceMoss is offline
Reply
Old 06-28-24 | 05:28 AM
  #6
juvela's Avatar
Senior Member
10 Anniversary

Joined: Feb 2013
Posts: 15,369
Likes: 4,391
From: Alta California
-----


doona know how he does it folks!

suspect siddhic powers...




-----
juvela is offline
Reply
Old 06-28-24 | 09:06 AM
  #7
Francophile
10 Anniversary

Joined: Nov 2015
Posts: 4,788
Likes: 2,101
From: Seattle

Bikes: Lots

Originally Posted by juvela
-----


doona know how he does it folks!

suspect siddhic powers...




-----
Geeze. I can just ditto that.
__________________
Keeping Seattle’s bike shops in business since 1978
Aubergine is offline
Reply
Old 06-28-24 | 05:56 PM
  #8
Chombi1's Avatar
Senior Member
Titanium Club Membership
10 Anniversary

Joined: Nov 2015
Posts: 4,900
Likes: 1,125
Dang!, the back of that fork crown is the worst I've seen on any bike. What the heck were those Peugeot factory workers on when they built that fork??! It looks like a tank ran over that fork crown before they used it!
Chombi1 is offline
Reply
Old 06-28-24 | 09:58 PM
  #9
Thread Starter
Junior Member

Joined: Sep 2021
Posts: 168
Likes: 122
From: Calgary, Canada

Bikes: 1981 Schwinn (Panasonic) Le Tour Tourist 10 speed, 1972? Hiawatha 10 Speed, 1988 Schwinn (Giant) World Tourist w/Shimano FF System, 1971 Schwinn Super Sport (refurbed and ready for sale) 1986 Miyata Terra Runner (now refurbed and ready for sale)

"This is a Canadian made Peugeot PB 12 ("Course" of course), from around 1982/83.
The fork should be original, as they used Tange forks on this model: "

Maurice: Thank you so very much. So your solution jibes with the seller's story of it being his dad's bike as he's a Canadian and lives in Calgary
like me and my buddy who bought the frame. The last piece of the puzzle is the location of the serial number. Do you have any info on the location ??

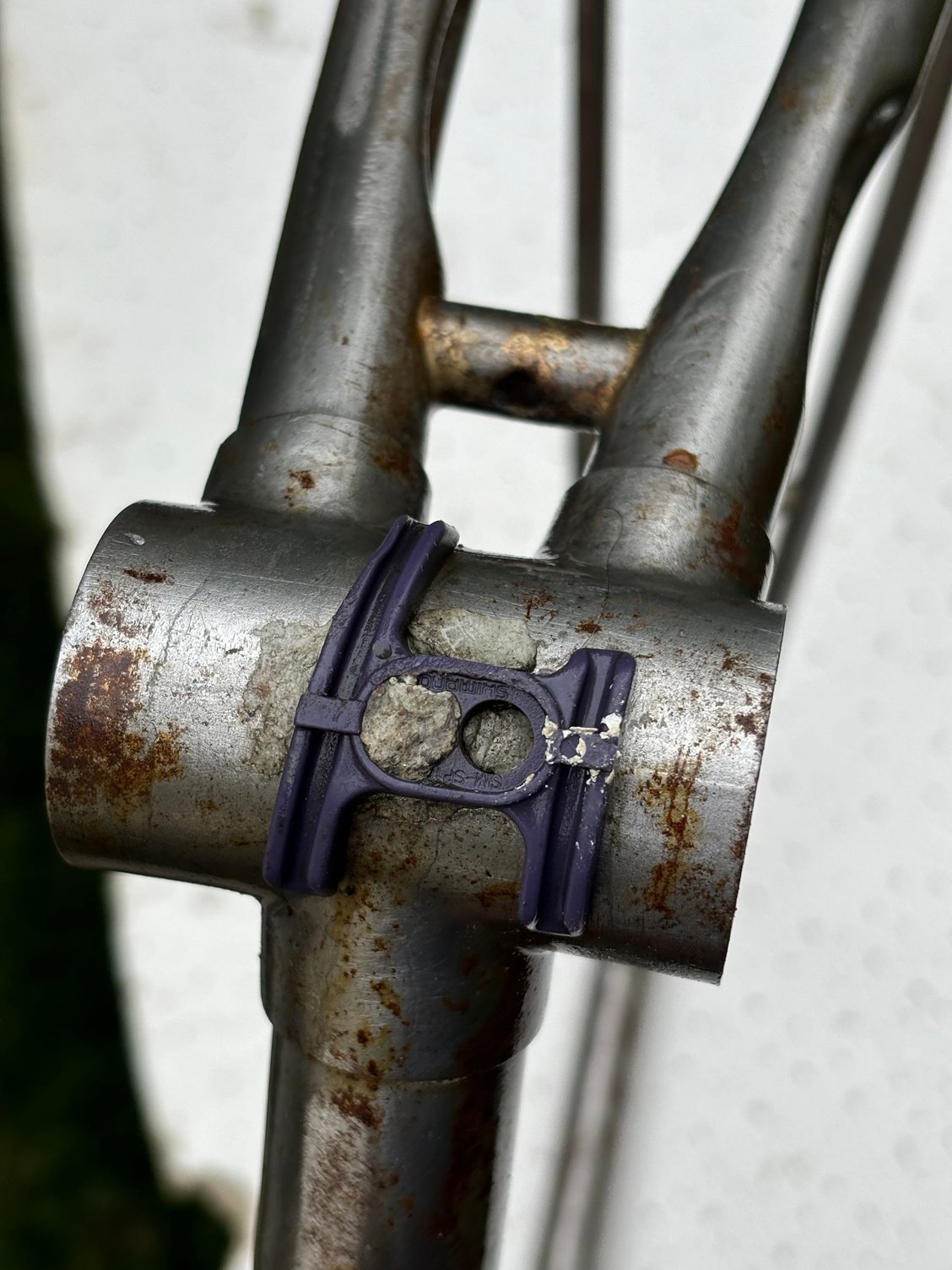

UPDATE: OK, after more searching, we decided to remove that ugly purple non-stock cable guide from the BB. Guess what was underneath the guide ??
The shortest serial number I've ever seen. M202 with the M being poorly stamped. Check out the pic below, I guess the M could stand for December and the
first number 2 could stand for 1982 but could the following 02 be the sequential frame number ??





Last edited by H2Rick; 06-30-24 at 05:11 PM.
H2Rick is offline
Reply
Old 06-28-24 | 10:05 PM
  #10
Thread Starter
Junior Member

Joined: Sep 2021
Posts: 168
Likes: 122
From: Calgary, Canada

Bikes: 1981 Schwinn (Panasonic) Le Tour Tourist 10 speed, 1972? Hiawatha 10 Speed, 1988 Schwinn (Giant) World Tourist w/Shimano FF System, 1971 Schwinn Super Sport (refurbed and ready for sale) 1986 Miyata Terra Runner (now refurbed and ready for sale)

Originally Posted by Chombi1
Dang!, the back of that fork crown is the worst I've seen on any bike. What the heck were those Peugeot factory workers on when they built that fork??! It looks like a tank ran over that fork crown before they used it!
Agreed, Chombi1. I looked at that mess,too, and shook my head......although this whole bike has been terribly abused with what I believe was a 6 inch angle grinder with a VERY stiff wire cup brush. The scratches in the frame are 0.5mm deep in some places. Talk about "agressive paint removal" methods.
