need help identifying track frame.

hey there, i've had this thing for a number of years now and still haven't figured out what it is. perhaps the knowledgeable folk here can help shed some light. english threads, dual tapered ss's, campagnolo dropouts, serial no. reads 3593 on bb and steerer.

thanks for lookin'!

















JACQU3S is offline
Old 02-17-10, 11:35 PM
  #2
Rustbelt Rider

mkeller234's Avatar

Join Date: Oct 2008
Location: Canton, OH
Posts: 9,123

Bikes: 1990 Trek 1420 - 1978 Raleigh Professional - 1973 Schwinn Collegiate - 1974 Schwinn Suburban

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 258 Post(s)
Liked 363 Times in 174 Posts
Not a huge help but I can say the lugs look like Hayden professional, not sure what the fork crown is though. That looks like a great frame, the bottom bracket holes are simple and interesting.
__________________
|^^^^^^^^^^^^^^| ||
|......GO.BROWNS........| ||'|";, ___.
|_..._..._______===|=||_|__|..., ] -
"(@)'(@)"""''"**|(@)(@)*****''(@)
mkeller234 is offline
Old 02-18-10, 08:02 AM
  #3
Senior Member

lotek's Avatar

Join Date: Dec 2001
Location: n.w. superdrome
Posts: 17,688

Bikes: 1 trek, serotta, rih, de Reus, Pogliaghi and finally a Zieleman! and got a DeRosa

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Likes: 0
Liked 9 Times in 9 Posts
There is something very familiar about this bike.
The BB treatment is something I've seen before and
the stays and fork ends being scalloped is something I have on my
Jan de Reus and have seen on other Benelux frames (Kessels?).

Now if I can only remember where I saw all this.
__________________
Sono pił lento di quel che sembra.
Odio la gente, tutti.


Want to upgrade your membership? Click Here.
lotek is offline
Old 02-18-10, 10:38 AM
  #4
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 12,902
Mentioned: 88 Post(s)
Tagged: 0 Thread(s)
Quoted: 1396 Post(s)
Liked 1,013 Times in 754 Posts
I know what you're saying, Marty: that pattern on the BB shell was somebody's signature, but I just can't remember whose! Problem is, that's something any builder with a drill can duplicate, so it might not be the telling clue...
unworthy1 is offline
Old 02-18-10, 10:56 AM
  #5
Senior Member

jet sanchEz's Avatar

Join Date: Apr 2005
Posts: 8,924
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 946 Post(s)
Liked 840 Times in 382 Posts
The holes on the track-ends look home-made to my eye, particularly the one closest to the chain-stay, it almost looks a little too-close-for-comfort to the track-end.
jet sanchEz is offline
Old 02-18-10, 02:12 PM
  #6
Senior Member

Catnap's Avatar

Join Date: Jun 2008
Location: Ridgewood, Queens
Posts: 1,810

Bikes: Zunow, 3Rensho, Look KG196

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 142 Post(s)
Liked 393 Times in 160 Posts

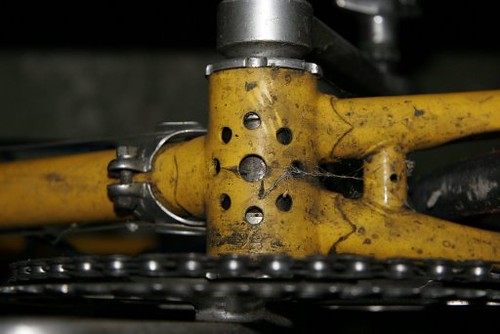

Could be an early Colnago, as seen in these examples:






although the manufacturer of the fork ends, BB shell, and lugs doesn't necessarily tell you who the builder was or the brand it was sold under. ...that may remain a mystery!
__________________
Check out www.djcatnap.com for articles on vintage Japanese & French bicycle restorations, components and history.
Catnap is offline
Old 02-18-10, 09:15 PM
  #7
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 12,902
Mentioned: 88 Post(s)
Tagged: 0 Thread(s)
Quoted: 1396 Post(s)
Liked 1,013 Times in 754 Posts
Thanks, at least that answers our question about where we'd seen that pattern before...but the chainstay bridge on every one of those Colnagos is the same but different from the OP's track frame. Based on that I'd say his is not a Colnago (and of course the English threads).
unworthy1 is offline
Old 02-19-10, 06:59 AM
  #8
#$*&

Wotan's Avatar

Join Date: Aug 2006
Location: Melbourne, Aus
Posts: 411

Bikes: Bates (of Coburg) track bike(60s/70s?), Malvern Star Ladies coronation (1953), SuperElliots pathracer (60s?), Repco pathracer (1964), Holland Ladies (50s?), Moa (50s?), Hillman Ladies (40s?), Batavia? (40s?), Malvern Star 2 star ladies (50s?)...etc.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
This Davidson has a similar bottom bracket drilling:

https://www.wooljersey.com/gallery/v/...05451.JPG.html


Apart from that, though, the fork crown, fork legs, the lug cutouts and some other details all look like things I've seen on one or two McBain bikes out of Tasmania, Australia. They still operate as a shop so it might be worth sending them an email to see if they've kept a registry: https://www.mcbains.com.au/index.php?q=node/213

Last edited by Wotan; 02-19-10 at 07:58 AM.
Wotan is offline
Old 02-19-10, 02:46 PM
  #9
Senior Member

Catnap's Avatar

Join Date: Jun 2008
Location: Ridgewood, Queens
Posts: 1,810

Bikes: Zunow, 3Rensho, Look KG196

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 142 Post(s)
Liked 393 Times in 160 Posts
Originally Posted by unworthy1
Thanks, at least that answers our question about where we'd seen that pattern before...but the chainstay bridge on every one of those Colnagos is the same but different from the OP's track frame. Based on that I'd say his is not a Colnago (and of course the English threads).
from searching around yesterday, i got the sense that the particular drilling pattern pictured was sort of a generic modification seen on a number of different manufacturer's bikes in the 1970's, and not the logo of a particular brand or builder.
__________________
Check out www.djcatnap.com for articles on vintage Japanese & French bicycle restorations, components and history.
Catnap is offline
Old 02-19-10, 02:49 PM
  #10
Senior Member

Catnap's Avatar

Join Date: Jun 2008
Location: Ridgewood, Queens
Posts: 1,810

Bikes: Zunow, 3Rensho, Look KG196

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 142 Post(s)
Liked 393 Times in 160 Posts
also, good call on the McBain, Wotan. Here's a pic of a friend's McBain that looks similar: https://farm4.static.flickr.com/3589/...bdb658d5_b.jpg

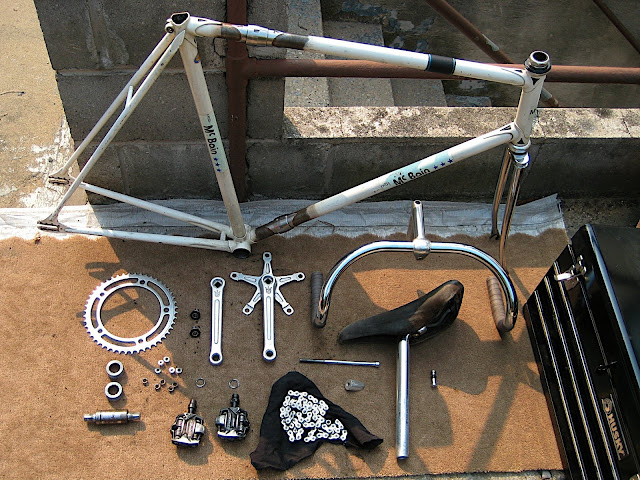

and another: https://lh6.ggpht.com/_JC4HEz2iPyE/Sn...0/IMG_0734.JPG

here's a complete photoset:
https://www.flickr.com/photos/maddfaj...7604383443466/
__________________
Check out www.djcatnap.com for articles on vintage Japanese & French bicycle restorations, components and history.

Last edited by Catnap; 02-19-10 at 02:52 PM.
Catnap is offline
Old 02-19-10, 08:39 PM
  #11
Senior Member

Join Date: Mar 2008
Location: Montreal Quebec, Plateau
Posts: 360

Bikes: 91 bridgestone rb-2, Univega viva sport, 04 masi Nouva Strada,Dave Scott Ironman, Changes like every month

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
woah, radial non-drive? who built that wheel? Please tell me you want to sell that frame
TL179 is offline
Old 02-20-10, 12:20 PM
  #12
liar
Thread Starter

JACQU3S's Avatar

Join Date: Jan 2008
Location: MONTREAL
Posts: 220
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Hey thanks to everyone who replied. Pretty sure it's not a Mcbain though. Since the two frames differ in pretty important ways: seat stay cluster and the way the dropouts are done up. Also, the lugs, bb shell and fork crow are all different (though they do look similar).

tl179: i built that wheel. and of course the frame is for sale for the right price
