Drilling and tapping aluminum frame?

Search
Notices
Commuting Bicycle commuting is easier than you think, before you know it, you'll be hooked. Learn the tips, hints, equipment, safety requirements for safely riding your bike to work.

Drilling and tapping aluminum frame?

Thread Tools

Search this Thread

Old 04-09-15 | 12:50 PM
  #1
Thread Starter
Senior Member

Joined: Jan 2015
Posts: 1,351
Likes: 2
From: Madison, IN

Bikes: 2015 Jamis Quest Comp

Drilling and tapping aluminum frame?

I ride to work on an aluminum frame bike. It only has one set of holes for a bottle carrier, on the down tube. I'd like to add a second bottle on the seat tube.

1. Can I simply drill an appropriate sized hole, then force a screw in to create the threads? (That works with steel sometimes) Do the properties of aluminum allow this?

2. Or should I just look for a bottle carrier that attaches via some kind of strap or clamp that wraps around the seat tube...no drilling?
12strings is offline
Reply
Old 04-09-15 | 01:10 PM
  #2
JerrySTL's Avatar
Senior Member

Joined: Feb 2013
Posts: 1,472
Likes: 11
From: Near St. Louis, Missouri

Bikes: Giant Defy Advanced, Breezer Doppler Team, Schwinn Twinn Tandem, Windsor Tourist, 1954 JC Higgens

Go to BikeParts.com and look up the Problem Solvers Clamp-on Water Bottle Mount. There's even more options in the Waterbottle Hardware/Mounts area.

Also the TwoFish Quick Cage No Bottle. It's held on by velcro.
JerrySTL is offline
Reply
Old 04-09-15 | 02:35 PM
  #3
ItsJustMe's Avatar
Seņior Member

Joined: Sep 2005
Posts: 13,748
Likes: 10
From: Michigan

Bikes: Windsor Fens, Giant Seek 0 (2014, Alfine 8 + discs)

Don't drill the frame unless you have the capability to also weld in a mount point. Drilling the hole will weaken it, the mount point welded in there will put the strength back in.

There are bolt on mounts for this situation, or some bottle holders simply use hose clamps.
__________________
Work: the 8 hours that separates bike rides.
ItsJustMe is offline
Reply
Old 04-09-15 | 02:44 PM
  #4
Wilfred Laurier's Avatar
Seņor Member
10 Anniversary

Joined: Feb 2013
Posts: 5,070
Likes: 306
Originally Posted by ItsJustMe
Don't drill the frame unless you have the capability to also weld in a mount point. Drilling the hole will weaken it, the mount point welded in there will put the strength back in.

There are bolt on mounts for this situation, or some bottle holders simply use hose clamps.
Well put, but wrong.

A round hole will not significantly weaken the frame, but trying to weld stuff to it might.

THe better solution is riv-nuts:

Your source for RivnutŪ engineered fasteners and installation tools - Cardinal Components

These come by other names, such as Pem Nuts
These are generally how water bottle bosses are attached to aluminum frames.
Wilfred Laurier is offline
Reply
Old 04-09-15 | 04:06 PM
  #5
ItsJustMe's Avatar
Seņior Member

Joined: Sep 2005
Posts: 13,748
Likes: 10
From: Michigan

Bikes: Windsor Fens, Giant Seek 0 (2014, Alfine 8 + discs)

Well, the main reason is that the frame tube is so thin that you'll probably only get one or two threads cut in it, and as soon as you even try to tighten it you'll just rip the threads right out. You need a threaded boss.
__________________
Work: the 8 hours that separates bike rides.
ItsJustMe is offline
Reply
Old 04-09-15 | 04:17 PM
  #6
LesterOfPuppets's Avatar
The space coyote lied.
15 Anniversary
Community Builder
Community Influencer

Joined: Sep 2008
Posts: 48,715
Likes: 10,975
From: dusk 'til dawn.

Bikes: everywhere

Originally Posted by ItsJustMe
Well, the main reason is that the frame tube is so thin that you'll probably only get one or two threads cut in it, and as soon as you even try to tighten it you'll just rip the threads right out. You need a threaded boss.
I dunno, new Schwinn Varsity might have a pretty thick walled seat tube

[MENTION=397038]12strings[/MENTION]: Measure the seattube diameter and subtract the seatpost diameter, then divide by two. If it's at least 4mm then I'd probably go for it.

Don't tighten the bolts very tight, use some red Loctite.
LesterOfPuppets is online now
Reply
Old 04-09-15 | 05:15 PM
  #7
Senior Member

Joined: Jan 2011
Posts: 259
Likes: 0
From: In The Middle Of "Out There" / Downtown "Lost Angels"

Bikes: 2001 Trek 520 - Hvy Hauler, Epic Adventure Bike / 2011 Fuji Newest 1.0 - Sporty Quick Bike

Originally Posted by Wilfred Laurier
Well put, but wrong.

A round hole will not significantly weaken the frame, but trying to weld stuff to it might.

THe better solution is riv-nuts:

Your source for RivnutŪ engineered fasteners and installation tools - Cardinal Components

These come by other names, such as Pem Nuts
These are generally how water bottle bosses are attached to aluminum frames.


Agreed, riv-nuts (rivet-nut) is how loose mounts are repaired by bike mechanics.
O.P. why not ask your question in the "Bicycle Mechanic's" sub-forum?
I also feel welding an Aluminum bike is not a good idea. Aren't ALU frames heat treated/tempered after asembly welding at the factory?
HvPnyrs is offline
Reply
Old 04-09-15 | 06:53 PM
  #8
bmthom.gis's Avatar
Senior Member

Joined: Aug 2014
Posts: 2,977
Likes: 5
From: Columbia, SC

Bikes: 2014 Cannondale Synapse Carbon 4 Rival; 2014 Cannondale Trail 7 29; 1972 Schwinn Suburban, 1996 Proflex 756, 1987(?) Peugeot, Dahon Speed P8; 1979 Raleigh Competition GS; 1995 Stumpjumper M2 FS, 1978 Raleigh Sports, Schwinn Prologue

Clamp on. Many vintage bikes didn't have any bosses (like my Peugeot)...clamps are cheap. A new frame isn't
bmthom.gis is offline
Reply
Old 04-09-15 | 10:25 PM
  #9
DVC45's Avatar
Senior Member
15 Anniversary

Joined: Dec 2006
Posts: 3,335
Likes: 15

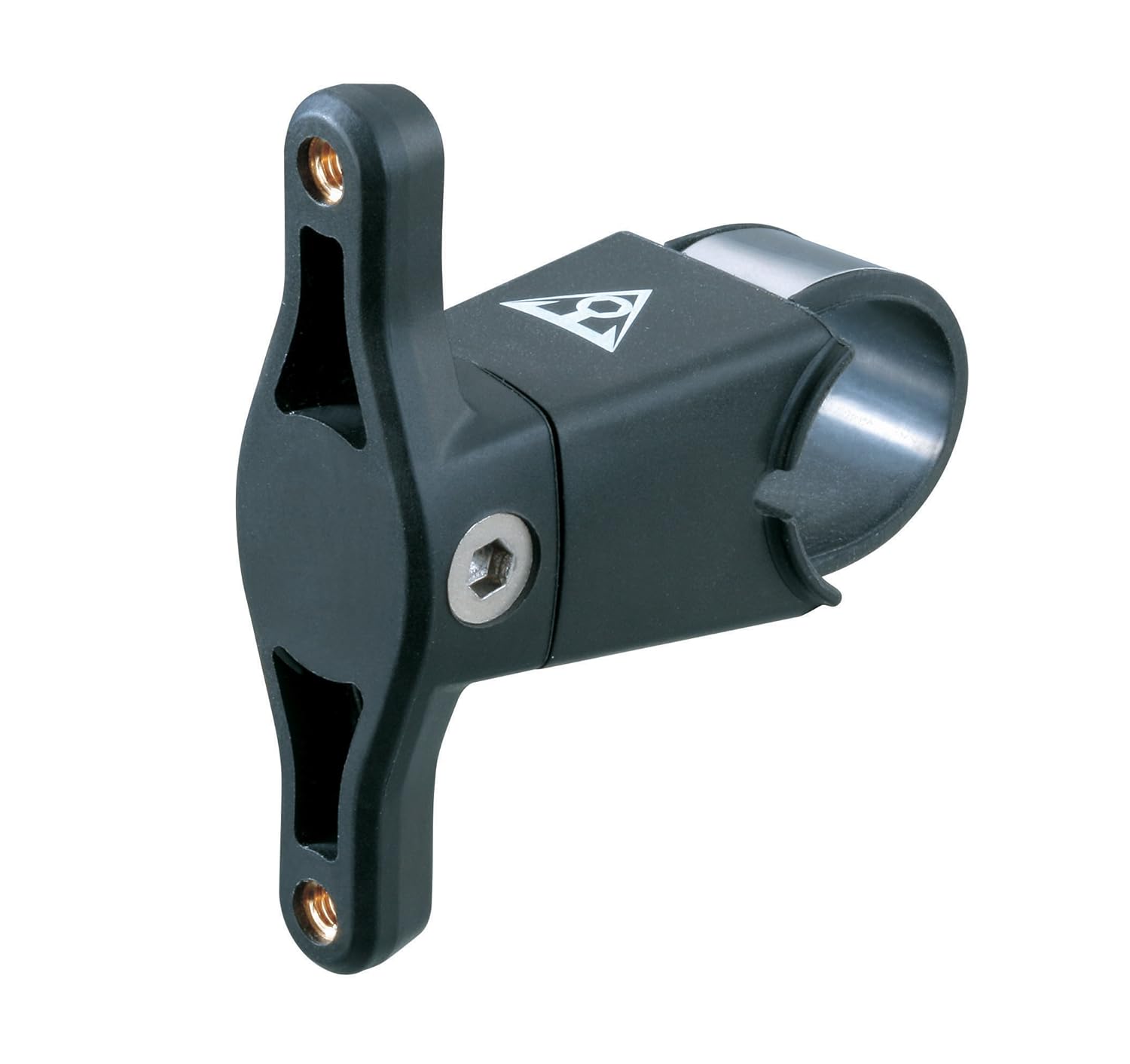

Better solution. Cheap too!

Amazon.com : Topeak CageMount : Frame Mount Bike Pumps : Sports & Outdoors
DVC45 is offline
Reply
Old 04-09-15 | 10:39 PM
  #10
CliffordK's Avatar
Senior Member
10 Anniversary
Community Builder
Community Influencer
Active Streak: 30 Days

Joined: Nov 2014
Posts: 27,576
Likes: 5,454
From: Eugene, Oregon, USA
Originally Posted by bmthom.gis
Clamp on. Many vintage bikes didn't have any bosses (like my Peugeot)...clamps are cheap. A new frame isn't
I've been more than dissatisfied with the quality of the cage straps that I'm finding now. And there are always problems with oversized tubes and parts made for the old standards.

I think I'd try RivNuts, although I managed to yank an aluminum rivnut out of my Litespeed, and have another one that is loose. I was considering stainless, but may weld repair them if I ever get comfortable with my welding.
CliffordK is offline
Reply
Old 04-10-15 | 07:23 AM
  #11
ItsJustMe's Avatar
Seņior Member

Joined: Sep 2005
Posts: 13,748
Likes: 10
From: Michigan

Bikes: Windsor Fens, Giant Seek 0 (2014, Alfine 8 + discs)

Originally Posted by CliffordK
I've been more than dissatisfied with the quality of the cage straps that I'm finding now. And there are always problems with oversized tubes and parts made for the old standards.
Attached Images
__________________
Work: the 8 hours that separates bike rides.
ItsJustMe is offline
Reply
Old 04-10-15 | 08:39 AM
  #12
Banned

Joined: Jun 2010
Posts: 43,586
Likes: 1,380
From: NW,Oregon Coast

Bikes: 8

I Own a frame of 7005 Aluminum , the Producing Factory used Riv Nuts extensively . 10 of them..
fietsbob is offline
