Dented Chainstay Repair or Replace

Notices
Framebuilders Thinking about a custom frame? Lugged vs Fillet Brazed. Different Frame materials? Newvex or Pacenti Lugs? why get a custom Road, Mountain, or Track Frame? Got a question about framebuilding? Lets discuss framebuilding at it's finest.

Dented Chainstay Repair or Replace

Old 05-10-20, 10:47 PM
  #1
AL7000
Senior Member
Thread Starter

Join Date: Sep 2016
Posts: 59
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Dented Chainstay Repair or Replace

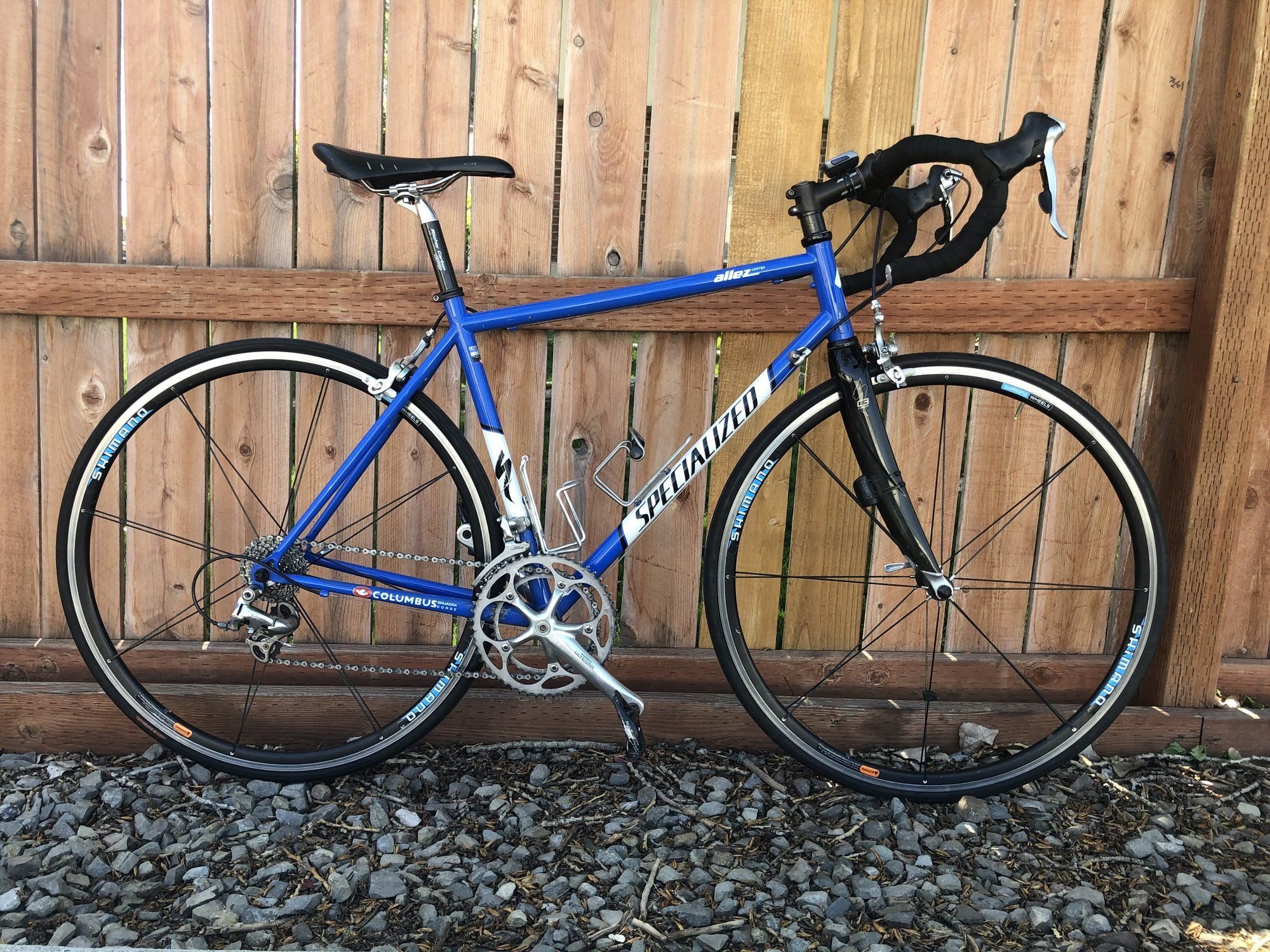

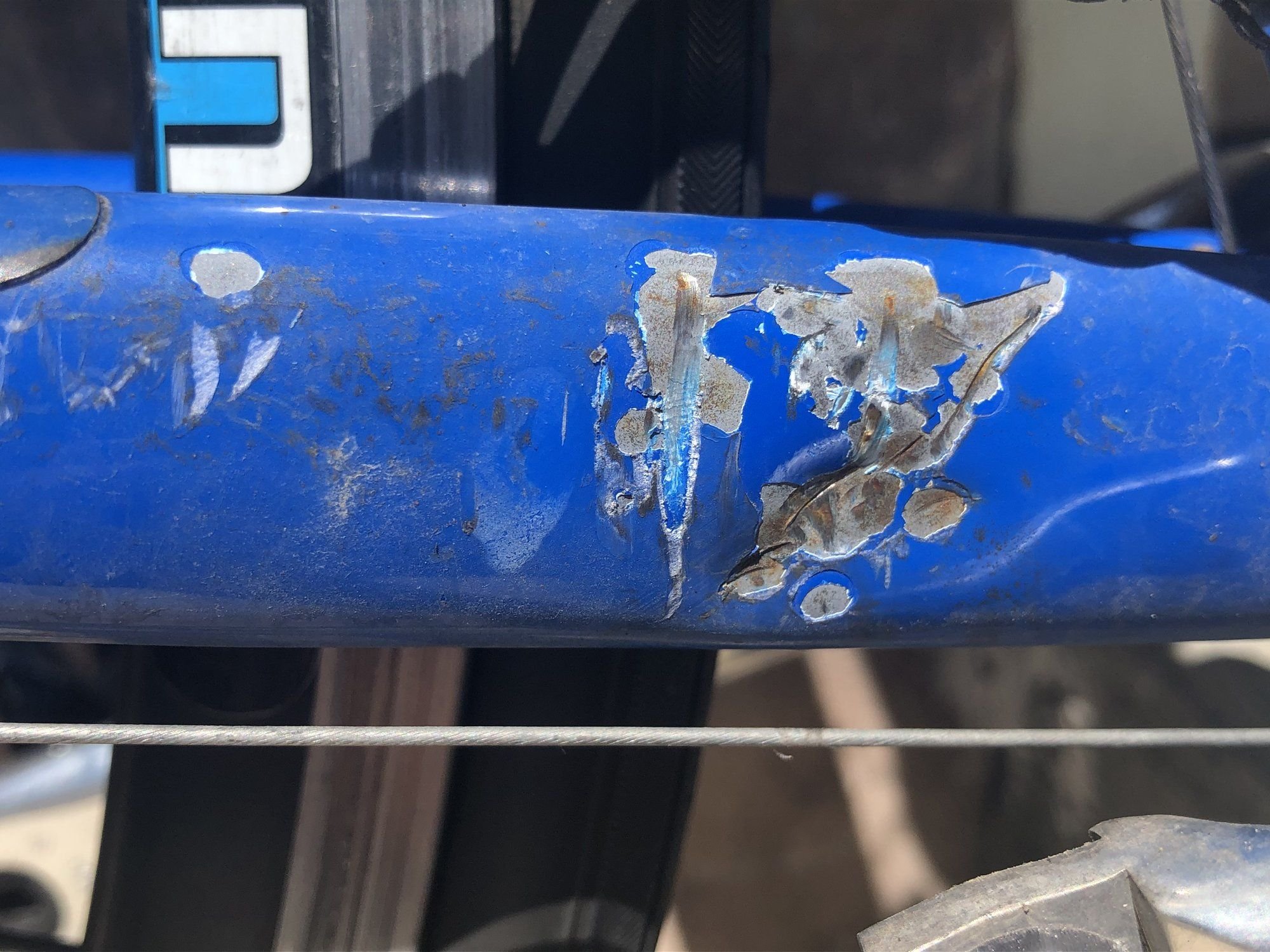

I have a 2004 Specialized Allez Comp with a Columbus Foco steel frame that has a nasty dent on the drive side chain stay. I have discussed the possible ramifications of the dent over at Bicycle Mechanics: 2004 Specialized Allez Comp Columbus Foco Chainstay Catastrophe and was referred to ask about it over here.

Can the chainstay be repaired or strengthened by welding the dented area or possibly brazing it to prevent further deterioration and cracks from forming? Or would the best scenario be to have the chainstay replaced entirely?

Advice on how to proceed?









AL7000 is offline
Old 05-11-20, 05:14 AM
  #2
guy153
Senior Member

Join Date: Dec 2019
Posts: 185
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 59 Post(s)
Liked 28 Times in 24 Posts
The biggest concern is the apparent crack over towards the right. Is it just a crack in the primer though? It looks like there's metal behind it. You will get a better idea if you clean some of the paint off. If the metal itself is cracked then you could do a repair (I would use TIG braze) which would be a bit sketchy but probably actually fine. If it's not cracked then it'll probably be fine without anything, although you could still fill it in with a bit of brass and sand it all smooth.
guy153 is offline
Old 05-11-20, 08:28 AM
  #3
wsteve464
Senior Member

Join Date: Jul 2016
Posts: 549
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 154 Post(s)
Liked 64 Times in 57 Posts
According to Bicycle blue book the bike is worth $300. To have the chainstay replaced and repainted will cost that or more.

I'd ride it as is and keep an eye out for a crack developing or strip the frame and find another frame. Right now it looks like there is no crack, a crack can show rust along the crack.
wsteve464 is offline
Old 05-11-20, 08:34 AM
  #4
AL7000
Senior Member
Thread Starter

Join Date: Sep 2016
Posts: 59
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by guy153 View Post
The biggest concern is the apparent crack over towards the right. Is it just a crack in the primer though? It looks like there's metal behind it. You will get a better idea if you clean some of the paint off. If the metal itself is cracked then you could do a repair (I would use TIG braze) which would be a bit sketchy but probably actually fine. If it's not cracked then it'll probably be fine without anything, although you could still fill it in with a bit of brass and sand it all smooth.

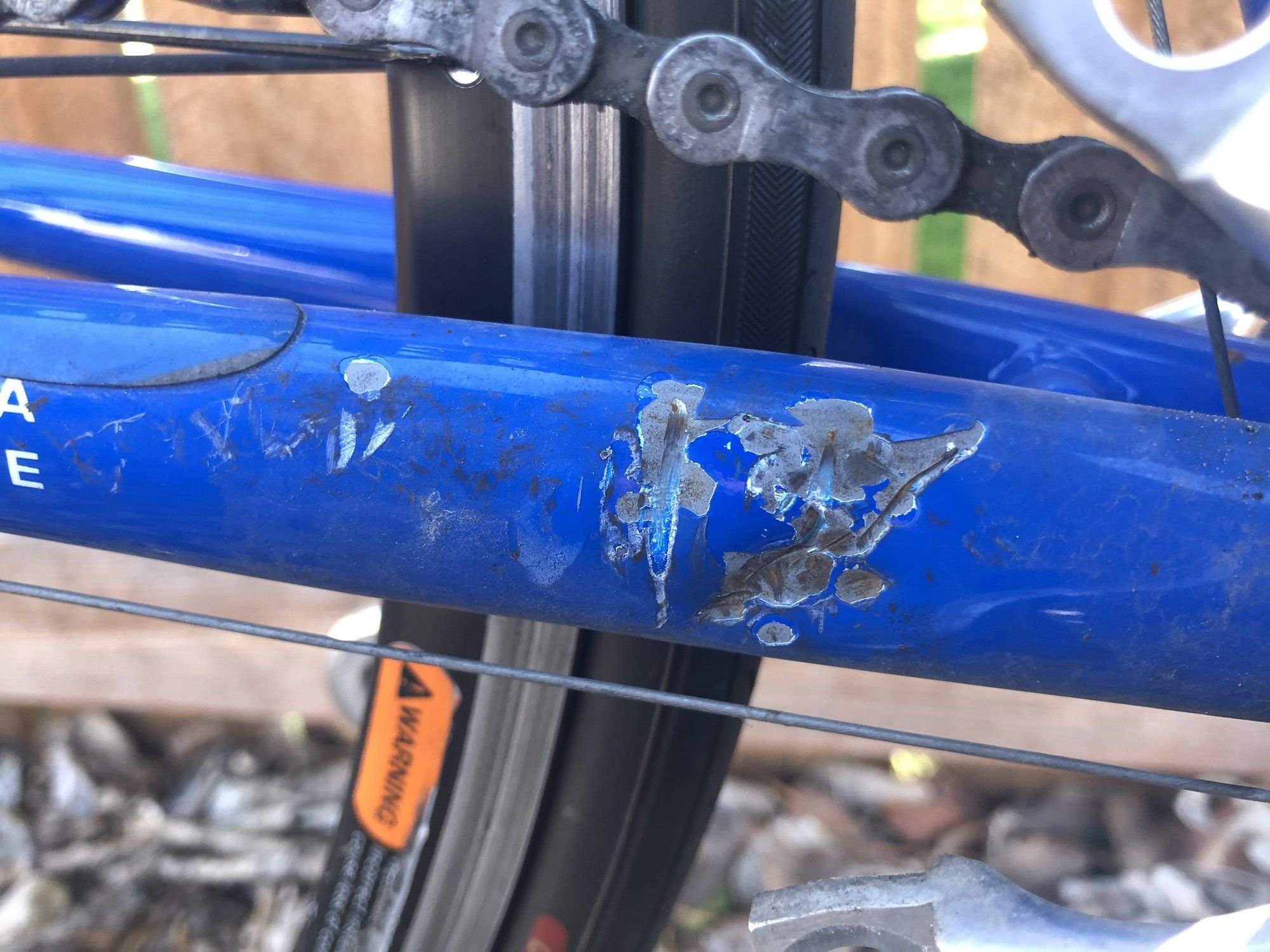

Are you referring to this area here as the "crack over towards the right?" I had overlooked that until you pointed it out.

AL7000 is offline
Old 05-11-20, 09:02 AM
  #5
himespau
Senior Member

himespau's Avatar

Join Date: Jun 2008
Location: Louisville, KY
Posts: 11,445
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 2001 Post(s)
Liked 471 Times in 279 Posts
Originally Posted by wsteve464 View Post
According to Bicycle blue book the bike is worth $300. To have the chainstay replaced and repainted will cost that or more.
An important consideration.
himespau is online now
Old 05-11-20, 09:42 AM
  #6
guy153
Senior Member

Join Date: Dec 2019
Posts: 185
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 59 Post(s)
Liked 28 Times in 24 Posts
No. Not sure what that is. I meant the gashes just to the left of it. I'd take the paint off and see what's what. If you can actually see daylight through it then it's much more compromised.
guy153 is offline
Old 05-11-20, 10:08 AM
  #7
AL7000
Senior Member
Thread Starter

Join Date: Sep 2016
Posts: 59
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by guy153 View Post
No. Not sure what that is. I meant the gashes just to the left of it. I'd take the paint off and see what's what. If you can actually see daylight through it then it's much more compromised.
Gotcha. Sorry thought maybe you were suggesting there was a crack under the paint further on the right. It is kind of hard to see from the photos due to shadows, but as far as I can tell none of the gashes are cracked and there is metal behind them. When I get a chance I will remove some of the paint just to get a better look around the gashes to be sure.
AL7000 is offline
Old 05-11-20, 10:42 AM
  #8
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 8,154

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 98 Post(s)
Tagged: 0 Thread(s)
Quoted: 2175 Post(s)
Likes: 0
Liked 573 Times in 399 Posts
My thought? Ride it till it dies. Might take quite a few thousand miles but the damage will probably lead to the chainstay breaking there, Likely not an issue other than spoiling a ride. My Peugeot UO-8 broke just behind the gusset. Noticed it while riding and just rode easy going home.

Or take it to a framebuilder and have him fill the dented and scraped are with braze. Have him or you file the braze to smooth, take a spray can and do your best to match the paint. Ride it, now until the frames dies for other reasons. (That could take a good long while.) I'd guess a framebuilder would want around $200 for the repair,

So, do nothing and get what you can out of the frame or spend a couple hundred and sacrifice the finish in the area. Or spend a lot more and have both good as new and the looks to go with it.

Ben
79pmooney is offline
Likes For 79pmooney:
Old 05-11-20, 12:27 PM
  #9
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 19,729
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 362 Times in 276 Posts
those gashes look horrible, but their really isn't much you can do about them. It does occur to me that if you found someone to TIG over them, it might last a little longer. Need to find someone that's good at welding on thin metal though.
unterhausen is offline
Old 05-12-20, 01:54 PM
  #10
AL7000
Senior Member
Thread Starter

Join Date: Sep 2016
Posts: 59
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by 79pmooney View Post
My thought? Ride it till it dies. Might take quite a few thousand miles but the damage will probably lead to the chainstay breaking there, Likely not an issue other than spoiling a ride. My Peugeot UO-8 broke just behind the gusset. Noticed it while riding and just rode easy going home.

Or take it to a framebuilder and have him fill the dented and scraped are with braze. Have him or you file the braze to smooth, take a spray can and do your best to match the paint. Ride it, now until the frames dies for other reasons. (That could take a good long while.) I'd guess a framebuilder would want around $200 for the repair,

So, do nothing and get what you can out of the frame or spend a couple hundred and sacrifice the finish in the area. Or spend a lot more and have both good as new and the looks to go with it.

Ben
Thanks for the advice.

Two questions: Would JB Weld or some other sort of epoxy help at all to strengthen the area? Add low cost reinforcement without damaging the paint. It seems sketchy but thought I would ask, to explore all options.

Anyone know any good framebuilders in Utah?
AL7000 is offline
Old 05-12-20, 02:05 PM
  #11
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 19,729
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 362 Times in 276 Posts
metal filled epoxy by itself will not do much. The only framebuilder in Utah that I know is Walt at Waltworks https://waltworks.com/
unterhausen is offline
Old 05-12-20, 03:06 PM
  #12
guy153
Senior Member

Join Date: Dec 2019
Posts: 185
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 59 Post(s)
Liked 28 Times in 24 Posts
Originally Posted by AL7000 View Post
Thanks for the advice.

Two questions: Would JB Weld or some other sort of epoxy help at all to strengthen the area? Add low cost reinforcement without damaging the paint. It seems sketchy but thought I would ask, to explore all options.

Anyone know any good framebuilders in Utah?
I wouldn't bother with JB Weld. If it looks all right after the paint is off use car body filler, sand it smooth and get some paint on. It's right by the crank so a less than perfect paint job will not be noticeable.
guy153 is offline
Old 05-12-20, 07:30 PM
  #13
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 13,469

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2389 Post(s)
Liked 446 Times in 349 Posts
One way to find out if a crack is present is to first clean off the outside (medial blasting works really well and gives a pretty consistent surface texture) then add some dirty ATF to the insides (I suppose one could use any dark penetrant). If there's a crack of any significance the dirty stuff will bleed through. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Likes For Andrew R Stewart:
