RANS Tailwind front derailleur problem and question.

Notices
Recumbent What IS that thing?! Recumbents may be odd looking, but they have many advantages over a "wedgie" bicycle. Discuss the in's and out's recumbent lifestyle in the recumbent forum.

RANS Tailwind front derailleur problem and question.

Old 05-22-15, 04:57 PM
  #1
bicyclebill1
Senior Member
Thread Starter

Join Date: Aug 2012
Location: Mississippi
Posts: 51

Bikes: RANS Tailwind

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
RANS Tailwind front derailleur problem and question.

I have a 2001 tailwind, the red one with the 2 inch main tube. The front derailleur (shimano soro)'s spring broke. The local bike shop replaced it with a Claris, but It has not shifted correctly since.I took it back, and a guy other than that one that installed it, told me that the new front derailleur was a road bike derailleur, and it didn't take as much movement of the shifter to move it over to another ring. He readjusted it as good as he could, but now it wont go to the large ring without a lot of effort, then it sometimes goes over the ring and the chain comes off. My question is, what brand and model front derailleur is approipriate for the 2001 Tailwind. Do you think if I got the proper one, it would make a difference. I am about to put new sram shifters on the bike, if that matters, and it has a sram rear derailleur.

Thanks for your help.
Bill
bicyclebill1 is offline
Old 05-22-15, 06:26 PM
  #2
BlazingPedals
Senior Member

BlazingPedals's Avatar

Join Date: Dec 2004
Location: Middle of da Mitten
Posts: 12,214

Bikes: Trek 7500, RANS V-Rex, Optima Baron, Velokraft NoCom, M-5 Carbon Highracer, Catrike Speed

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 1405 Post(s)
Liked 604 Times in 377 Posts
You need a derailleur that goes with the biggest chainrings (road) but you need one with the proper pull ratio for mountain shifters. I would say, "ask RANS" but they've just changed hands and getting to them is somewhat difficult. I recommend that you ask over at BentRiderOnline, in the technical section. There are some good mechanics over there who know exactly which derailleurs to use. Also, you may need a chainring guard, to help keep the chain from shifting off on the outside.
BlazingPedals is offline
Old 05-22-15, 06:49 PM
  #3
bicyclebill1
Senior Member
Thread Starter

Join Date: Aug 2012
Location: Mississippi
Posts: 51

Bikes: RANS Tailwind

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Thanks. I just posted it the technical discussion section over there.
bicyclebill1 is offline
Old 05-22-15, 07:33 PM
  #4
JanMM
rebmeM roineS

JanMM's Avatar

Join Date: Jan 2006
Location: Metro Indy, IN
Posts: 16,171

Bikes: Bacchetta Giro A20, RANS V-Rex, RANS Screamer

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 641 Post(s)
Liked 326 Times in 211 Posts
Yes, you need a derailleur that is proper for your particular gear, which will handle your relatively huge large ring and cover the range of your rings. You might want to start another post in Bicycle Mechanics and include the sizes of each of your chainrings. My first 'bent was a 2000 Tailwind and I think it had a Sora. My more recent RANS bikes - which came with with 30-39-52 cranksets - have come with Microshift FD's - RANS sometimes slaps a RANS sticker on them and calls them RANS FD's. You might consider contacting the new RANS company for advice RANS Bikes | Contact

Agree with Blazing's advice to post on bentrider.
__________________
Bacchetta Giro A20, RANS V-Rex, RANS Screamer
JanMM is offline
Old 05-22-15, 08:04 PM
  #5
Retro Grouch
Senior Member

Retro Grouch's Avatar

Join Date: Feb 2004
Location: St Peters, Missouri
Posts: 30,226

Bikes: Catrike 559 I own some others but they don't get ridden very much.

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 1570 Post(s)
Liked 636 Times in 357 Posts
What kind of shifters are you using? You say that you have a Sram rear derailleur which tells me you must also have Sram shifters. Does your front shifter have only 3 positions or does it have a plethora of clicks? If it's the former, and you're going to upgrade the shifters anyway, I'd suggest getting a set with friction front shifter (the plethora of clicks). I'm thinking that should solve your problem.

Another thing that comes up is the cable routing to the front derailleur. Many Shimano front derailleurs have a little "L" shaped finger in the cable path. It's important that the cable pass OVER that finger it it'll take too much effort to shift onto the big ring.
__________________
My greatest fear is all of my kids standing around my coffin and talking about "how sensible" dad was.
Retro Grouch is offline
Old 05-22-15, 08:18 PM
  #6
bicyclebill1
Senior Member
Thread Starter

Join Date: Aug 2012
Location: Mississippi
Posts: 51

Bikes: RANS Tailwind

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I am replacing sram 7.0 shifters with SRAM MRX COMP 3x8 8-Speed Gripshift Front & Rear Set w/ Grips Cables Cruiser MTB.

I have a bike tech coming next week to change them out and adjust everything. My LBS seems to have a problem getting this worked out, and I have lost trust in them. My other alternative is to take it to a bike dealer 100 miles away that only sells recumbents and is a RANS dealer. I'm beginning to think I should just do the dealer deal. So few techs have ever worked on a recumbent, but shouldn't the recumbent adjusting be very similar to recumbent adjusting?

Exactly where should I look for the L shaped finger?
bicyclebill1 is offline
Old 05-22-15, 08:54 PM
  #7
Retro Grouch
Senior Member

Retro Grouch's Avatar

Join Date: Feb 2004
Location: St Peters, Missouri
Posts: 30,226

Bikes: Catrike 559 I own some others but they don't get ridden very much.

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 1570 Post(s)
Liked 636 Times in 357 Posts
Originally Posted by bicyclebill1 View Post
I am replacing sram 7.0 shifters with SRAM MRX COMP 3x8 8-Speed Gripshift Front & Rear Set w/ Grips Cables Cruiser MTB.

I have a bike tech coming next week to change them out and adjust everything. My LBS seems to have a problem getting this worked out, and I have lost trust in them. My other alternative is to take it to a bike dealer 100 miles away that only sells recumbents and is a RANS dealer. I'm beginning to think I should just do the dealer deal. So few techs have ever worked on a recumbent, but shouldn't the recumbent adjusting be very similar to recumbent adjusting?

Exactly where should I look for the L shaped finger?
MRX shifters aren't going to work with your Sram rear derailleur. MRX are designed with the cable pull to work with Shimano derailleurs.

The L shaped finger, if there is one on that derailleur, will be in the cable path quite close to the cable anchor screw.
__________________
My greatest fear is all of my kids standing around my coffin and talking about "how sensible" dad was.
Retro Grouch is offline
Old 05-23-15, 06:28 AM
  #8
JanMM
rebmeM roineS

JanMM's Avatar

Join Date: Jan 2006
Location: Metro Indy, IN
Posts: 16,171

Bikes: Bacchetta Giro A20, RANS V-Rex, RANS Screamer

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 641 Post(s)
Liked 326 Times in 211 Posts

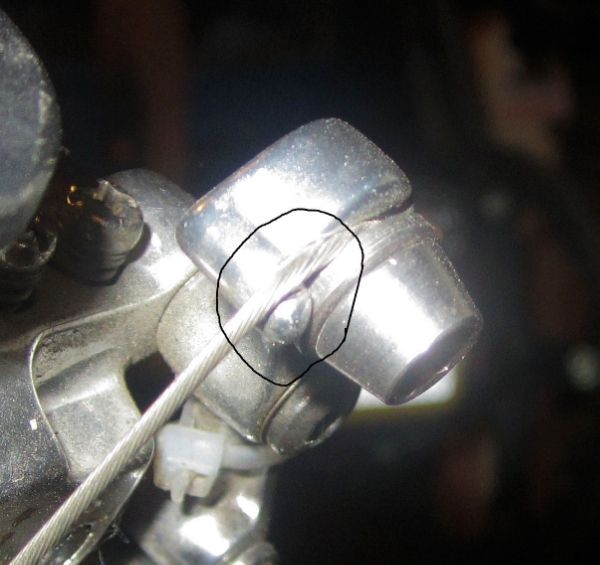

The little 'nub' on many Shimano FD's that the cable must go over and not under.

__________________
Bacchetta Giro A20, RANS V-Rex, RANS Screamer
JanMM is offline
