Old 12-23-18, 10:40 AM
  #51
1speed4me
Member
Thread Starter

Join Date: Apr 2018
Posts: 34
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by seamuis View Post


one of the main issues with using a vintage crank. This is why I chose the dura ace 7400, because the 7400 bb’s are still plentiful. You are correct that this crank is ISO not JIS. Both the road double and the track single, are 144bcd. The track used a 109mm spindle and the road used a rather odd 113.5mm spindle. 125 seems way too long and is certainly not the original spindle length. Any 68mm asymmetrical ISO 109mm spindle should be perfect for setting it up as a single speed or fixed. For maintaining clearence for and inner chainring and an outer bash guard as you have yours setup, a 68mm asymmetrical 111 or 112mm ISO spindle should be what you want. I just have no idea how a 125mm spindle came to be used. My DA 7400 crank uses the original asymmetrical 112mm spindle. Setup as a singlespeed I have a chainline at the outer position of 46mm and 41 at the inner chainring position. With a 111 or 112 mm spindle you should end up with similar at the outer and inner positions.

most 70s and 80s higher end square taper cranksets used similar spindle lengths. Typically 109mm for a track and 112-113 for a road double. Only use I could see for 125 would be for a touring triple setup.
Ok, I’ll see if my LBS will let me try out a generic BB with a 112ish spindle and see where the chainring lands... after the holidays Thanks seamuis!
1speed4me is offline
Old 12-23-18, 11:50 AM
  #52
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 20,417

Bikes: Several, mostly not name brands.

Mentioned: 109 Post(s)
Tagged: 0 Thread(s)
Quoted: 1689 Post(s)
Liked 59 Times in 41 Posts
Originally Posted by 1speed4me View Post
I can't mock it up. The BB is JIS, the Super Mighty cranks are ISO. If I tried to bolt it up it would ruin the crank
The taper is the same for both JIS and ISO (2°), but the dimensions differ slightly such that the crank will mount on a different part of the tapered section. It won't ruin the crank unless it bottoms out on the taper or the axle extends past the crank:



If it lands in the middle, as above, then go ahead and check the chainline.
JohnDThompson is offline
Old 12-23-18, 08:07 PM
  #53
1speed4me
Member
Thread Starter

Join Date: Apr 2018
Posts: 34
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Yeah, I know they have the same taper and will work if you don't gorilla torque the crank down, but I'd just rather not push it. There's time, it's not exactly great riding weather this time of year anyway.

Last edited by 1speed4me; 12-23-18 at 08:07 PM. Reason: whoops
1speed4me is offline
Old 12-23-18, 08:59 PM
  #54
3speedslow
Senior Member

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 7,268

Bikes: A few

Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 1240 Post(s)
Likes: 0
Liked 23 Times in 21 Posts
Interesting read in this thread. I have an 81 original Voyageur 11.8 coming soon and enjoyed seeing your take on this bike. I will run it as a full geared machine but think your version is quite good. Love Schwinns as well and find myself snapping them up at a faster rate these days.

Good luck with your search and build. Keep the thread going with the progress.
3speedslow is offline
Old 12-23-18, 11:28 PM
  #55
12boy
Senior Member

12boy's Avatar

Join Date: Oct 2012
Location: casper wy usa
Posts: 411

Bikes: brompton sl, surly steamroller, fuji track, gary fisher bmx minivelo etc

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 125 Post(s)
Liked 0 Times in 0 Posts
Having read through this thread, I am puzzled by the bottom bracket length. I have always understood what is needed is a straight chainline. If you have a 120 OLD rear wheel, the chainline will probably be around 43mm. Then the distance from the center of the seatpost to the middle of the chainring would also be 43 mm. I would be surprised if a BB spindle greater than 107 mm would work. Stripped down as yours is I would think it would be around 22 lbs or less, hardly a porker. I think it is a very nice bike. BTW., the late great Sheldon said an ISO crank arm will work fine on a JIS spindle and I have found it so as well, although JIS on ISO spindle not so much.
12boy is offline
Old 12-24-18, 04:44 AM
  #56
seamuis
aire díthrub

seamuis's Avatar

Join Date: Sep 2017
Location: chatham
Posts: 530

Bikes: Raleigh Competition, Pashley Roadster Sovereign, Cielo Sportif Classic, Mercian Vincitore Speciale

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 241 Post(s)
Likes: 0
Liked 32 Times in 21 Posts
J
Originally Posted by 12boy View Post
Having read through this thread, I am puzzled by the bottom bracket length. I have always understood what is needed is a straight chainline. If you have a 120 OLD rear wheel, the chainline will probably be around 43mm. Then the distance from the center of the seatpost to the middle of the chainring would also be 43 mm. I would be surprised if a BB spindle greater than 107 mm would work. Stripped down as yours is I would think it would be around 22 lbs or less, hardly a porker. I think it is a very nice bike. BTW., the late great Sheldon said an ISO crank arm will work fine on a JIS spindle and I have found it so as well, although JIS on ISO spindle not so much.
we all know the taper angle is supposed to be 2 degrees, and that technically they should all mate up just fine. But we’ve also all heard about proprietary tapers used by shimano and campagnolo in the past. In my experience it works MOST of the time. But for me, I once experiemented putting a late 70s campagnolo gran sport crank on a JIS shimano spindle and it never mounted proper. Could have been that taper on the crank was off. (Tourquing down a crank can certainly damage the taper) But it ended up causing the spindle to rust because water got between the crank and the spindle. This caused the crank to get stuck and I ended up damaging the crank trying to remove it. My point here is that with vintage, pre-used cranks, you can’t guarantee that the taper on your crank isn’t damaged, which can cause fitment issues, regardless of the spindle taper you choose. It can be a real crap shoot, basically.

Anyone know if there is a tool that can check the taper on a crankarm for damage?
seamuis is offline
Old 12-24-18, 08:55 AM
  #57
12boy
Senior Member

12boy's Avatar

Join Date: Oct 2012
Location: casper wy usa
Posts: 411

Bikes: brompton sl, surly steamroller, fuji track, gary fisher bmx minivelo etc

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 125 Post(s)
Liked 0 Times in 0 Posts
Guess I've been lucky...put Campy Nouvo Record, Avocet and a 2010 Brompton (Stronglite?) cranks on JIS spindles without problems.
12boy is offline
Old 12-26-18, 08:24 PM
  #58
1speed4me
Member
Thread Starter

Join Date: Apr 2018
Posts: 34
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I happened to be driving by Performance Bike today and remembered that they are going out of business and everything was cheap. So I stopped in and found a Shimano UN-55 to test out for only $13. It doesn't specify JIS or ISO, so apparently it is one size fits all (that phrase always instills confidence in me). 113mm length. I don't really like how it feels when torquing the crank down, it just keeps going and going and you can't get a good feel for when enough is enough (I don't have a torque wrench in inch-pounds, either). It feels like I could keep tightening the thing down forever, and in my minds eye the ISO taper on my old crank is just getting smushed to oblivion... Eventually I did stop, removed the bolt to see what I expected, the spindle buried pretty far down and no where near bottoming out on the washer. So it doesn't look like it is tight (at least the fit doesn't look like my old JIS crank and JIS spindle did), and it doesn't feel like it is 100% tight either, but maybe it is, who knows.

Anyway, the 42t chain ring does have more room to the chain stay than my previous setup with a 40t did, but the chain line isn't great. I could use a few more mm's in spindle length to straighten it out. I was hoping to learn a little more from this trial but with the way the crank fit on the spindle I don't feel like I am any closer than I was. Any pearls of wisdom left out there? Thanks again.
1speed4me is offline
Old 12-27-18, 09:12 AM
  #59
seamuis
aire díthrub

seamuis's Avatar

Join Date: Sep 2017
Location: chatham
Posts: 530

Bikes: Raleigh Competition, Pashley Roadster Sovereign, Cielo Sportif Classic, Mercian Vincitore Speciale

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 241 Post(s)
Likes: 0
Liked 32 Times in 21 Posts
All shimano UN cartridge bb’s are JIS.
seamuis is offline
Old 12-27-18, 11:43 AM
  #60
1speed4me
Member
Thread Starter

Join Date: Apr 2018
Posts: 34
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by seamuis View Post
All shimano UN cartridge bb’s are JIS.
Yep, definitely feels and looks that way. Ohh well, it was worth a shot.
1speed4me is offline
Old 12-27-18, 01:42 PM
  #61
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 41,928

Bikes: 8

Mentioned: 188 Post(s)
Tagged: 0 Thread(s)
Quoted: 6833 Post(s)
Likes: 0
Liked 212 Times in 177 Posts
Bb

Originally Posted by seau grateau View Post
I don't know BBs well enough to eyeball the spindle type, but yeah, measure it without the threaded portions to get the spindle length you need. Someone in the mechanics forum could maybe tell you if it's JIS. Or a good bike shop if you have one nearby.
the solid nut fixed on type was on least costly bikes , from Asia, so would be JIS...

a bit more up the price point and the cranks were held on to a hollow spindle with bolt and washer behind it

then came a bolt incorporating the flat washer and its hex socket used an 8mm 'allen' wrench to tighten it .. They work very well I'd go that way...



you can find a socket with an 8mm bit in it , to use a torque wrench to Know crank is on well , by the "how tight" numbers ...
fietsbob is offline
Old 12-27-18, 01:54 PM
  #62
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 41,928

Bikes: 8

Mentioned: 188 Post(s)
Tagged: 0 Thread(s)
Quoted: 6833 Post(s)
Likes: 0
Liked 212 Times in 177 Posts
Fwiw,

I don't recall if Sugino a company used to making JIS cranks used ISO to be like Campagnolo it was copying...


if so it would resemble drawing C in above posting..







....
fietsbob is offline
Old 12-28-18, 03:23 AM
  #63
seamuis
aire díthrub

seamuis's Avatar

Join Date: Sep 2017
Location: chatham
Posts: 530

Bikes: Raleigh Competition, Pashley Roadster Sovereign, Cielo Sportif Classic, Mercian Vincitore Speciale

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 241 Post(s)
Likes: 0
Liked 32 Times in 21 Posts
Originally Posted by fietsbob View Post
I don't recall if Sugino a company used to making JIS cranks used ISO to be like Campagnolo it was copying...


if so it would resemble drawing C in above posting..







....
Sugino did and still does use ISO. If it’s a Sugino, you can pretty much guarantee it’s ISO, regardless of vintage or type.
seamuis is offline
Old 12-28-18, 07:10 AM
  #64
IAmSam
Senior Member

Join Date: Oct 2012
Posts: 1,286
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 270 Post(s)
Likes: 0
Liked 8 Times in 5 Posts
Recent production Mighty Comp. Single (I believe Road, too) and the various versions of XD/RD2 are JIS...

And FWIW...Sugino continues to warn that their ISO taper is not compatible with anybody else's, at the risk of loss of warranty
IAmSam is offline
Old 02-02-19, 02:20 PM
  #65
1speed4me
Member
Thread Starter

Join Date: Apr 2018
Posts: 34
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

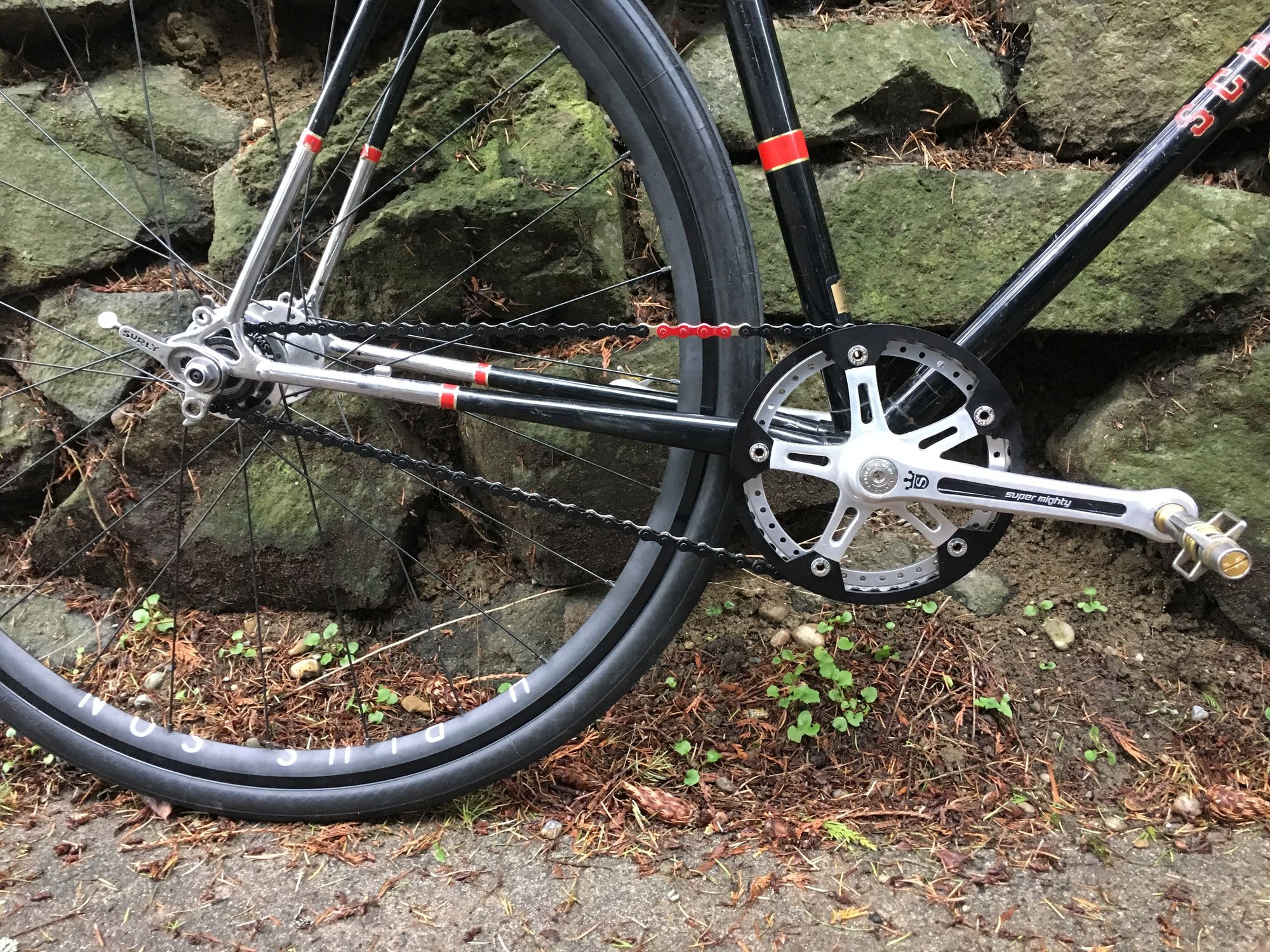

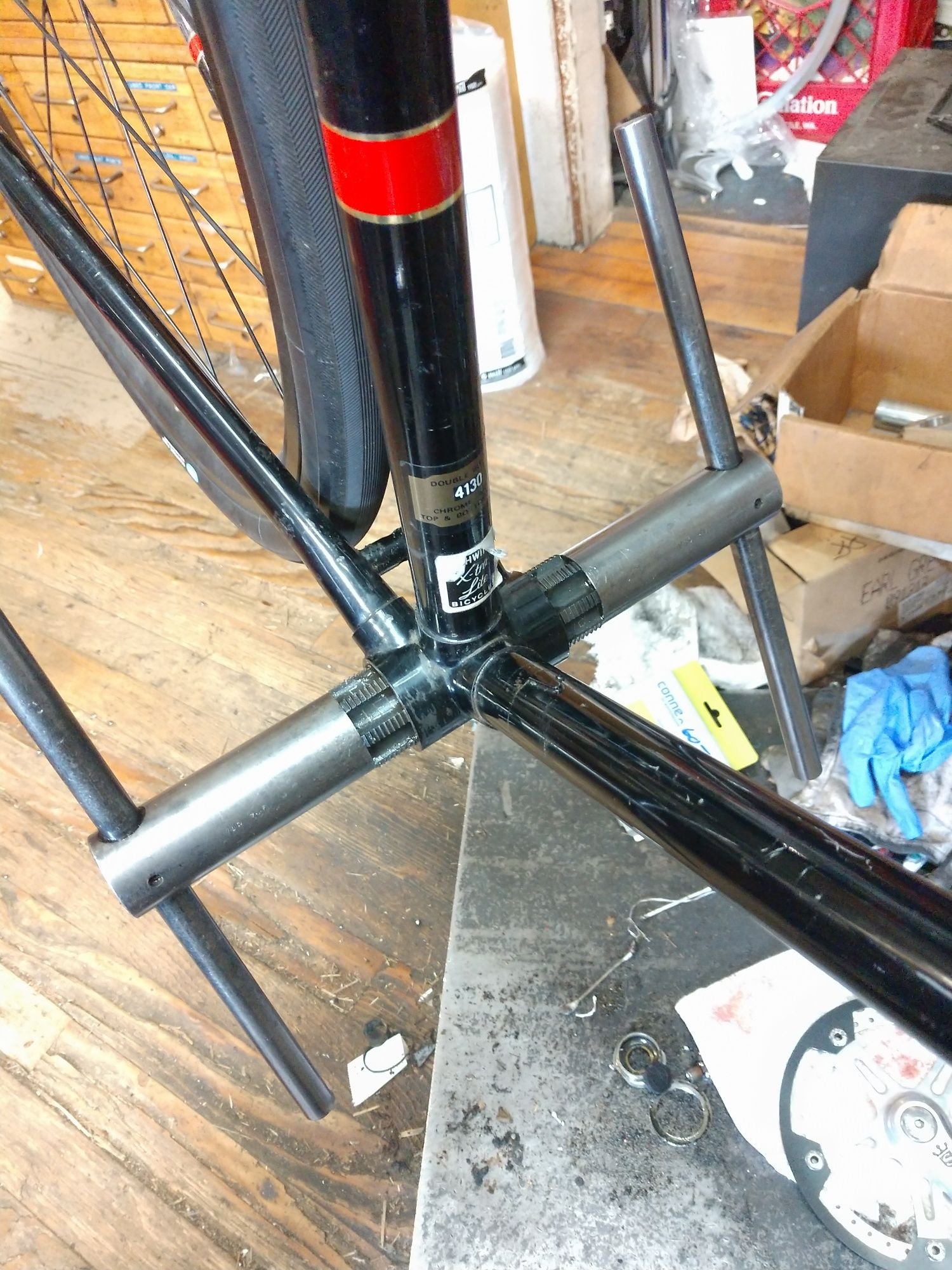

Last week I finally got fed up with trying to figure this out on my own, so I handed it off to Wright Bros. here in Seattle that is owned by an older guy who still rides fixed. He is one of those guys who has forgotten more than I’ll ever know. Best shop I’ve found here. Anyway, he set me up with an Origin8 BB, he had to chase a one cut a few threads in the shell to make everything happy. It’s no top shelf BB but I’m just happy to have the bike up and running again. I really appreciate everyone’s help on here.
1speed4me is offline
Old 02-02-19, 02:21 PM
  #66
1speed4me
Member
Thread Starter

Join Date: Apr 2018
Posts: 34
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
1speed4me is offline
Old 02-02-19, 02:22 PM
  #67
1speed4me
Member
Thread Starter

Join Date: Apr 2018
Posts: 34
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
1speed4me is offline
Old 02-02-19, 02:23 PM
  #68
1speed4me
Member
Thread Starter

Join Date: Apr 2018
Posts: 34
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
1speed4me is offline
