tool for old headset

Can anyone tell me what the tool may look like that takes this lockring off? Unfortunately this is the second locknut above a top race which with no wrench flats. I opened this up before, but I forget how and I am afraid that a screwdriver + hammer would deform the ring to the extent it would not mate well with what goes on top. It has a chrome finish on the sides, so a rag with channel locks is not readily feasible.
Attached Images
File Type: jpg
IMG_4761 (Large).jpg (73.2 KB, 136 views)
jdfnnl is offline
Old 04-06-17, 09:13 PM
  #2
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 11,654

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1730 Post(s)
Liked 45 Times in 32 Posts
The right tool is a hook spanner wit a tight radius like a Hozan Lock Ring Tool. But the quick way is to just remove the lock ring with a channel lock pliers and replace it with a spacer. Far easier to set the bearing adjustment this way. Andy
Andrew R Stewart is offline
Old 04-06-17, 09:19 PM
  #3
TallRider
Senior Member

TallRider's Avatar

Join Date: Oct 2005
Location: Fresno, CA
Posts: 4,433
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 115 Post(s)
Likes: 0
Liked 1 Time in 1 Post
agree with Andy. you can also use a flathead screwdriver and a hammer to start turning that piece.
I keep these on some of my old bikes. Less chance of the headset loosening over time with two locknuts. But this is mostly a non-existent problem with a well-adjusted headset anyway.
TallRider is offline
Old 04-07-17, 06:48 AM
  #4
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 6,227

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 650 Post(s)
Likes: 0
Liked 44 Times in 41 Posts
I have seen a Channelock-type plier with one jaw ground down to make a hook to engage the notches of such a ring, but of course the proper hook spanner tool is preferable.
dsbrantjr is offline
Old 04-07-17, 07:34 AM
  #5
WizardOfBoz
Generally bewildered

WizardOfBoz's Avatar

Join Date: Aug 2015
Location: Eastern PA, USA
Posts: 1,866

Bikes: 2014 Trek Domane 6.9, 1999 LeMond Zurich, 1978 Schwinn Superior

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 657 Post(s)
Liked 27 Times in 23 Posts
Hook spanner, like below. You need the size to be close. There are also hook spanners with a swivel that allows you to apply it to a range of notched locknut sizes. (Pic added).



Last edited by WizardOfBoz; 04-07-17 at 08:00 AM. Reason: added adjustable hook spanner
WizardOfBoz is offline
Old 04-07-17, 10:16 AM
  #6
max20
High Score

Join Date: Sep 2010
Location: Central North Carolina
Posts: 3
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I have a couple of brass drifts that come in handy for this sort of thing. There is little chance of damaging the steel ring because the brass deforms first.
max20 is offline
Old 04-07-17, 11:40 AM
  #7
ExpertTools
Senior Member

Join Date: May 2016
Location: Weschester NY
Posts: 187

Bikes: 2013 Specialized S-Works Roubaix, 1980 Colnago, Litespeed Ocoee

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 60 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

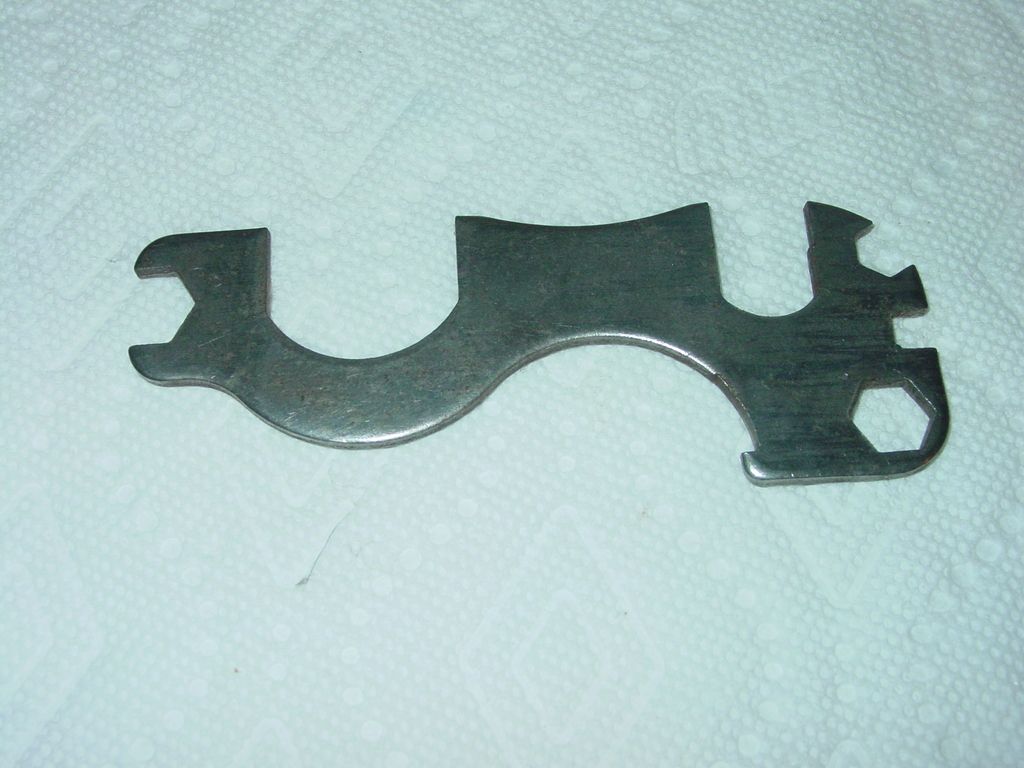

This tool used to come with every new Raleigh 3-Speed sold:

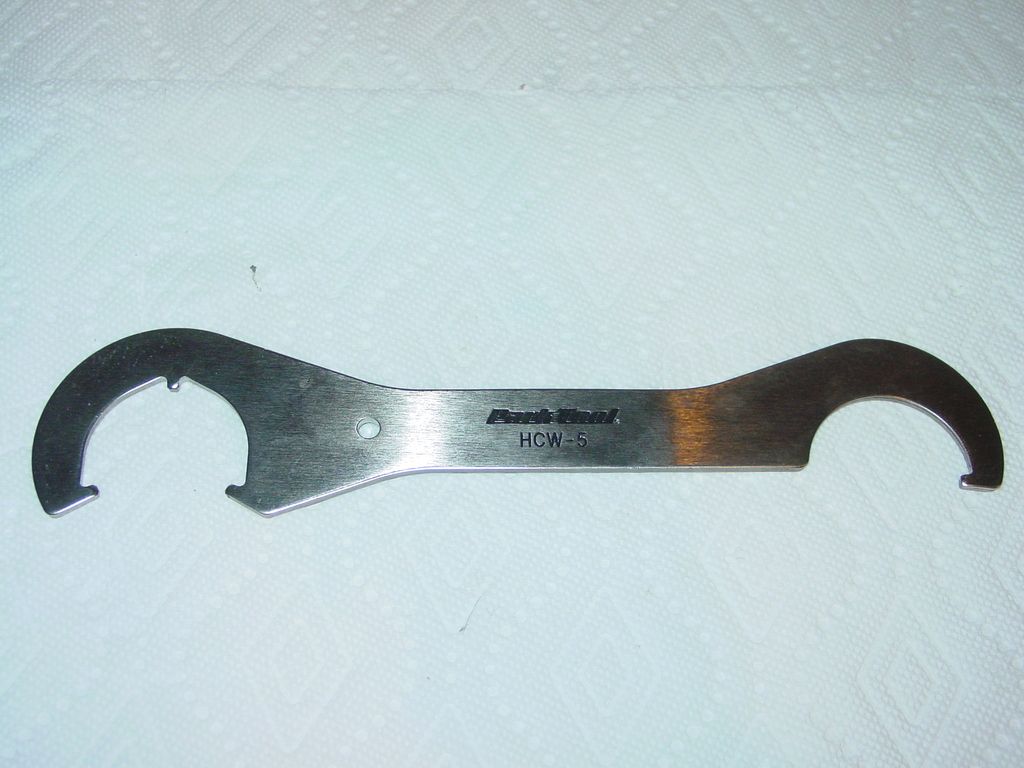

And then there is this one, the Park Tool HCW-5:


ExpertTools is offline
Old 04-07-17, 04:20 PM
  #8
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 21,339

Bikes: Some silver ones, a red one, an orange one and a few titanium ones

Mentioned: 92 Post(s)
Tagged: 1 Thread(s)
Quoted: 2452 Post(s)
Likes: 0
Liked 98 Times in 67 Posts
Originally Posted by ExpertTools View Post
This tool used to come with every new Raleigh 3-Speed sold:

Will probably work


Originally Posted by ExpertTools View Post
And then there is this one, the Park Tool HCW-5:
Probably won't work. The diameter on the hook spanner is too large. It won't fit right.
__________________
Stuart Black
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
An Good Ol' Fashion Appalachian Butt Whoopin'.
cyccommute is offline
Old 04-07-17, 04:39 PM
  #9
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 5,028

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 666 Post(s)
Liked 47 Times in 40 Posts
I have picked up numerous sizes of hook spanners at garage and estate sales. For one of my "aero" headset nuts a tap wrench fit perfect after a little filing.

Beer Taps/Faucets | High Quality Spanner Wrench For Sale | Ultra Flow
dedhed is offline
Old 04-08-17, 02:58 PM
  #10
ramzilla
Senior Member

ramzilla's Avatar

Join Date: Dec 2014
Location: 10% Atlanta GA 90% Fernandina FL
Posts: 2,465

Bikes: Vintage Japanese Bicycles

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 396 Post(s)
Likes: 0
Liked 7 Times in 6 Posts
If you're going to be fiddling around with vintage bikes (it's an addiction) you're going to need to start collecting the various tools required. Start soaking those threads in penetrating oil. Order a hook spanner wrench. By the time it arrives the threads should be nice & ready.
ramzilla is offline
Old 04-09-17, 09:30 PM
  #11
mtnbke
Senior Member

Join Date: Apr 2009
Location: Boulder County, CO
Posts: 1,513

Bikes: '92 22" Cannondale M2000, '92 Cannondale R1000 Tandem, another modern Canndondale tandem, Two Holy Grail '86 Cannondale ST800s 27" (68.5cm) Touring bike w/Superbe Pro components and Phil Wood hubs. A bunch of other 27" ST frames & bikes.

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 105 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
and learn to ignore any poster whose genius solution is to hammer on a screwdriver instead of sourcing the right tools. If they can't afford even the most simple hand tools within the hobby of working on bikes how much success/experience do they have in life??

Always use the right tool for the job. A kid working at McDondlds can afford bike tools.
mtnbke is offline
Old 04-09-17, 09:36 PM
  #12
corrado33
Senior Member

Join Date: Jun 2013
Location: Bozeman
Posts: 4,135

Bikes: 199? Landshark Roadshark, 198? Mondonico Diamond, 1987 Panasonic DX-5000, 1987 Bianchi Limited, Univega... Chrome..., 1989 Schwinn Woodlands, Motobecane USA Record, Raleigh Tokul 2

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 1125 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by cyccommute View Post
Probably won't work. The diameter on the hook spanner is too large. It won't fit right.
I've used the HCW-5 to remove one of these. It didn't work WELL... but it did work.


Originally Posted by mtnbke View Post
and learn to ignore any poster whose genius solution is to hammer on a screwdriver instead of sourcing the right tools. If they can't afford even the most simple hand tools within the hobby of working on bikes how much success/experience do they have in life??

Always use the right tool for the job. A kid working at McDondlds can afford bike tools.
Using a punch/drift made of a softer metal than the (likely) steel lockring will do no damage to the lockring itself and will most definitely do the job.

I use a drift to disassemble the top half of freewheels all of the time because the actual tool for the job, a pin spanner, is woefully inadequate to remove the lockring. A few taps with a punch brings it right apart.
corrado33 is offline
Old 04-09-17, 10:46 PM
  #13
sunburst
Senior Member

sunburst's Avatar

Join Date: Jan 2008
Location: NorCal - bay area
Posts: 1,569

Bikes: Giant, Trek, 6x Peugeots, Specialized, Nishiki, bike friday

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 106 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by dsbrantjr View Post
I have seen a Channelock-type plier with one jaw ground down to make a hook to engage the notches of such a ring, but of course the proper hook spanner tool is preferable.

I've got an old Nishiki with a similar headset. I filed an old set of channel locks as per suggestions on this forum. Worked fine. Then, as luck would have it, I found the right Hozen tool at a swap meet. And as a bonus, the other side was exactly what I'd been needing/borrowing from a neighbor for my Peugeot BB's.



https://www.amazon.com/Lockring-Head.../dp/B0017SE6ZY
