Bridgestone BB1 - seat post? Help!

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Bridgestone BB1 - seat post? Help!

Old 02-25-19, 08:27 AM
  #1
Member
Thread Starter

Join Date: Oct 2017
Posts: 49
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Liked 2 Times in 2 Posts
Bridgestone BB1 - seat post? - Resolved!!!

Hi all - new-be here

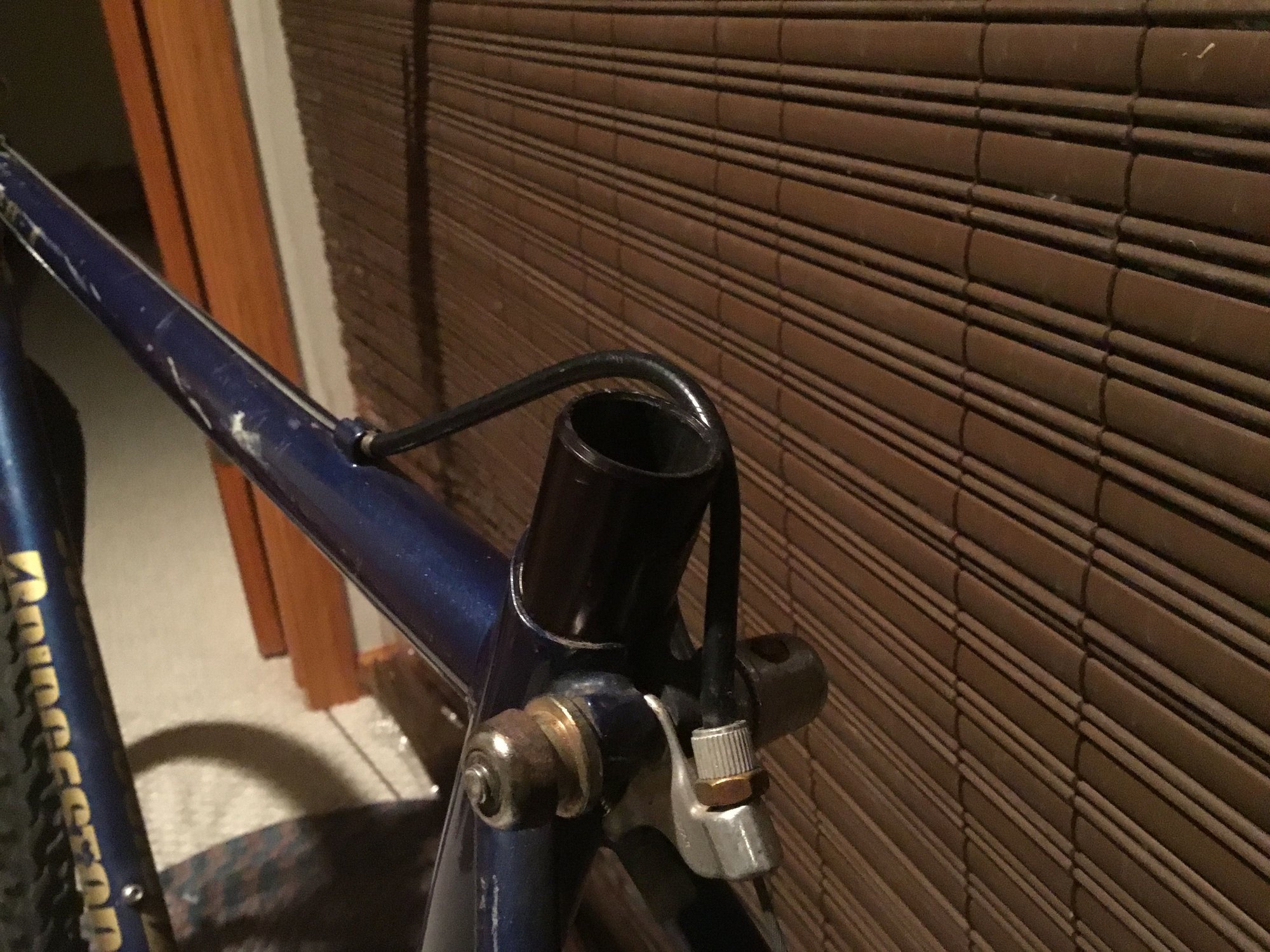

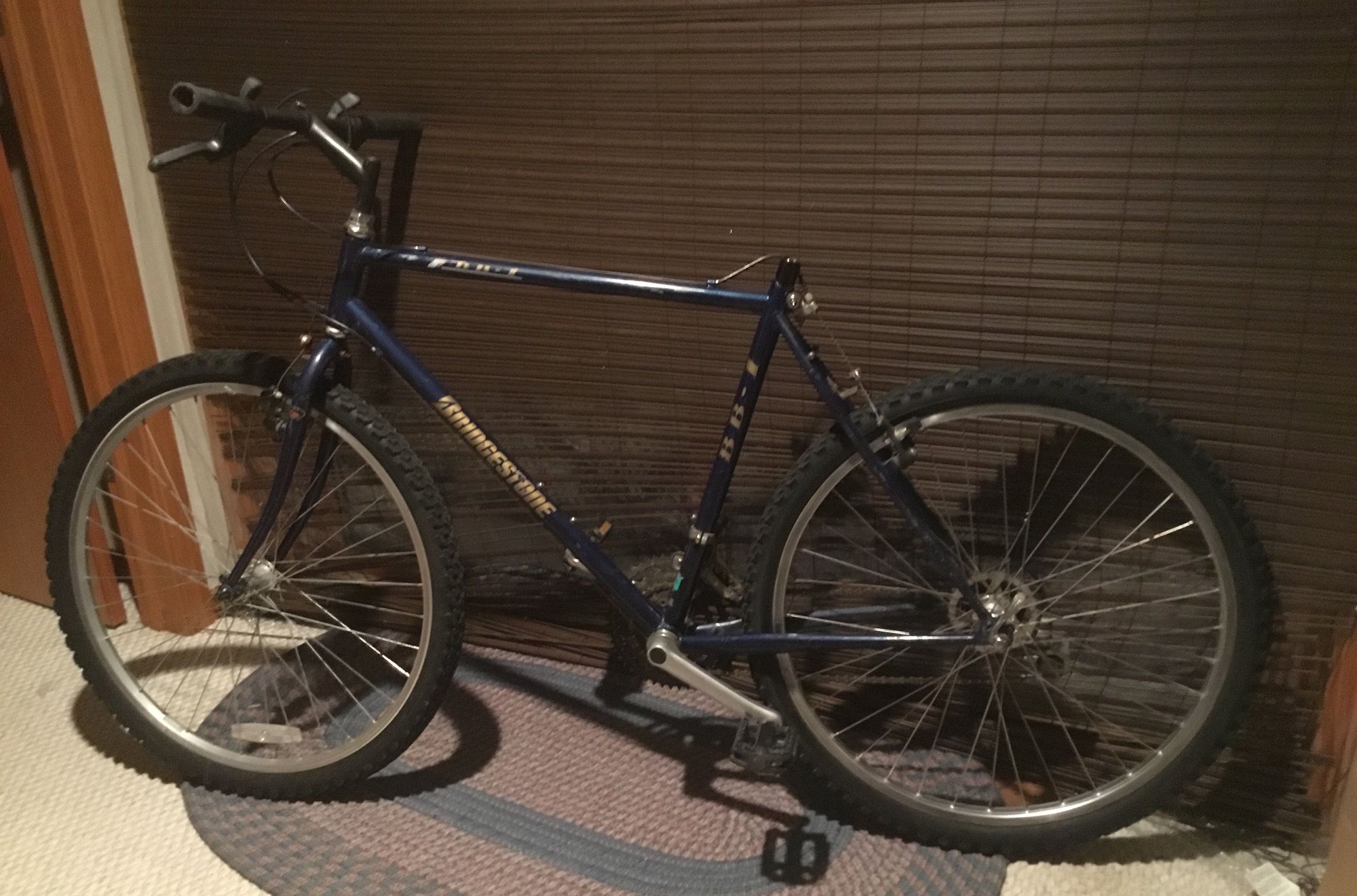

I got this Bridgestone BB1 for $15. Ties held air, gears worked good enough - a lot of dirt and some rust. Fine Except for the seat which was a messed up ragg - could not figure out why it was just stuck into what I thought was a stuck seat post... nope - there is no seat post - And now I come to understand that some (all?) of the Bridgestone bikes had a quill seat post?

I measured across the opening and its about 22 mm - Per https://www.sheldonbrown.com/seatpost-sizes.html - the CB -1 (apparently similar bike) was 26.2

Would something like this work? Premium priced of course... https://www.ebay.com/itm/VINTAGE-BRI...53.m1438.l2649

What are my options at this point? If I tried to find a quill seat post for it which size do I need ?

Thank you!!


.



Last edited by TurnerIII; 02-26-19 at 07:49 AM.
TurnerIII is offline
Likes For TurnerIII:
Old 02-25-19, 09:17 AM
  #2
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 33,656

Bikes: '96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '20 Surly Midnight Special, All are 3x10. It is hilly around here!

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 2027 Post(s)
Likes: 0
Liked 1,099 Times in 745 Posts
Your bike has a seatpost, or at least what's left of one. That stub sticking up above the seatpost clamp is the remains of a conventional seatpost minus the saddle clamp. Loosen the clamp bolt and try to remove the stub. Hopefully it isn't corroded in place too badly. Use a pipe wrench or Vise-Grips to try to rotate it and pull it out. If it is badly stuck do a search for "stuck seatposts" and you will find a lot of possible removal techniques.

You do not have a "quill" seatpost or anything else, just a normal style and when/if you remove the stub, the proper diameter should be engraved on it.
HillRider is offline
Likes For HillRider:
Old 02-25-19, 09:24 AM
  #3
Member
Thread Starter

Join Date: Oct 2017
Posts: 49
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Liked 2 Times in 2 Posts
Thanks - this is great news ( sort of) I will need to try harder to get that post out then - it did not move much the other day - but I was not certain if it sould

Thanks
TurnerIII is offline
Old 02-25-19, 09:26 AM
  #4
Senior Member

Retro Grouch's Avatar

Join Date: Feb 2004
Location: St Peters, Missouri
Posts: 30,225

Bikes: Catrike 559 I own some others but they don't get ridden very much.

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 1572 Post(s)
Liked 644 Times in 365 Posts
Try Classic and Vintage.

That looks like a fubar to me. I can't tell for sure from the picture but it looks to me like somebody didn't know how to work the seat post QR and put a seat post in there that has eventually slipped down the seat tube.

If I'm right AND you can get the old seat post out, that's a pretty easy fix. The trick will be getting the old one out non destructively.
__________________
My greatest fear is all of my kids standing around my coffin and talking about "how sensible" dad was.
Retro Grouch is offline
Old 02-25-19, 09:36 AM
  #5
Member
Thread Starter

Join Date: Oct 2017
Posts: 49
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Liked 2 Times in 2 Posts
Keep the help coming !

BTW - what is "ATF acetone" is it different than this?:

https://www.homedepot.com/p/Klean-St...AC18/100144922
TurnerIII is offline
Old 02-25-19, 09:59 AM
  #6
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 3,744
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 863 Post(s)
Liked 1,113 Times in 772 Posts
Originally Posted by TurnerIII
Keep the help coming !

BTW - what is "ATF acetone" is it different than this?:
ATF acetone is a 50/50 mix of Automatic Transmission Fluid and Acetone. One of the best penetrating concoctions for breaking free stuck/corroded metal parts. "Kano Kroil Oil" is another option and probably less expensive if you don't have the other two products on hand. There is/was a seller on Ebay selling little 1oz. bottles of Kroil for cheap. I've had one for about 10 years and it's still 3/4 full. A little goes a long way.
Crankycrank is offline
Old 02-25-19, 10:08 AM
  #7
Member
Thread Starter

Join Date: Oct 2017
Posts: 49
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Liked 2 Times in 2 Posts
Originally Posted by Crankycrank
ATF acetone is a 50/50 mix of Automatic Transmission Fluid and Acetone. One of the best penetrating concoctions for breaking free stuck/corroded metal parts. "Kano Kroil Oil" is another option and probably less expensive if you don't have the other two products on hand. There is/was a seller on Ebay selling little 1oz. bottles of Kroil for cheap. I've had one for about 10 years and it's still 3/4 full. A little goes a long way.

Cool - thank you!
TurnerIII is offline
Old 02-25-19, 11:42 AM
  #8
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,598

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,360 Times in 866 Posts
Ah, Yet another stuck seatpost.. thread... hundreds of responses already archived here on this forum..

The effort to to remove it will make you want to buy another seat post ... got a pipe wrench? you need a handle..

remove BB turn bike upside down and pour your chemical in from underneath ..


somebody shoved a post i upside down ?
'
they should look like this, at least diameter stepped down to take a saddle clip ..


...

Last edited by fietsbob; 02-25-19 at 06:10 PM.
fietsbob is offline
Old 02-25-19, 11:55 AM
  #9
Member
Thread Starter

Join Date: Oct 2017
Posts: 49
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Liked 2 Times in 2 Posts
Originally Posted by fietsbob
Ah, Yet another stuck seatpost.. thread... hundreds of responses already archived here on this forum..

The effort to to remove it will make you want to buy another seat post ... got a pipe wrench? you need a handle..

remove BB turn bike upside down and pour your chemical in from underneath ..


...
Appreciate the information. Half the trouble is identifying the problem. The other half is fixing the problem



>
TurnerIII is offline
Old 02-26-19, 07:54 AM
  #10
Member
Thread Starter

Join Date: Oct 2017
Posts: 49
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Liked 2 Times in 2 Posts
Well thanks to all this knowledge I got it out! Took me a little effort , long adjustable pliers, some liquid wrench and it came out

Funny piece of pipe in there - no taper - perhaps some home brew fix in the past? Now I just need to get over to the Co-Op and get a post that fits.

Thanks all!







Last edited by TurnerIII; 02-26-19 at 09:17 AM.
TurnerIII is offline
Old 02-26-19, 09:13 AM
  #11
Senior Member

Join Date: Sep 2015
Location: New Jersey
Posts: 1,610
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 500 Post(s)
Liked 63 Times in 48 Posts
The truth is probably closer to your second-to-last picture. It's likely that the seatpost was damaged or otherwise forced at some point, leaving the body of the post in place, but the head gone.
wschruba is offline
Old 02-26-19, 12:19 PM
  #12
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 33,656

Bikes: '96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '20 Surly Midnight Special, All are 3x10. It is hilly around here!

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 2027 Post(s)
Likes: 0
Liked 1,099 Times in 745 Posts
Originally Posted by wschruba
The truth is probably closer to your second-to-last picture. It's likely that the seatpost was damaged or otherwise forced at some point, leaving the body of the post in place, but the head gone.
Exactly. Many inexpensive seatposts have the saddle clamp assembly as a separate piece that's press fit into the shaft. Apparently that's where the OP's separated. Bob's picture is of a different design and not what was in the OP's bike.
HillRider is offline
Old 02-26-19, 02:39 PM
  #13
Member
Thread Starter

Join Date: Oct 2017
Posts: 49
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Liked 2 Times in 2 Posts
Originally Posted by HillRider
Exactly. Many inexpensive seatposts have the saddle clamp assembly as a separate piece that's press fit into the shaft. Apparently that's where the OP's separated. Bob's picture is of a different design and not what was in the OP's bike.

And I thought I was hard on the bikes Thanks for the info !
TurnerIII is offline
Old 02-27-19, 05:43 AM
  #14
Senior Member

Join Date: Sep 2008
Location: NE Tennessee
Posts: 917

Bikes: Giant TCR/Surly Karate Monkey/Foundry FireTower/Curtlo Tandem

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 169 Post(s)
Liked 84 Times in 62 Posts
Whew... You got lucky.
My son had a post stuck in a steel Fuji and it had to be cut from the inside to get it out. The frame was ruined in the process.
bakerjw is offline
Old 02-27-19, 09:15 PM
  #15
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 6,163
Mentioned: 50 Post(s)
Tagged: 0 Thread(s)
Quoted: 2368 Post(s)
Liked 1,762 Times in 1,198 Posts
Originally Posted by bakerjw
My son had a post stuck in a steel Fuji and it had to be cut from the inside to get it out. The frame was ruined in the process.
Which means it wasn't done right. I've had one aluminum seat post stuck in a steel seat tube that required this. Judicious use of a HAND hack saw blade in a stub handle cut through the post with no damage to the tube.

Granted, not relevant to the OP's issue, just pointing out that such a procedure IS an option, if desperately needed and if done right.
madpogue is offline
Old 07-14-22, 09:03 AM
  #16
Newbie

Join Date: Nov 2018
Posts: 8
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 0 Times in 0 Posts
26.2mm

My Bridgestone BB-1 has a 26.2mm seatpost. Old thread, yes, but maybe someone new will be looking for this knowledge one day.
starwart is offline
