Rookie mistake

Have you ever done something so many times before just to find you overlook a simple detail? I built up two wheels with straight gauge spokes (3x lacing) and high flange hubs. On a climb noticed a ping from the rear wheel. Upon inspection I found I didn't run the spoke behind on the 2nd cross and the pinging was a spoke touching the derailleur. When I got home I removed the rear tubular tire and rebuilt that rim. My question is is it necessary to rebuild the front as well where there is no torque being applied to the rim to cause the spokes to slacken?
daviddavieboy is offline
Reply
Old 04-28-19 | 07:00 AM
  #2
Senior Member

Joined: Mar 2017
Posts: 1,923
Likes: 233
From: Madison, WI

Bikes: Giant Toughroad SLR1 and Motobecane Sturgis NX

I once made a similar mistake. But I noticed it during lacing and redid my work.

It will teach you a lesson to correct both. I can't tell the exact problems your front wheel may encounter, but there is a reason the right way is the right way.
HerrKaLeun is offline
Reply
Old 04-28-19 | 09:06 AM
  #3
Andrew R Stewart's Avatar
Senior Member
Titanium Club Membership
10 Anniversary

Joined: Feb 2012
Posts: 19,381
Likes: 5,528
From: Rochester, NY

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Mongoose Tomac ATB, GT Bravado ATB, JCP Folder, Stewart 650B ATB

There's no need to have the spokes interlacing. Many wheels have been built this way and worked just fine. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Reply
Old 04-28-19 | 09:21 AM
  #4
Banned

Joined: Jun 2010
Posts: 43,586
Likes: 1,380
From: NW,Oregon Coast

Bikes: 8

Tying and Soldering the last cross has been Done ..
fietsbob is offline
Reply
Old 04-28-19 | 10:35 AM
  #5
WizardOfBoz's Avatar
Generally bewildered
10 Anniversary

Joined: Aug 2015
Posts: 3,038
Likes: 344
From: Eastern PA, USA

Bikes: 2014 Trek Domane 6.9, 1999 LeMond Zurich, 1978 Schwinn Superior

Originally Posted by fietsbob
Tying and Soldering the last cross has been Done ..
Hasn't that approach been shown to be voodoo (that is, tying/soldering has no effect on performance except to add weight?).
WizardOfBoz is offline
Reply
Old 04-28-19 | 10:40 AM
  #6
Banned

Joined: Jun 2010
Posts: 43,586
Likes: 1,380
From: NW,Oregon Coast

Bikes: 8

If it cures his noise problem , whats the issue ?
fietsbob is offline
Reply
Old 04-28-19 | 10:47 AM
  #7
Senior Member
15 Anniversary

Joined: Feb 2007
Posts: 1,841
Likes: 548
The wheel is laterally stronger when laced correctly.
Rick is offline
Reply
Old 04-28-19 | 11:18 AM
  #8
Full Member

Joined: Jun 2015
Posts: 244
Likes: 20
Originally Posted by WizardOfBoz
Hasn't that approach been shown to be voodoo (that is, tying/soldering has no effect on performance except to add weight?).
Can't be a bad aprroice if that's how meilestien does there wheels at about six thousand bucks for a set must have some merrit
ridingfool is offline
Reply
Old 04-28-19 | 11:50 AM
  #9
WizardOfBoz's Avatar
Generally bewildered
10 Anniversary

Joined: Aug 2015
Posts: 3,038
Likes: 344
From: Eastern PA, USA

Bikes: 2014 Trek Domane 6.9, 1999 LeMond Zurich, 1978 Schwinn Superior

Originally Posted by fietsbob
If it cures his noise problem , whats the issue ?
The OP stated that the noise came from the spoke hitting the RD. My take (and I could be wrong) is that adding wire and solder to the spoke doesn't affect that issue and may exacerbate it - the soldered joint may project even more. I guess the wire job could pull the spoke out of the way slightly, though. But reading Mr. Brandts' comments it seems that he said that the tying and soldering didn't add any stiffness but it didn't take any stiffness away.. So if it didn't hit the RD it probably wouldn't hurt anything. I think that the OP's solution (to relace the rear wheel) was more effective.

I agree with Andrew that the overlap would not be needed on a front wheel with rim brakes.

Originally Posted by ridingfool
Can't be a bad aprroice if that's how meilestien does there wheels at about six thousand bucks for a set must have some merrit
Disagree. Just because some company uses 100 year old manufacturing practices that have since been pretty much proven ineffective, does NOT mean that those practices are good ones. They may be good marketing. They may attract a certain type of customer. But it does not mean that the practice has technical merit. (Also, in looking at Meilestein's website, I don't see any of their current wheels with tied/soldered spokes. But I might have missed something: its a pretty screwed up site IMHO).

I could just as easily flip your point around and say that given that Campagnolo and Shimano and Bontrager and Zipp and Cofidis and Enve don't wrap and solder their spokes,it is likely that the practice adds no value (and adds weight).

Jobst Brandt did a test:
https://www.sheldonbrown.com/brandt/tied-soldered.html
with commentary here:
https://yarchive.net/bike/tying-and-soldering.html

Last edited by WizardOfBoz; 04-28-19 at 01:24 PM.
WizardOfBoz is offline
Reply
Old 04-28-19 | 02:26 PM
  #10
Senior Member

Joined: Jun 2017
Posts: 1,111
Likes: 55
From: West Orange County, CA

Bikes: '84 Peugeot PH10LE

The spoke gets "laced" at the third cross, not the second as alluded to in the OP.
Jon
Jon T is offline
Reply
Old 04-28-19 | 05:44 PM
  #11
daviddavieboy's Avatar
Thread Starter
Senior Member
10 Anniversary

Joined: Oct 2013
Posts: 1,025
Likes: 387
From: Great White North

Bikes: I have a few

Originally Posted by Jon T
The spoke gets "laced" at the third cross, not the second as alluded to in the OP.
Jon

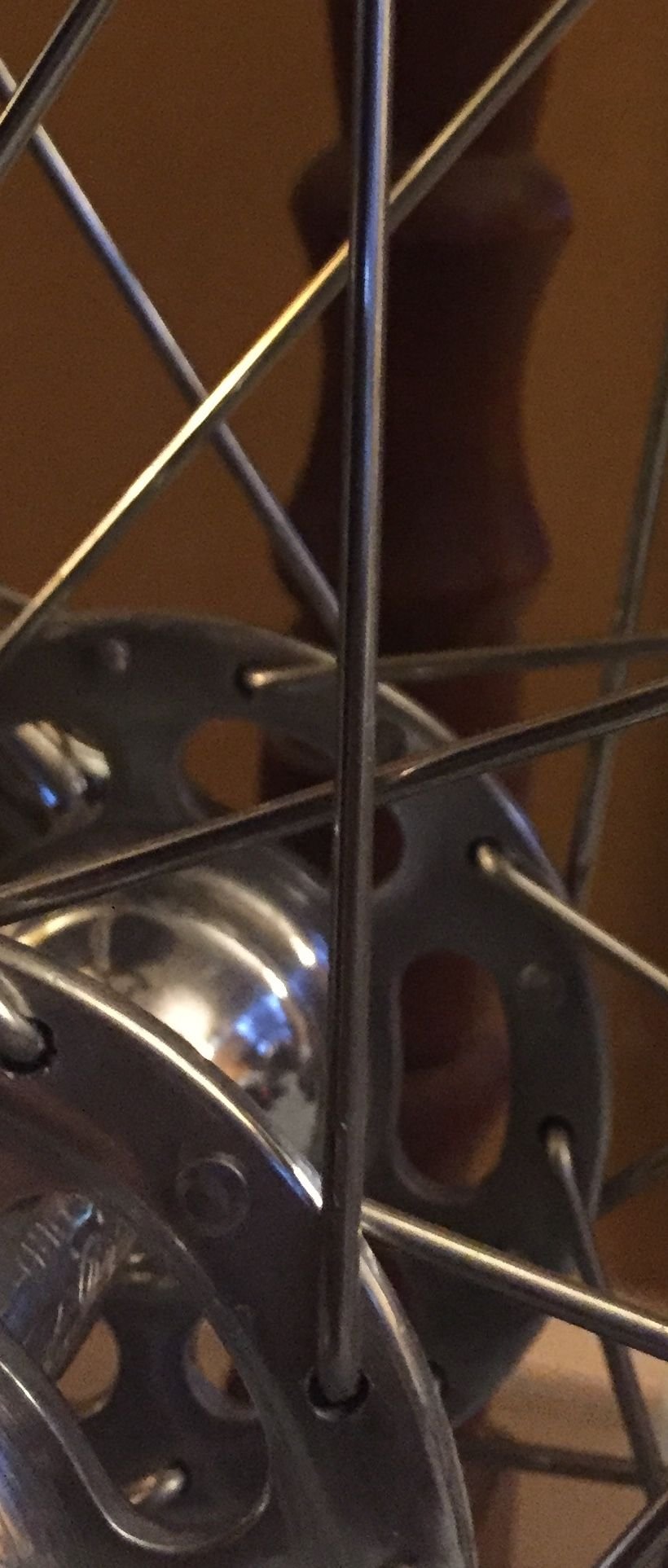

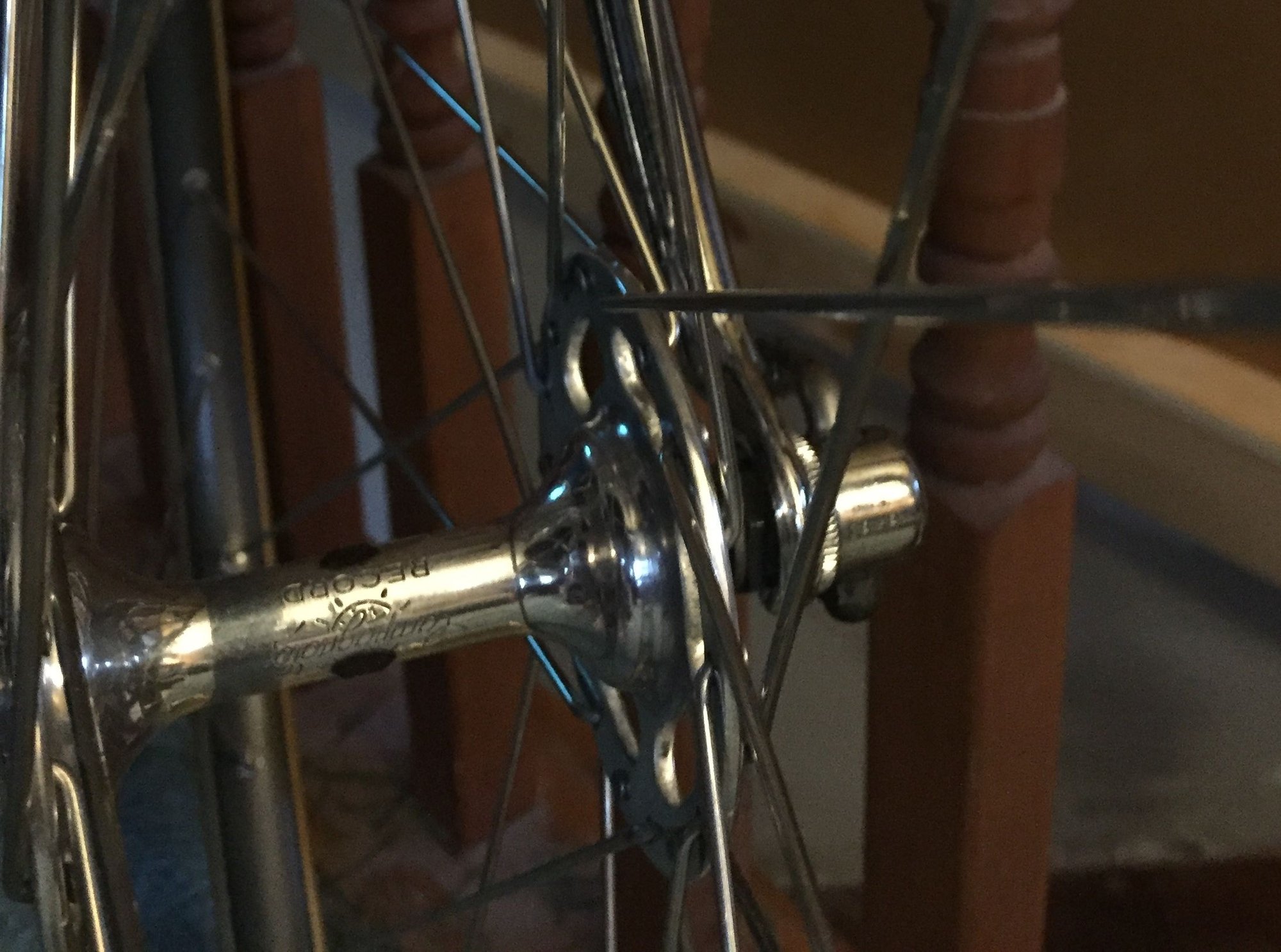

Yes as you said, on the 3rd cross. The rear wheel re laced no longer makes any noise. I will probably do the front when the tire wears out. Thanks!!

Last edited by daviddavieboy; 04-28-19 at 05:48 PM. Reason: Add picture
daviddavieboy is offline
Reply
Old 04-29-19 | 10:28 AM
  #12
Senior Member

Joined: Feb 2009
Posts: 6,660
Likes: 177
Originally Posted by ridingfool
Can't be a bad aprroice if that's how meilestien does there wheels at about six thousand bucks for a set must have some merrit
Superstition reigns.
